Energy Monitoring System:
F-MPC I/O series

Types and ratings

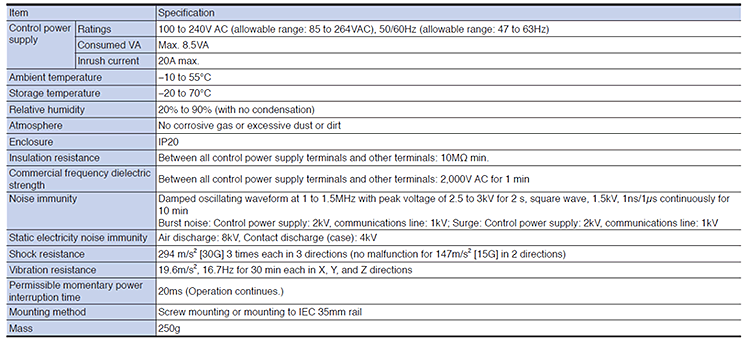

Baisc specifications

I/O Specifications

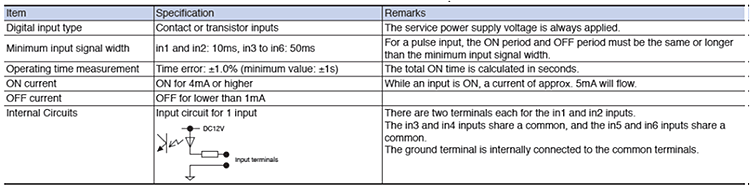

(1) DI (Digital Input)There are 6 digital inputs, and they can be used to read ON/OFF status and count pulses.
With 2 of the 6 digital inputs, pulse widths of 10 ms or longer can be counted.
With the other 4 digital inputs, pulse widths of 50 ms or longer can be counted.
ON/OFF status can also be sent via communications.
The total count values for pulses can also be sent via communications.

(2) DO (Digital Output
There are 4 digital outputs and their ON/OFF status can be controlled via communications.

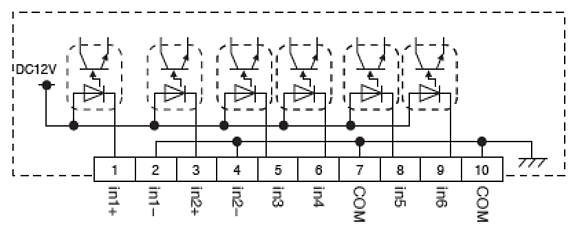

Circuit Configuration Diagram

Communications specifications
