Through design renewal, we delivers you "high quality performance and sense of security".

The full range of the contact blocks and transformer units suitable for the AR22 and DR22 series may also be fitted to the AR30 and DR30 series. Easy to add or replace name plate and etc., by front tightening nut system. Safer model with metal nut is also available.

AR/DR30 series image
UL508
CSA C22.2 No.14
TÜV: EN60947-5-1
EN60947-5-5(Emergency stop pushbutton)
CCC:GB14048.5
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Quick-replacement contact blocks and transformer units

The snap-on construction makes replacement and addition of contact blocks and transformer units very simple and straightforward.

Oil-and dust-proof operator module construction

The protection level of the AR30/DR30 operator modules conforms to IEC Standard IP65. The special seals protect the operator modules and switch mechanisms against oil, dust, and grime, thus ensuring high performance in dusty and humid environments.

Miniaturization

  • Selector switches with 1NO+1NC: 41mm deep
    Pilot lights: 34mm deep
  • The transformer now occupies far less space.

Self-cleaning contacts

All the contacts are double break type and feature self-cleaning action.
Every time the switch is operated, the contact surfaces are wiped with a sliding movement, thus ensuring high contact reliability even at low voltage and small current levels (5V, 5mA).

Metal nut

Safer model with metal nut is also available

Wiring

  • Wiring from two directions is possible.
  • Wiring in both vertical and lateral directions facilitates wiring in narrow spaces.
  • Color coding of contact blocks makes wiring easy.

1NO: Blue, 1NC: Red,
Lamp terminal and transformer unit: Black

Safety

  • A terminal cover is provided, assuring safety and security.
  • FUJI’s original Trigger Action mechanism is used in the emergency stop pushbuttons. They are suitable for emergency stop and safety. This mechanism prevents the contacts from moving until the button is pushed and locked.

Protection

  • Excellent oil-tight construction (IP65) of the operator.
  • Closure of the contact block has been improved.

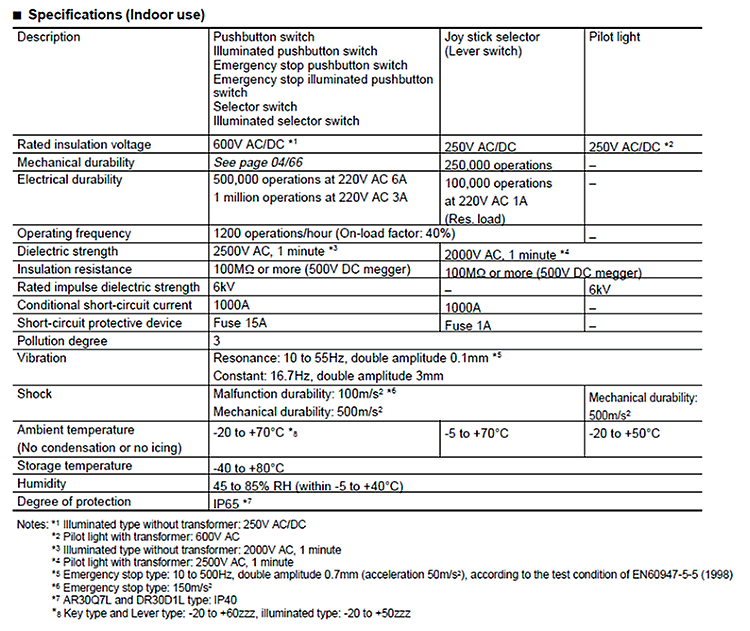

Specifications (Indoor use)

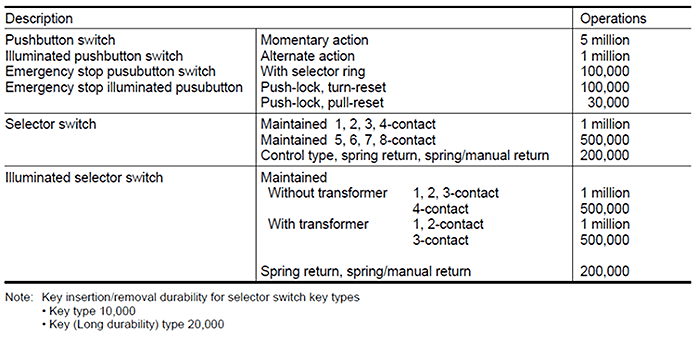

Mechanical durability

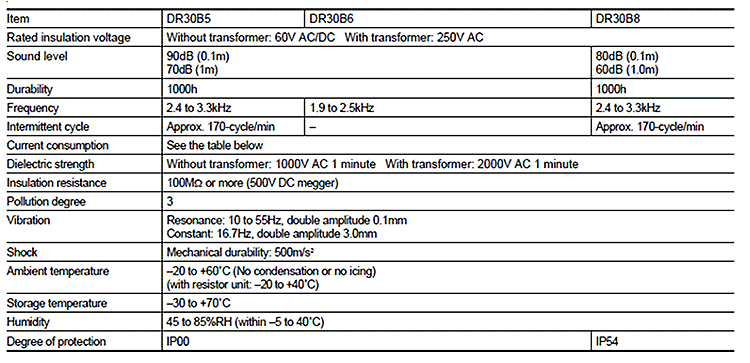

Buzzers

Illuminated pushbutton switch Extended AR30E0L, E5L

Dimensions Illuminated pushbutton switch Extended

Pushbutton switch Flush/Extended AR30F0R, F5R, FAR,FBR, E0R, E5R,EAR, EBR

Dimensions Pushbutton switch Flush/Extended

Emergency stop pushbutton switch AR30V0R, V2R

Dimensions Emergency stop pushbutton switch

Emergency stop illuminated pushbuttons AR30V0L, V2L

Dimensions Emergency stop illuminated pushbuttonss

Selector switch AR30PR, PCR

Dimensions Selector switch

Selector switch with key AR30JR, JCR, JAR

Dimensions Selector switch with key

Lever type selector switches AR30HR-2,AR30HR-3,AR30HR-1

Dimensions Lever type selector switches

Illuminated selector switch AR30PL

Dimensions Illuminated selector switch

Pilot lights DR30D0L

Dimensions Pilot lights

Joy stick selector switches AR30A0N, A5N

Dimensions Joy stick selector switches

Buzzers DR30B5, B6

Dimensions Buzzers
