This series of miniature circuit breaker is for the purpose of the protection of distribution equipment in the residential or similar facility, to protect against short circuit and overload damage.



BE1 series image
BC63 Series : IEC 60898-1, GB 10963.1, CE, CCC
BC32 and BC50 Series : IEC 61009-1, GB 16917.1, CCC
BC32 Series Miniature Circuit Breaker (1P+N) : IEC 60898-1, GB 10963.1, CCC
BC32 Series Miniature Earth Leakage Circuit Breaker (1P+N) : IEC 61009-1, GB 16917.1, CCC
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Product Composition

This series of miniature circuit breaker is for the purpose of the protection of distribution equipment in the residential or similar facility, to protect against short circuit and overload damage.

  • Among the characteristics of overload protection, there are the Curve C characteristic for the protection of lighting electrical systems having 5 to 10In instantaneous tripping characteristic, and the Curve D characteristic for the protection of ordinary electrical system wires having 10 to 14In instantaneous tripping characteristic.
  • ELCB is completed by combining a miniature circuit breaker with an earth leakage shunt trip device.
  • As functional components can be installed such as auxiliary switch, alarm switch among others, it can monitor and control the electrical system.

Specifications

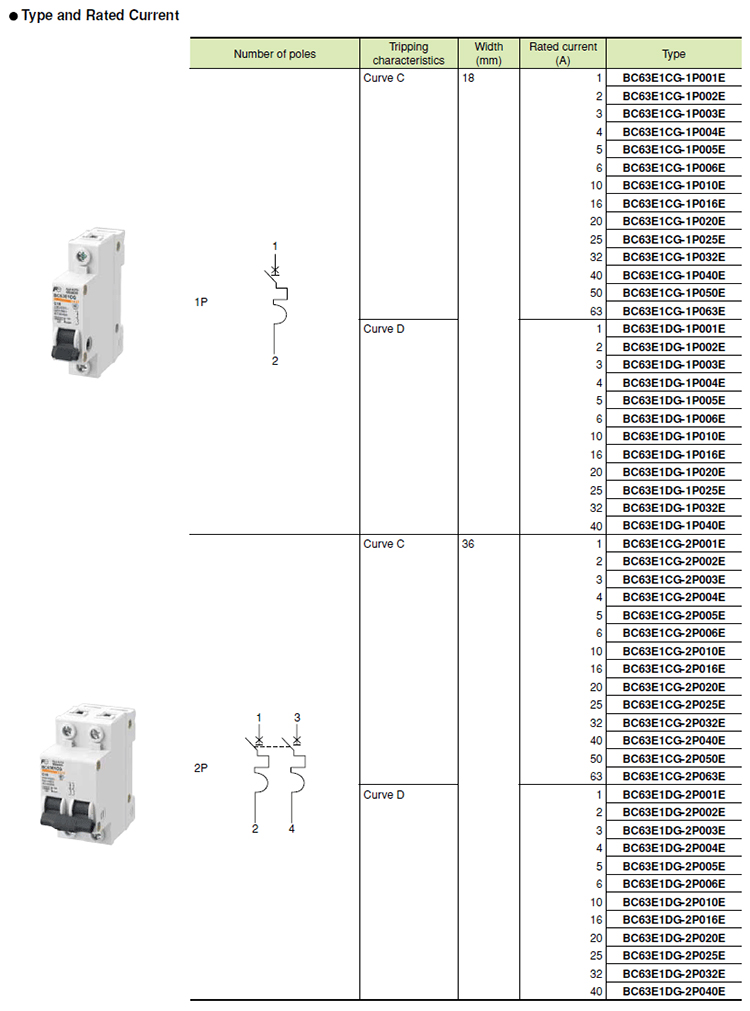

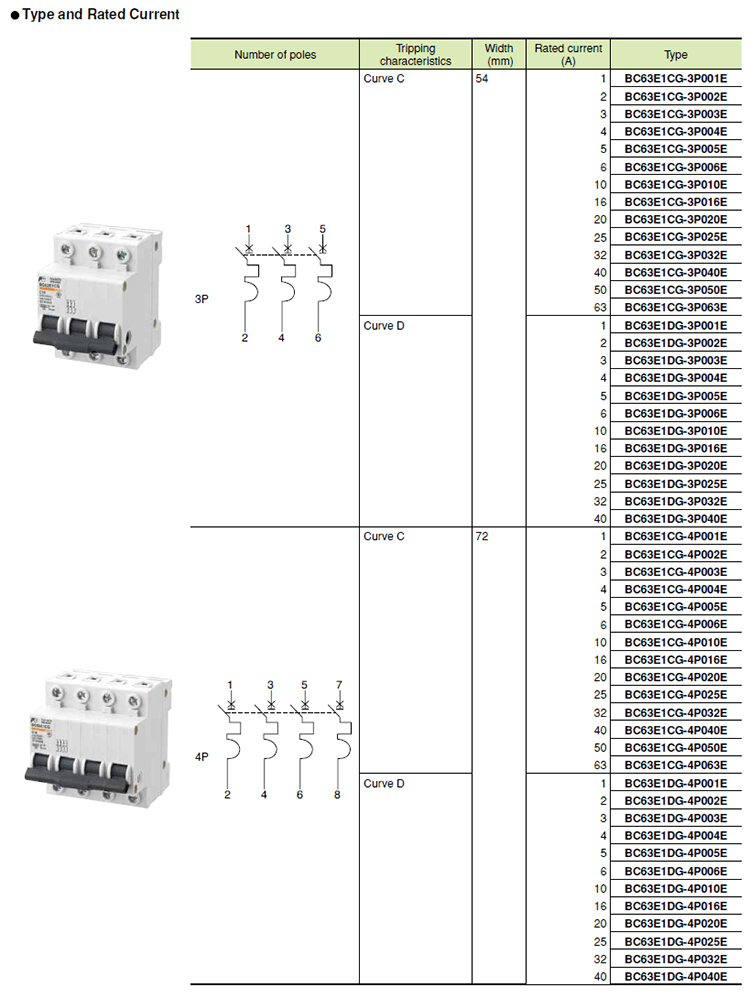

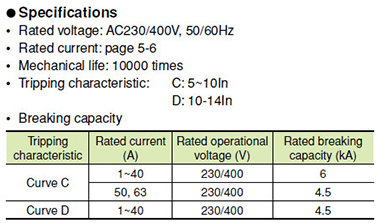

BC63 Series

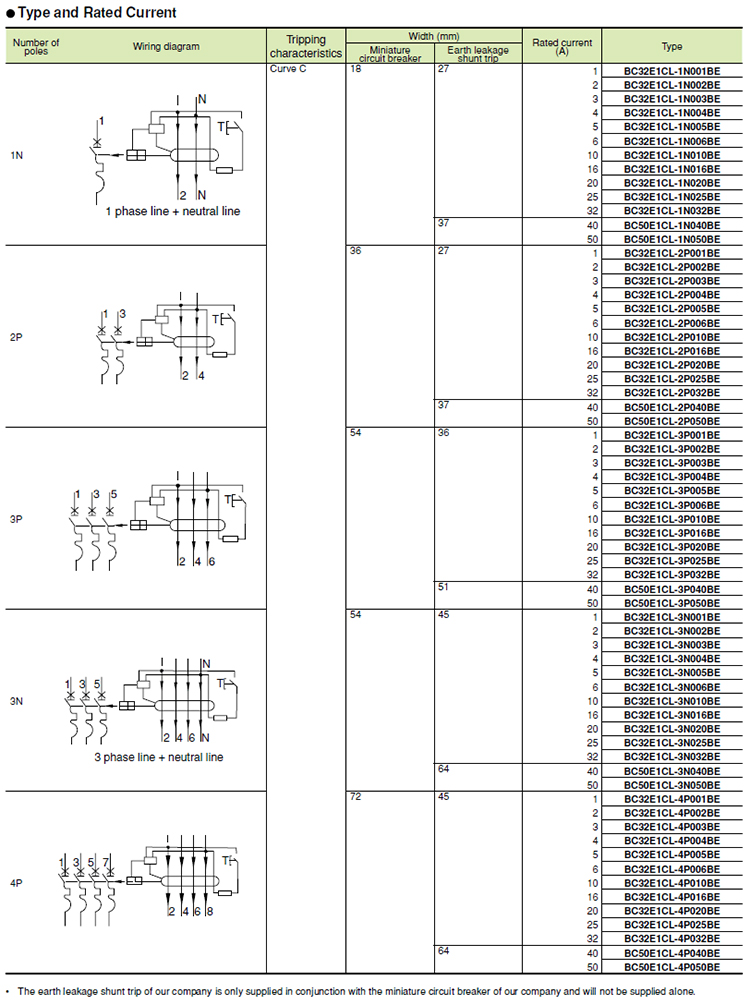

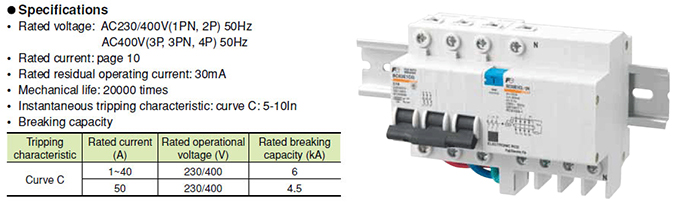

BC32 and BC50 Series

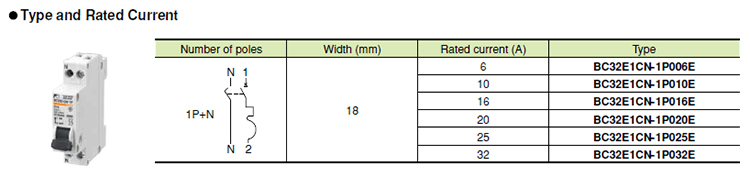

BC32 Series MCB (1P+N)

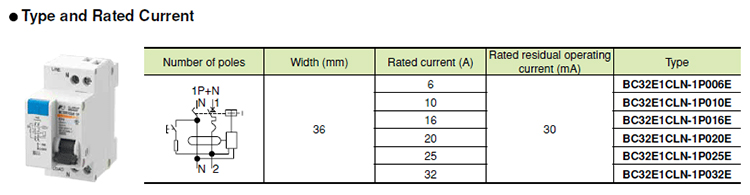

BC32 Series Miniature ELCB (1P+N)

BC63 Series MCB

Dimensions BC63 Series MCB

BC32 and BC50 Series ELCB

Dimensions BC32 and BC50 Series ELCB

BC32 Series MCB (1P+N)

Dimensions BC32 Series MCB (1P+N)

BC32 Series Miniature ELCB (1P+N)

Dimensions BC32 Series Miniature ELCB (1P+N)

BC32, BC50, BC63

Characteristic curves BC32, BC50, BC63
