Photoelectric switches with built-in amplifier:PH1C series

    Sales distributors
  • EUROPE
  • JAPAN

Explanation of regional icons

Photoelectric switches equipped with general-purpose amplifier

Transparent type, retro-reflective type, and diffuse reflection type are available for versatility.

PH series image
IEC60947-5-2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

PH series features

  • Highly compact with dimensions of 10.8 x 31 x 20mm
  • Energy-saving design
  • Covers a wide range of detection with distances of 10m(transmission type), 3 or 4m (retroreflective type), or 1m(diffuse reflection type)
  • Retroreflective type equipped with mirror surface rejection function
  • High-speed response time of 1ms
  • Light-ON/Dark-ON selectable with operation mode switch
  • Equipped with various protective functions
  • High degree of protection of IP67 (IEC) enables use even in environments where exposure to water is possible.
  • Improved alignment (±2.5°) of optical and mechanical axess implifies adjustment (transmission type, retroreflective type)
  • Environment-friendly lead-free solder used
  • Meets CE Mark requirements

Ratings and Specifications

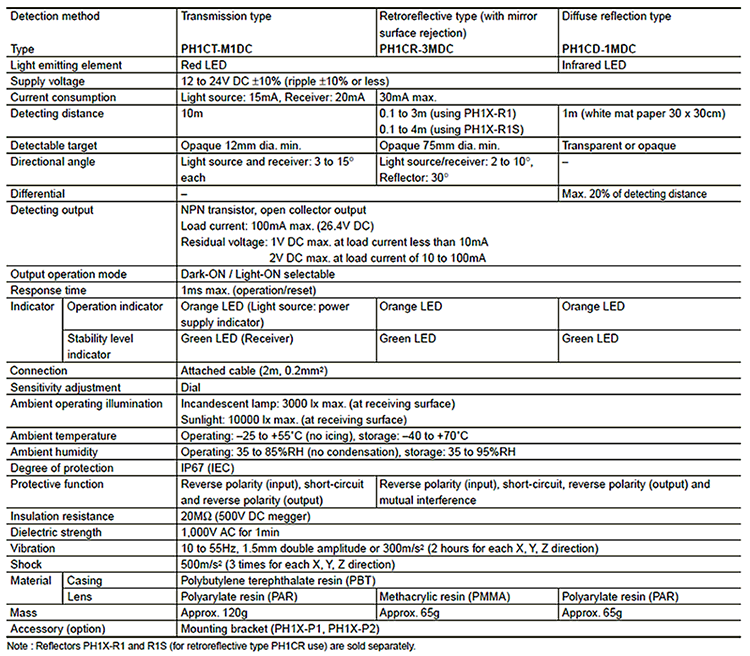

Photoelectric Switches PH series PH1CT-M1DC, PH1CR-3MDC, PH1CD-1MDC

Dimensions PH1CT-M1DC, PH1CR-3MDC, PH1CD-1MDC

Photoelectric Switches PH series Characteristic curve,
typical Receiver output-Distance PH1CT-M1DC, PH1CR-3MDC + Reflector, PH1CD-1MDC

Dimensions PH1CT-M1DC, PH1CR-3MDC + Reflector, PH1CD-1MDCe

Photoelectric Switches PH series Characteristic curve,
typical Receiver output-Distance PH1CT-M1DC, PH1CR-3MDC + Reflector, PH1CD-1MDC

WiringDiagrams PH1CT-M1DC, PH1CR-3MDC + Reflector, PH1CD-1MDC
