Miniature power relays:HH62,63,64 series

    Sales distributors
  • AMERICAS
  • EUROPE
  • ASIA/MIDDLE EAST
  • JAPAN

Explanation of regional icons

Compact and light weight power relay with 10A contact rating

Product line with 2 poles, 3 poles, and 4 poles under 10A of high capacity contact rating

HH6 series image
UL508
CSA C22.2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Design features

  • High contact rating
    Although compact and lightweight, this power relay has acontact rating of 10A. This relay is ideal for many kinds of electrical control equipment.
  • High dielectric strength
    Though very compact, this relay has a dielectric strength of 2,000V AC for 1 minute.
  • Easy socket mounting
    The input and output terminal arrangement makes the relay easy to mount on a control panel and easy to maintain and checks.
  • Easy-to-identify coil voltages
    Different coil voltages are shown by different insulating tape colors. The coil voltages can be seen at a glance.

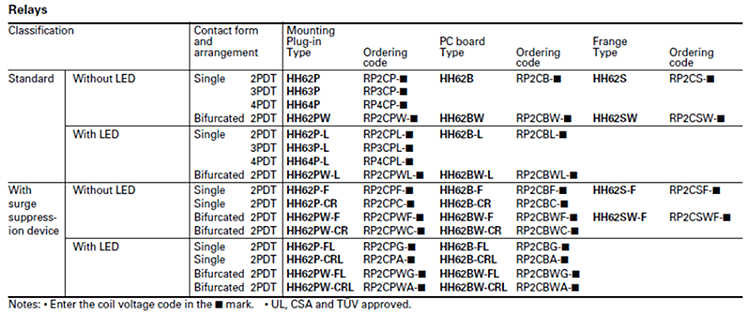

Relays

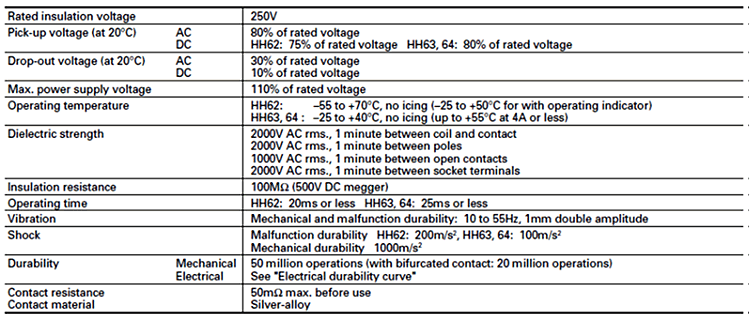

Specifications

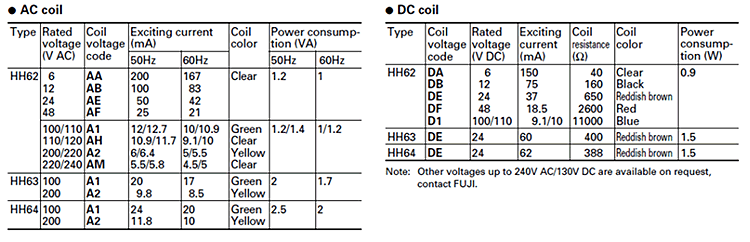

Coil characteristics

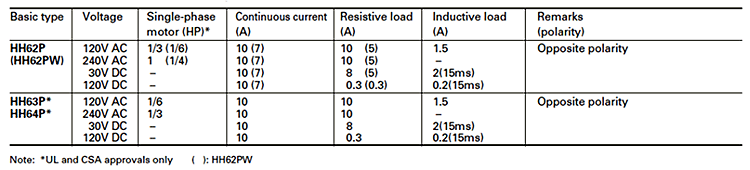

Contact Ratings (UL and CSA)

HH6 series/Relays HH62P, HH63P, HH64P

Dimensions HH62P, HH63P, HH64P

HH6 series/Relays HH62B, HH62S

Dimensions HH62B, HH62S

HH6 series/standard HH62, 63P, 64P

WiringDiagrams HH62, 63P, 64P
