Proximity switches, Magnetically operated reed switches slot type:PM1U series

    Sales distributors
  • JAPAN

Explanation of regional icons

Slot type switches ideal for conveyer application such as elevators or multi-level parking lifts.

Due to its stable characteristic ensured by the 35mm of slot insertion depth.
This is the optimum choice for locating ferromagnetic-material plate passing through the switch slot.

PM1U series image
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions

PE-X3D series

  • Stable switch operation is ensured by inserting the object for detection 35mm into the switch slot.
    Ideal for detecting the position of a ferromagnetic-material plate passing in the switch slot.
  • Magnetically operated switch using a sealed contact is never affected by electrical noise, ensuring highly reliable detection.
  • The built-in permanent magnet enables switching of both AC and DC signals without using a power supply.
  • Models with an output indicator are also available.
  • Our advanced design assures superior environmental protection complying with IP67 (IEC).

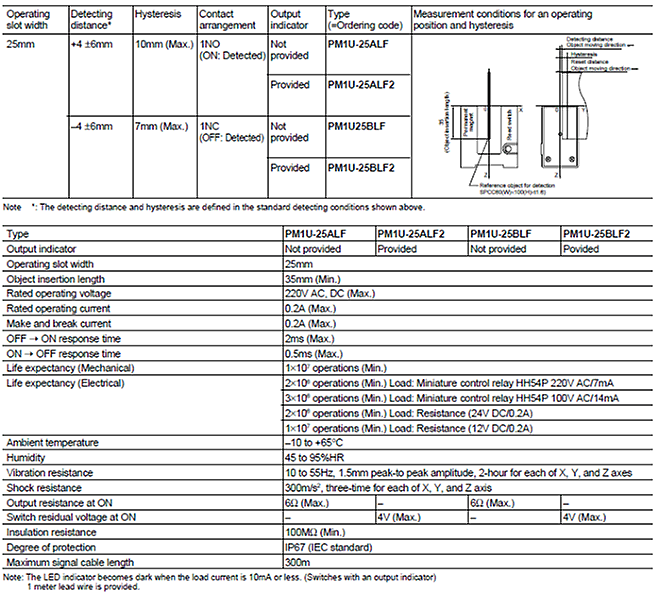

Specifications

PM1U series PM1U

Dimensions PM1U

PM1U series PM1U

WiringDiagrams PM1U
