General purpose relays:HH22,23,24 series

    Sales distributors
  • AMERICAS
  • EUROPE
  • ASIA/MIDDLE EAST
  • JAPAN

Explanation of regional icons

Control relay with wide selection of applied models.

These high quality general purpose relays are suitable for multi-pole switching and, although economically priced, are dependable and sturdily constructed.
They are available with coil voltages 24–130V DC and 24–240V AC with continuous current ratings of either 4 or 6 Amps.
Standard contact buttons are silver.
Contact arrangements are 2PDT, 3PDT and SPDT+2NO+1NC.
Relays are enclosed in a polycarbonate dust cover with octal type 8 or 11 pin plugs.

HH2 series image
UL 508
CSA C22.2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Design features

  • Various product line, for example MBB contact type and others.
  • Because of the attached operating status indicator, it is easy to check relays' operation.
  • Globally accepted models are available(UL, CSA and Lloyd's).
  • Easy to tell coil voltage by coloring of decorative paper

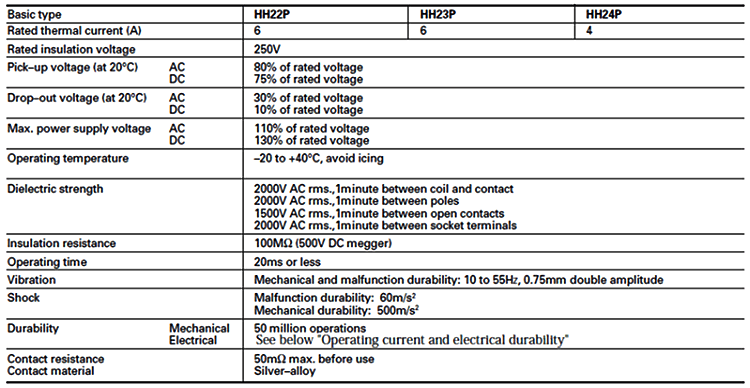

Specifications

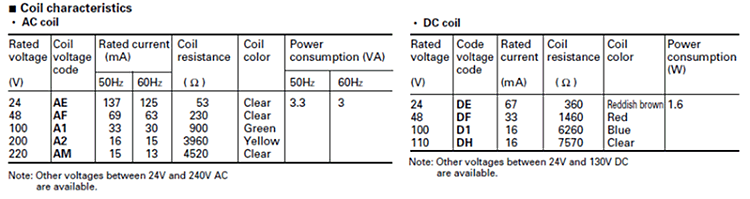

Coil characteristics

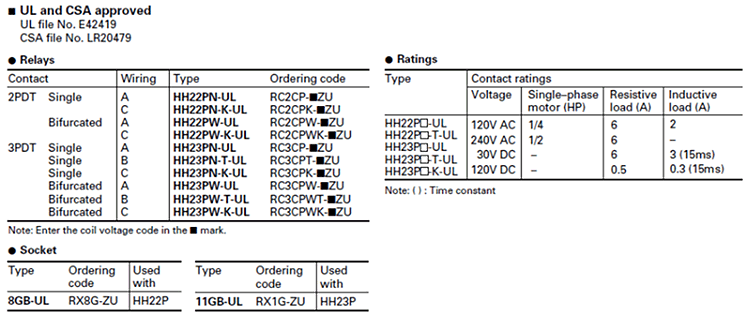

UL and CSA approved

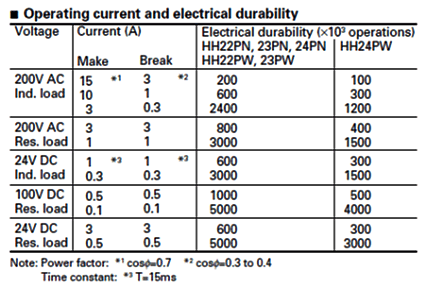

Operating current and electrical durability

HH2 series Relays, Hold-down spring FX1B, FX1C

Dimensions Relays, / Hold-down spring FX1B, FX1C

HH2 series Standard HH22PN, HH22PW, HH23PN, HH23PW,HH24PN, HH24PW, HH22PN-T,
HH22PW-T, HH23PN-T, HH23PW-T, HH23PN-K, HH23PW-K

WiringDiagrams HH22PN, HH22PW, HH23PN, HH23PW,HH24PN, HH24PW, HH22PN-T, HH22PW-T, HH23PN-T, HH23PW-T, HH23PN-K, HH23PW-K

HH2 series With operation indicator HH22PN-L, HH22PW-L, HH22PN-TL, HH22PW-TL,
HH23PN-L, HH23PW-L, HH23PN-TL, HH23PW-TL

WiringDiagramsHH22PN-L, HH22PW-L, HH22PN-TL, HH22PW-TL, HH23PN-L, HH23PW-L, HH23PN-TL, HH23PW-TL

HH2 series With surge supression device(DC coil) HH22PN-F, HH22PW-F, HH22PN-TF,
HH22PW-TF, HH23PN-F, HH23PW-F, HH23PN-TF, HH23PW-TF

WiringDiagrams HH22PN-F, HH22PW-F, HH22PN-TF, HH22PW-TF, HH23PN-F, HH23PW-F, HH23PN-TF, HH23PW-TF

HH2 series With surge supression device(AC coil) HH22PN-F, HH22PW-F, HH22PN-TF,
HH22PW-TF, HH23PN-F, HH23PW-F, HH23PN-TF, HH23PW-TF

WiringDiagrams HH22PN-F, HH22PW-F, HH22PN-TF, HH22PW-TF, HH23PN-F, HH23PW-F, HH23PN-TF, HH23PW-TF
