TWIN Breakers have progressed into an entirely new arena.

Based on the Twin Breaker Series, Fuji Electric has expanded the range of products to meet with international standards for global markets, and always advanced the innovative development of fundamental technologies in response to the market demand, and developed the G-TWIN Series of MCCBs and ELCBs.

G-TWIN standard series image
IEC 60947-2,
EN 60947-2 (CE marking),
GB 14048.2 (CCC),
JIS C 8201-2-1,
JIS C 8201-2-2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature

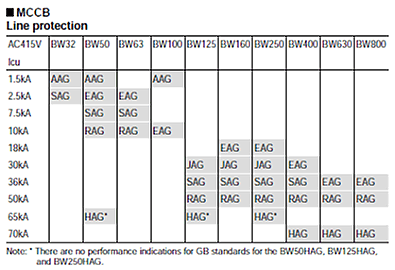

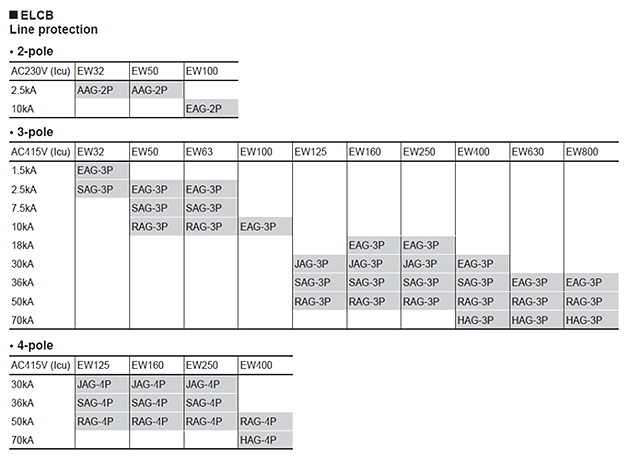

  • Types and ratings
  • Dimentions

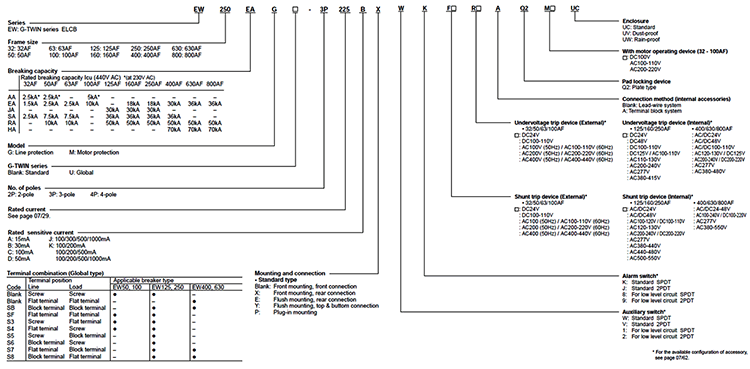

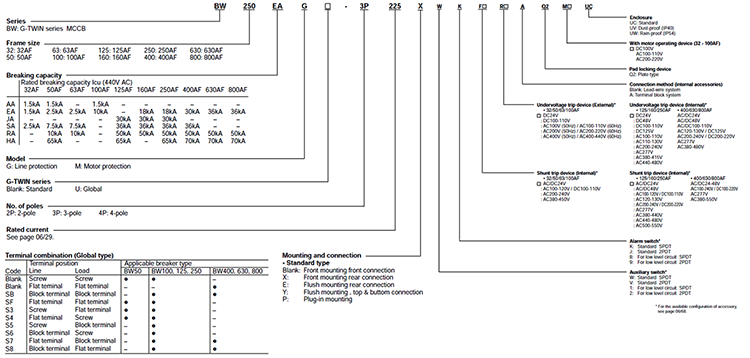

  • Type number nomenclature

Design features

Molded Case Circuit Breaker

  • Complies with major international standards and certifications.(IEC,JIS,CE,TÜV,CCC)

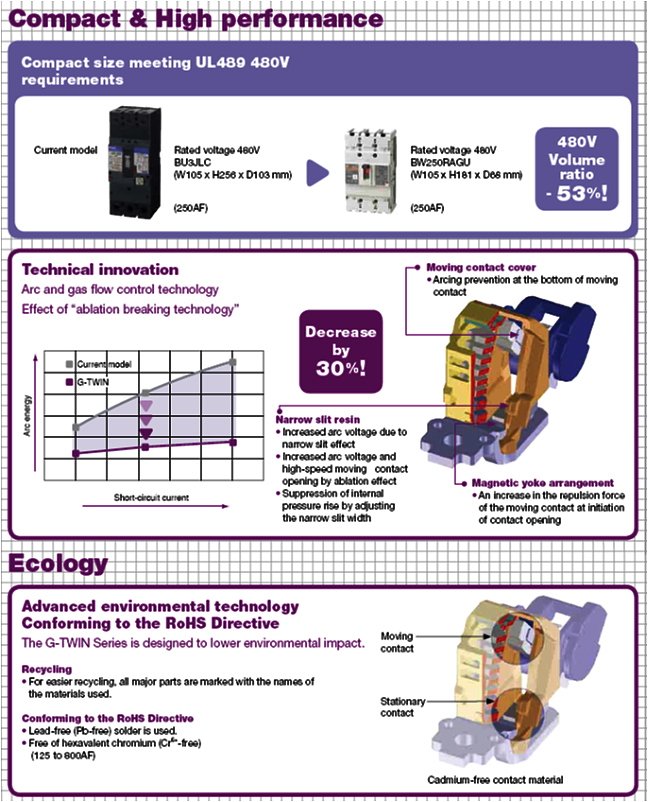

  • High performance and compact design breaker by FUJI's ingenious ablation breaking technology.

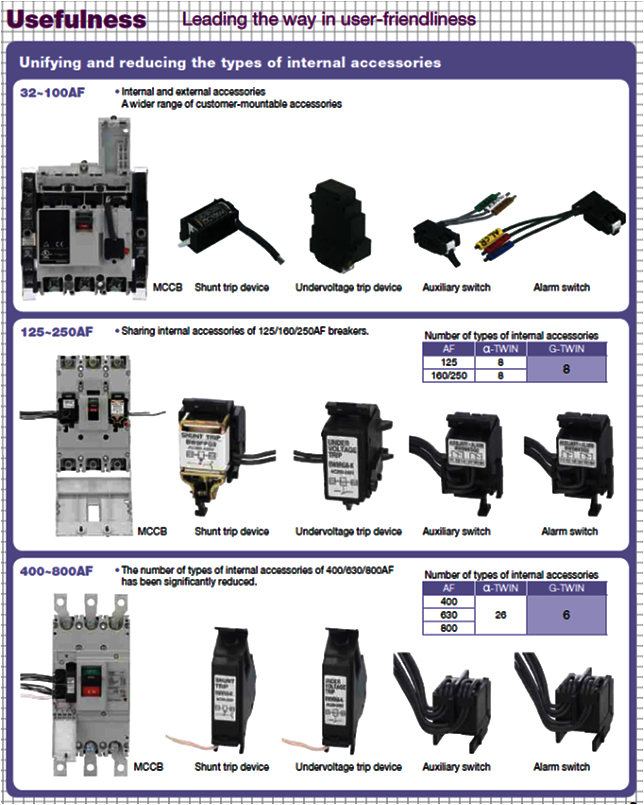

  • Providing better user friendliness by the standardization of internal accessory parts.(32/50/63/100AF, 125/250AF,400/630/800AF)
  • Material description of major components, compliance with RoHS Directive, and lower environmental impact by Cadmium-free contact. (subject to some exceptions.)

Earth Leakage Circuit Breaker

  • Complies with the major international standards and certifications.(IEC,JIS,CE,TÜV,CCC)
  • High performance and compact design breaker by FUJI's ingenious ablation breaking technology.
  • Pursuit of user friendliness by standardization of internal accessory parts. (32/50/63/100AF, 125/250AF,400/630/800AF)
  • High workability can be obtained since the removal of ELCB wiring is not required at dielectric test during inspection.
  • Contributes to safety and compactness by furnishing new three-phase power supply circuit acts in the event of ground fault even when the loss of one phase occurs in a three-phase system (Required in the revised IEC60947-2).
  • Equipped with the newly developed leakage detection circuit, noise surge performance improves even better.
  • Material description of major components, compliance with RoHS Directive, and lower environmental impact by Cadmium-free contact. (be subject to some exceptions.)

G-TWIN Standard Series Line protection

G-TWIN standard series line protection
BW32□-2P, BW50□-2P,BW32□-3P, BW50□-3P,BW63□-2P,EW32□-2P, EW50□-2P,EW32□-3P, EW50□-3P, EW63□-3P (Front mounting, front connection)

Dimensions BW32□-2P, BW50□-2P,BW32□-3P, BW50□-3P,BW63□-2P,EW32□-2P, EW50□-2P,EW32□-3P, EW50□-3P, EW63□-3P
Dimensions BW32□-2P, BW50□-2P,BW32□-3P, BW50□-3P,BW63□-2P,EW32□-2P, EW50□-2P,EW32□-3P, EW50□-3P, EW63□-3P

G-TWIN standard series line protection BW32, 50, 63, 100

Characteristic curves BW32, 50, 63, 100

G-TWIN standard series line protection EW32, 50, 63, 100

Characteristic curves and Earth leakage tripping EW32, 50, 63, 100
