Standard type magnetic contactor, magnetic starter:
SC and SW series

    Sales distributors
  • AMERICAS
  • EUROPE
  • ASIA/MIDDLE EAST
  • CHINA
  • JAPAN

Explanation of regional icons

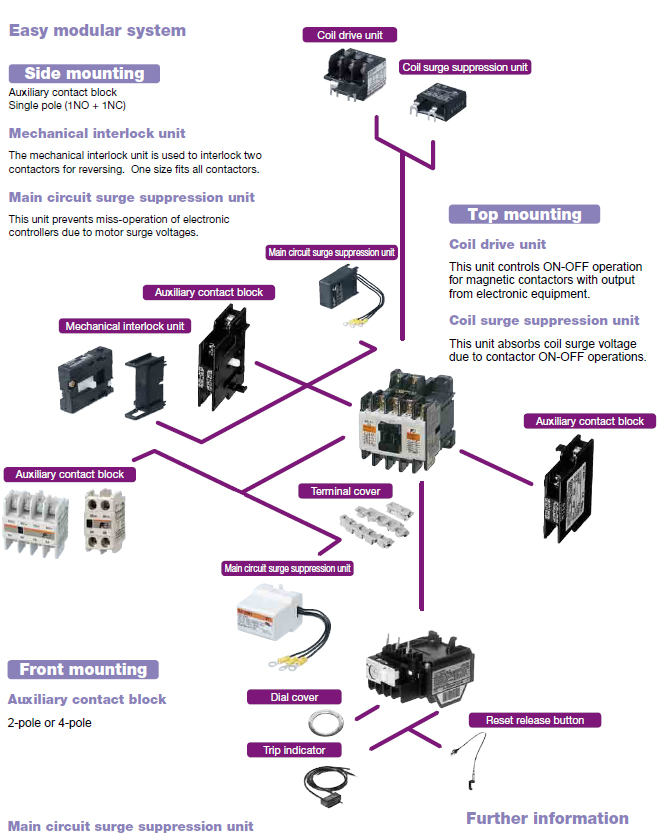

The SC series is a range of long service-life and high-performance contactors. SC-03 to SC-N3 smallframe contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks, coil surge suppressors, and operation counters.
Field modifications are quick and easy.

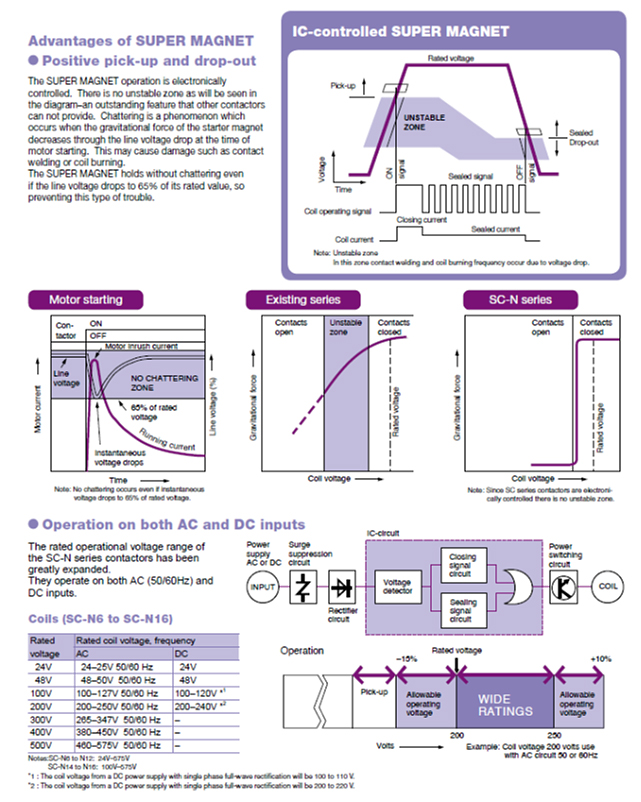

Type SC-N6 and above contactors come with an IC-controlled SUPER MAGNET coil, which operates from both AC and DC sources, to prevent burnt coils and contact chattering by voltage fluctuation.

Small frame contactors with new functions join the SC series. The SC line up, based on high technology, now extends from the SC-03 to the SC-N16. The SC series contactors have such options as additional auxiliary contact blocks and operation counter unit with snap-on fittings, and coil surge suppressors. Quick and easy modification on site. FUJI SC series (SC-N6 to N16) contactors have been developed and manufactured with our most advanced electronic technologies.
They employ an electronically-controlled SUPER MAGNET provided with a built-in IC, which enhances their performance and reliability.
The SUPER MAGNET is based on an “AC-input, DC-operated concept“, thus allowing the coil to be energized by both AC and DC input. Moreover, once closed, sealed current is controlled by switching circuit. perimts a great reduction in power consumption – a cost-effective feature.
The SC-N1 to SC-N5A do not have the SUPER MAGNET.
These contactors feature compact size, arc extinguishing mechanisms with a high breaking efficiency, low power consumption, easy operation, and ratings up to 660 volts.
SC and SW series image

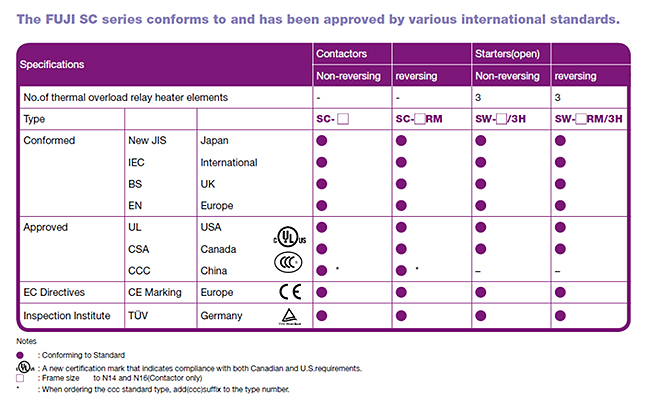

JIS C 8201-4-1
