Inductive proximity switches Flat type: PE-X series "PE-X3D, PE-X15D"

    Sales distributors
  • EUROPE
  • JAPAN

Explanation of regional icons

PE-X3D series
•Only 7mm thick
•Easy-to-mount thin inductive type proximity switches.

PE-X15D series
•Square-flat type

PE-X3D series
Operating system:DC supply/3-wire system
Operating distance: 3mm

PE-X15D series
•DC supply/3-wire, 12/24V DC
•Operating distance: 15mm

PE-X3D series image / PE-X15D series image
IEC 60947-5-2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions

PE-X3D series

  • A mere 7mm height
  • Only two screws are needed to affix each switch, eliminating the need for exclusive mounting brackets
  • Incorporates a stable operating level indicator
  • Equipped with surge suppression circuits and protection circuits against reverse polarity

PE-X15D series

  • Degree of protection meets the requirements of IEC IP66, thus permitting operations in unfavorable environment.
  • Only two screws are needed to affix each switch, eliminating the need for exclusive mounting brackets.
  • Incorporates surge suppression circuits and protection circuits against reverse polarity and short-circuits.

Specifications

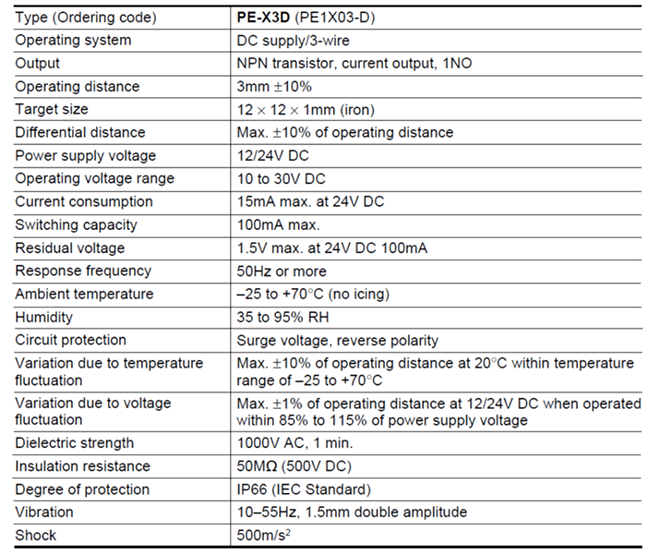

PE-X series PE-X3D

Dimensions PE-X3D

PE-X series PE-X3D

WiringDiagrams PE-X3D

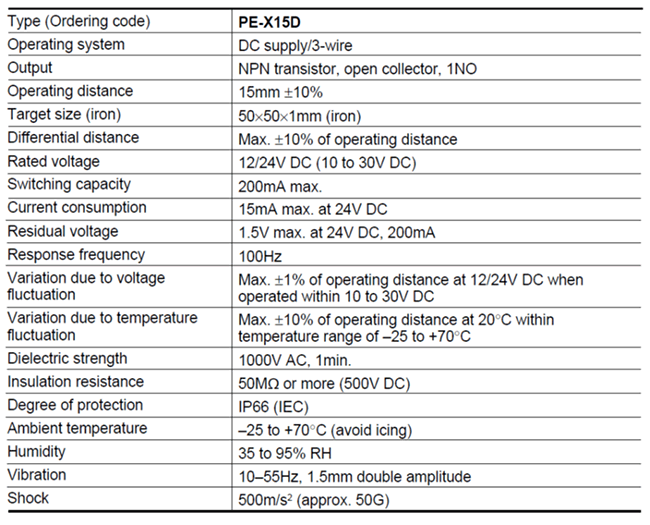

PE-X series PE-X15D

Dimensions PE-X15D

PE-X series PE-X15D

WiringDiagrams PE-X15D
