A proximity switch suitable for detecting open-and-close of doors

An economical proximity switch with a permanent-magnet. Used in the combination of magnetic elements and contact elements. (The integrated model-AER type is also available)

AE, PM series image
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions

AE series AES type features

  • Power source is not required. AES402 is small size, solderingterminal. AES502 is provided with lead wire.
  • Epoxy resin molded, shock-resistant.
  • Make and break capacity: Max. 50VA, 50W (AES402) Max. 50VA, 50W (AES502)
  • Operating voltage: Max. 220V AC, DC (AES402) Max. 220V AC, DC (AES502)

AE series AES type features

  • Sensing magnetic element and reed switch element are integrated in an epoxy molded housing.
  • Power source is not required.
  • Travelling direction of the metal object is not limited.
  • Make and break capacity: Max. 50VA AC, 50W DC
  • Operating voltage: Max. 220V AC, DC
  • Water- and dust-tight

PM series features

  • Power source not required
  • Comprises sensing magnetic elementand reed switch
  • Resin molded construction
  • Water -and dust-tight, shock-resistant
  • Breaking capacity: 0.5Amps at 220VAC
  • Operating distance is longer than oscillating type.
  • Economically priced
  • 1 meter color-coded lead wires

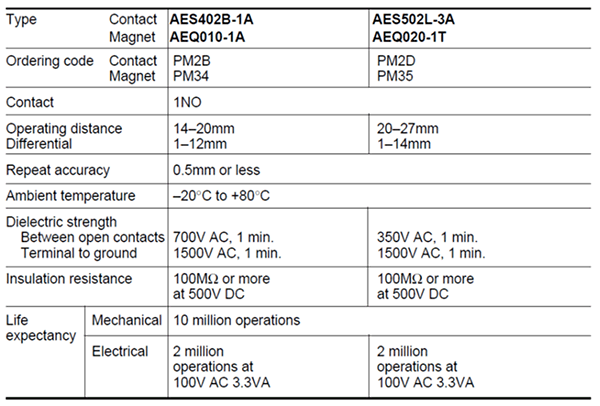

Specifications (AE series AES type)

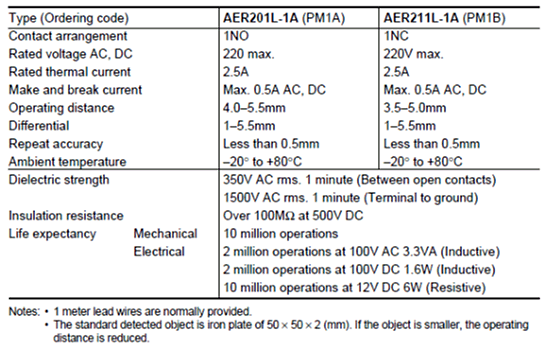

Specifications (AE series AER type)

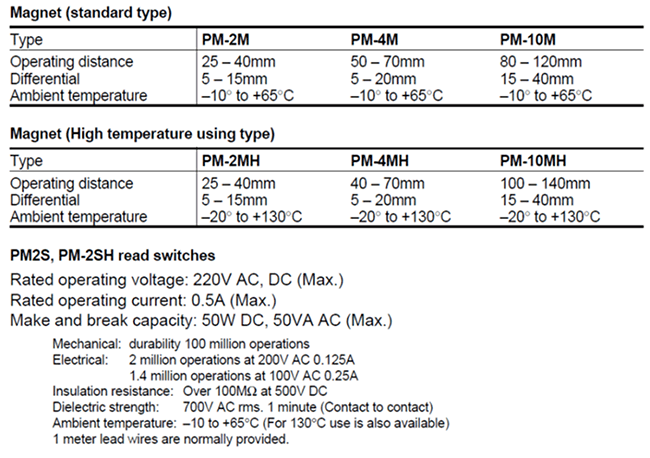

Specifications (PM series)

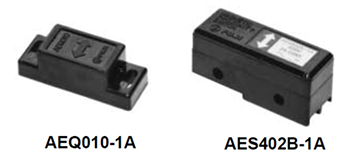

Proximity switch AE, PM series AES type, AES402B-1A, AEQ010-1A, AES502L-3A, AEQ020-1T

Dimensions AES402B-1A, AEQ010-1A, AES502L-3A, AEQ020-1T

Proximity switch AE, PM series AES type, AES402B-1A, AES502L-3A,

WiringDiagrams AES402B-1A, AES502L-3A,

Proximity switch AE, PM series AER type

Dimensions AER type

Proximity switch AE, PM series AER type

WiringDiagrams AER type

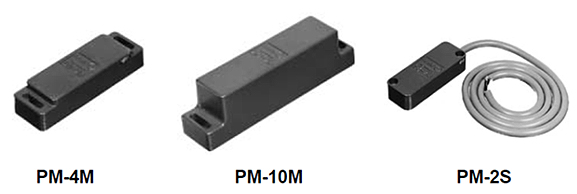

Proximity switch AE, PM series, PM-2S, PM-2SH, PM-2M, PM-2MH, PM-4M, PM-4MH, PM-10M, PM-10MH

Dimensions PM series PM-2S, PM-2SH, PM-2M, PM-2MH, PM-4M, PM-4MH, PM-10M, PM-10MH
