The ability to configure combination starters for compact, reliable motor protection by combining a manual motor starter and a magnetic contactor.

  • The combination starter protects the motor from short-circuitand overcurrent accidents in the three-phase motor circuit within a range between 15kW at 240V AC and 22kW at 415VAC, up to a current level of 50A.
  • The manual motor starter provides overload, phase-loss, and short-circuit protections for the motor circuit, and incorporates a dial for flexible adjustment to match the total load current of the motor.
  • The magnetic contactor allows remote ON/OFF operation of the motor circuit with high frequency, and features a electrical durability of one million operations.
  • The manual motor starter and magnetic contactor are connected via link module and mounted to a base plate.
Manual motor starter DUO series image
IEC 60947-1,
60947-2,
60947-4-1,
UL 508,
CSA C22.2 No.14
TUV
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Design features

Manual motor starter DUO series features image
  • Eight types available in two different frame sizes-32AF for the 45mm width and 63AF for the 55mm width
  • A wide motor capacity range up to 30kW (400/415V AC, 63A)
  • High breaking capacity Standard breaking capacity: 25, 50, 100kA 400V AC
    High breaking capacity: 50, 100kA 400V AC
  • Adjustable thermal-magnetic trip types
    32AF: BM3RSB and BM3RHB
    63AF: BM3VSB and BM3VHB
  • Instantaneous trip types
    32AF: BM3RSBK and BM3RHBK
    63AF: BM3VSBK and BM3VHBK
  • Common accessories to reduce inventory
  • Short-circuit protective coordination
    IEC 60947-4-1 Type1, 2
  • Standards IEC 60947-1, 60947-2, 60947-4-1, UL 508,CSA C22.2 No.14
  • Ecological design
    Recyclable thermoplastic resin used in plastic parts
    Indication of materials used
    Cadmium-free contacts
  • Both rocker and rotary handle
  • ON/OFF and trip state indication for all frames

Types and ratings (Connecting module)

Applicable
MMS
Applicable Magnetic Contactor Magnetic Contactor Coil Type Mass[g]
BM3RSB
BM3RHB
SK06A, 09A, 12A AC BZ0LRK12AA 25
SK06G, 09G, 12G,SK06L, 09L, 12L DC
SC-E02, E03, E04, E05 AC BZ0LRE22AA 25
SC-E02/G, E03/G, E04/G, E05/G DC BZ0LRE22GA 35
SC-E1 AC BZ0LRE32AA 45
SC-E1/G DC BZ0LRE32GA 60
BM3RSR
BM3RHR
SK06A, 09A, 12A AC BZ0LRK12AA 25
SK06G, 09G, 12G,SK06L, 09L, 12L DC
SC-E02P,E03P,E04P,E05P AC BZ0LRE22AA 25
SC-E02P/G,E03P/G,E04P/G,E05P/G DC BZ0LRE22GA 35
SC-E1P AC BZ0LRP32AA 45
SC-E1P/G DC BZ0LRP32GA 60
BM3V SC-E1, E2, E2S AC BZ0LVE51AA 45
SC-E1/G, E2/G, E2S/G DC BZ0LVE51GA 60
SC-E3 AC BZ0LVE65AA 65
SC-E3/G DC BZ0LVE65GA 80

Types and ratings (Base plate)

Applicable
MMS
Applicable Magnetic Contactor Magnetic Contactor Coil Type Mass [g]
BM3RSB
BM3RHB
SK06A, 09A, 12A AC (BZ0BPRE22A) 100
SK06G, 09G, 12G,SK06L, 09L, 12L DC
SC-E02, E03, E04, E05 AC BZ0BPRE22A 100
SC-E02/G, E03/G, E04/G, E05/G DC
SC-E1 AC BZ0BPRE32A 160
SC-E1/G DC
BM3RSR
BM3RHR
SK06A, 09A, 12A AC (BZ0BPRE22A) 100
SK06G, 09G, 12G,SK06L, 09L, 12L DC
SC-E02P,E03P,E04P,E05P AC (BZ0BPRE22A)※2 100
SC-E02P/G,E03P/G,E04P/G,E05P/G DC
SC-E1P AC BZ0BPRE32A 160
SC-E1P/G DC
BM3V SC-E1, E2, E2S AC BZ0BPVE51A 160
SC-E1/G, E2/G, E2S/G DC
SC-E3 AC BZ0BPVE65A 195
SC-E3/G DC

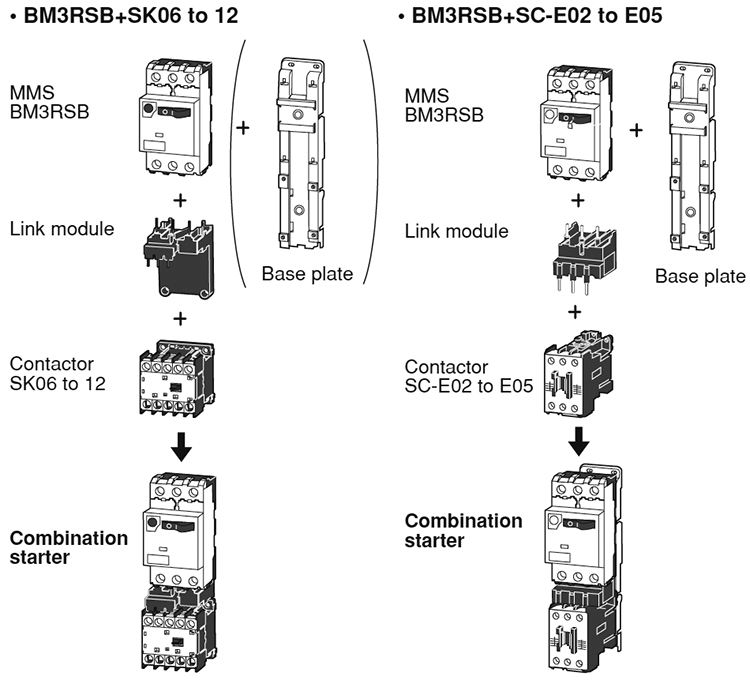

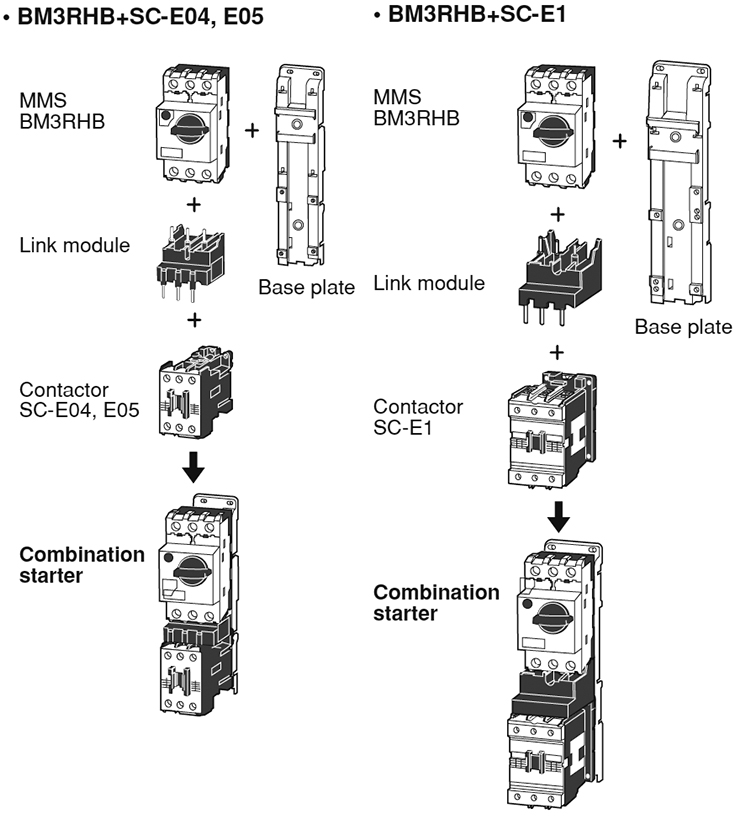

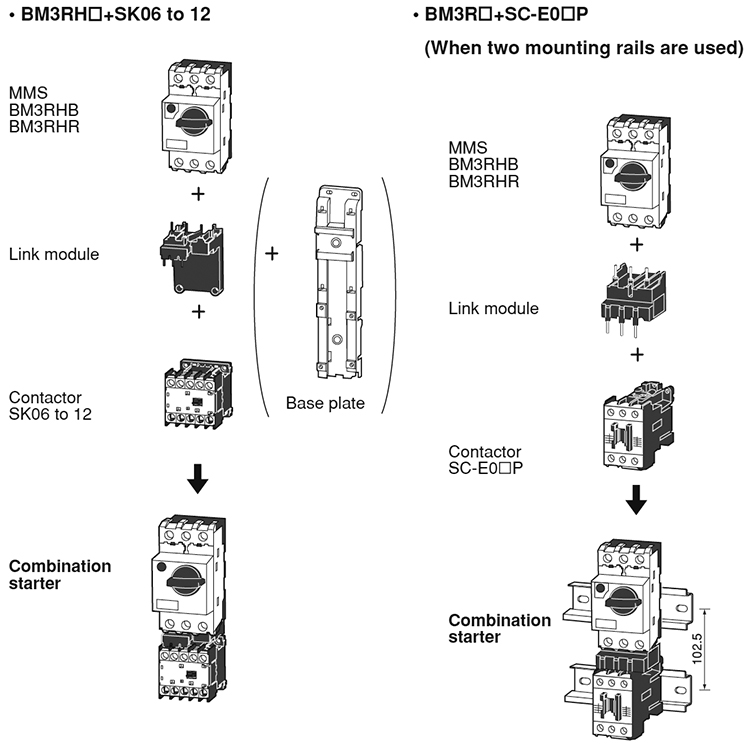

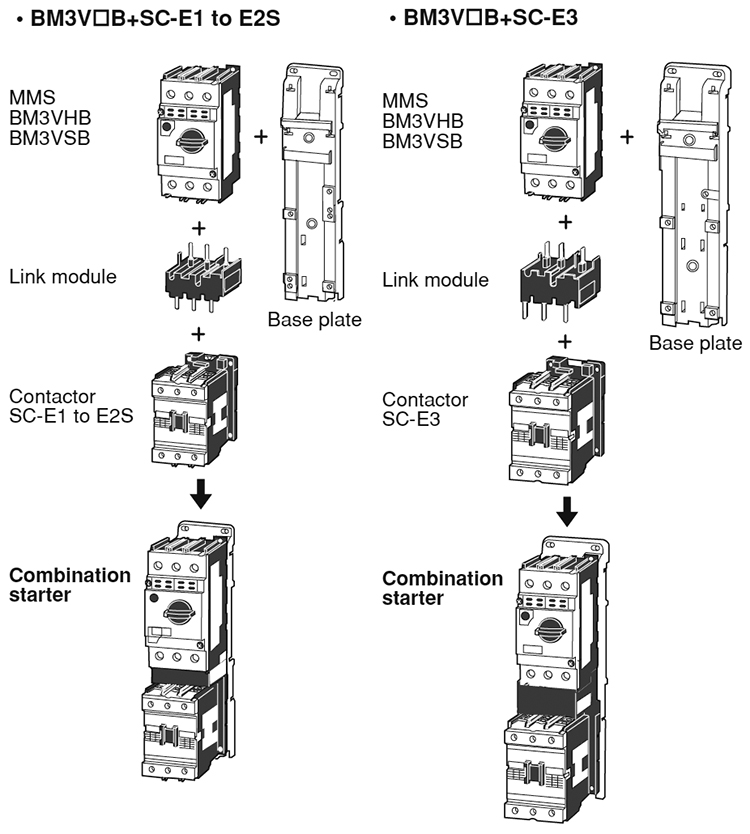

Combination starter configurations

Combination starter configurations image

Combination starter configurations

Combination starter configurations image

Combination starter configurations

Combination starter configurations image

Combination starter configurations

Combination starter configurations image

DUO series Combination Starters, BM3RS□ + SK□

Dimensions BM3RS□ + SK□

DUO series Combination Starters, BM3RH□ + SK□

Dimensions BM3RH□ + SK□

DUO series Combination Starters, BM3RS□ + SC-E02 to E05

Dimensions BM3RS□ + SK□

DUO series Combination Starters, BM3RS□+SC-E1

Dimensions BM3RS□+SC-E1

DUO series Combination Starters, BM3RH□+SC-E02 to E05

Dimensions BM3RH□+SC-E02 to E5

DUO series Combination Starters, BM3RH□+SC-E1

Dimensions BM3RH□+SC-E1

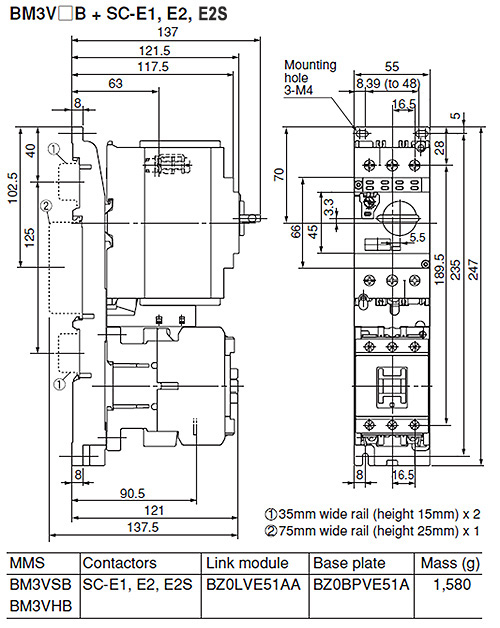

DUO series Combination Starters, BM3V□B+SC-E1,E2,E2S

Dimensions BM3V□B+SC-E1,E2,E3

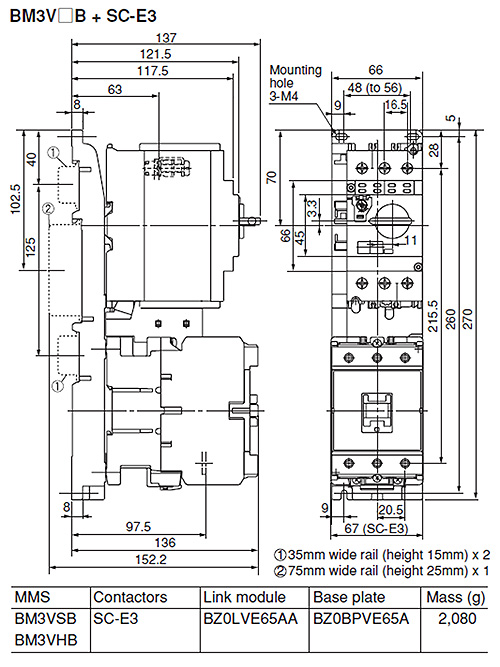

DUO series Combination Starters, BM3V□B+SC-E3

Dimensions BM3V□B+SC-E3
