By adopting the release arm system, ingenious super-effortless mounting is implemented, with consideration of work efficiency.

The AR22 now uses a release arm with a wedge mechanism developed by FujiElectric FA. This enables you to mount or remove the operator and contact block without using any tools. When fitting the switch to a panel, you can ignore the panel thickness. You have only to secure the

operator with a locking nut from behind the panel without any need for adjustment.

AR22/DR22 series  images
UL508
CSA C22.2 No.14
TÜV: EN60947-5-1
EN60947-5-5(Emergency stop pushbutton)
CCC:GB14048.5
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Miniaturization

  • Pushbuttons and selector switches with 1NO+1NC: 41mm deep
    Pilot lights: 37mm deep
  • The transformer now occupies far less space.

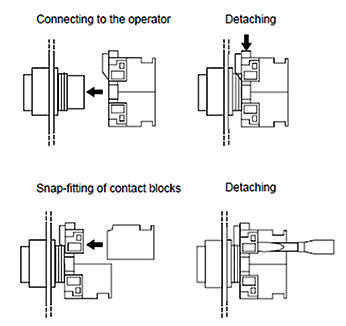

Easy replacing contact block and transformer

  • Because of a snap-on mounting, replacement or addition of the contact block and transformer unit is very simple.
  • The contact block is common to all the pushbuttons of this series.
  • Contact block is easily replaced even when the pushbuttons are mounted closely together.
  • Replacement of the contact block can be done with a screwdriver, without the need for any special tool.

Wiring

  • Wiring from two directions is possible.
  • Wiring in both vertical and lateral directions facilitates wiring in narrow spaces.
  • Color coding of contact blocks makes wiring easy.
    1NO: Blue, 1NC: RedLamp terminal andtransformer unit: Black

Safety

  • A terminal cover is provided, assuring safety and security.
  • FUJI’s original Trigger Action mechanism is used in the emergency stop pushbuttons.
    They are suitable for emergency stop and safety.
    This mechanism prevents the contacts from moving until the button is pushed and locked.
  • Reliability of safety functions increased by integrated operator and contact block construction. (AR22VG)

Protection

  • Excellent oil-tight construction (IP65) of the operator.
  • Closure of the contact block has been improved.

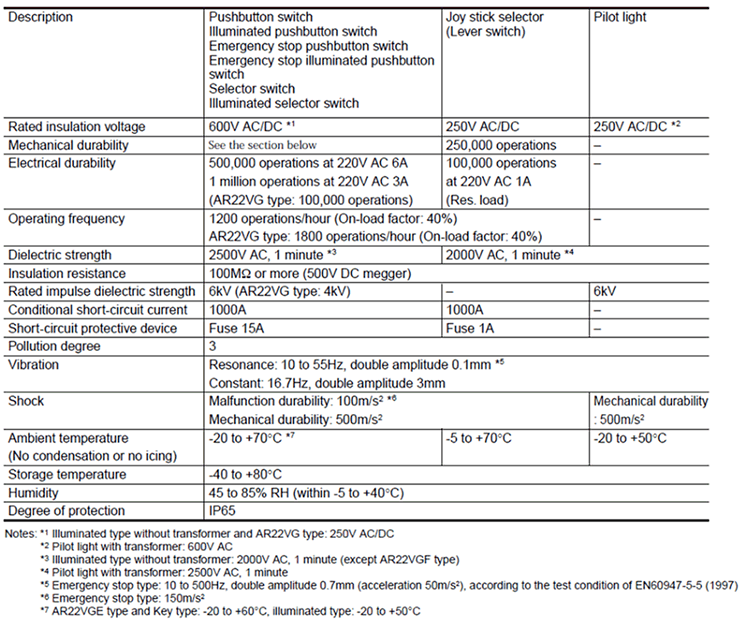

Specifications (Indoor use)

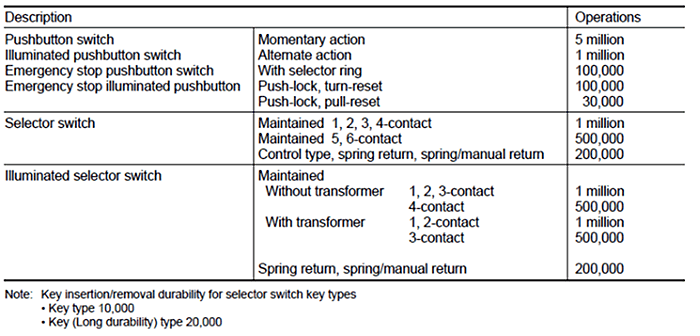

Mechanical durability

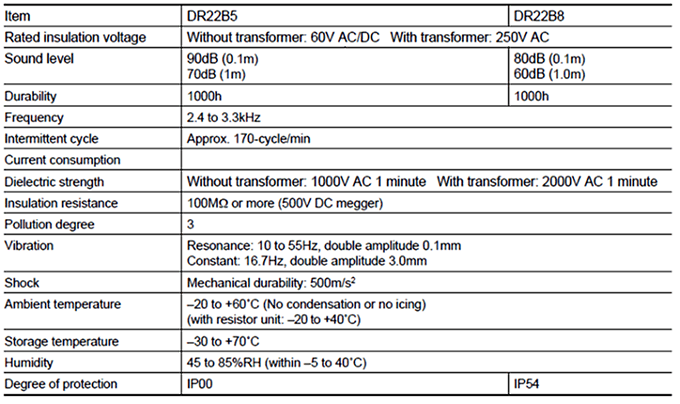

Buzzers

Illuminated pushbutton switch Flush/Extended AR22F0L,F5L,E0L,E5L,F0M,F5M,E0M,E5M,F0P,F5P,E0P, E5P

Dimensions Illuminated pushbutton switch Flush/Extended

Pushbutton switch Flush/Extended AR22F0R,F5R,E0R,E5R,FAR,FBR,EAR,EBR,F0S,F5S,E0S,E5S,F0Y,F5Y,E0Y,E5Y

Dimensions Pushbutton switch Flush/Extended

Emergency stop pushbutton switch AR22V0R,V2R

Dimensions Emergency stop pushbutton switches

Emergency stop illuminated pushbutton switches AR22V0L,V2L,VDL,VAL

Dimensions Emergency stop illuminated pushbutton switches

Selector switches AR22PR, PCR, PY, PCY

Dimensions Selector switches

Illuminated selector switches AR22PL,PP

Dimensions Illuminated selector switches

Pilot lights DR22D0

Dimensions Pilot lights

Pilot lights DR22E3L,DR22E3M,DR22E3P

Dimensions Pilot lights

Pilot lights DR22F3M,F4M

Dimensions Pilot lights

Pilot lights DR22E3N

Dimensions Pilot lights

Joy stick selector switch AR22A0N, A5N

Dimensions Joy stick selector switch

Joy stick selector switches AR22A2N, A7N

Dimensions Joy stick selector switches

Buzzers DR22B5

Dimensions Buzzers
