A relay performs contact output when detecting earth leakage. Both ZCT integrated model and ZCT separated model are available.

In the earth leakage relay the breaking mechanism is omitted from the ELCB, and the ZCT and earth leakage tripping device are integrated into a common body.
These relays are available in both instantaneous and time-delay versions.
Generally these relays are used in conjunction with MCCB's, ACB's and motor starters.

BRR, EL, RRD series image
UL1053
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Relay and sensor–Unit type BRR/Pass-through type

  • Instantaneous trip
  • Solid-state tripping device
  • Sensitive current: 30, 100, 200mA 500mA
  • Control voltage: Up to 415V AC

Relay and sensor–Separate type RRD/Pass-through type

  • Time-delay trip
  • Solid-state tripping device
  • Sensitive current: 100/200, 200/500mA, 500/1000mA
  • Control voltage: Up to 415V AC

EL/Pass-through type

  • Instantaneous or time-delay trip
  • Solid-state tripping device
  • Sensitive current: 30, 100/200, 200/500mA, 500/1000mA
  • Control voltage: Up to 415V AC
  • Easily modified from front mounting to flush mounting

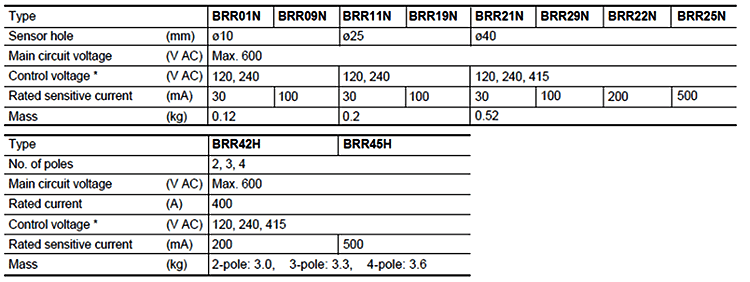

Ratings for BRR(Unit type)/Solid-state tripping device

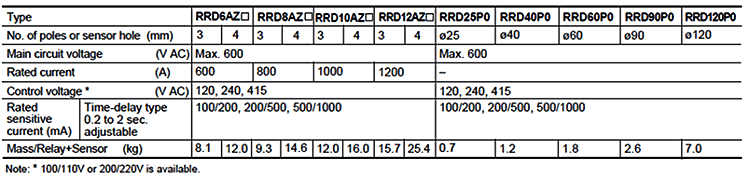

Ratings for RRD(Separate type)/Solid-state tripping device

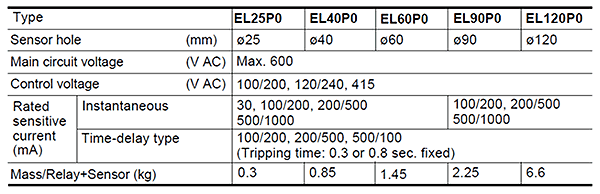

Ratings for EL (Separate type)/Solid-state tripping device

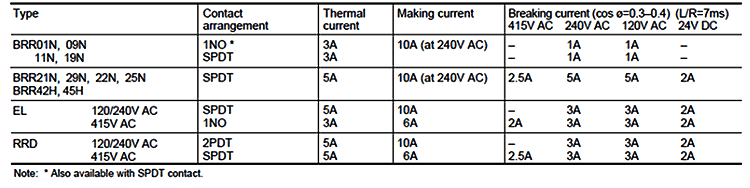

Auxiliary contact ratings

Earth leakage protective relays BRR type

Dimensions BRR type

Earth leakage protective relays RRD type

Dimensions RRD type

Earth leakage protective relays RRD and EL type

Dimensions RRD and EL type

Earth leakage protective relays BRR, EL, RRD series

Dimensions BRR, EL, RRD series
