Inductive proximity switches Slim type:PE-T series

    Sales distributors
  • EUROPE
  • JAPAN

Explanation of regional icons

•Unique “Magnetic Shield Method”permits side-by-side mounting
•Only 12mm thick – achieved with IC
•Built-in reverse polarity and surge voltage protection

12 millimeters thin structure, capable of continuous dense side-by-side mounting.
Supply voltage: 12/24V DC, 120/240V AC
Output capacity: Max. 200mA

PE-T series image
IEC 60947-5-2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature

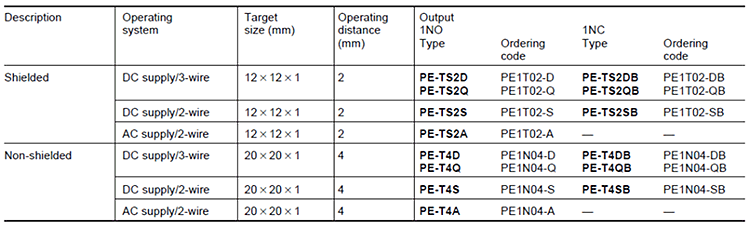

  • Types and ratings
  • Dimentions
  • Type number nomenclature

Design features

  • Unusual “Magnetic Shield Method”permits to mount these units side by side, touching each other.
    (Shielded type PE-TS2)

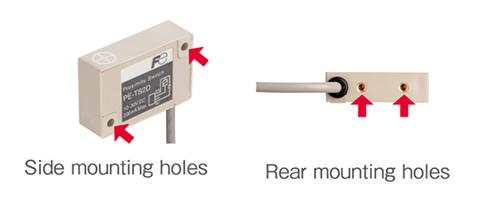

Equipped with 2 mounting holes both side and rear
Capable of appropriate use depending on an installation site

  • Only 12mm in thickness because of the use of IC.
  • Wide operating voltage range
    Operating range of supply voltage is from 80 to 250V AC or from 10 to 30VDC.
  • LED indicators are provided for all types thus facilitating operation checks.
  • Provided with built-in reverse polarity and surge voltage protection circuits.
  • Water and oil-tight
    Degree of protection meets the requirements of IEC IP67 thus permitting operations in unfavorable environment.

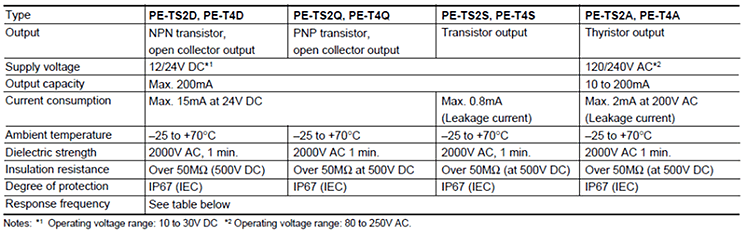

Specifications

PE-T series

Dimensions PE-T series

PE-T series DC supply/3-wire system PE-T□D

WiringDiagrams PE-T□D

PE-T series DC supply/3-wire system PE-T□Q

WiringDiagrams PE-T□Q

PE-T series DC supply/2-wire system PE-T□S

WiringDiagrams PE-T□S

PE-T series AC supply/2-wire system PE-T□A

WiringDiagrams PE-T□A
