Inductive proximity switches Square type: PE-B series

    Sales distributors
  • EUROPE
  • JAPAN

Explanation of regional icons

Square type for easy set-up
Wide product range from a super compact type of 4mm operating distance to a 50 mm long distance model

•4mm to 50mm operating distance
•Types with operating distance exceeding 20mm conform to theCENELEC Standard.
•Operating voltage range:80 to 250V AC or 10 to 30V DC

PE-B series image
IEC60947-5-2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Design features

  • Operating distance from 4mm to50mm permits a variety of applications.
  • LED’s for operating indication lamp are provided for all types thus facilitating operation checks.
  • Ones with an operating distance of over 20mm meet the requirements of the CENELEC Standards.
  • Wide operating voltage range.
    Operating range of supply voltage is from 80 to 250V AC or from 10 to 30VDC.
  • Provided with built-in reverse polarityand surge voltage protection circuits.
  • PNP output types are also available thus permitting application tomachine tools in Europe.

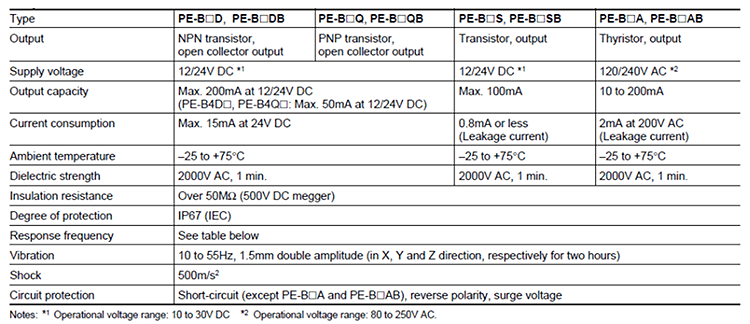

Specifications

PE-B, G series PE-B4*, B4*3, PE-B4*B, B4*3B, PE-B7*, PE-B7*B, PE-B10*, PE-B10*B, PE-B15D, PE-B15DB, PE-B20*, PE-B20*B, PE-B30*, PE-B30*B, PE-B50*, PE-B50*B

Dimensions PE-B4*, B4*3, PE-B4*B, B4*3B, PE-B7*, PE-B7*B, PE-B10*, PE-B10*B, PE-B15D, PE-B15DB, PE-B20*, PE-B20*B, PE-B30*, PE-B30*B, PE-B50*, PE-B50*B

PE-B, G series PE-B*D, PE-B*S, PE-B*A, PE-B*Q

WiringDiagrams PE-B D, PE-B S, PE-B A, PE-B Q
