Mult-circuit power monitoring units: F-MPC04P series

    Sales distributors
  • JAPAN

Explanation of regional icons

Digital multifunctional meter combines all the necessary measuring functions for power monitoring. Capable of multi-circuit measurement by itself.

Integrating necessary measuring functions for energy monitoring into one unit.

F-MPC04P,UM02 image
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

F-MPC04P features

  • A single unit measures multiple circuits
    A single UM02 can measure up to 8 feeders in 3-phase 3-wire,
    12 feeders in single-phase 2-wires and up to 4 feeders in 3-phase 4-wire circuit.
  • Easy installation into existing switchboards
    Compact UM02 can be easily installed into on-site powerdistribution or lighting panel,
    irrespective of new panel orexisting panel, to create power monitoring systemeconomically.
  • On-site measuring instrument
    UM02 can be used an on-site measuring instrument by combining with an optional display and setting unit UM02X-S.
  • Communication interface
    As UM02 has an RS-485 communications interface as standard, it can communicate with other power monitoringequipment with RS-485.

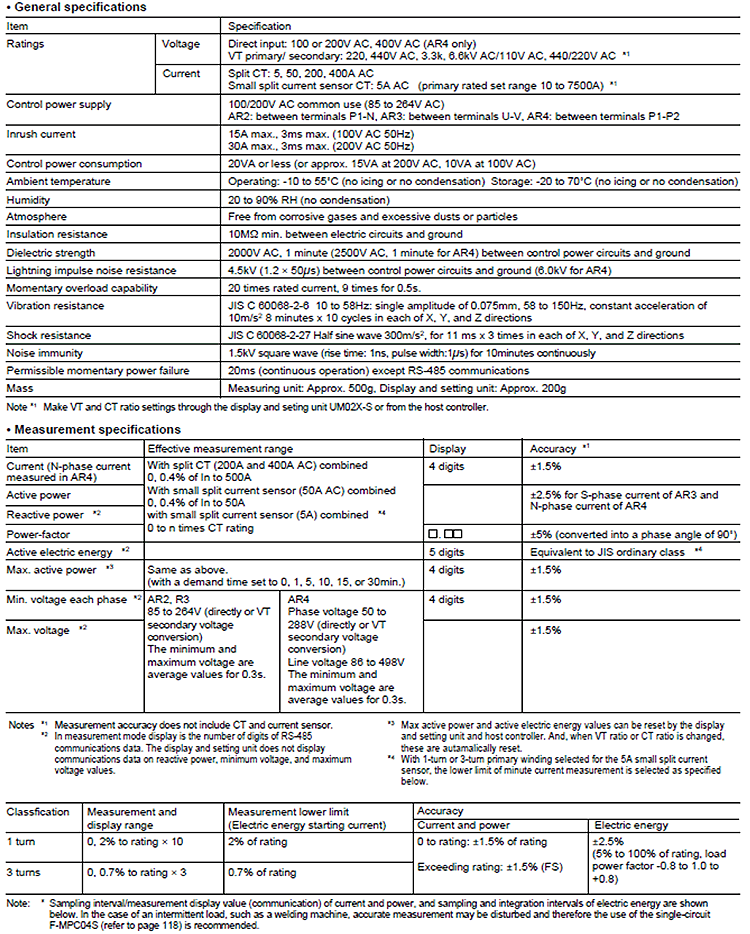

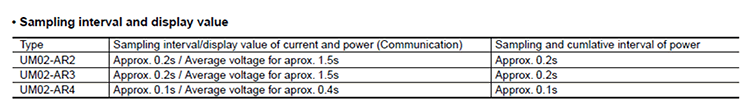

Specifications F-MPC04P (UM02)

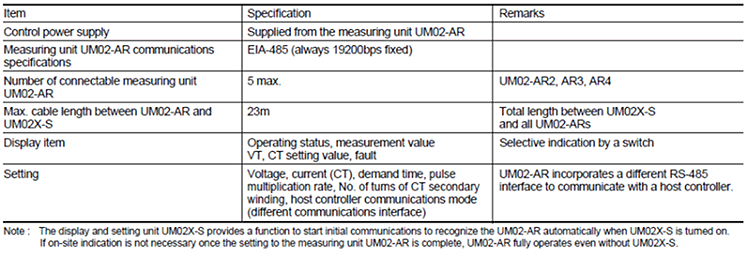

Display and setting unit UM02X-S, specifications

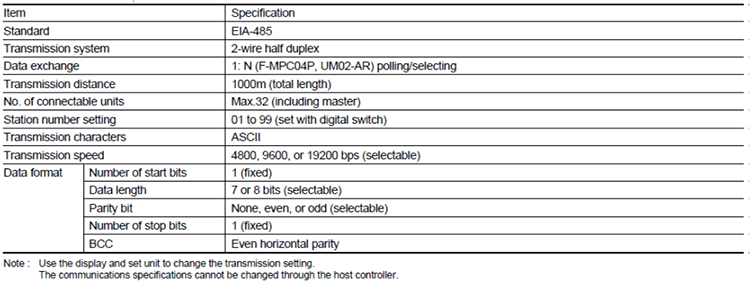

Communications specifications

Power monitoring unit F-MPC04P UM02-AR, UM02X-S

Dimensions UM02-AR, UM02X-S
