A rotary switch for various output codes.

AC series rotary switches offer a wide choice of output codes. They feature sliding Au-flashed contacts for high contact reliability. Inhibitor and parity check circuits guard against switch malfunctions caused by error signals. With only seven connections to make, these switches are an economical solution to multi position switching needs.

AC09, 16, 32 series image
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Design features

  • Au-flashed contacts for high contact reliability.
  • The protection of operator section meets the IP65 (IEC), so these switches can be used in oil-splash environments, such as on machine tool control panels. (Except for AC32)
  • A wide choice of output codes fits a broad range of applications. Available step angles are 15, 30, and 360°/26 (13.85°).
    Real binary code, complementary binary code, and real gray code are available.
  • Switches are available with connectors or with lock rings for easy handling.
  • Stopper screw positions are user selectable.

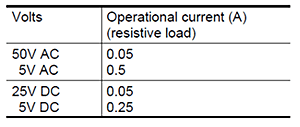

Ratings

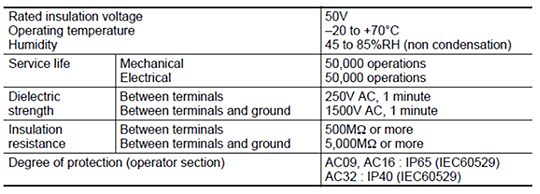

Performance

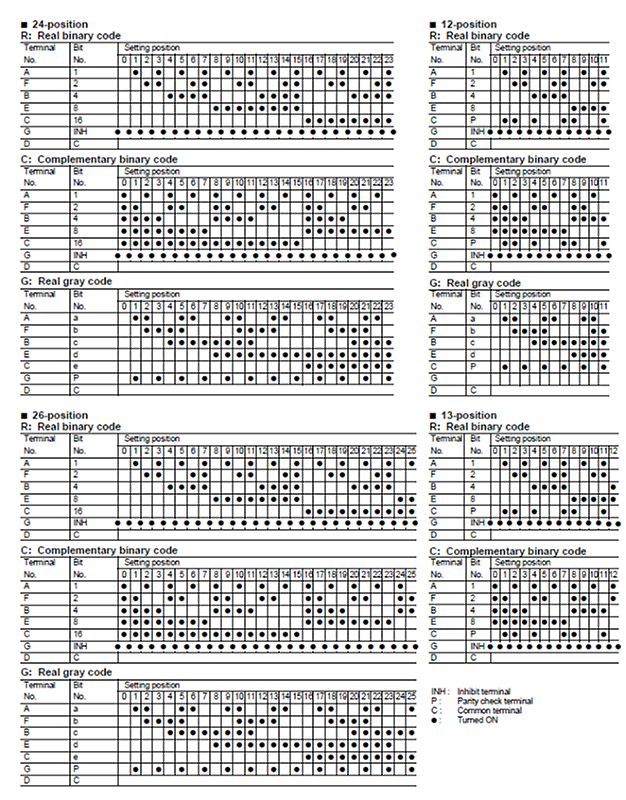

Position Code Table
