Bifurcated contacts with excellent electrical conductivity/SH-4, SH-5

SH series industrial relays are designed to increase contact reliability and make them easy to use.
The relays' highly reliable, bifurcated contacts allow them to be used in low level circuits of 5V, 3mA.
Various optional function units such as auxiliary contact blocks, coil surge suppression units can be added to the relays, allowing fast and field modification.
SH series industrial relay images
IEC 60947-5-1
UL 508
CSA C22.2
TÜV (EN 60947-5-1)
CCC (GB 14048.5)
EN 60947-5-1
VDE
BS
BV
LR
JIS 8201-5-1
  • Fe Library
  • Information on product changes
  • Search for discontinued products

  • FAQ

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

Variety of optional units

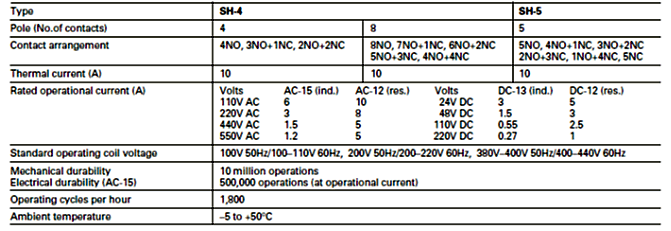

Types and Ratings

SH series standard type SH-4, 4H/4-pole

Dimensions SH-4, 4H/4-pole

SH series standard type SH-4, 4H/8-pole

Dimensions SH-4, 4H/8-pole

SH series standard type SH-5, 5H/5-pole

Dimensions SH-5, 5H/5-pole

SH series DC-operated type SH-4/G, 4-pole

Dimensions SH-4/G, 4-pole

SH series DC-operated type SH-4/G, 8-pole

Dimensions SH-4/G, 8-pole

SH series DC-operated type SH-5/G, 5-pole

Dimensions SH-5/G, 5-pole
