SC-E series take the line-up to the next step in utility with a new finger protection terminal and box lug terminal construction.

Models SC-E02 to SC-E4 have a 3-pole main circuit structure.
Available in three frame sizes, 43mm, 54mm, and 67mm wide, they enable a significantly reduced mounting area.
Models SC-E5 to SC-E7 use an IC-controlled SUPER MAGNET to ensure high operating reliability.
SC-E series image
IEC 60947-4-1
EN 60947-4-1
VDE 0660
JIS C 8201-4-1
UL 508
CSA C22.2
  • Fe Library
  • Information on product changes
  • Search for discontinued products

Product Descricption

  • Feature
  • Types and ratings
  • Dimentions
  • Type number nomenclature

SC-E series features (SC-E & TK-E)

SC-E series feature image

International standardization
IEC 60947-4-1, EN 60947-4-1, VDE 0660UL 508, CSA C 22.2, JIS C 8201-4-1

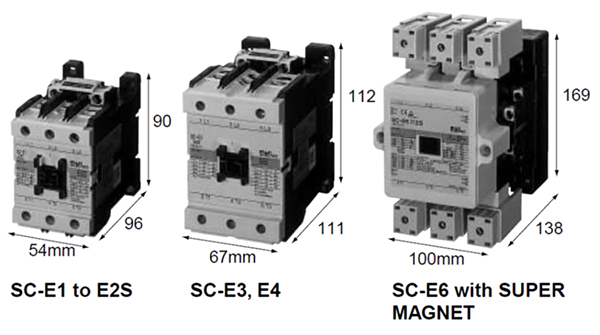

Compactness
  • SC-E02 to E05: 43mm wide, SC-E1 to E2S: 54mm wideSC-E3, E4: 67mm wide, SC-E5: 88mm wide
  • Reducing mounting area
Safety
  • Terminals with finger-touch protection (DIN 57106/VDE 0106 Teil100)
Utility
  • Box lug terminal construction
  • Long electrical life
  • Reduction of wiring work
Ecology
  • Reducing power consumption
  • Recycled thermoplastic resin used for plastic parts.
  • The names of materials are indicated on all major parts to facilitate their recycling.

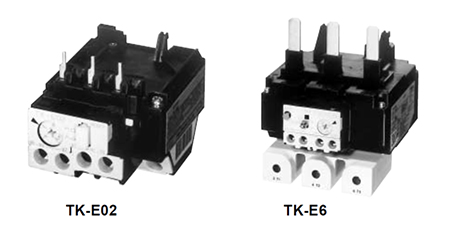

Feature of TK-E series

TK-E feature image

  • This relay protects motor windings from burning due to overloads, locked rotor current, or phase-loss.
  • Maintenance and inspection safety has been improved by employing a finger protection mechanism to cover exposed terminals (conforms to DIN 57106, VDE 0106 Teil 100).
  • Isolated NO and NC contacts can be used with different potentials.
  • A high-precision scale for the current adjustment dial enables easy and exact current setting.
  • The operating status can be visually checked with ease.
  • The relays can be manually tripped. A trip-free mechanism is also provided.
  • Base unit can be added to enable separate-mounting types of the TK-E02, E2, and E3 models.

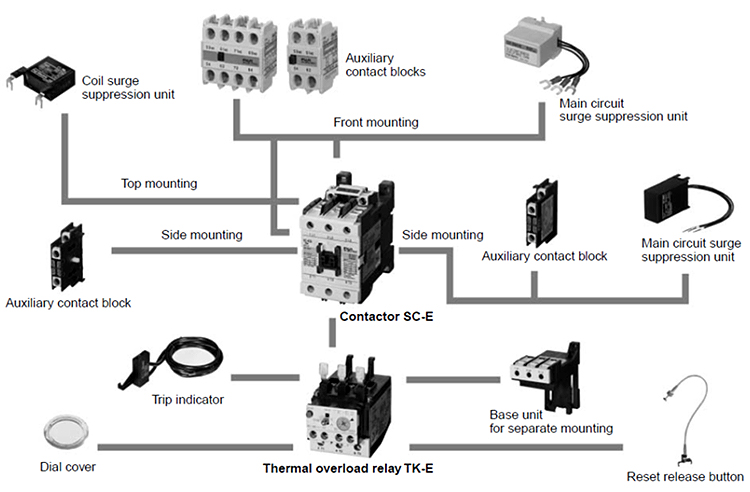

Accessories

Accessories features image

A full range of accessories with emphasis on utility.

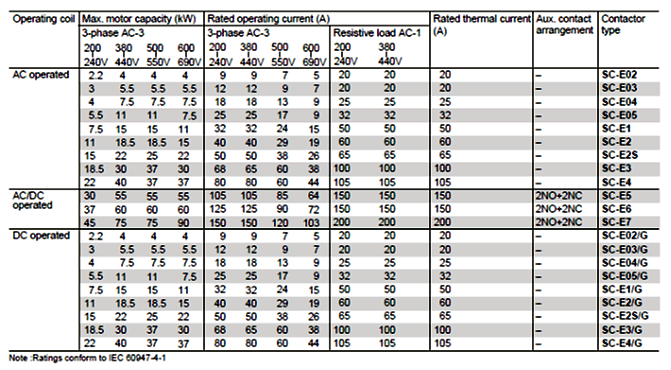

Types and ratings

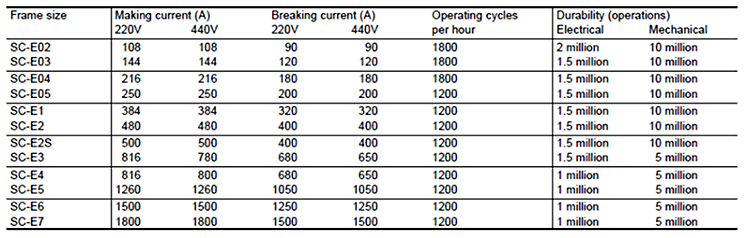

Performance data

SC-E series SC-E02, E03, E04, E05

Dimensions SC-E02, E03, E04, E05

SC-E series SC-E1, E2, E2S

Dimensions SC-E1, E2, E2S

SC-E series SC-E3, E4

Dimensions SC-E3, E4

SC-E series SC-E5

Dimensions SC-E5

SC-E series SC-E6

Dimensions SC-E6

SC-E series SC-E7

Dimensions SC-E7

SC-E series SC-E02, E03, E04, E05, E1, E2, E2S, E3, E4

Wiring Diagrams SC-E02, E03, E04, E05, E1, E2, E2S, E3, E4

SC-E series SC-E5, E6, E7

Wiring Diagrams SC-E5, E6, E7

SC-E series TK-E02, TK-E2 to E6, E6H
Thermal overload relays

Dimensions TK-E02, TK-E2 to E6, E6H

SC-E series TK-E02

Dimensions TK-E02

SC-E series TK-E2

Dimensions TK-E2

SC-E series TK-E3

Dimensions TK-E3

SC-E series TK-E5 (On-contactor mounting only)

Dimensions TK-E5

SC-E series TK-E6 (On-contactor mounting only)

Dimensions TK-E6

SC-E series TK-E6H

Dimensions TK-E6H

SC-E series Thermal overload relays

WiringDiagrams TK-E02 to E6,E6H

Types and specifications (TOR)

Ampere setting range (TOR)
