Pushbuttons, Pilot lights:
AR/DR16 minico series

Dimensions

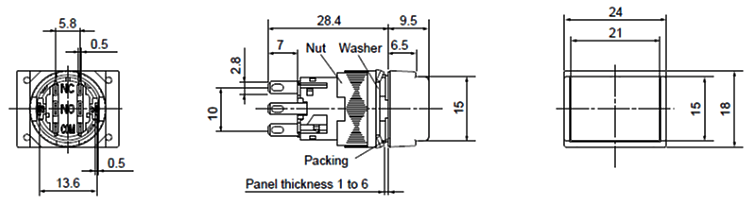

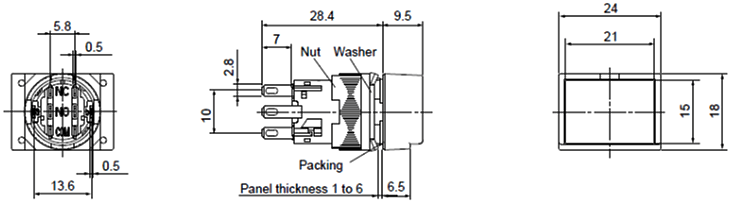

Flush rectangular AR16F0N, AR16F5N

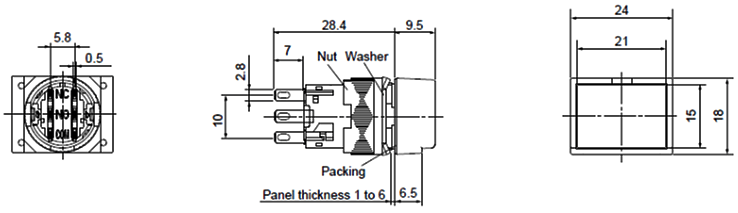

Flush rectangular with guard AR16G0N, AR16G5N

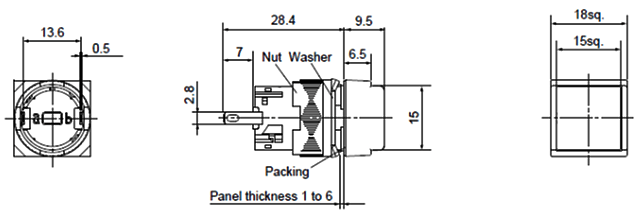

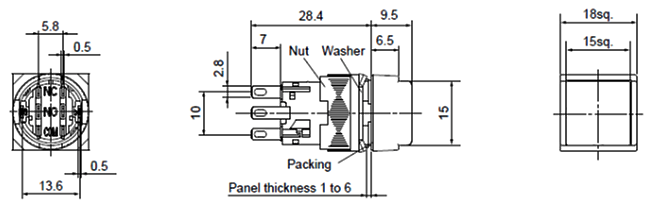

Flush square AR16F0M, AR16F5M

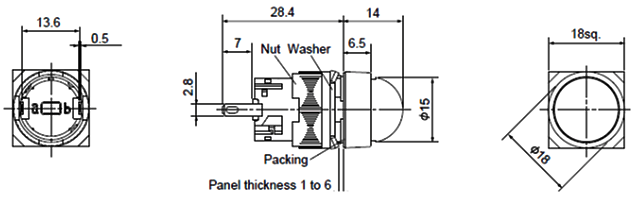

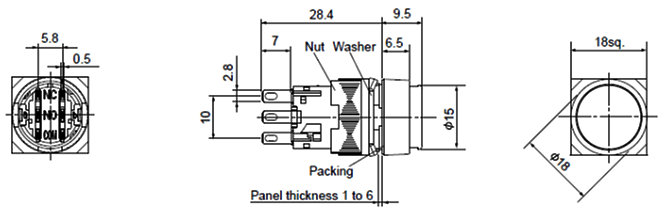

Extended round AR16E0L, AR16E5L

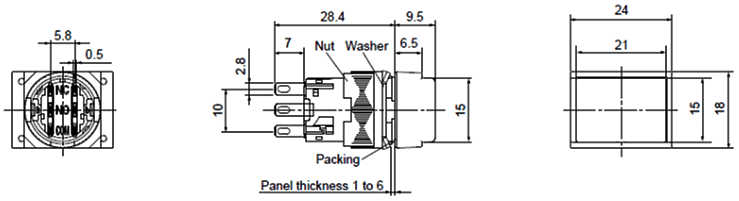

Flush rectangular AR16F0T, AR16F5T

Flush rectangular with guard AR16G0T, AR16G5T

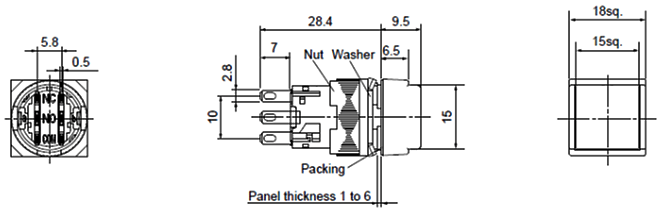

Flush square AR16F0S, AR16F5S

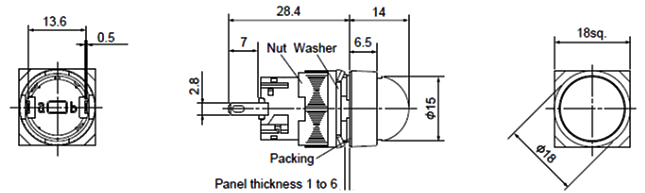

Extended round AR16E0R, AR16E5R

Flush rectangular DR16F0N

Flush rectangular DR16F0N

Extended round DR16E0L

Dome DR16D0L

Knob with rectangular bezel AR16PT

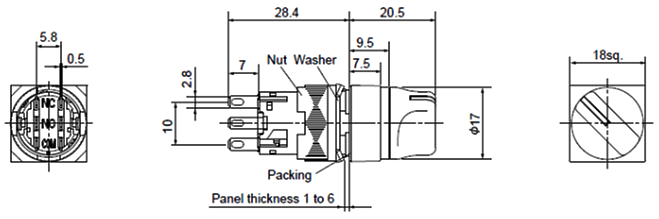

Knob with square bezel AF16PS

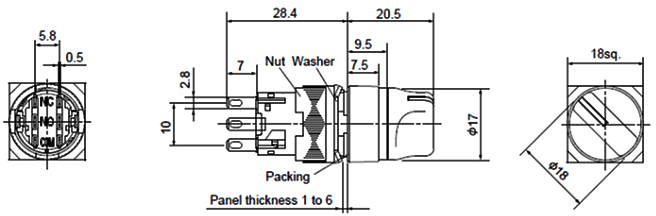

Knob with round bezel AF16PR

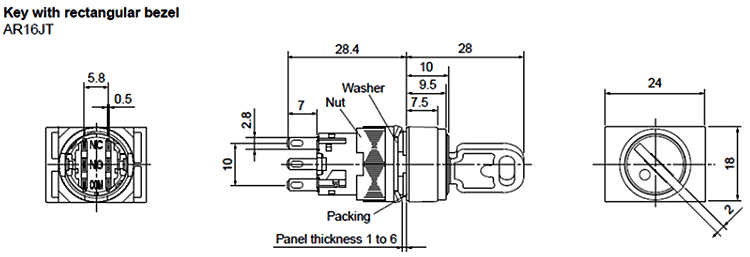

Key with rectangular bezel AR16JT

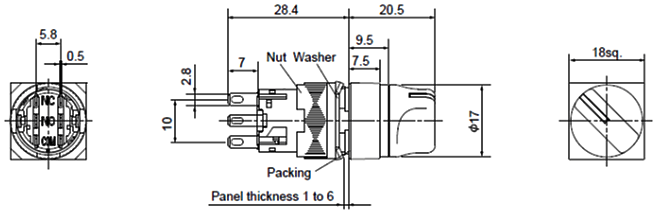

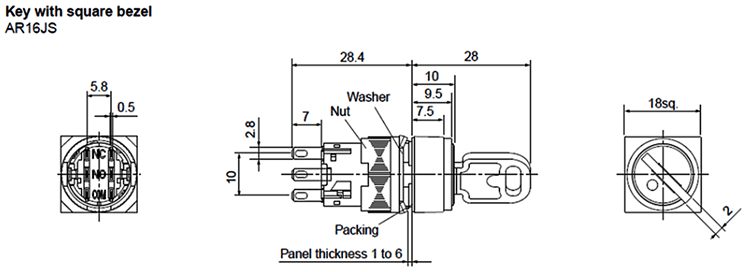

Key with square bezel AR16JS

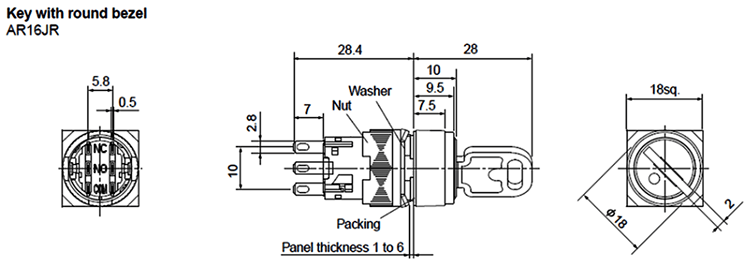

Key with round bezel AR16JR

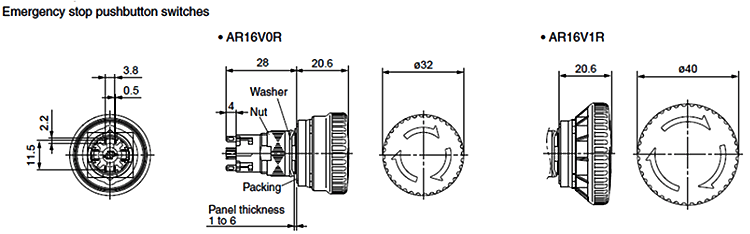

Emergency stop pushbutton switches AR16V0R,AR16V1R

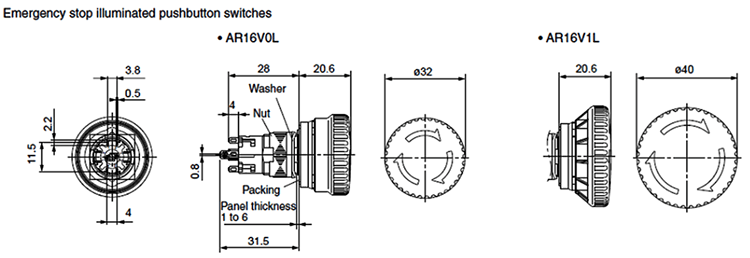

Emergency stop illuminated pushbutton switches AR16V0L, AR16V1L
