Low Voltage Air Circuit Breakers:
DW series

Dimensions

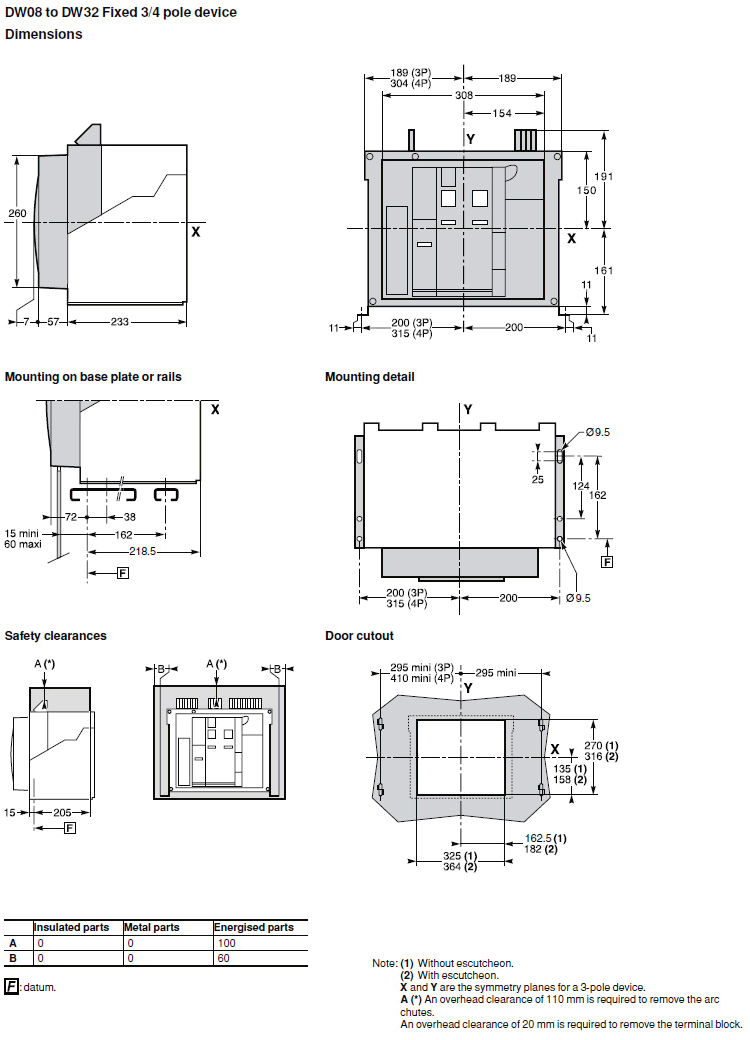

DW08 to DW32 Drawout 3/4 pole device

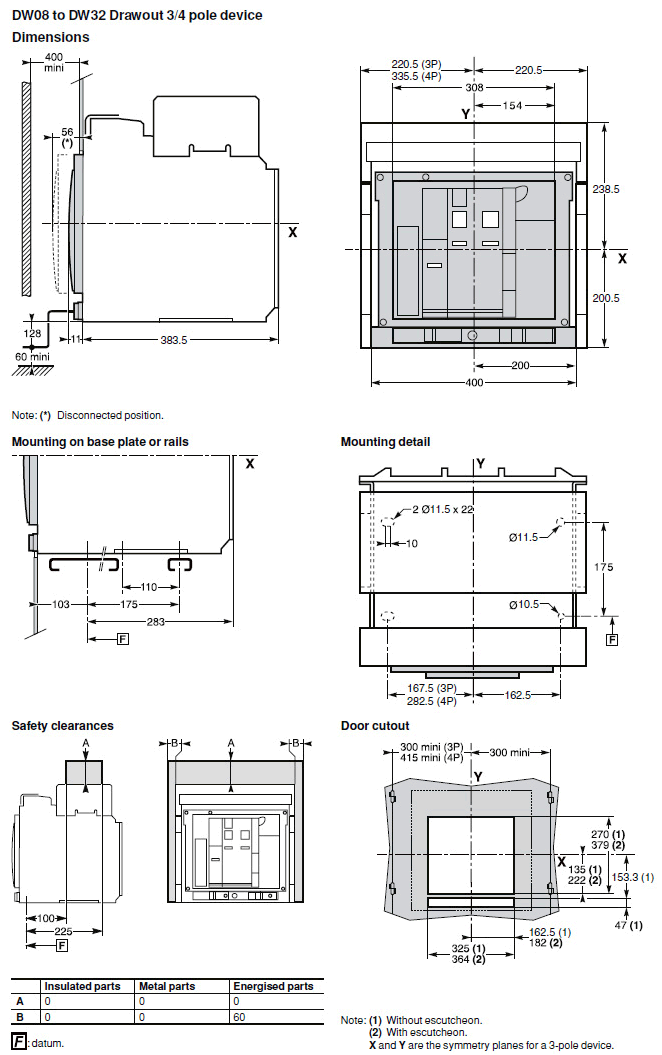

DW08 to DW32 Drawout 3/4 pole device

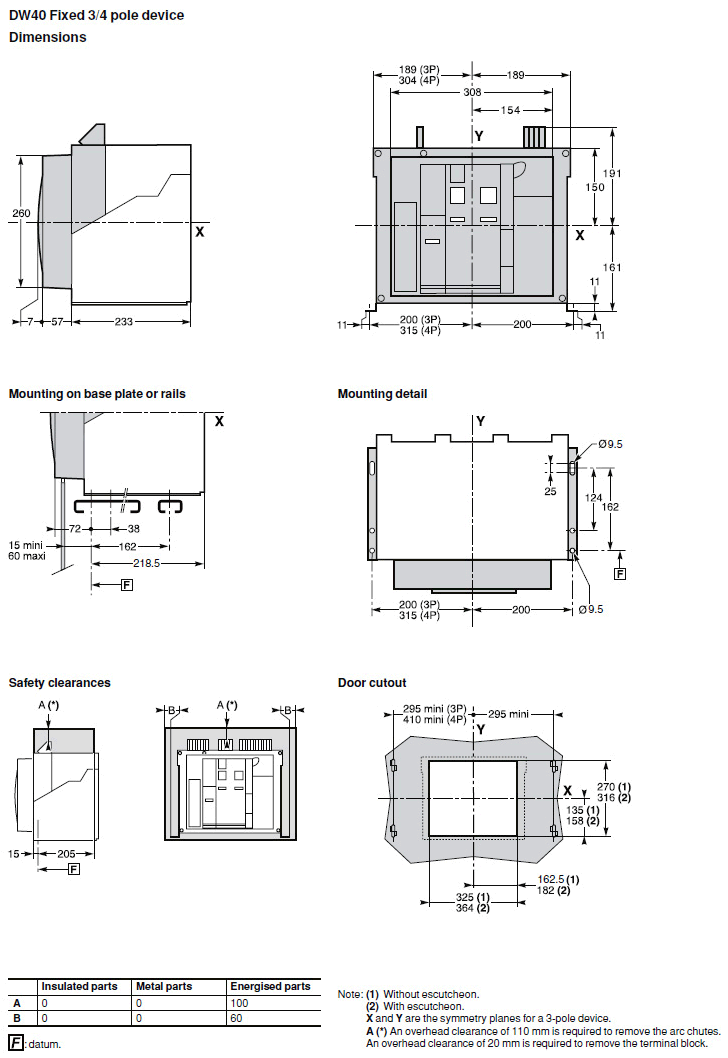

DW40 Fixed 3/4 pole device

DW40 Drawout 3/4 pole device

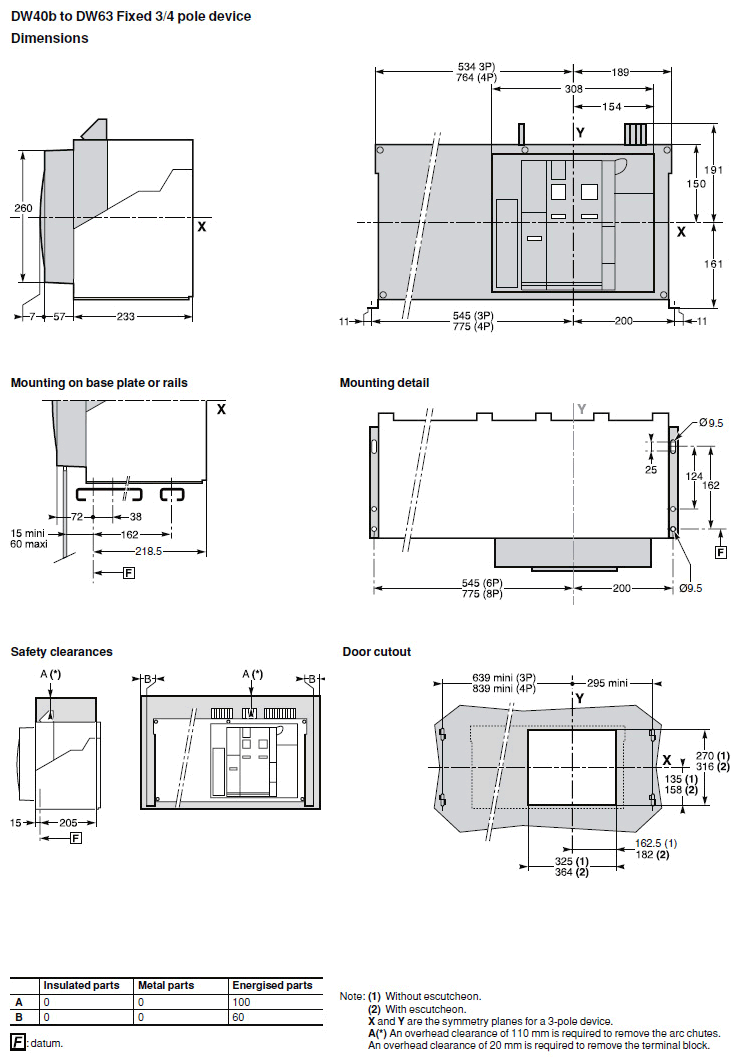

DW40b to DW63 Fixed 3/4 pole device

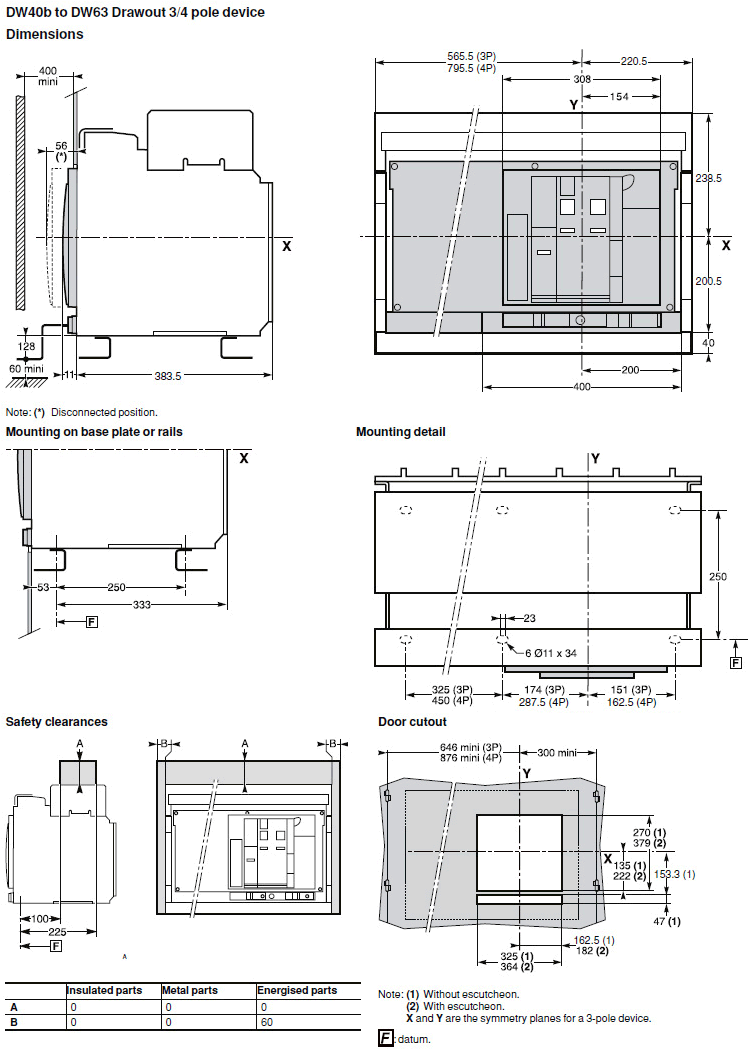

DW40b to DW63 Drawout 3/4 pole device

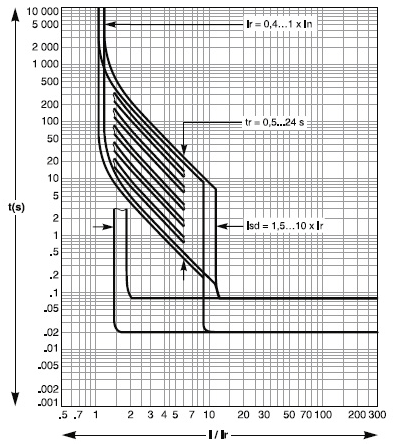

Intelligent control unit 2.0

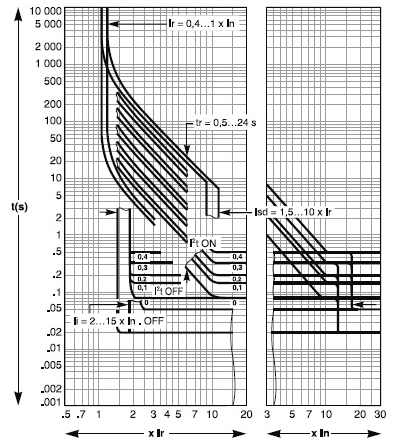

Intelligent control unit 5.0, 6.0, 7.0

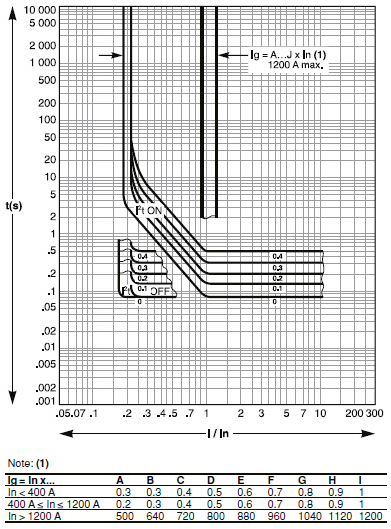

Earth fault protection (Intelligent control unit 6.0)

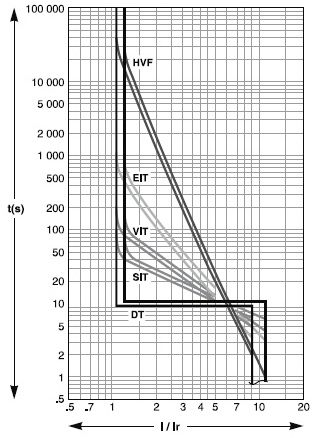

IDMTL curve (Intelligent control units P and H)
