Disconnecting switches:
V series,RF series

Dimensions

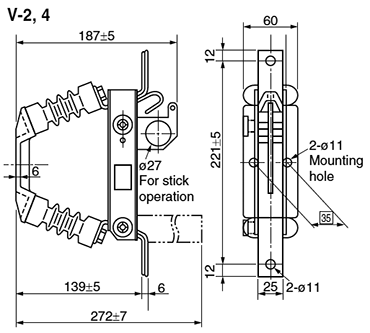

V-2, 4

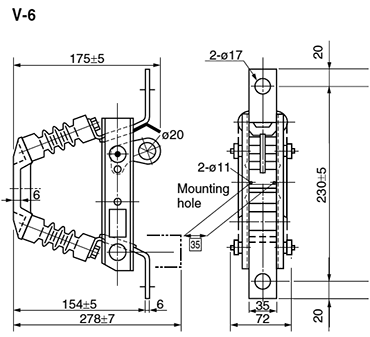

V-6

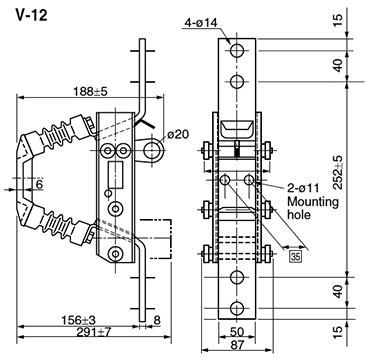

V-12

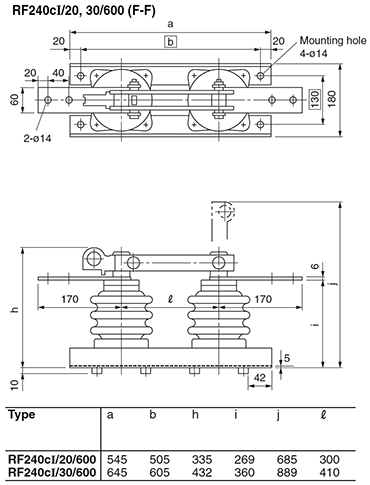

RF240cI/20, 30/600 (F-F)

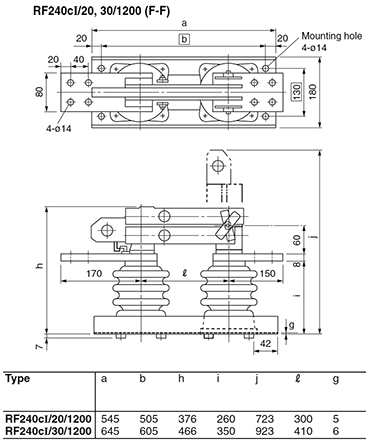

RF240cI/20, 30/1200 (F-F)

RF240cI/6 – 30/2000 (F-F)

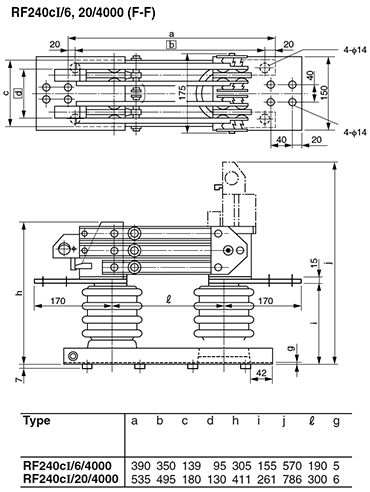

RF240cI/6, 20/4000 (F-F)

Gang-operating — V3 type

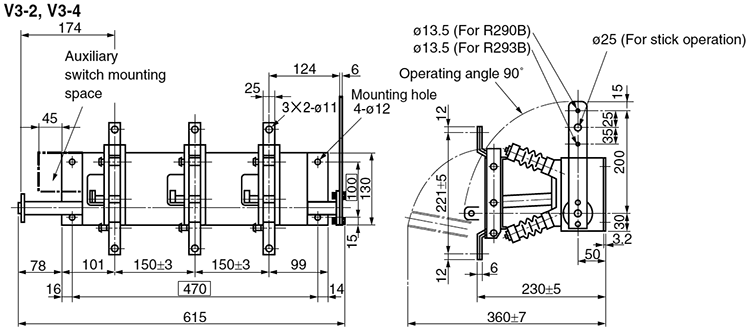

V3-2, V3-4

Gang-operating — V3 type

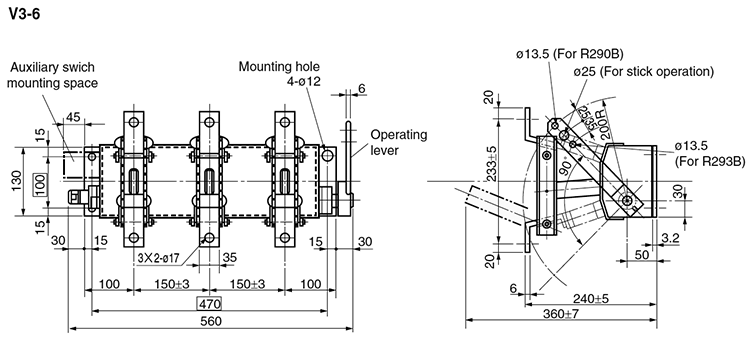

V3-6

Gang-operating — V3 type

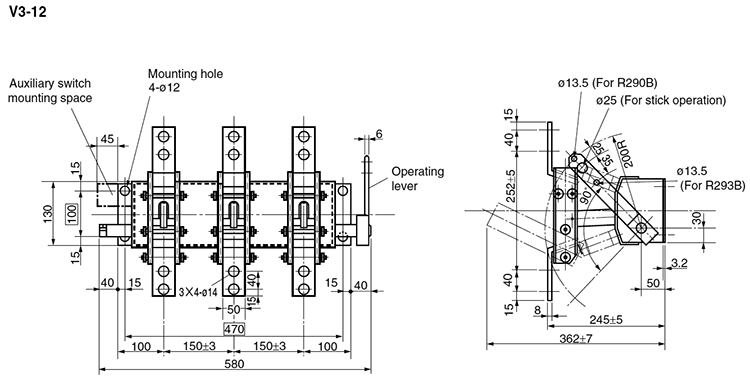

V3-12

Gang-operating — V3 type

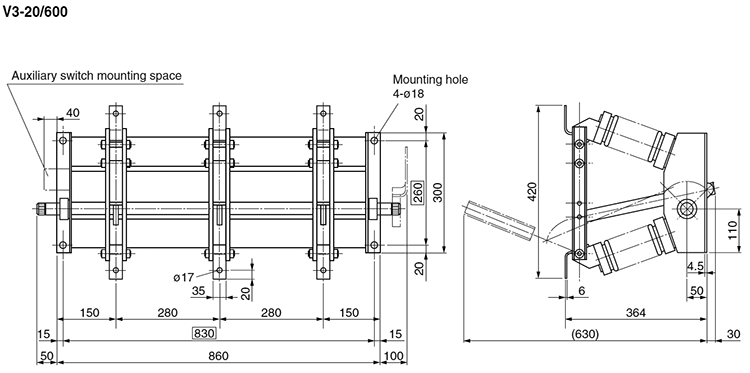

V3-20/600

Gang-operating — V3 type

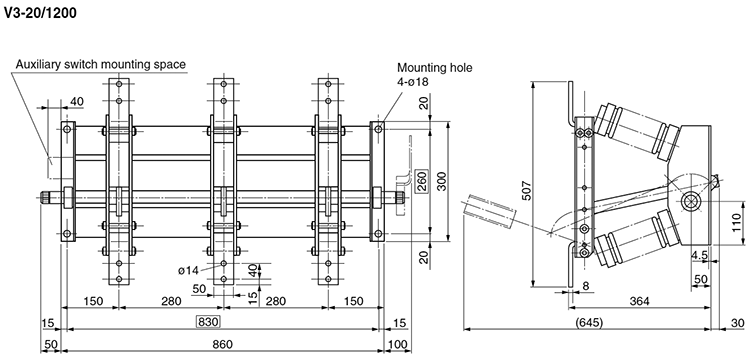

V3-20/1200

Gang-operating — V3 type

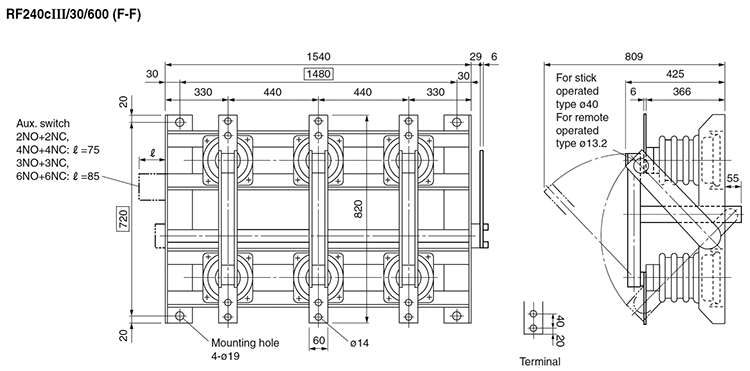

RF240cIII/30/600 (F-F)

Gang-operating — V3 type

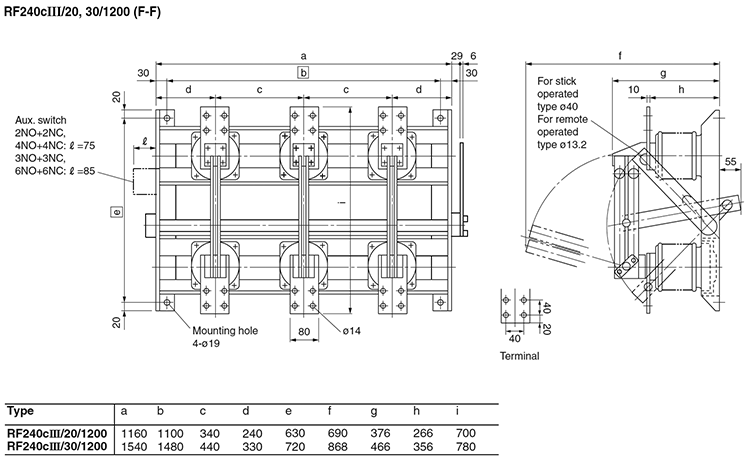

RF240cIII/20, 30/1200 (F-F)

Gang-operating — V3 type
RF240cIII/6 – 30/2000 (F-F)

Gang-operating — V3 type

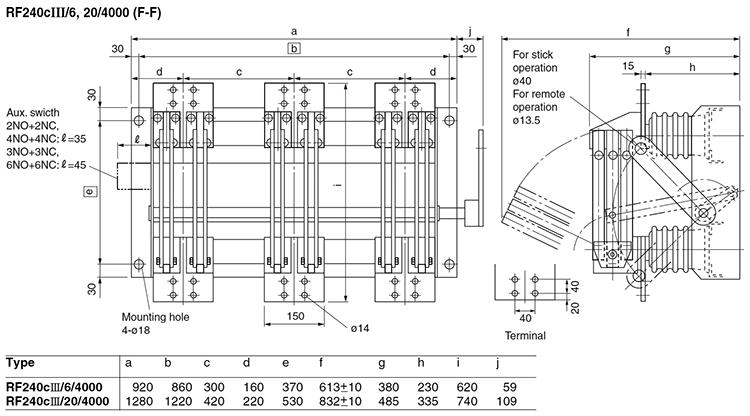

RF240cIII/6, 20/4000 (F-F)
