Railroad - Power Electronic Equipment for Rolling Stock

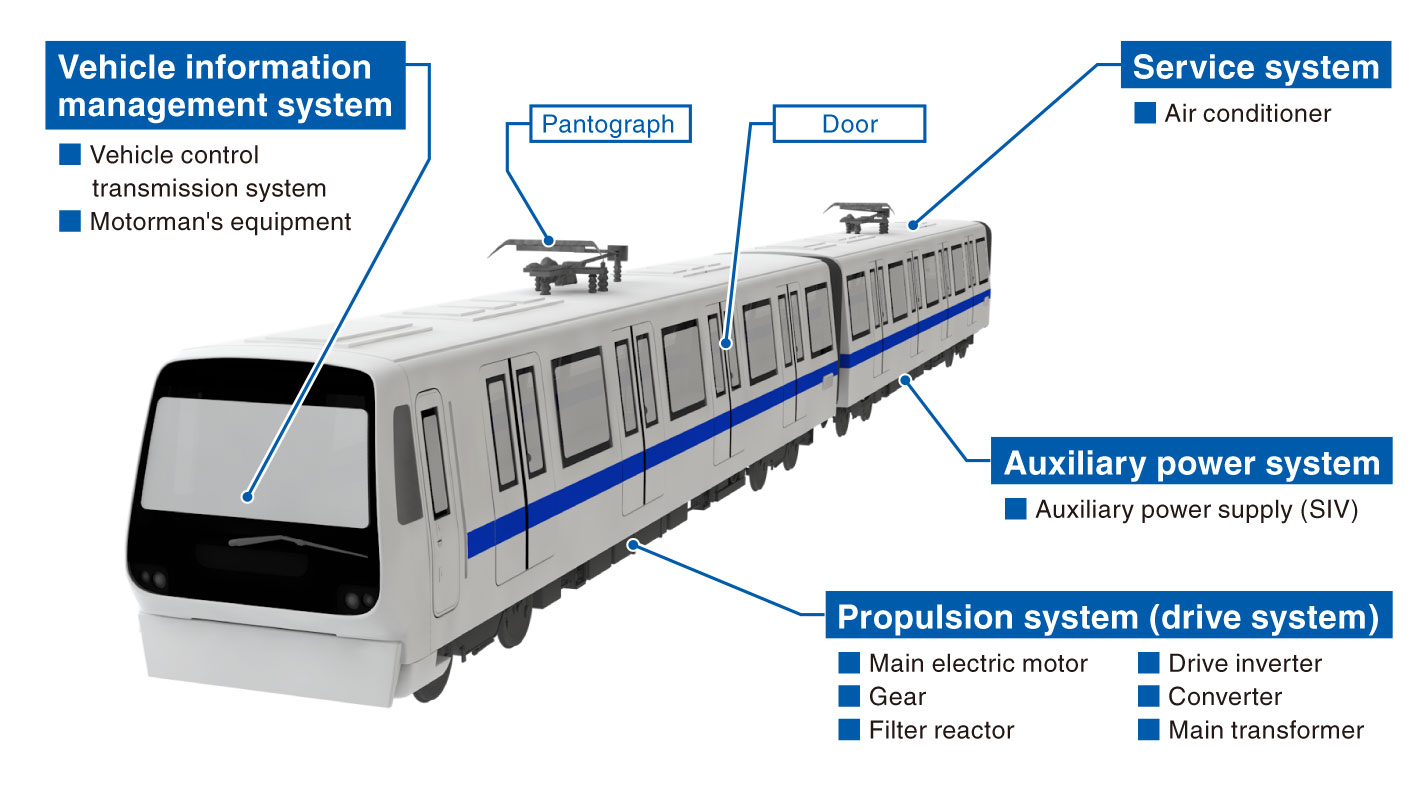

Rolling stock use many different types of power electronic equipment such as main motor drives, auxiliary power supply units, air conditioning equipment and door operating devices. This page provides information on Fuji Electric power semiconductor products that are ideal for the power electronics of railroad cars.

Main Converter Circuit Example

These are examples of the main motor drive circuit configuration. The voltage may be either AC or DC. For AC, after passing through the transformer, the power is converted to DC by the PWM converter and then the main motor is driven by the VVVF inverter.

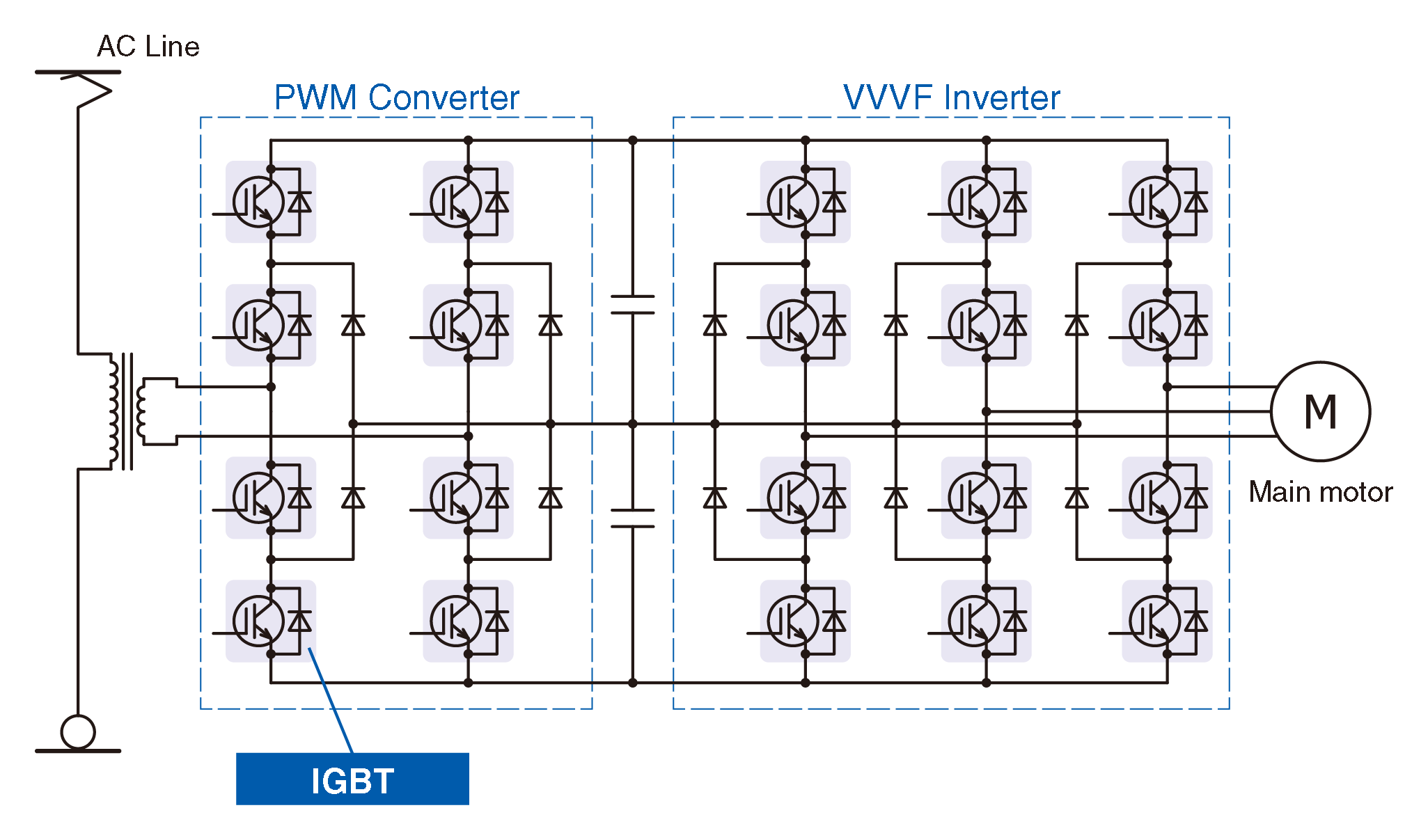

Example of Main Converter for AC Powered Trains

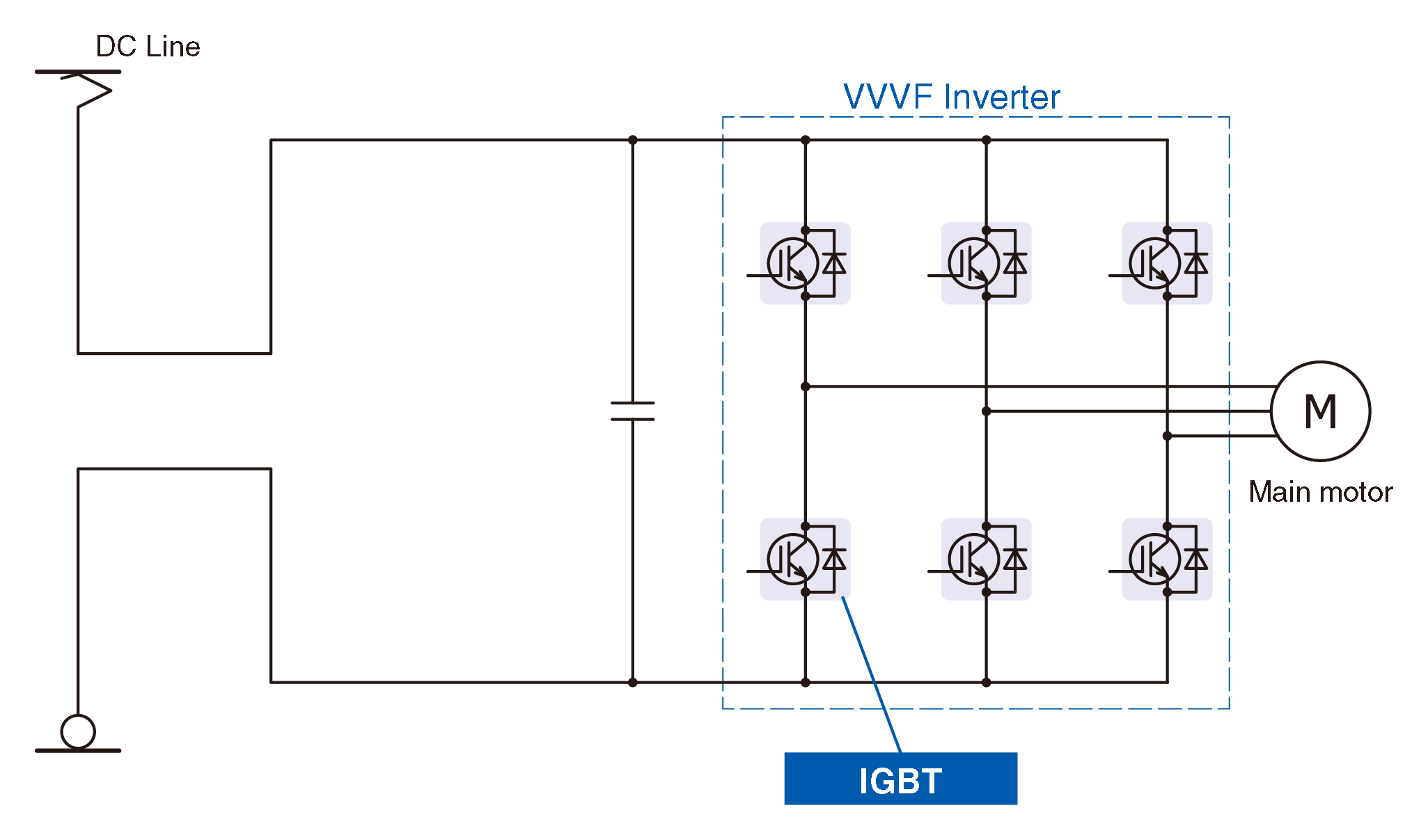

Example of Main Converter for DC Powered Trains

Example of Feeding Voltage

Segment		City Railroads	Intercity Railroads
Area		Subway & LRV	Electric Trains	High-speed Vehicles
Europe		DC600V/DC750V/DC825V/DC1500V	DC1500V/DC3000V/AC15kV/AC25kV	AC25kV
	Western Europe	DC600V/DC750V/DC1500V	DC1500V/DC3000V/AC15kV/AC25kV	AC15kV/AC25kV
	Eastern Europe	DC600V/DC750V	DC1500V/DC3000V/AC25kV	‐
	CIS	DC600V/DC750V/DC825V	DC1500V/DC3000V/AC25kV	AC25kV
North America		DC600V/DC750V	AC25kV	‐
Central and South America		DC600V/DC750V/DC1500V/DC3000V	DC3000V	-
Asia & Pacific Region		DC600V/DC750V/DC1500V	DC1500V/AC20kV/AC25kV	AC25kV
Middle East & Africa		DC750V/DC1500V	DC3000V/AC25kV	-
Global		DC750V/DC1500V	DC1500V/AC25kV	AC25kV

Auxiliary Power Supply Circuit Example

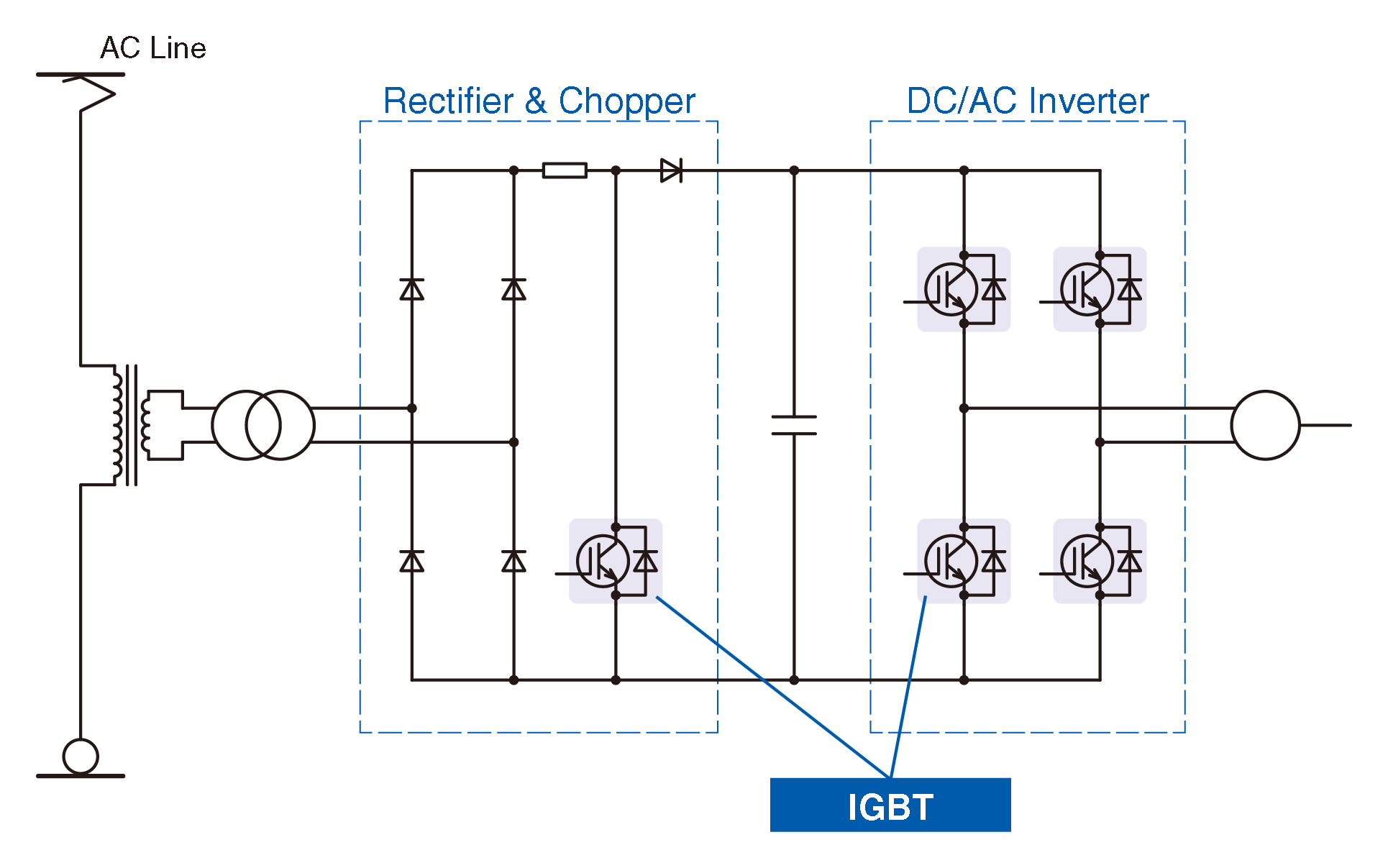

Example of Auxiliary Power Supply for AC Powered Trains

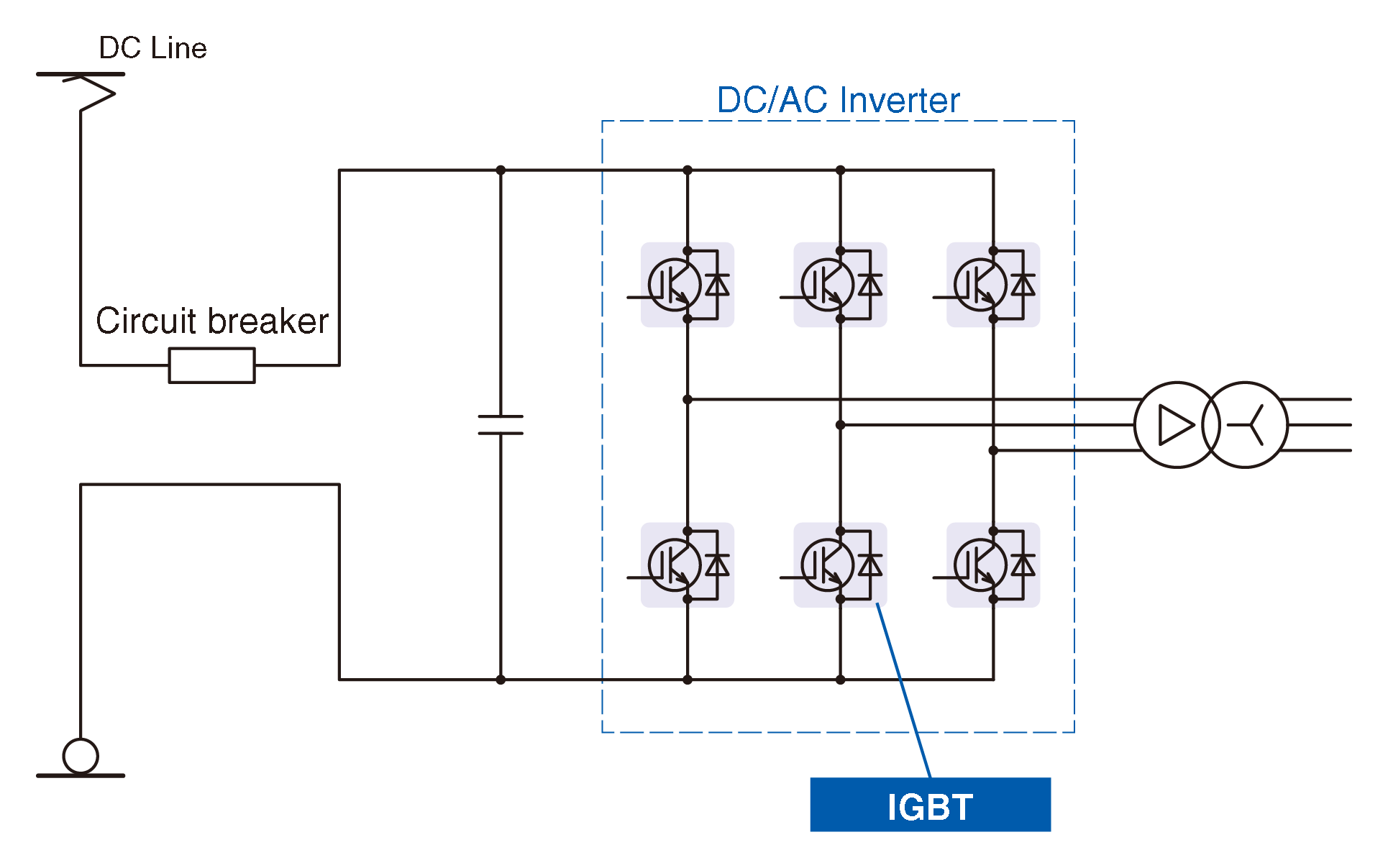

Example of Auxiliary Power Supply for DC Powered Trains

Segment		City Railroads		Intercity Railroads
Specifications		Subway & LRV	Subway	Electric Trains	High-speed Vehicles
Specifications		Asia specifications (China, Southeast Asia)	North America specifications (NYCT)	Asia specifications (Australia and Japan)	Global specifications
	Input voltage	DC750V	DC600V	DC1500V	AC440V (Main transformer tertiary)
	Output voltage	AC440V, 3φ, 60Hz	AC120V,1φ,60Hz×15kVA	AC440V, 3φ, 60Hz	AC440V, 3φ, 60Hz
			DC37.5V x 20kW
	Capacity	90kVA/160kVA	40kVA	180kVA/260kVA	180kVA/210kVA
Cooling System		Self-cooling	Forced air cooling	Self-cooling	Forced air cooling
Efficiency		95% or higher	95% or higher	95% or higher	95% or higher
Noise		62dB(A)	70dB(A)	62dB(A)	68dB(A)
Miniaturization		≧ 80 kVA/m3	≧ 100 kVA/m3	≧ 120 kVA/m3	≧ 120 kVA/m3

Fuji Electric Power Semiconductor Products

AlSiC Baseplate (High reliability type)

1-pack

	1700V	3300V
800A		1MBI800UG-330
1000A		1MBI1000UG-330
1200A	1MBI1200VR-170E	1MBI1200UE-330
1500A		1MBI1500UE-330
1600A	1MBI1600VR-170E
2400A	1MBI2400VR-170E 1MBI2400VS-170E
3600A	1MBI3600VS-170E

2-pack

	1700V
600A	2MBI600VT-170E
800A	2MBI800VT-170E
1200A	2MBI1200VT-170E

Copper Baseplate (Standard type)

1-pack

	1200V	1700V
1200A	1MBI1200VC-120P	1MBI1200VC-170E
1600A	1MBI1600VC-120P	1MBI1600VC-170E
2400A	1MBI2400VC-120P 1MBI2400VD-120P	1MBI2400VC-170E 1MBI2400VD-170E
3600A	1MBI3600VD-120P	1MBI3600VD-170E

2-pack

	1200V	1700V
600A	2MBI600VG-120P	2MBI600VG-170E
800A	2MBI800VG-120P	2MBI800VG-170E
1200A	2MBI1200VG-120P	2MBI1200VG-170E

PrimePACK™

Note: PrimePACK™ is a registered trademark of Infineon Technologies AG, Germany.

2-Pack VCES = 1200V

	V series	X series
600A	2MBI600VXA-120E-50 2MBI600VXA-120E-54
900A	2MBI900VXA-120E-50 2MBI900VXA-120E-54 2MBI900VXA-120P-50 2MBI900VXA-120P-54	2MBI900XXA120P-50
1200A		2MBI1200XXE120P-50
1400A	2MBI1400VXB-120E-50 2MBI1400VXB-120E-54 2MBI1400VXB-120P-50 2MBI1400VXB-120P-54	2MBI1400XXB120P-50
1800A		2MBI1800XXF120P-50
2400A		2MBI2400XRXG120-50

2-Pack VCES = 1700V

	V series	X series
650A	2MBI650VXA-170E-50 2MBI650VXA-170E-54 2MBI650VXA-170EA-50 2MBI650VXA-170EA-54	2MBI650XXA170-50
1000A	2MBI1000VXB-170E-50 2MBI1000VXB-170E-54 2MBI1000VXB-170EA-50 2MBI1000VXB-170EA-54	2MBI1000XXB170-50
1200A		2MBI1200XXE170-50
1400A	2MBI1400VXB-170E-50 2MBI1400VXB-170E-54 2MBI1400VXB-170P-50 2MBI1400VXB-170P-54	2MBI1400XXB170-50
1800A		2MBI1800XXF170-50 2MBI1800XXG170-50

Chopper

Step Up Chopper

	1200V	1700V
650A		1MBI650VXA-170EL-50 1MBI650VXA-170EL-54
900A	1MBI900VXA-120PD-50 1MBI900VXA-120PD-54
1000A		1MBI1000VXB-170EL-50 1MBI1000VXB-170EL-54
1400A	1MBI1400VXB-120PL-54	1MBI1400VXB-170PL-50 1MBI1400VXB-170PL-54

Step Down Chopper

	1200V	1700V
650A		1MBI650VXA-170EH-50 1MBI650VXA-170EH-54
900A	1MBI900VXA-120PC-50 1MBI900VXA-120PC-54
1000A		1MBI1000VXB-170EH-50 1MBI1000VXB-170EH-54
1400A	1MBI1400VXB-120PH-54	1MBI1400VXB-170PH-50 1MBI1400VXB-170PH-54

IGBT 1-Pack

	1200V		1700V
	Aluminium oxide DCB	Aluminium nitride DCB	Aluminium oxide DCB
300A			1MBI300V-170-50
400A	1MBI400V-120-50	1MBI400VF-120-50	1MBI400V-170-50
600A	1MBI600V-120-50	1MBI600VF-120-50	1MBI600V-170-50
900A	1MBI900V-120-50

IGBT 2-Pack

Standard 2in1 VCES = 1200V

	V series	X series
75A	2MBI75VA-120-50
100A	2MBI100VA-120-50	2MBI100XAA120-50
150A	2MBI150VA-120-50 2MBI150VB-120-50	2MBI150XAA120-50
200A	2MBI200VB-120-50 2MBI200VH-120-50	2MBI200XAA120-50 2MBI200XBE120-50
300A	2MBI300VD-120-50 2MBI300VH-120-50 2MBI300VE-120-50	2MBI300XBE120-50 2MBI300XHA120-50
400A	2MBI400VD-120-50	2MBI400XDE120-50
450A	2MBI450VH-120-50 2MBI450VE-120-50	2MBI450XHA120-50 2MBI450XEE120-50
600A	2MBI600VE-120-50	2MBI600XEE120-50

Standard 2in1 VCES = 1700V

	V series	X series
75A	2MBI75VA-170-50	2MBI75XAA170-50
100A	2MBI100VA-170-50	2MBI100XAA170-50
150A	2MBI150VH-170-50	2MBI150XAA170-50 2MBI150XHA170-50
200A	2MBI200VH-170-50	2MBI200XHA170-50
300A	2MBI300VH-170-50 2MBI300VE-170-50	2MBI300XHA170-50 2MBI300XEE170-50
400A	2MBI400VE-170-50	2MBI400XHA170-50 2MBI400XEE170-50

Dual XT VCES = 1200V

	V series	V series With SiN-substrate	X series
225A	2MBI225VN-120-50 2MBI225VX-120-50	2MBI225VN-120S-50	2MBI225XNA120-50 2MBI225XNB120-50
300A	2MBI300VN-120-50 2MBI300VX-120-50	2MBI300VN-120S-50	2MBI300XNA120-50 2MBI300XNB120-50
450A	2MBI450VN-120-50 2MBI450VX-120-50	2MBI450VN-120S-50	2MBI450XNA120-50 2MBI450XNB120-50
600A		2MBI600VN-120-50 2MBI600VX-120-50	2MBI600XNG120-50 2MBI600XNE120-50 2MBI600XNH120-50 2MBI600XNF120-50
800A			2MBI800XNE120-50 2MBI800XNF120-50
1000A			2MBI1000XRNE120-50 2MBI1000XRNF120-50

Dual XT VCES = 1700V

	V series	V series With SiN-substrate	X series
225A	2MBI225VX-170-50		2MBI225XNA170-50 2MBI225XNB170-50
300A	2MBI300VN-170-50 2MBI300VX-170-50		2MBI300XNA170-50 2MBI300XNB170-50
450A	2MBI450VN-170-50 2MBI450VX-170-50		2MBI450XNA170-50 2MBI450XNB170-50
550A		2MBI550VN-170-50 2MBI550VX-170-50
600A			2MBI600XNG170-50 2MBI600XNE170-50 2MBI600XNH170-50 2MBI600XNF170-50

HPnC

	1700V	2300V	3300V
450A			2MBI450XYF330-50 UD
1000A	2MBI1000XYF170-50 UD
1200A	2MBI1200XYF170-50 UD 2MBI1200XZF170-50 UD	2MBI1200XZF230-50 UD
1500A	2MBI1500XYF170-50 UD 2MBI1500XZF170-50 UD
1800A	2MBI1800XZF170-50 UD
