Product Information
Discrete IGBT

The discrete IGBT is for applications such as UPS, power conditioners, air conditioners, and welding machines, and it can be applied to power factor correction circuits and DC/AC converter circuits.
This product was developed using Fuji Electric's unique technology as an RB-IGBT with reverse withstand voltage features. It can be configured for bi-directional switching and 3-level inverter circuits.

Series List

Discrete IGBT XS Series 650 V, 1200 V Class
Discrete IGBT V Series/RB-IGBT 600 V, 1200 V Class

Discrete IGBT XS Series 650 V, 1200 V Class

New product brochure for Discrete IGBT XS Series PDF(491KB)

Discrete IGBT XS Series Video(2:19)

Package	IC Amps. Tc=100°C	650V			1200V
		Trench-FS XS series			Trench-FS XS series

TO-247 (Type: B)	30			FGW30XS65
	30	FGW30XS65C
	40			FGW40XS65			FGW40XS120
	40	FGW40XS65C			FGW40XS120C
	50	FGW50XS65D		FGW50XS65 P-Spice
	50	FGW50XS65C P-Spice
	75	FGW75XS65D		FGW75XS65 P-Spice			FGW75XS120
	75	FGW75XS65C P-Spice			FGW75XS120C

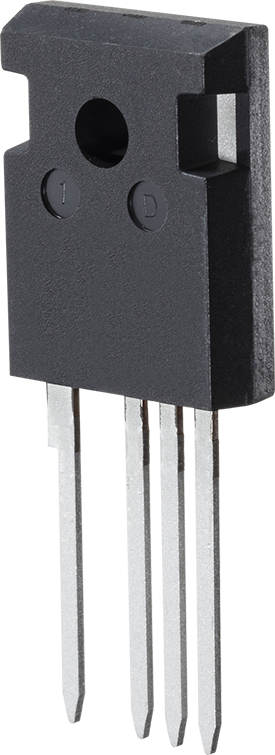

TO-247-4	75		FGZ75XS65C			FGZ75XS120C
