Welding Machines
Welding machines melt and integrate two or more metallic members by applying heat or pressure.Welding machines are used in applications such as automobile body welding and spot welding, where a bond is created by crimping metal and feeding an electric current through it so that the metal melts and joins due to the resistance heat.
Circuit Example

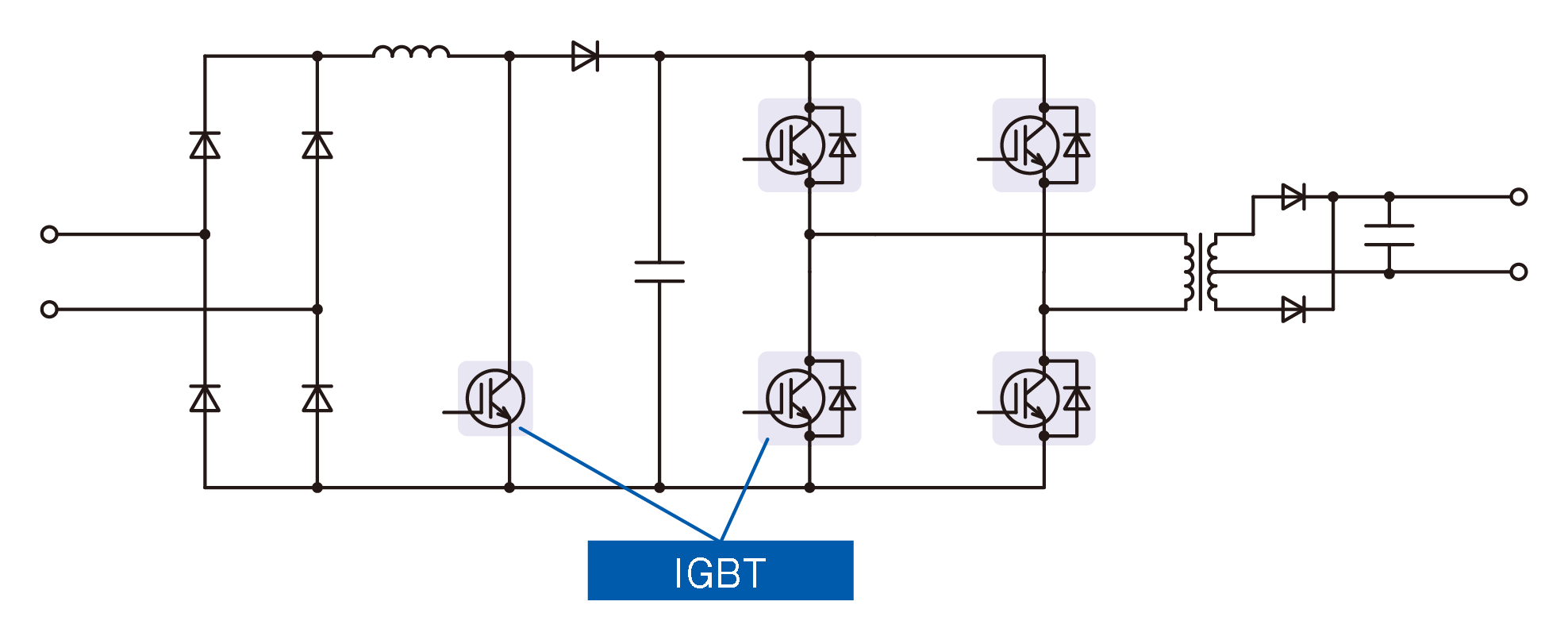

Figure 1. Hard switching type

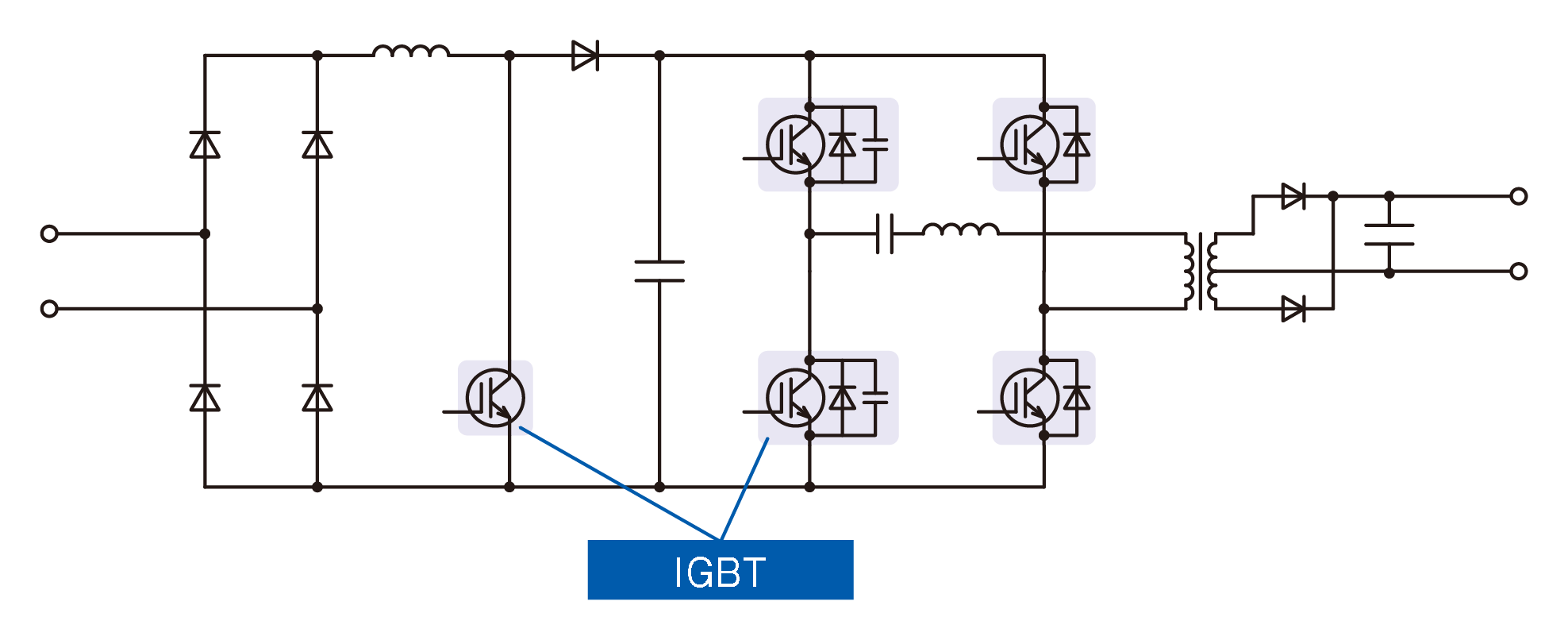

Figure 2. Soft switching type (ZVS)

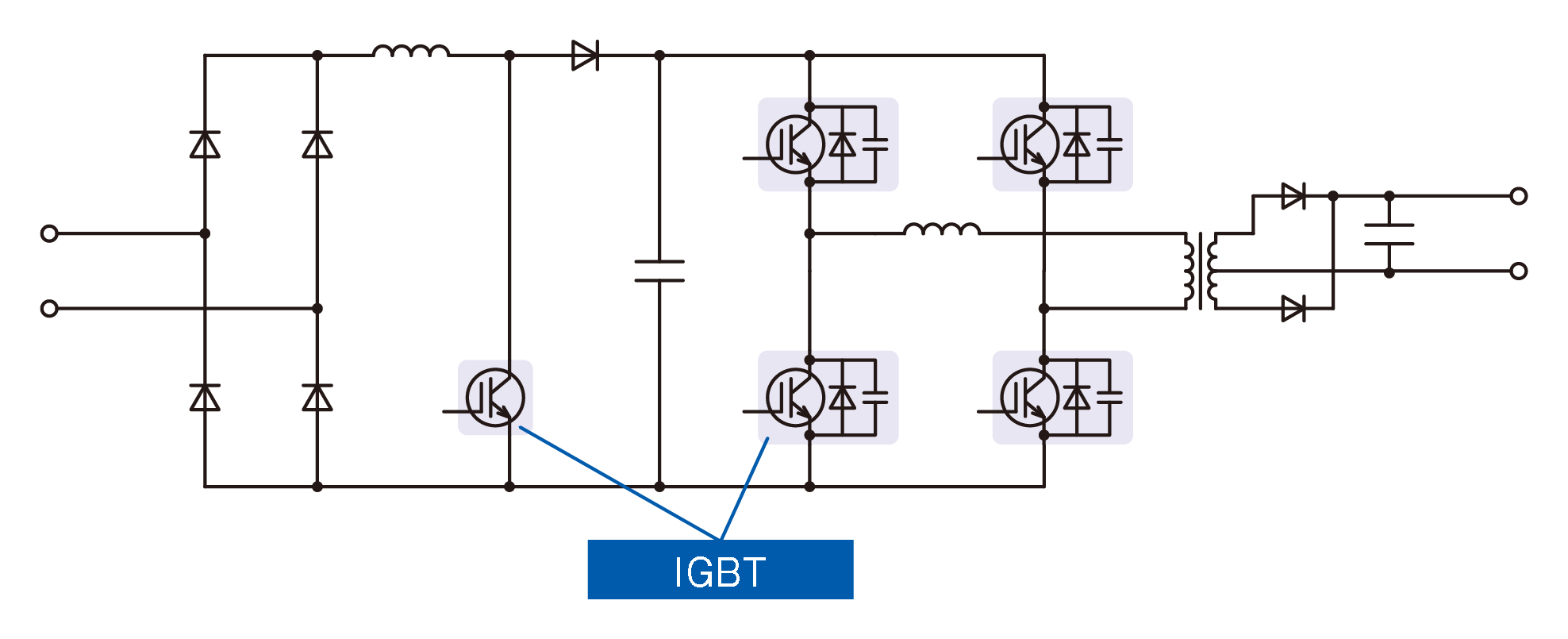

Figure 3. Soft switching type (ZVZCS)

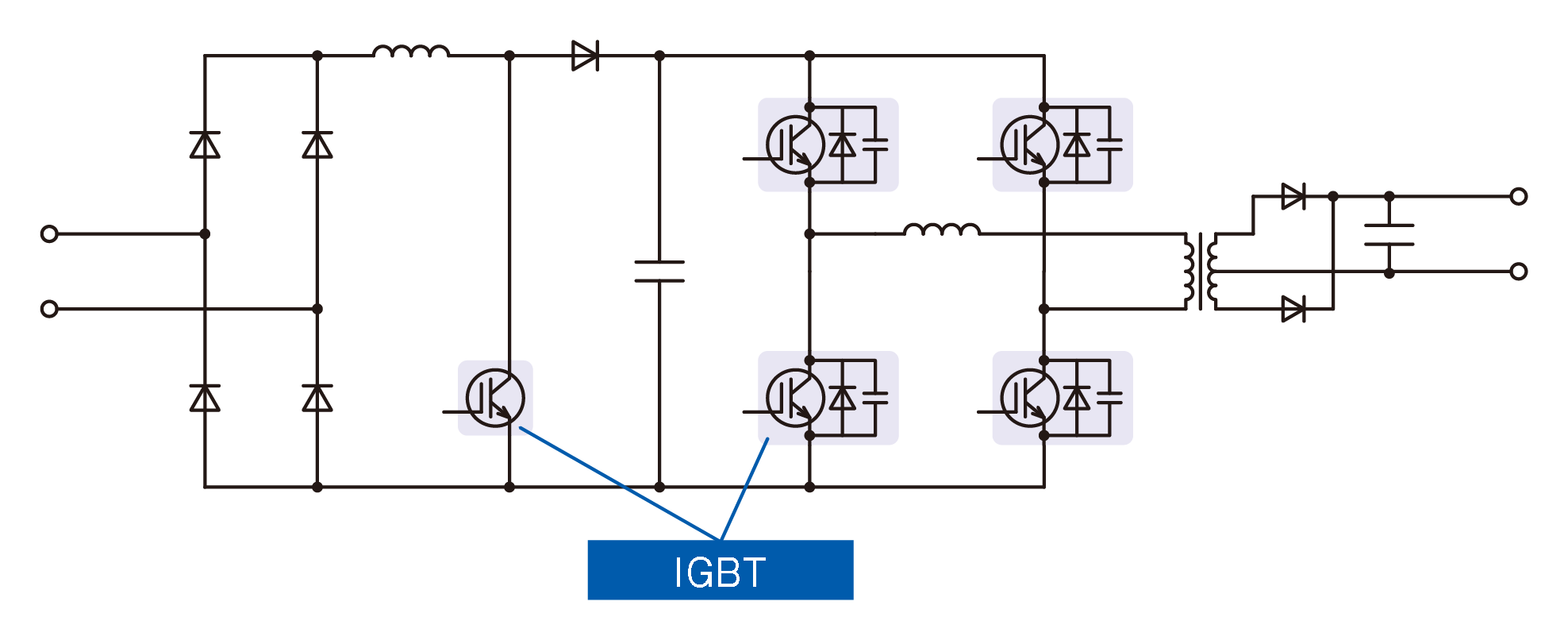

Figure 4. Phase Shift soft switching converter (ZVZCS)
Boost Chopper Circuit
| Ic [A] | IGBT Modules |
|---|---|
| 200 | 1MBI200HH-120L-50 |
| 300 | 1MBI300HH-120L-50 |
| 400 | 1MBI400HH-120L-50 |
NEW New product
UP Update
UD Under development
Half-Bridge Circuit
| Ic [A] | IGBT Modules | Application Example |
|---|---|---|
| 100 | 2MBI100HB-120-50 | Fig. 1 - Fig. 3 |
| 100 | 2MBI100HJ-120-50 | Fig. 4 |
| 150 | 2MBI150HH-120-50 | Fig. 1 - Fig. 3 |
| 150 | 2MBI150HJ-120-50 | Fig. 4 |
| 200 | 2MBI200HH-120-50 | Fig. 1 - Fig. 3 |
| 200 | 2MBI200HJ-120-50 | Fig. 4 |
| 300 | 2MBI300HJ-120-50 | Fig. 4 |
NEW New product
UP Update
UD Under development
Discrete IGBT
| Vces (V) | Ic (A) | High-Speed V series | High-Speed W series | XS series |
|---|---|---|---|---|
| 650 | 30 | FGW30XS65C | ||
| 35 | FGW35N60HD FGW35N60HC |
|||
| 40 | FGW40N65WD FGW40N65WE |
FGW40XS65C | ||
| 50 | FGW50N60HD FGW50N60HC |
FGW50N65WD FGW50N65WE FGZ50N65WD FGZ50N65WE |
FGW50XS65D FGW50XS65C |
|
| 60 | FGW60N65WD FGW60N65WE |
|||
| 75 | FGW75N60HD FGW75N60HC |
FGW75N65WE FGZ75N65WE |
FGW75XS65D FGW75XS65C FGZ75XS65C |
|
| 1200 | 15 | FGW15N120HD | ||
| 25 | FGW25N120WD FGW25N120WE |
|||
| 30 | FGW30N120HD | |||
| 40 | FGW40N120HD | FGW40N120WD FGW40N120WE FGZ40N120WE |
FGW40XS120C | |
| 75 | FGW75XS120C |
NEW New product
UP Update
UD Under development
