LED Lighting

The power supply for LED lighting requires a PFC circuit that complies with harmonic regulations and a converter circuit that is compatible with the LED and driver circuit being used.
This page provides information on Fuji Electric semiconductors that are ideal for LED lighting.
LED lighting

Flyback and Current Resonance Converter Circuit Configuration

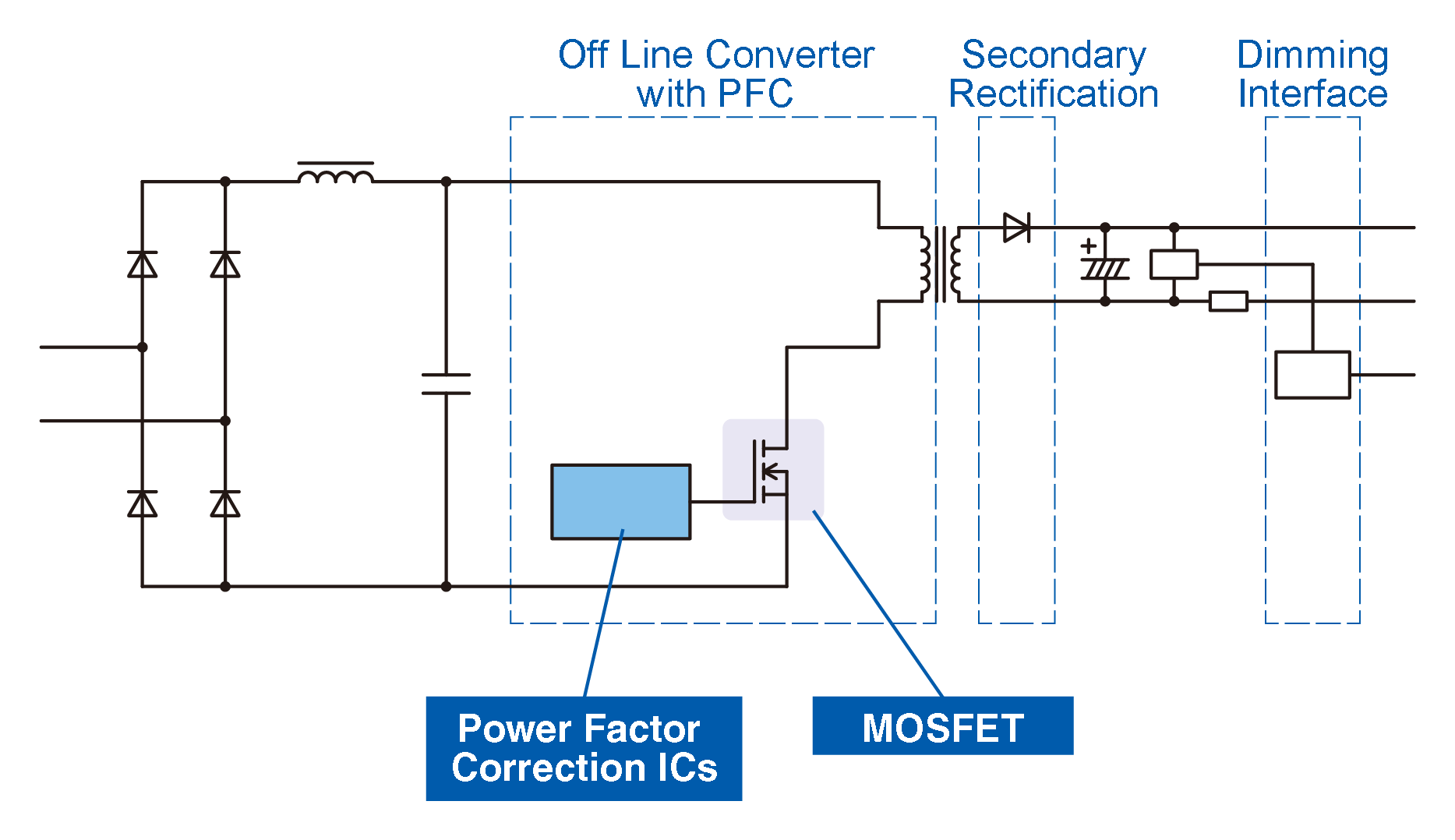

PFC Flyback System

PFC Flyback System Circuit Configuration

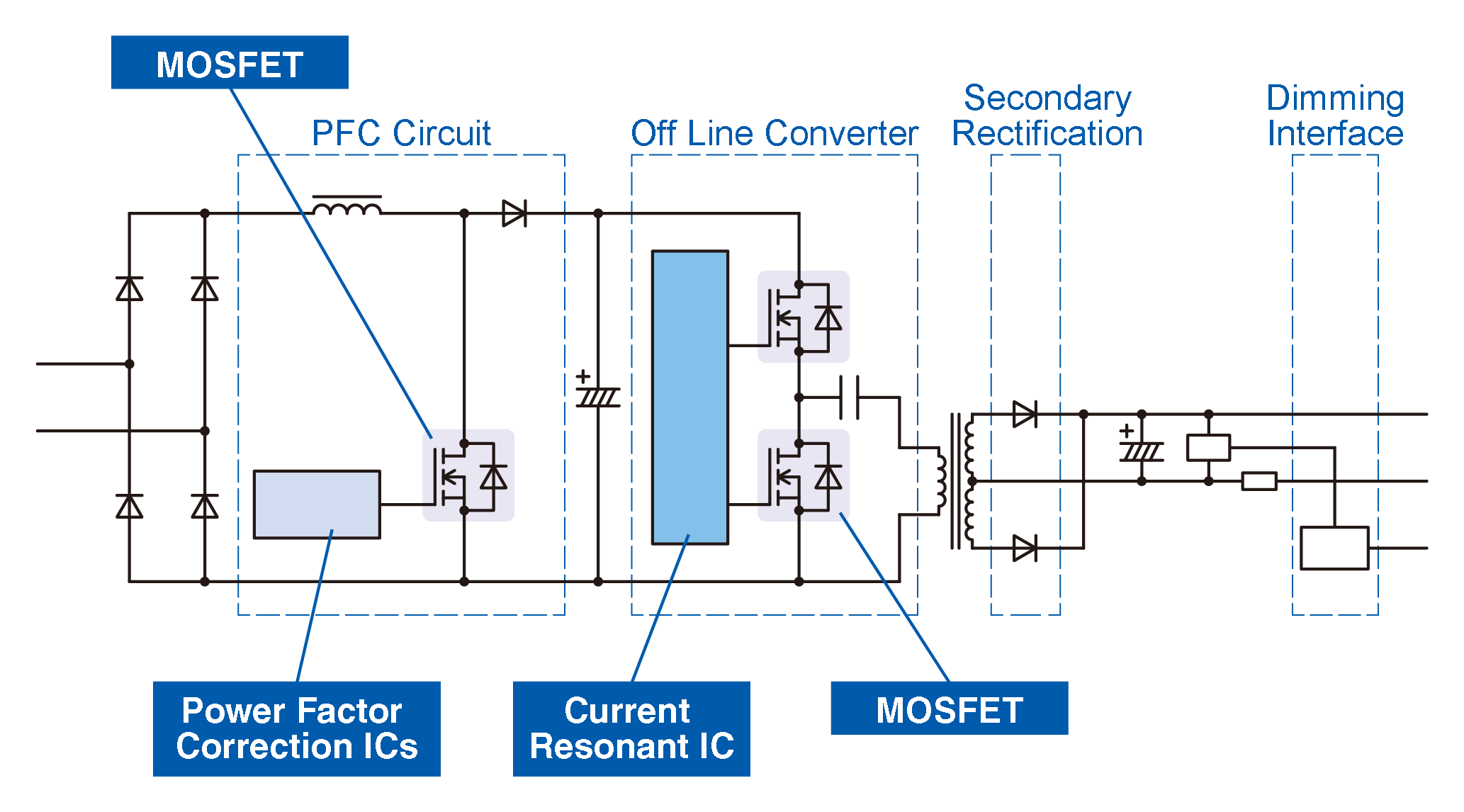

Current Resonance System

Current Resonance System Circuit Configuration
