IGBT 2-Pack

The 2-Pack incorporates a half-bridge circuit.
We have a product lineup compatible with a wide range of converter capacities such as those needed for UPS, general-purpose inverters, electric railroads, and mega solar. High reliability is required for infrastructure applications, and the High Power Modules and PrimePACK™ are suitable.
The standard products have a conventional product shape, so they are compatible with the products of other companies.

Parametric search

Series List

2-Pack X series 650 V, 1200 V, 1700 V Class
2-Pack Dual XT X series 1200 V, 1700 V Class
PrimePACK™ X series 1200 V, 1700 V Class
High Power Module HPnC X series 1700 V, 2300 V, 3300 V Class
2-Pack V series 600 V, 1200 V, 1700 V Class
2-Pack Dual XT V series 1200 V, 1700 V Class
PrimePACK™ V series 1200 V, 1700 V Class

2-Pack X series 650 V, 1200 V, 1700 V Class

7th-Generation X Series

Package	Ic	650V	1200V	1700V
Package	Ic	X series	X series	X series
M263	75A			2MBI75XAA170-50
	100A		2MBI100XAA120-50	2MBI100XAA170-50
	150A	2MBI150XAA065-50	2MBI150XAA120-50	2MBI150XAA170-50
	200A	2MBI200XAA065-50	2MBI200XAA120-50
M274	200A		2MBI200XBE120-50
	300A	2MBI300XBE065-50	2MBI300XBE120-50
	400A	2MBI400XBE065-50
M275	400A	2MBI400XDE065-50	2MBI400XDE120-50
M275	600A	2MBI600XDE065-50	2MBI600XDE120-50
M276	150A			2MBI150XHA170-50
	200A			2MBI200XHA170-50
	300A		2MBI300XHA120-50	2MBI300XHA170-50
	400A			2MBI400XHA170-50 2MBI400XHA170-81
	450A		2MBI450XHA120-50 2MBI450XHA120-81
	600A		2MBI600XHA120-50 2MBI600XHA120-81
M277	300A			2MBI300XEE170-50
	400A			2MBI400XEE170-50
	450A		2MBI450XEE120-50
	600A	2MBI600XEE065-50	2MBI600XEE120-50

NEW New product

UP Update

UD Under development

Note: "-81" : Pre-Applied Thermal-Interface-Material for -50

2-Pack Dual XT X series 1200 V, 1700 V Class

7th Generation X Series Dual XT Module (RC-IGBT) New product information PDF(677KB)

Package	Ic	1200V	1700V
Package	Ic	X series	X series
M254 Solder pins	225A	2MBI225XNA120-50 2MBI225XNA120-81	2MBI225XNA170-50
	300A	2MBI300XNA120-50	2MBI300XNA170-50
	450A	2MBI450XNA120-50	2MBI450XNA170-50
	600A	2MBI600XNG120-50	2MBI600XNG170-50
M285^*1 Solder pins	600A	2MBI600XNE120-50	2MBI600XNE170-50
	800A	2MBI800XNE120-50	2MBI800XRNE170-50
	1000A	2MBI1000XRNE120-50
M282 Press fit pins	225A	2MBI225XNB120-50	2MBI225XNB170-50
	300A	2MBI300XNB120-50 2MBI300XNB120-81	2MBI300XNB170-50
	450A	2MBI450XNB120-50 2MBI450XNB120-81	2MBI450XNB170-50
	600A	2MBI600XNH120-50 2MBI600XNH120-81	2MBI600XNH170-50
M286^*1 Press fit pins	600A	2MBI600XNF120-50	2MBI600XNF170-50
	800A	2MBI800XNF120-50 2MBI800XNF120-81	2MBI800XRNF170-50
	1000A	2MBI1000XRNF120-50 2MBI1000XRNF120-81

NEW New product

UP Update

UD Under development

*1: Low thermal impedance and high tracking capability type

Note: "-81" : Pre-Applied Thermal-Interface-Material for -50

PrimePACK™ X series 1200 V, 1700 V Class

7th Generation X Series PrimePACK™ New product information PDF(556KB)

Package	Ic	1200V	1700V
		X series	X series
		Soft turn off	Low switching loss
M271	650A		2MBI650XXA170-50
	900A	2MBI900XXA120P-50 2MBI900XXA120P-81
	1200A	2MBI1200XXE120P-50	2MBI1200XXE170-50
M272	1000A		2MBI1000XXB170-50
	1400A	2MBI1400XXB120P-50 2MBI1400XXB120P-81	2MBI1400XXB170-50
	1800A	2MBI1800XXF120P-50	2MBI1800XXF170-50
M291	1800A	2MBI1800XXG120P-50 2MBI1800XXG120P-81	2MBI1800XXG170-50 2MBI1800XXG170-81
M291	2400A	2MBI2400XRXG120-50 2MBI2400XRXG120-81	2MBI2400XRXG170-50

NEW New product

UP Update

UD Under development

Note1: PrimePACK™ is a registered trademark of Infineon Technologies AG, Germany.

Note2: "-81" : Pre-Applied Thermal-Interface-Material for -50

High Power Module HPnC X series 1700 V, 2300 V, 3300 V Class

7th-Generation X Series

Package	Ic	1700V	2300V	3300V
Package	Ic	X series	X series	X series

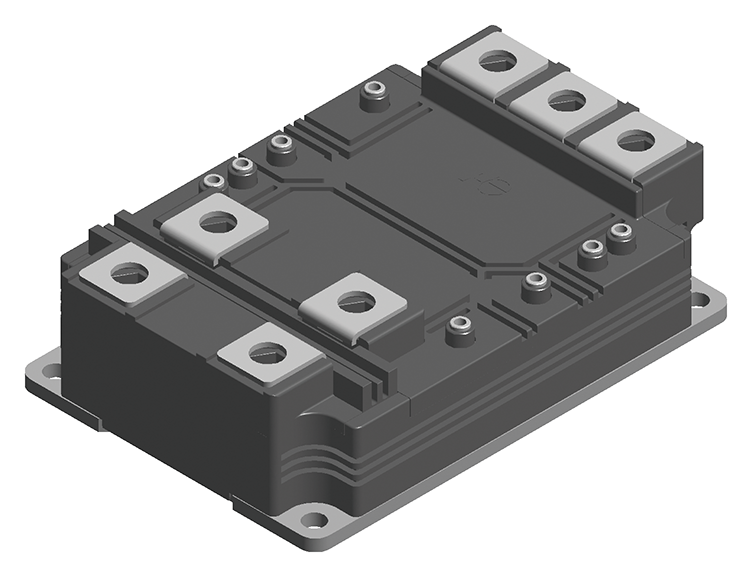

M297	600A			2MBI600XYF330-50
	1200A	2MBI1200XYF170-50
	1500A	2MBI1500XYF170-50
M298	1200A	2MBI1200XZF170-50	2MBI1200XZF230-50
	1500A	2MBI1500XZF170-50
	1800A	2MBI1800XZF170-50

NEW New product

UP Update

UD Under development

2-Pack V series 600 V, 1200 V, 1700 V Class

Package	Ic	600V	1200V	1700V
Package	Ic	V series	V series	V series
M263	75A		2MBI75VA-120-50	2MBI75VA-170-50
	100A	2MBI100VA-060-50	2MBI100VA-120-50	2MBI100VA-170-50
	150A	2MBI150VA-060-50	2MBI150VA-120-50
	200A	2MBI200VA-060-50
M274	150A		2MBI150VB-120-50
	200A		2MBI200VB-120-50
	300A	2MBI300VB-060-50
	400A	2MBI400VB-060-50
M275	300A		2MBI300VD-120-50
	400A	2MBI400VD-060-50	2MBI400VD-120-50
	600A	2MBI600VD-060-50
M276	150A			2MBI150VH-170-50
	200A		2MBI200VH-120-50	2MBI200VH-170-50
	300A		2MBI300VH-120-50	2MBI300VH-170-50
	450A		2MBI450VH-120-50 2MBI450VH-120F-50
M277	300A		2MBI300VE-120-50	2MBI300VE-170-50
	400A			2MBI400VE-170-50
	450A		2MBI450VE-120-50
	600A	2MBI600VE-060-50	2MBI600VE-120-50

NEW New product

UP Update

UD Under development

2-Pack Dual XT V series 1200 V, 1700 V Class

Package	Ic	1200V		1700V
Package	Ic	V series	V series With SIN-substrate^*1	V series	V series With SIN-substrate^*1
M254	225A	2MBI225VN-120-50	2MBI225VN-120S-50
	300A	2MBI300VN-120-50	2MBI300VN-120S-50	2MBI300VN-170-50
	450A	2MBI450VN-120-50	2MBI450VN-120S-50	2MBI450VN-170-50
	550A				2MBI550VN-170-50
	600A		2MBI600VN-120-50
M282	225A	2MBI225VX-120-50		2MBI225VX-170-50
	300A	2MBI300VX-120-50		2MBI300VX-170-50
	450A	2MBI450VX-120-50		2MBI450VX-170-50
	550A				2MBI550VX-170-50
	600A		2MBI600VX-120-50

NEW New product

UP Update

UD Under development

*1: Low Thermal Impedance Version

PrimePACK™ V series 1200 V, 1700 V Class

Package	Ic	1200V		1700V
		V series		V series
		Low switching loss	Soft turn off	Low switching loss	Soft turn off
M271	600A	2MBI600VXA-120E-50 2MBI600VXA-120E-54
	650A			2MBI650VXA-170E-50 2MBI650VXA-170E-54
	650A			2MBI650VXA-170EA-50 2MBI650VXA-170EA-54
	900A	2MBI900VXA-120E-50 2MBI900VXA-120E-54	2MBI900VXA-120P-50 2MBI900VXA-120P-54
M272	1000A			2MBI1000VXB-170E-50 2MBI1000VXB-170E-54
	1000A			2MBI1000VXB-170EA-50 2MBI1000VXB-170EA-54
	1400A	2MBI1400VXB-120E-50 2MBI1400VXB-120E-54	2MBI1400VXB-120P-50 2MBI1400VXB-120P-54	2MBI1400VXB-170E-50 2MBI1400VXB-170E-54	2MBI1400VXB-170P-50 2MBI1400VXB-170P-54
