FRENIC-VG
Product Information | Easier Maintenance
-
Easier Maintenance
Easier Maintenance
Inverter product range and ease of replacement (stack type)
The inverters (stack type) have an arrangement with consideration for the installation of the product into the panel and easier change.

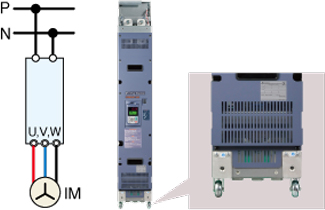

The inverters (stack type) (132 to 315 kW) can easily be installed or changed because they have wheels.

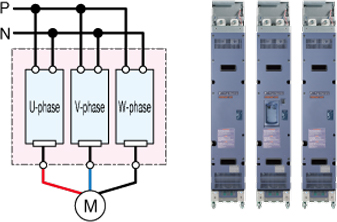

With the inverters (stack type) (630 to 800 kW), stacks are divided for each output phase (U, V and W), which has realized the lighter weight.
| Nominal applied motor capacity [kW] (MD spec) | 30 to 110 | 132 to 450 | 630 to 800 |
|---|---|---|---|
| Type | 400V：FRN30SVG1S-4□ to FRN110SVG1S-4□ 690V：FRN90SVG1S-69□ to FRN110SVG1S-69□ |
400V: FRN132SVG1S-4□ to FRN315SVG1S-4□ 690V: FRN132SVG1S-69□ to FRN450SVG1S-69□ |
FRN630BVG1S-4□ to FRN800BVG1S-4□ |
| Category | Single unit | Single unit | Stack by phase |
| Wheels | Not provided | Provided | Provided |
| Arrangement |  |
 |
 |
| Maintenance | The weight of one stack is reduced (50 kg or less) to give consideration to replacement work. | The models where each stack is heavy have wheels in order to change the stacks easily. A lifter for replacement is available. Lifter (Conceptual view)  |
Trim weight by dividing the stack into 3 parts by each output phase (U, V and W). In the event of a breakdown, only the target phase needs to be replaced with a new one. The stack to be replaced should be an exclusive part.  |
| Approx. Weight [kg] | 30 to 45 | 95 to 135 | 135×3 |
