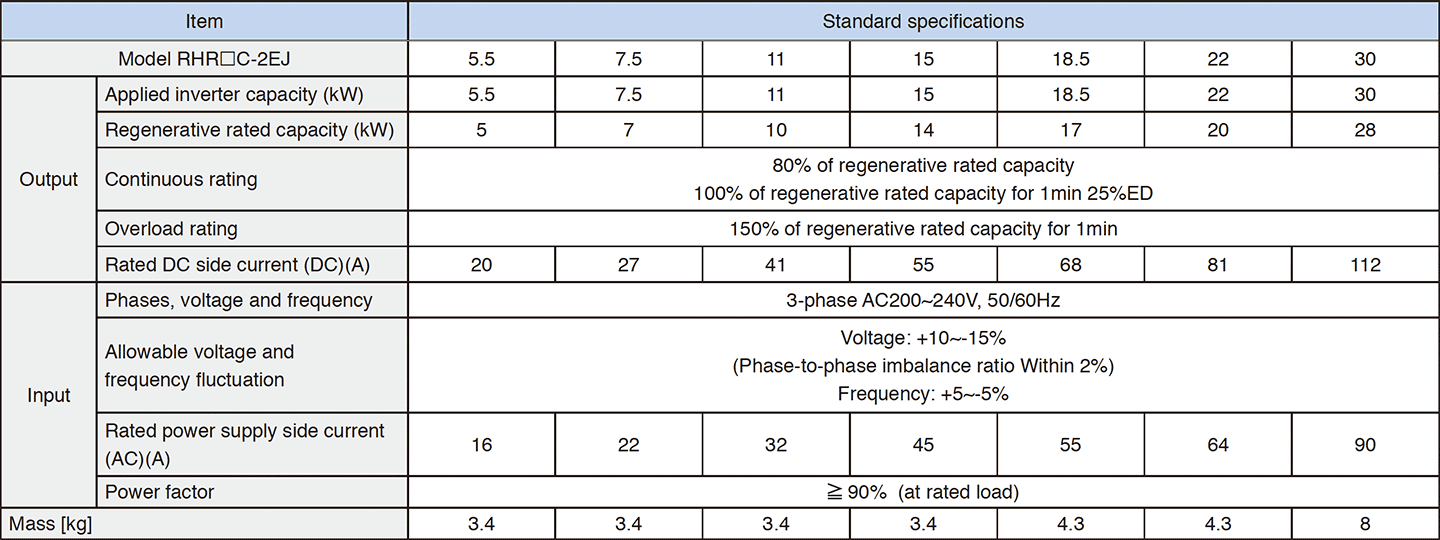

Basic Type（Three-phase 200V）

Item Standard specifications
Model RHR□C-2EJ 5.5 7.5 11 15 18.5 22 30
Output Applied inverter capacity (kW) 5.5 7.5 11 15 18.5 22 30
Regenerative rated capacity (kW) 5 7 10 14 17 20 28
Continuous rating 80% of regenerative rated capacity
100% of regenerative rated capacity for 1min 25%ED
Overload rating 150% of regenerative rated capacity for 1min
Rated DC side current (DC)(A) 20 27 41 55 68 81 112
Input Phases, voltage and frequency 3-phase AC200~240V, 50/60Hz
Allowable voltage and frequency fluctuation Voltage: +10~-15%
(Phase-to-phase imbalance ratio within 2%) Frequency: +5~-5%
Rated power supply side current (AC)(A) 16 22 32 45 55 64 90
Power factor
≧90% (at rated load)
Mass [kg] 3.4 3.4 3.4 3.4 4.3 4.3 8
