FRENIC-eRHR
External Dimensions

Basic Type

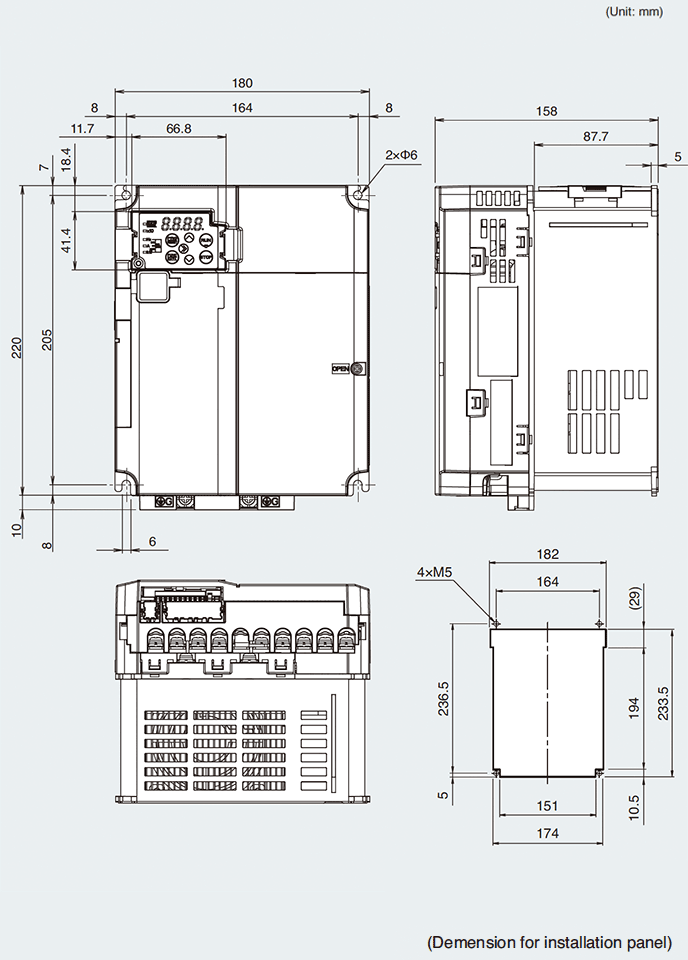

Figure A

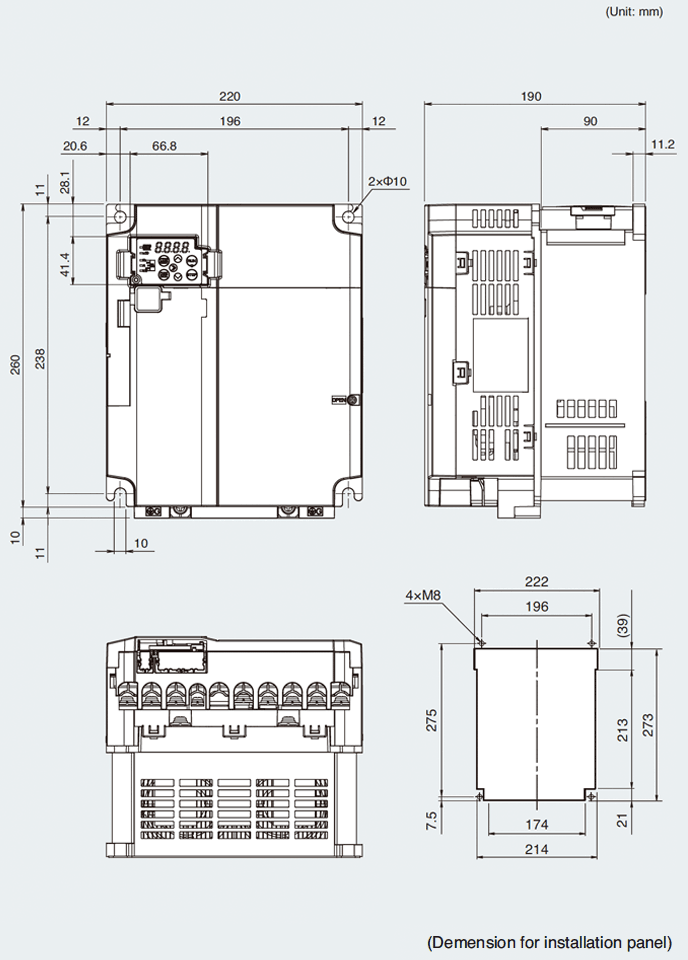

Figure B
Power supply voltage Converter type
Three-phase 200V RHR5.5C-2EJ
RHR7.5C-2EJ
RHR11C-2EJ
RHR15C-2EJ
Three-phase 400V RHR5.5C-4EJ
RHR7.5C-4EJ
RHR11C-4EJ
RHR15C-4EJ
Power supply voltage Converter type
Three-phase 200V RHR18.5C-2EJ
RHR22C-2EJ
Three-phase 400V RHR18.5C-4EJ
RHR22C-4EJ

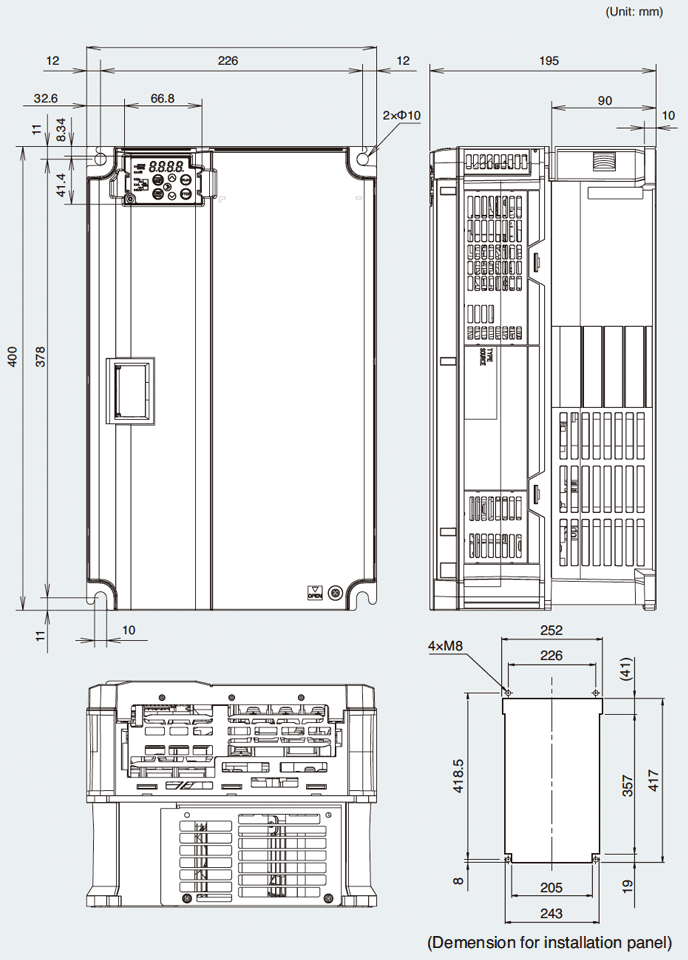

Figure C

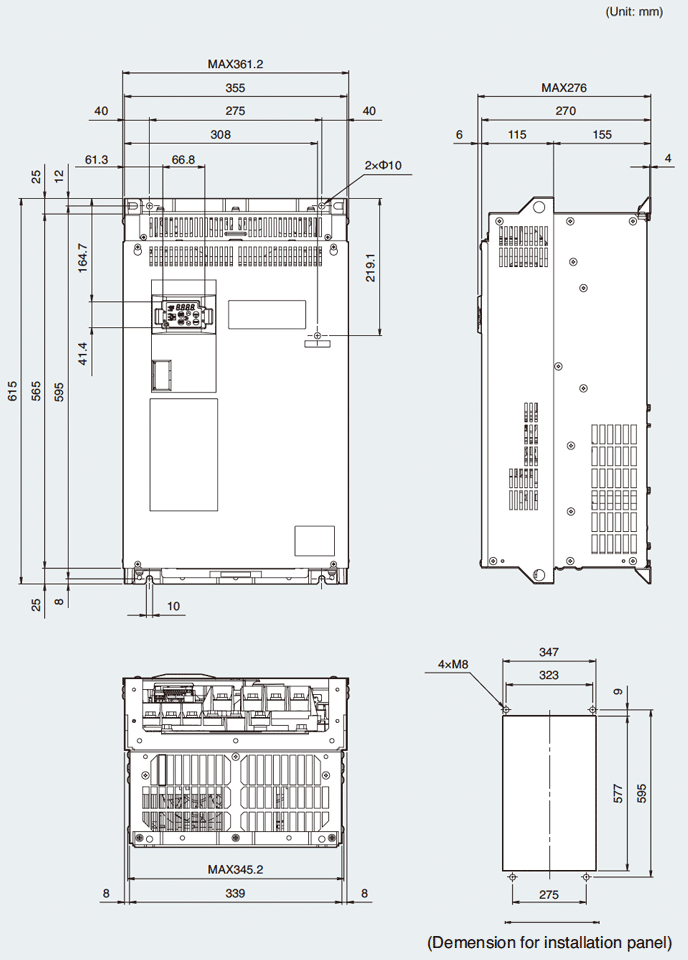

Figure D
Power supply voltage Converter type
Three-phase 200V RHR30C-2EJ
Three-phase 400V RHR30C-4EJ
RHR37C-4EJ
Power supply voltage Converter type
Three-phase 200V RHR45C-4EJ
Three-phase 400V RHR55C-4EJ
RHR75C-4EJ

Basic Type

Figure A
Figure B
Power supply voltage Converter type
Three-phase 200V RHR5.5C-2EE
RHR7.5C-2EE
RHR11C-2EE
RHR15C-2EE
Three-phase 400V RHR5.5C-4EE
RHR7.5C-4EE
RHR11C-4EE
RHR15C-4EE
Power supply voltage Converter type
Three-phase 200V RHR18.5C-2EE
RHR22C-2EE
Three-phase 400V RHR18.5C-4EE
RHR22C-4EE
Figure C
Figure D
Power supply voltage Converter type
Three-phase 200V RHR30C-2EE
Three-phase 400V RHR30C-4EE
RHR37C-4EE
Power supply voltage Converter type
Three-phase 200V RHR45C-4EE
Three-phase 400V RHR55C-4EE
RHR75C-4EE

Basic Type

Figure A
Figure B
Power supply voltage Converter type
Three-phase 200V RHR5.5C-2EE
RHR7.5C-2EE
RHR11C-2EE
RHR15C-2EE
Three-phase 400V RHR5.5C-4EE
RHR7.5C-4EE
RHR11C-4EE
RHR15C-4EE
Power supply voltage Converter type
Three-phase 200V RHR18.5C-2EE
RHR22C-2EE
Three-phase 400V RHR18.5C-4EE
RHR22C-4EE
Figure C
Figure D
Power supply voltage Converter type
Three-phase 200V RHR30C-2EE
Three-phase 400V RHR30C-4EE
RHR37C-4EE
Power supply voltage Converter type
Three-phase 200V RHR45C-4EE
Three-phase 400V RHR55C-4EE
RHR75C-4EE

Basic Type

Figure A
Figure B
Power supply voltage Converter type
Three-phase 200V RHR5.5C-2EC
RHR7.5C-2EC
RHR11C-2EC
RHR15C-2EC
Three-phase 400V RHR5.5C-4EC
RHR7.5C-4EC
RHR11C-4EC
RHR15C-4EC
Power supply voltage Converter type
Three-phase 200V RHR18.5C-2EC
RHR22C-2EC
Three-phase 400V RHR18.5C-4EC
RHR22C-4EC
Figure C
Figure D
Power supply voltage Converter type
Three-phase 200V RHR30C-2EC
Three-phase 400V RHR30C-4EC
RHR37C-4EC
Power supply voltage Converter type
Three-phase 200V RHR45C-4EC
Three-phase 400V RHR55C-4EC
RHR75C-4EC

Basic Type

Figure A
Figure B
Power supply voltage Converter type
Three-phase 200V RHR5.5C-2EE
RHR7.5C-2EE
RHR11C-2EE
RHR15C-2EE
Three-phase 400V RHR5.5C-4EE
RHR7.5C-4EE
RHR11C-4EE
RHR15C-4EE
Power supply voltage Converter type
Three-phase 200V RHR18.5C-2EE
RHR22C-2EE
Three-phase 400V RHR18.5C-4EE
RHR22C-4EE
Figure C
Figure D
Power supply voltage Converter type
Three-phase 200V RHR30C-2EE
Three-phase 400V RHR30C-4EE
RHR37C-4EE
Power supply voltage Converter type
Three-phase 200V RHR45C-4EE
Three-phase 400V RHR55C-4EE
RHR75C-4EE

Basic Type

Figure A
Figure B
Power supply voltage Converter type
Three-phase 200V RHR5.5C-2EJ
RHR7.5C-2EJ
RHR11C-2EJ
RHR15C-2EJ
Three-phase 400V RHR5.5C-4EJ
RHR7.5C-4EJ
RHR11C-4EJ
RHR15C-4EJ
Power supply voltage Converter type
Three-phase 200V RHR18.5C-2EJ
RHR22C-2EJ
Three-phase 400V RHR18.5C-4EJ
RHR22C-4EJ
Figure C
Figure D
Power supply voltage Converter type
Three-phase 200V RHR30C-2EJ
Three-phase 400V RHR30C-4EJ
RHR37C-4EJ
Power supply voltage Converter type
Three-phase 200V RHR45C-4EJ
Three-phase 400V RHR55C-4EJ
RHR75C-4EJ

Basic Type

Figure A
Figure B
Power supply voltage Converter type
Three-phase 200V RHR5.5C-2EJ
RHR7.5C-2EJ
RHR11C-2EJ
RHR15C-2EJ
Three-phase 400V RHR5.5C-4EJ
RHR7.5C-4EJ
RHR11C-4EJ
RHR15C-4EJ
Power supply voltage Converter type
Three-phase 200V RHR18.5C-2EJ
RHR22C-2EJ
Three-phase 400V RHR18.5C-4EJ
RHR22C-4EJ
Figure C
Figure D
Power supply voltage Converter type
Three-phase 200V RHR30C-2EJ
Three-phase 400V RHR30C-4EJ
RHR37C-4EJ
Power supply voltage Converter type
Three-phase 200V RHR45C-4EJ
Three-phase 400V RHR55C-4EJ
RHR75C-4EJ
