FRENIC-eRHR
Variation

FRENIC-eRHR TOP
FRENIC-eRHR TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

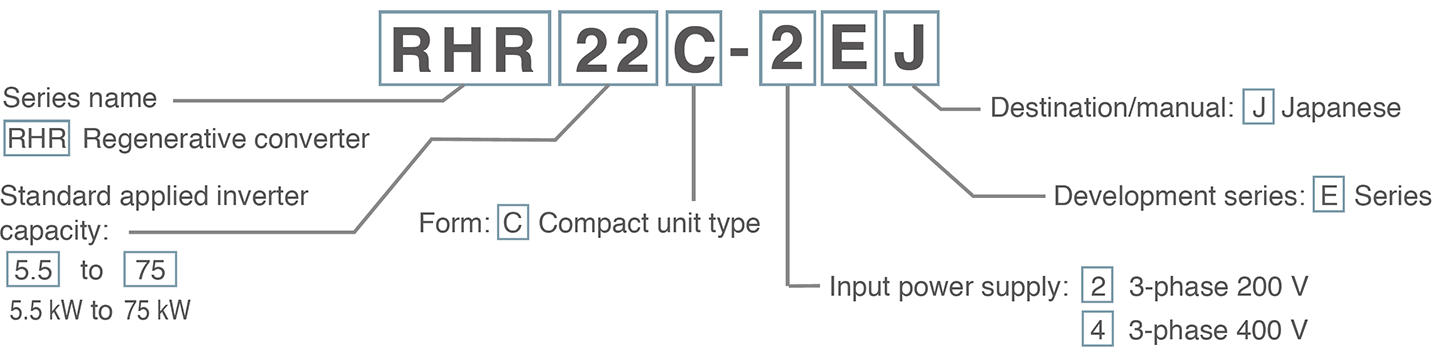

How to Read the Converter Model

How to Read the Inverter Model
1 Code Series Name
RHR Regenerative Converter
2 Code Applicable Motor Rating
5.5
｜
75		 5.5kW
｜
75kW
3 Code Form
C Compact Unit Type
4 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
5 Code Order of Development
E E Series
6 Code Destination
J Japan

Three-phase 200V

Compact Unit Type

Model Standard Applicable Motor［kW］
RHR5.5C-2EJ 5.5
RHR7.5C-2EJ 7.5
RHR11C-2EJ 11
RHR15C-2EJ 15
RHR18.5C-2EJ 18.5
RHR22C-2EJ 22
RHR30C-2EJ 30

Three-phase 400V

Compact Unit Type

Model Standard Applicable Motor［kW］
RHR5.5C-4EJ 5.5
RHR7.5C-4EJ 7.5
RHR11C-4EJ 11
RHR15C-4EJ 15
RHR18.5C-4EJ 18.5
RHR22C-4EJ 22
RHR30C-4EJ 30
RHR37C-4EJ 37
RHR45C-4EJ 45
RHR55C-4EJ 55
RHR75C-4EJ 75
