Basic type

Power supply Series Inverter type Figure External Dimensions [mm(inch)]
W H D
3-phase
200V

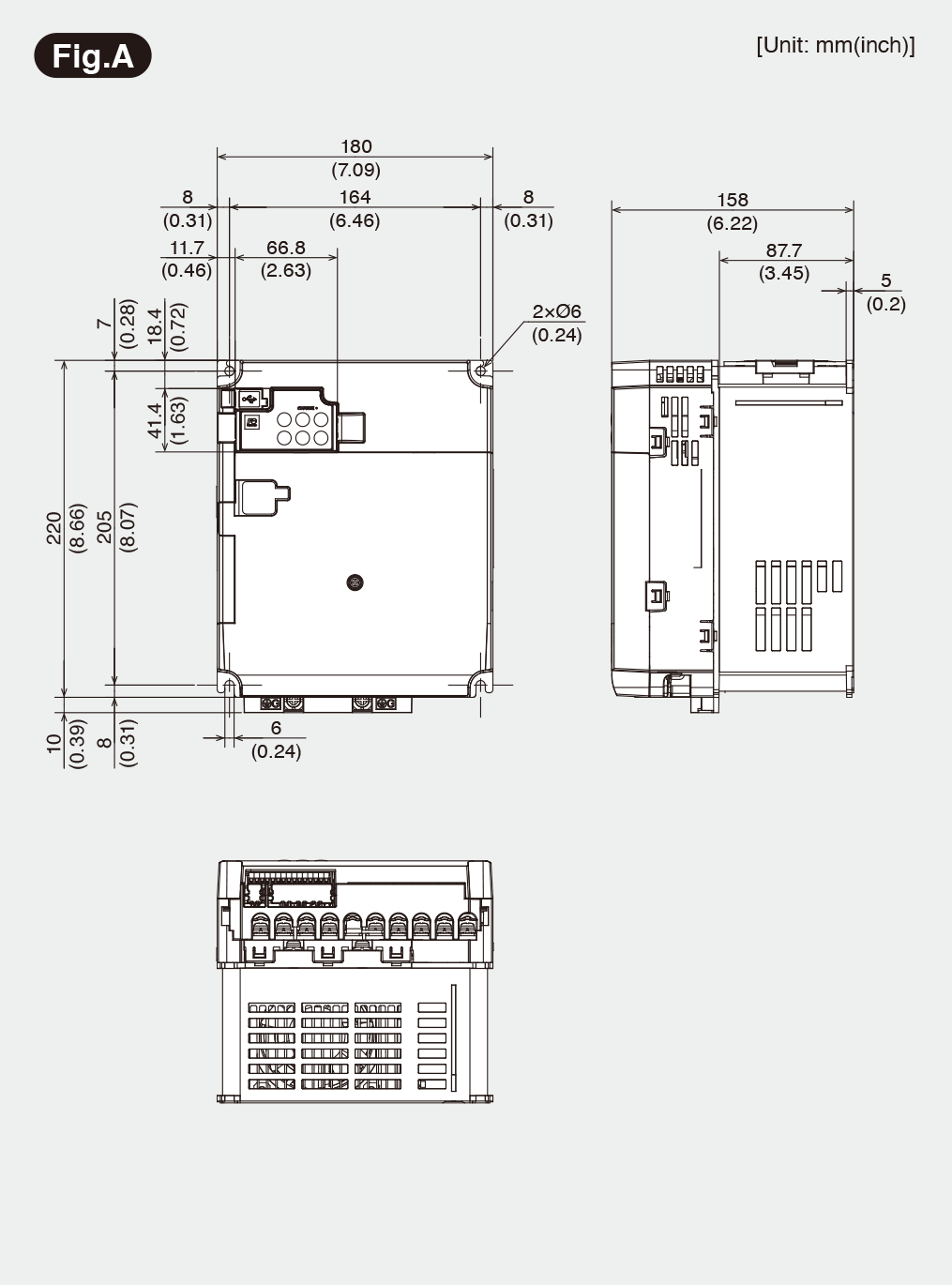

 FRN5.5LM3S-2J A 180 220 158
FRN7.5LM3S-2J 180 220 158
FRN11LM3S-2J B 220 260 190
FRN15LM3S-2J 220 260 190
FRN18.5LM3S-2J C 250 400 203
FRN22LM3S-2J 250 400 203
3-phase
400V
 FRN4.0LM3S-4J A 180 220 158
FRN5.5LM3S-4J 180 220 158
FRN7.5LM3S-4J 180 220 158
FRN11LM3S-4J B 220 260 190
FRN15LM3S-4J 220 260 190
FRN18.5LM3S-4J C 250 400 203
FRN22LM3S-4J 250 400 203

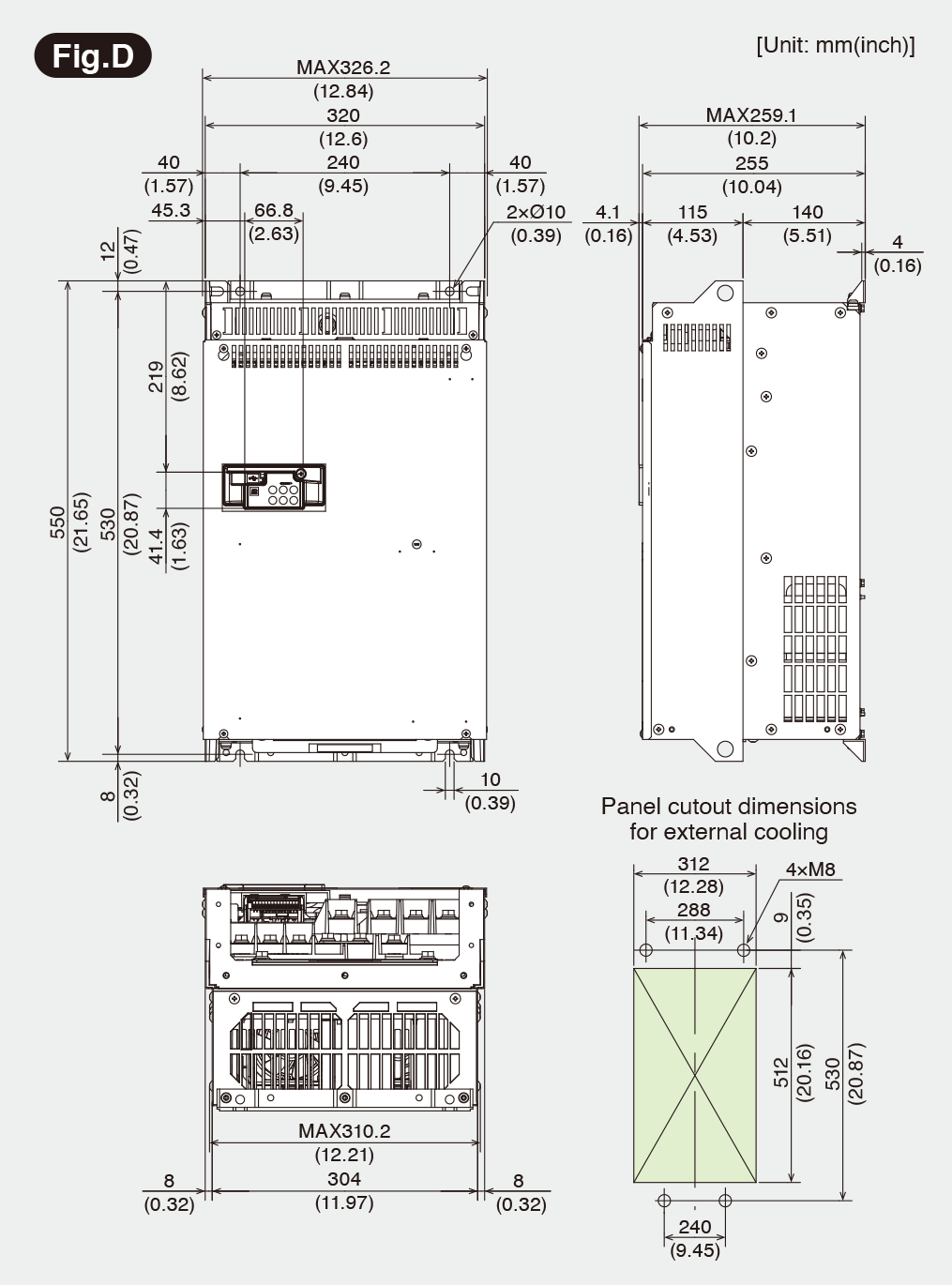

FRN30LM3S-4J D 326.2 550 259.1
FRN37LM3S-4J 326.2 550 259.1

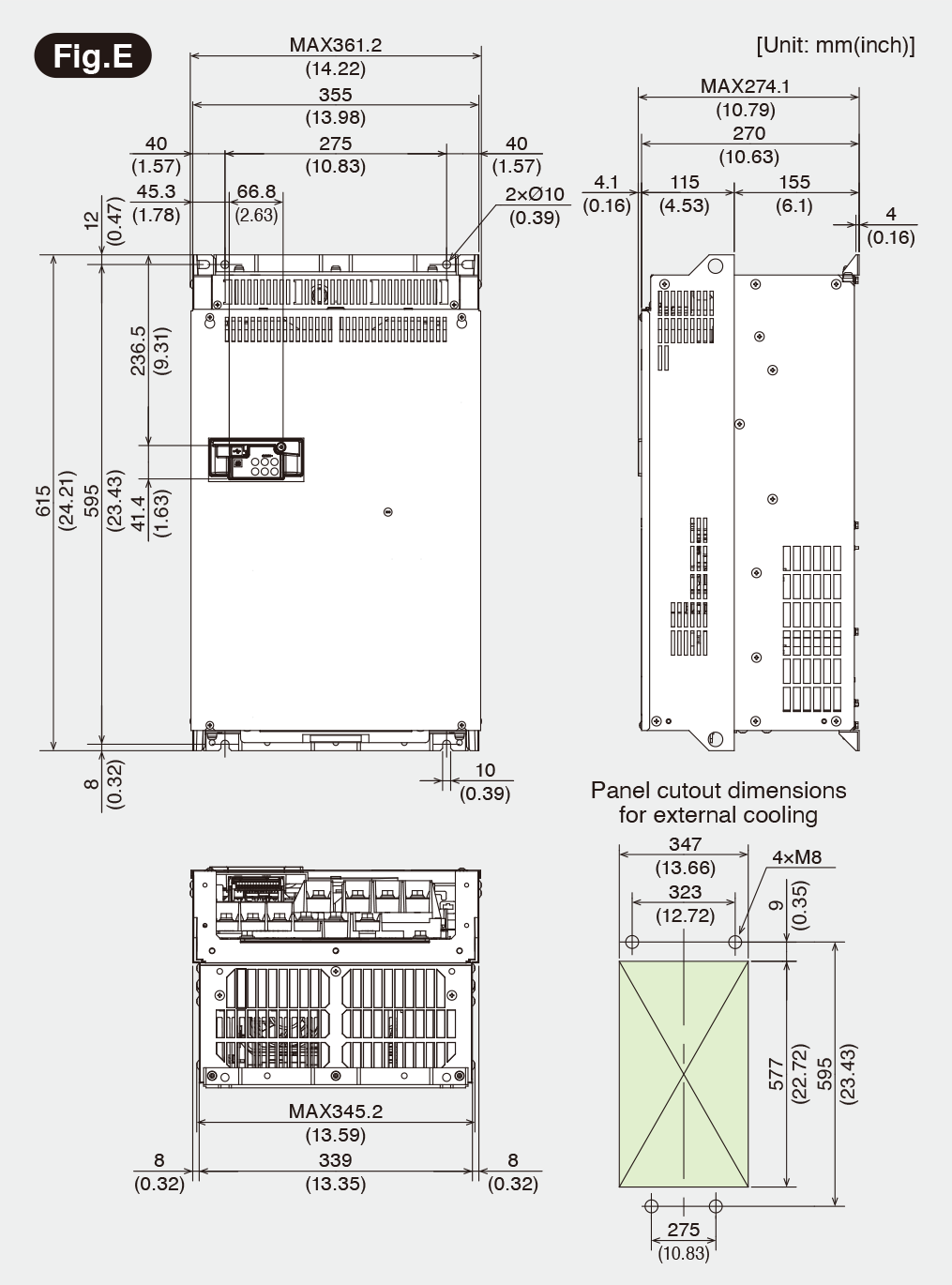

FRN45LM3S-4J E 361.2 615 274.1
FRN55LM3S-4J F 361.2 675 274.1
Single phase
200V
 FRN2.2LM3S-7J A 180 220 158
FRENIC-Lift (LM3S) TOP
FRENIC-Lift (LM3S) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

Basic type

Power supply Series Inverter type Figure External Dimensions [mm(inch)]
W H D
3-phase
200V		 FRN0025LM3S-2G A 180(7.09) 220(8.66) 158(6.22)
FRN0033LM3S-2G 180(7.09) 220(8.66) 158(6.22)
FRN0047LM3S-2G B 220(8.66) 260(10.24) 190(7.48)
FRN0060LM3S-2G 220(8.66) 260(10.24) 190(7.48)
FRN0076LM3S-2G C 250(9.84) 400(15.75) 203(7.99)
FRN0090LM3S-2G 250(9.84) 400(15.75) 203(7.99)
3-phase
400V		 FRN0009LM3S-4G A 180(7.09) 220(8.66) 158(6.22)
FRN0015LM3S-4G 180(7.09) 220(8.66) 158(6.22)
FRN0018LM3S-4G 180(7.09) 220(8.66) 158(6.22)
FRN0024LM3S-4G B 220(8.66) 260(10.24) 190(7.48)
FRN0031LM3S-4G 220(8.66) 260(10.24) 190(7.48)
FRN0039LM3S-4G C 250(9.84) 400(15.75) 203(7.99)
FRN0045LM3S-4G 250(9.84) 400(15.75) 203(7.99)
FRN0060LM3S-4G D 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0075LM3S-4G 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0091LM3S-4G E 361.2(14.22) 615(24.21) 274.1(10.79)
FRN0112LM3S-4G F 361.2(14.22) 675(26.57) 274.1(10.79)
Single phase
200V		 FRN0011LM3S-7G A 180(7.09) 220(8.66) 158(6.22)
FRENIC-Lift (LM3S) TOP
FRENIC-Lift (LM3S) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

Basic type

Power supply Series Inverter type Figure External Dimensions [mm(inch)]
W H D
3-phase
200V		 FRN0025LM3S-2G A 180(7.09) 220(8.66) 158(6.22)
FRN0033LM3S-2G 180(7.09) 220(8.66) 158(6.22)
FRN0047LM3S-2G B 220(8.66) 260(10.24) 190(7.48)
FRN0060LM3S-2G 220(8.66) 260(10.24) 190(7.48)
FRN0076LM3S-2G C 250(9.84) 400(15.75) 203(7.99)
FRN0090LM3S-2G 250(9.84) 400(15.75) 203(7.99)
3-phase
400V		 FRN0009LM3S-4G A 180(7.09) 220(8.66) 158(6.22)
FRN0015LM3S-4G 180(7.09) 220(8.66) 158(6.22)
FRN0018LM3S-4G 180(7.09) 220(8.66) 158(6.22)
FRN0024LM3S-4G B 220(8.66) 260(10.24) 190(7.48)
FRN0031LM3S-4G 220(8.66) 260(10.24) 190(7.48)
FRN0039LM3S-4G C 250(9.84) 400(15.75) 203(7.99)
FRN0045LM3S-4G 250(9.84) 400(15.75) 203(7.99)
FRN0060LM3S-4G D 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0075LM3S-4G 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0091LM3S-4G E 361.2(14.22) 615(24.21) 274.1(10.79)
FRN0112LM3S-4G F 361.2(14.22) 675(26.57) 274.1(10.79)
Single phase
200V		 FRN0011LM3S-7G A 180(7.09) 220(8.66) 158(6.22)

This model is not available in your region.
For more information regarding this product, please contact us via the inquiry form.

FRENIC-Lift (LM3S) TOP
FRENIC-Lift (LM3S) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

Basic type

Power supply Series Inverter type Figure External Dimensions [mm(inch)]
W H D
3-phase
200V		 FRN0025LM3S-2□ A 180(7.09) 220(8.66) 158(6.22)
FRN0033LM3S-2□ 180(7.09) 220(8.66) 158(6.22)
FRN0047LM3S-2□ B 220(8.66) 260(10.24) 190(7.48)
FRN0060LM3S-2□ 220(8.66) 260(10.24) 190(7.48)
FRN0076LM3S-2□ C 250(9.84) 400(15.75) 203(7.99)
FRN0090LM3S-2□ 250(9.84) 400(15.75) 203(7.99)
3-phase
400V		 FRN0009LM3S-4□ A 180(7.09) 220(8.66) 158(6.22)
FRN0015LM3S-4□ 180(7.09) 220(8.66) 158(6.22)
FRN0018LM3S-4□ 180(7.09) 220(8.66) 158(6.22)
FRN0024LM3S-4□ B 220(8.66) 260(10.24) 190(7.48)
FRN0031LM3S-4□ 220(8.66) 260(10.24) 190(7.48)
FRN0039LM3S-4□ C 250(9.84) 400(15.75) 203(7.99)
FRN0045LM3S-4□ 250(9.84) 400(15.75) 203(7.99)
FRN0060LM3S-4□ D 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0075LM3S-4□ 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0091LM3S-4□ E 361.2(14.22) 615(24.21) 274.1(10.79)
FRN0112LM3S-4□ F 361.2(14.22) 675(26.57) 274.1(10.79)
Single phase
200V		 FRN0011LM3S-7□ A 180(7.09) 220(8.66) 158(6.22)

Note)

India model(FRN**LM3S-□A): The keypad is mounted in factory shipping condition. Global model(FRN**LM3S-□G): The blind cover is mounted in factory shipping condition.The keypad is an option sold separately.

FRENIC-Lift (LM3S) TOP
FRENIC-Lift (LM3S) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

Basic type

Power supply Series Inverter type Figure External Dimensions [mm(inch)]
W H D
3-phase
200V
 FRN5.5LM3S-2J A 180 220 158
FRN7.5LM3S-2J 180 220 158
FRN11LM3S-2J B 220 260 190
FRN15LM3S-2J 220 260 190
FRN18.5LM3S-2J C 250 400 203
FRN22LM3S-2J 250 400 203
3-phase
400V
 FRN4.0LM3S-4J A 180 220 158
FRN5.5LM3S-4J 180 220 158
FRN7.5LM3S-4J 180 220 158
FRN11LM3S-4J B 220 260 190
FRN15LM3S-4J 220 260 190
FRN18.5LM3S-4J C 250 400 203
FRN22LM3S-4J 250 400 203
FRN30LM3S-4J D 326.2 550 259.1
FRN37LM3S-4J 326.2 550 259.1
FRN45LM3S-4J E 361.2 615 274.1
FRN55LM3S-4J F 361.2 675 274.1
Single phase
200V
 FRN2.2LM3S-7J A 180 220 158
FRENIC-Lift (LM3S) TOP
FRENIC-Lift (LM3S) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

Basic type

Power supply Series Inverter type Figure External Dimensions [mm(inch)]
W H D
3-phase
200V		 FRN0025LM3S-2G A 180(7.09) 220(8.66) 158(6.22)
FRN0033LM3S-2G 180(7.09) 220(8.66) 158(6.22)
FRN0047LM3S-2G B 220(8.66) 260(10.24) 190(7.48)
FRN0060LM3S-2G 220(8.66) 260(10.24) 190(7.48)
FRN0076LM3S-2G C 250(9.84) 400(15.75) 203(7.99)
FRN0090LM3S-2G 250(9.84) 400(15.75) 203(7.99)
3-phase
400V		 FRN0009LM3S-4G A 180(7.09) 220(8.66) 158(6.22)
FRN0015LM3S-4G 180(7.09) 220(8.66) 158(6.22)
FRN0018LM3S-4G 180(7.09) 220(8.66) 158(6.22)
FRN0024LM3S-4G B 220(8.66) 260(10.24) 190(7.48)
FRN0031LM3S-4G 220(8.66) 260(10.24) 190(7.48)
FRN0039LM3S-4G C 250(9.84) 400(15.75) 203(7.99)
FRN0045LM3S-4G 250(9.84) 400(15.75) 203(7.99)
FRN0060LM3S-4G D 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0075LM3S-4G 326.2(12.84) 550(21.65) 259.1(10.2)
FRN0091LM3S-4G E 361.2(14.22) 615(24.21) 274.1(10.79)
FRN0112LM3S-4G F 361.2(14.22) 675(26.57) 274.1(10.79)
Single phase
200V		 FRN0011LM3S-7G A 180(7.09) 220(8.66) 158(6.22)
