FRENIC-Lift (LM1S)
External Dimensions

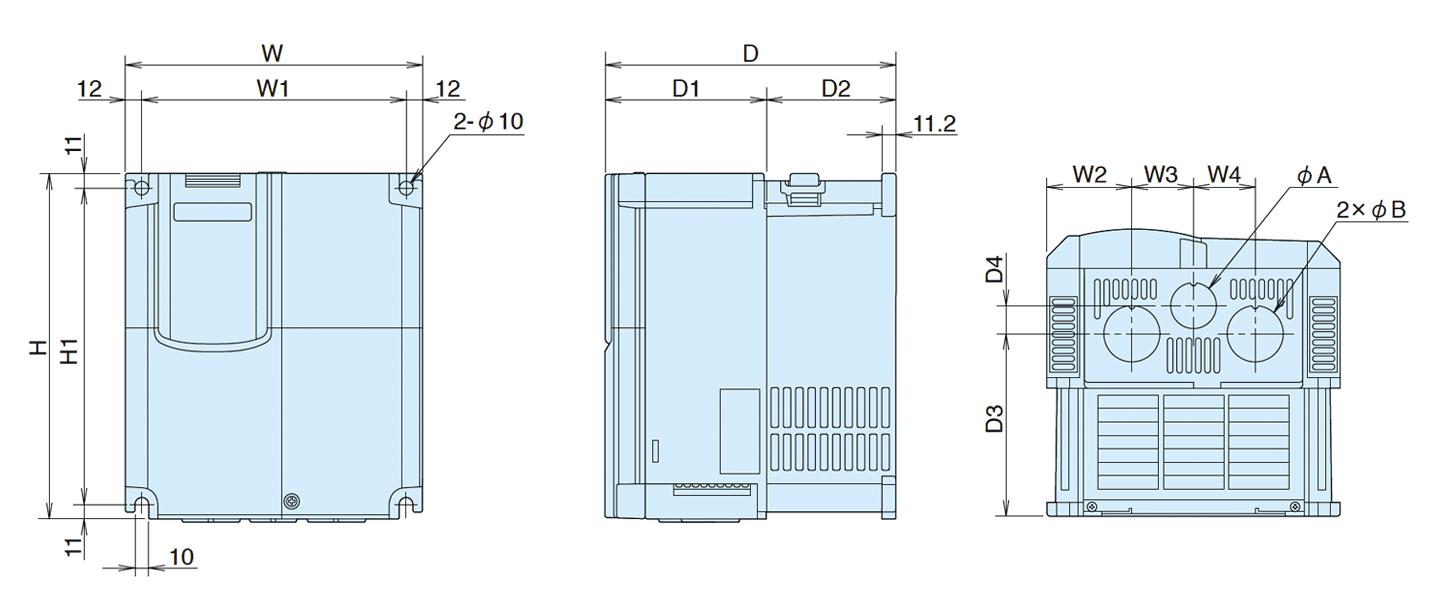

FRN5.5LM1S-4E■ to FRN22LM1S-4E■, FRN5.5LM1S-2E■ to FRN22LM1S-2E■

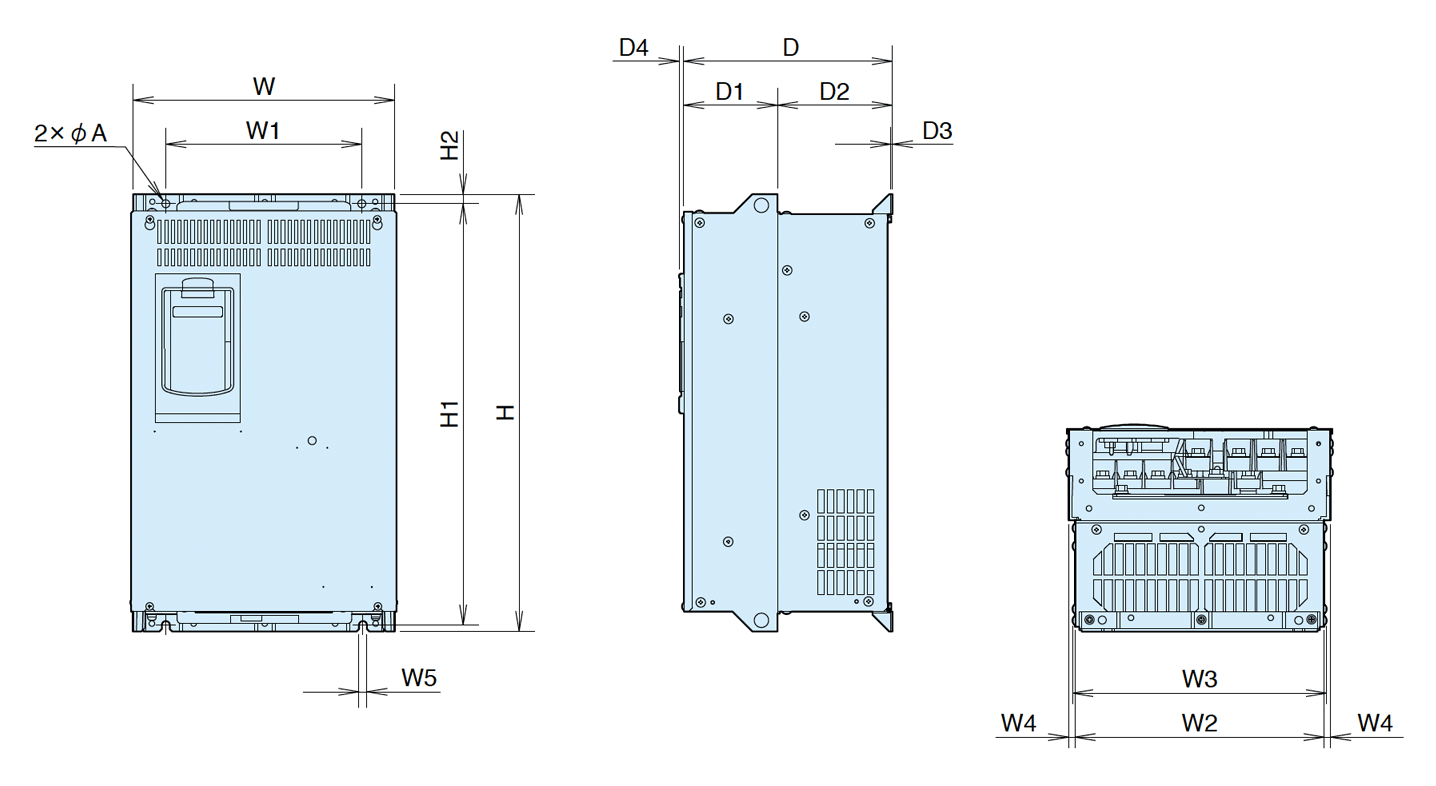

FRN30LM1S-4E■ to FRN45LM1S-4E■

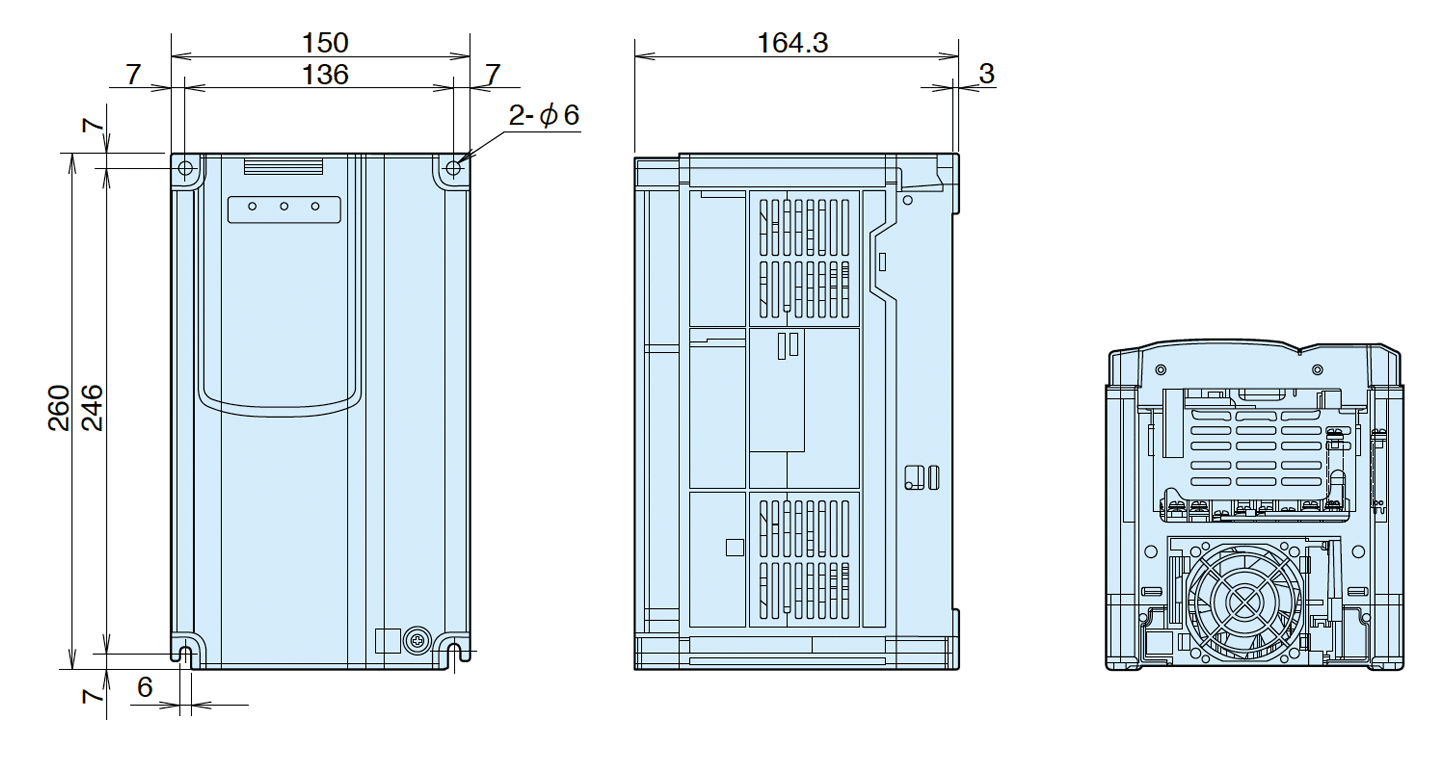

FRN4.0LM1S-4E■/FRN2.2LM1S-7E■
Power supply voltage Type Dimensions (mm)
W W1 W2 W3 W4 W5 H H1 H2 D D1 D2 D3 D4 φA φB
Three-phase 200V FRN5.5LM1S-2E■ 220 196 63.5 46.5 46.5 – 260 238 – 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-2E■
FRN11LM1S-2E■
FRN15LM1S-2E■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-2E■
FRN22LM1S-2E■
Three-phase 400V FRN4.0LM1S-4E■ 150 136 – – – 260 246 165 133 32 – – – –
FRN5.5LM1S-4E■ 220 196 63.5 46.5 46.5 260 238 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-4E■
FRN11LM1S-4E■
FRN15LM1S-4E■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-4E■
FRN22LM1S-4E■
FRN30LM1S-4E■ 320 240 304 310.2 8 10 550
615		 530
595		 12 255
270		 115 140
155		 4 6 10 –
FRN37LM1S-4E■ 355 275 339 345.2
FRN45LM1S-4E■
Single-phase 200V FRN2.2LM1S-7E■ 150 136 – – – – 260 246 – 165 133 32 – – – –
FRN5.5LM1S-4C to FRN22LM1S-4C
FRN30LM1S-4C to FRN45LM1S-4C
FRN4.0LM1S-4C
Power supply voltage Type Dimensions (mm)
W W1 W2 W3 W4 W5 H H1 H2 D D1 D2 D3 D4 φA φB
Three-phase 400V FRN4.0LM1S-4C 150 136 – – – – 260 246 – 165 133 32 – – – –
FRN5.5LM1S-4C 220 196 63.5 46.5 46.5 260 238 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-4C
FRN11LM1S-4C
FRN15LM1S-4C 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-4C
FRN22LM1S-4C
FRN30LM1S-4C 320 240 304 310.2 8 10 550
615		 530
595		 12 255
270		 115 140
155		 4 6 10 –
FRN37LM1S-4C 355 275 339 345.2
FRN45LM1S-4C
FRN5.5LM1S-4A■ to FRN22LM1S-4A■, FRN5.5LM1S-2A■ to FRN22LM1S-2A■
FRN30LM1S-4A■ to FRN45LM1S-4A■
FRN4.0LM1S-4A■/FRN2.2LM1S-7A■
Power supply voltage Type Dimensions (mm)
W W1 W2 W3 W4 W5 H H1 H2 D D1 D2 D3 D4 φA φB
Three-phase 200V FRN5.5LM1S-2A■ 220 196 63.5 46.5 46.5 – 260 238 – 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-2A■
FRN11LM1S-2A■
FRN15LM1S-2A■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-2A■
FRN22LM1S-2A■
Three-phase 400V FRN4.0LM1S-4A■ 150 136 – – – 260 246 165 133 32 – – – –
FRN5.5LM1S-4A■ 220 196 63.5 46.5 46.5 260 238 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-4A■
FRN11LM1S-4A■
FRN15LM1S-4A■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-4A■
FRN22LM1S-4A■
FRN30LM1S-4A■ 320 240 304 310.2 8 10 550
615		 530
595		 12 255
270		 115 140
155		 4 6 10 –
FRN37LM1S-4A■ 355 275 339 345.2
FRN45LM1S-4A■
Single-phase 200V FRN2.2LM1S-7A■ 150 136 – – – – 260 246 – 165 133 32 – – – –
FRN5.5LM1S-4A■ to FRN22LM1S-4A■, FRN5.5LM1S-2A■ to FRN22LM1S-2A■
FRN30LM1S-4A■ to FRN45LM1S-4A■
FRN4.0LM1S-4A■/FRN2.2LM1S-7A■
Power supply voltage Type Dimensions (mm)
W W1 W2 W3 W4 W5 H H1 H2 D D1 D2 D3 D4 φA φB
Three-phase 200V FRN5.5LM1S-2A■ 220 196 63.5 46.5 46.5 – 260 238 – 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-2A■
FRN11LM1S-2A■
FRN15LM1S-2A■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-2A■
FRN22LM1S-2A■
Three-phase 400V FRN4.0LM1S-4A■ 150 136 – – – 260 246 165 133 32 – – – –
FRN5.5LM1S-4A■ 220 196 63.5 46.5 46.5 260 238 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-4A■
FRN11LM1S-4A■
FRN15LM1S-4A■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-4A■
FRN22LM1S-4A■
FRN30LM1S-4A■ 320 240 304 310.2 8 10 550
615		 530
595		 12 255
270		 115 140
155		 4 6 10 –
FRN37LM1S-4A■ 355 275 339 345.2
FRN45LM1S-4A■
Single-phase 200V FRN2.2LM1S-7A■ 150 136 – – – – 260 246 – 165 133 32 – – – –
FRN5.5LM1S-4K■ to FRN22LM1S-4K■, FRN5.5LM1S-2K■ to FRN22LM1S-2K■
FRN30LM1S-4K■ to FRN45LM1S-4K■
FRN4.0LM1S-4K■/FRN2.2LM1S-7K■
Power supply voltage Type Dimensions (mm)
W W1 W2 W3 W4 W5 H H1 H2 D D1 D2 D3 D4 φA φB
Three-phase 200V FRN5.5LM1S-2K■ 220 196 63.5 46.5 46.5 – 260 238 – 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-2K■
FRN11LM1S-2K■
FRN15LM1S-2K■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-2K■
FRN22LM1S-2K■
Three-phase 400V FRN4.0LM1S-4K■ 150 136 – – – 260 246 165 133 32 – – – –
FRN5.5LM1S-4K■ 220 196 63.5 46.5 46.5 260 238 215 118.5 96.5 136.7 21 34 42
FRN7.5LM1S-4K■
FRN11LM1S-4K■
FRN15LM1S-4K■ 250 226 67 58 58 400 378 85 130 166.2 2
FRN18.5LM1S-4K■
FRN22LM1S-4K■
FRN30LM1S-4K■ 320 240 304 310.2 8 10 550
615		 530
595		 12 255
270		 115 140
155		 4 6 10 –
FRN37LM1S-4K■ 355 275 339 345.2
FRN45LM1S-4K■
Single-phase 200V FRN2.2LM1S-7K■ 150 136 – – – – 260 246 – 165 133 32 – – – –
