FRENIC-Lift(LM2A)
External Dimensions

Power Supply Voltage Type Applied motor current Applied motor capacity W (mm) H (mm) D (mm)

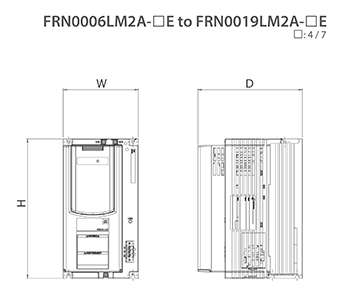

3-phase 400 VAC FRN0006LM2A-4E 6.1 A 2.2 kW 140 260 195
FRN0010LM2A-4E 10 A 4.0 kW
FRN0015LM2A-4E 15 A 5.5 kW
FRN0019LM2A-4E 18.5 A 7.5 kW

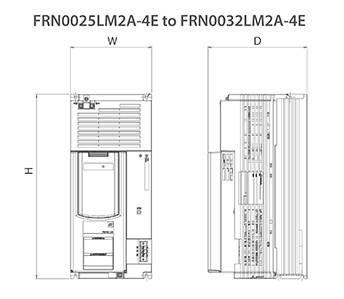

FRN0025LM2A-4E 24.5 A 11 kW 160 360 195
FRN0032LM2A-4E 32 A 15 kW

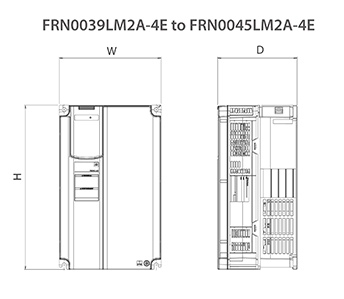

FRN0039LM2A-4E 39 A 18.5 kW 250 400 195
FRN0045LM2A-4E 45 A 22 kW

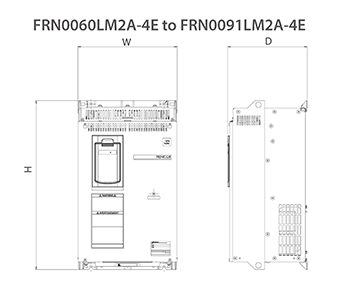

FRN0060LM2A-4E 60 A 30 kW 326.2 550 261.3
FRN0075LM2A-4E 75 A 37 kW
FRN0091LM2A-4E 91 A 45 kW 361.2 615 276.3
1-phase 200 VAC FRN0011LM2A-7E 11 A 2.2 kW 140 260 195
FRN0018LM2A-7E 18 A 4.0 kW
