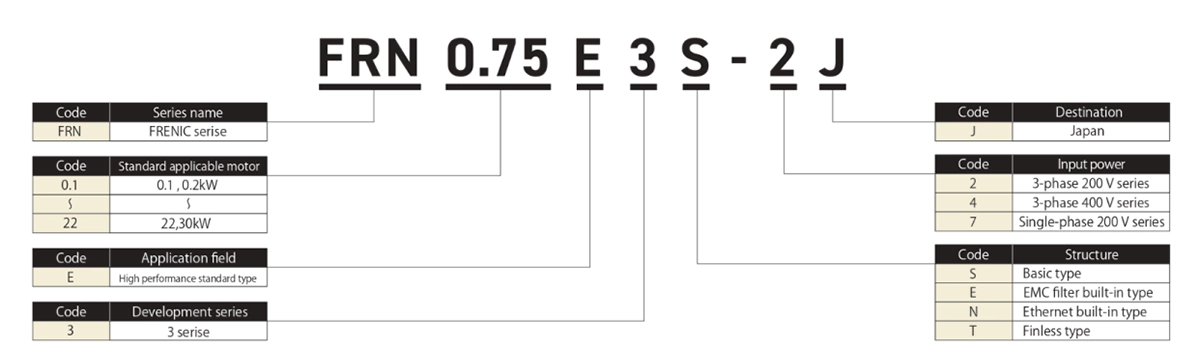

How to Read the Inverter Model
| 1 |
Code |
Series Name |
| FRN |
FRENIC Series |
| 2 |
Code |
Applicable Motor Rating |
0.1
|
22 |
0.1,0.2kW
|
22,30kW |
| 3 |
Code |
Applicable Range |
| E |
High Performance Standard Type |
| 4 |
Code |
Order of Development |
| 3 |
3 Series |
| 5 |
Code |
Structure |
| S |
Standard (Basic Type) |
| E |
EMC filter Built-In Type |
| N |
Ethernet Built-In Type |
| T |
Finless Type |
| 6 |
Code |
Input Power Source |
| 2 |
Three-phase 200V |
| 4 |
Three-phase 400V |
| 7 |
Single-phase 200V |
| 7 |
Code |
Destination |
| J |
Japan |
Three-phase 200V
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3S-2J |
0.1 |
0.2 |
| FRN0.2E3S-2J |
0.2 |
0.4 |
| FRN0.4E3S-2J |
0.4 |
0.75 |
| FRN0.75E3S-2J |
0.75 |
1.1 |
| FRN1.5E3S-2J |
1.5 |
2.2 |
| FRN2.2E3S-2J |
2.2 |
3.0 |
| FRN3.7E3S-2J |
3.7 |
5.5 |
| FRN5.5E3S-2J |
5.5 |
7.5 |
| FRN7.5E3S-2J |
7.5 |
11 |
| FRN11E3S-2J |
11 |
15 |
| FRN15E3S-2J |
15 |
18.5 |
| FRN18.5E3S-2J |
18.5 |
22 |
| FRN22E3S-2J |
22 |
30 |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3E-2J |
0.1 |
0.2 |
| FRN0.2E3E-2J |
0.2 |
0.4 |
| FRN0.4E3E-2J |
0.4 |
0.75 |
| FRN0.75E3E-2J |
0.75 |
1.1 |
| FRN1.5E3E-2J |
1.5 |
2.2 |
| FRN2.2E3E-2J |
2.2 |
3.0 |
| FRN3.7E3E-2J |
3.7 |
5.5 |
| FRN5.5E3E-2J |
5.5 |
7.5 |
| FRN7.5E3E-2J |
7.5 |
11 |
| FRN11E3E-2J |
11 |
15 |
| FRN15E3E-2J |
15 |
18.5 |
| FRN18.5E3E-2J |
18.5 |
22 |
| FRN22E3E-2J |
22 |
30 |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3N-2J |
0.1 |
0.2 |
| FRN0.2E3N-2J |
0.2 |
0.4 |
| FRN0.4E3N-2J |
0.4 |
0.75 |
| FRN0.75E3N-2J |
0.75 |
1.1 |
| FRN1.5E3N-2J |
1.5 |
2.2 |
| FRN2.2E3N-2J |
2.2 |
3.0 |
| FRN3.7E3N-2J |
3.7 |
5.5 |
| FRN5.5E3N-2J |
5.5 |
7.5 |
| FRN7.5E3N-2J |
7.5 |
11 |
| FRN11E3N-2J |
11 |
15 |
| FRN15E3N-2J |
15 |
18.5 |
| FRN18.5E3N-2J |
18.5 |
22 |
| FRN22E3N-2J |
22 |
30 |
Finless Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3T-2J |
0.1 |
0.2 |
| FRN0.2E3T-2J |
0.2 |
0.4 |
| FRN0.4E3T-2J |
0.4 |
0.75 |
| FRN0.75E3T-2J |
0.75 |
1.1 |
| FRN1.5E3T-2J |
1.5 |
2.2 |
| FRN2.2E3T-2J |
2.2 |
3.0 |
| FRN3.7E3T-2J |
3.7 |
5.5 |
Three-phase 400V
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.4E3S-4J |
0.4 |
0.75 |
| FRN0.75E3S-4J |
0.75 |
1.5 |
| FRN1.5E3S-4J |
1.5 |
2.2 |
| FRN2.2E3S-4J |
2.2 |
3.0 |
| FRN3.7E3S-4J |
3.7 |
5.5 |
| FRN5.5E3S-4J |
5.5 |
7.5 |
| FRN7.5E3S-4J |
7.5 |
11 |
| FRN11E3S-4J |
11 |
15 |
| FRN15E3S-4J |
15 |
18.5 |
| FRN18.5E3S-4J |
18.5 |
22 |
| FRN22E3S-4J |
22 |
30 |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.4E3E-4J |
0.4 |
0.75 |
| FRN0.75E3E-4J |
0.75 |
1.5 |
| FRN1.5E3E-4J |
1.5 |
2.2 |
| FRN2.2E3E-4J |
2.2 |
3.0 |
| FRN3.7E3E-4J |
3.7 |
5.5 |
| FRN5.5E3E-4J |
5.5 |
7.5 |
| FRN7.5E3E-4J |
7.5 |
11 |
| FRN11E3E-4J |
11 |
15 |
| FRN15E3E-4J |
15 |
18.5 |
| FRN18.5E3E-4J |
18.5 |
22 |
| FRN22E3E-4J |
22 |
30 |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.4E3N-4J |
0.4 |
0.75 |
| FRN0.75E3N-4J |
0.75 |
1.5 |
| FRN1.5E3N-4J |
1.5 |
2.2 |
| FRN2.2E3N-4J |
2.2 |
3.0 |
| FRN3.7E3N-4J |
3.7 |
5.5 |
| FRN5.5E3N-4J |
5.5 |
7.5 |
| FRN7.5E3N-4J |
7.5 |
11 |
| FRN11E3N-4J |
11 |
15 |
| FRN15E3N-4J |
15 |
18.5 |
| FRN18.5E3N-4J |
18.5 |
22 |
| FRN22E3N-4J |
22 |
30 |
Finless Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.4E3T-4J |
0.4 |
0.75 |
| FRN0.75E3T-4J |
0.75 |
1.5 |
| FRN1.5E3T-4J |
1.5 |
2.2 |
| FRN2.2E3T-4J |
2.2 |
3.0 |
| FRN3.7E3T-4J |
3.7 |
5.5 |
Single-phase 200V
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3S-7J |
0.1 |
0.2 |
| FRN0.2E3S-7J |
0.2 |
0.4 |
| FRN0.4E3S-7J |
0.4 |
0.55 |
| FRN0.75E3S-7J |
0.75 |
1.1 |
| FRN1.5E3S-7J |
1.5 |
2.2 |
| FRN2.2E3S-7J |
2.2 |
3.0 |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
| FRN0.1E3E-7J |
0.1 |
| FRN0.2E3E-7J |
0.2 |
| FRN0.4E3E-7J |
0.4 |
| FRN0.75E3E-7J |
0.75 |
| FRN1.5E3E-7J |
1.5 |
| FRN2.2E3E-7J |
2.2 |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3N-7J |
0.1 |
0.2 |
| FRN0.2E3N-7J |
0.2 |
0.4 |
| FRN0.4E3N-7J |
0.4 |
0.55 |
| FRN0.75E3N-7J |
0.75 |
1.1 |
| FRN1.5E3N-7J |
1.5 |
2.2 |
| FRN2.2E3N-7J |
2.2 |
3.0 |
Finless Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3T-7J |
0.1 |
0.2 |
| FRN0.2E3T-7J |
0.2 |
0.4 |
| FRN0.4E3T-7J |
0.4 |
0.55 |
| FRN0.75E3T-7J |
0.75 |
1.1 |
| FRN1.5E3T-7J |
1.5 |
2.2 |
| FRN2.2E3T-7J |
2.2 |
3.0 |

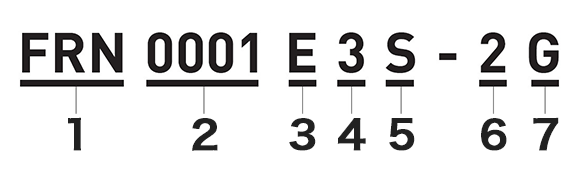

How to Read the Inverter Model
| 1 |
Code |
Series Name |
| FRN |
FRENIC Series |
| 2 |
Code |
Applicable Motor Rating |
0001
｜
0072 |
0.1kW
|
37kW |
| 3 |
Code |
Applicable Range |
| E |
For Industrial / High Performance /
Multiple Functionality |
| 4 |
Code |
Order of Development |
| 3 |
3 Series |
| 5 |
Code |
Structure |
| S |
Standard (Basic Type) |
| E |
EMC filter Built-In Type |
| N |
Ethernet Built-In Type |
| 6 |
Code |
Input Power Source |
| 2 |
Three-phase 200V |
| 4 |
Three-phase 400V |
| 7 |
Single-phase 200V |
| 7 |
Code |
Destination |
| |
G |
Global |
Three-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3S-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-2G |
2.2(3) |
1.5(2) |
| FRN0012E3S-2G |
3.0(4) |
2.2(3) |
| FRN0020E3S-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3S-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3S-2G |
11(15) |
7.5(10) |
| FRN0056E3S-2G |
15(20) |
11(15) |
| FRN0069E3S-2G |
18.5(25) |
15(20) |
| FRN0088E3S-2G |
22(30) |
18.5(25) |
| FRN0115E3S-2G |
30(40) |
22(30) |
-
Note
-
Three-phase 200 V series differs in specifications. For details, consult our sales representatives.
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3N-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-2G |
2.2(3) |
1.5(2) |
| FRN0012E3N-2G |
3.0(4) |
2.2(3) |
| FRN0020E3N-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3N-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3N-2G |
11(15) |
7.5(10) |
| FRN0056E3N-2G |
15(20) |
11(15) |
| FRN0069E3N-2G |
18.5(25) |
15(20) |
| FRN0088E3N-2G |
22(30) |
18.5(25) |
| FRN0115E3N-2G |
30(40) |
22(30) |
Three-phase 400V
ND Specification (Normal Duty)-mode inverters for general load : 120% for 1 minute
HD Specification (High Duty)-mode inverters for heavy load : 150% for 1 minute
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3S-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3S-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3S-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3S-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3S-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3S-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3S-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3S-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3S-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3S-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3S-4G |
37(50) |
30(40) |
30(40) |
22(30) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3E-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3E-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3E-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3E-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3E-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3E-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3E-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3E-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3E-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3E-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3E-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3N-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3N-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3N-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3N-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3N-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3N-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3N-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3N-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3N-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3N-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3N-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Single-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3S-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-7G |
2.2(3) |
1.5(2) |
| FRN0012E3S-7G |
3.0(4) |
2.2(3) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
| FRN0001E3E-7G |
0.1(1/8) |
| FRN0002E3E-7G |
0.2(1/4) |
| FRN0003E3E-7G |
0.4(1/2) |
| FRN0005E3E-7G |
0.75(1) |
| FRN0008E3E-7G |
1.5(2) |
| FRN0011E3E-7G |
1.5(2) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3N-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-7G |
2.2(3) |
1.5(2) |
| FRN0012E3N-7G |
3.0(4) |
2.2(3) |

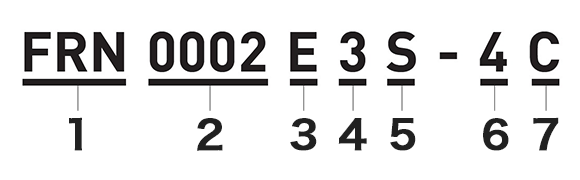

How to Read the Inverter Model
| 1 |
Code |
Series Name |
| FRN |
FRENIC Series |
| 2 |
Code |
Applicable Motor Rating |
0001
｜
0072 |
0.1kW
|
37kW |
| 3 |
Code |
Applicable Range |
| E |
For Industrial / High Performance /
Multiple Functionality |
| 4 |
Code |
Order of Development |
| 3 |
3 Series |
| 5 |
Code |
Structure |
| S |
Standard (Basic Type) |
| E |
EMC filter Built-In Type |
| N |
Ethernet Built-In Type |
| 6 |
Code |
Input Power Source |
| 2 |
Three-phase 200V |
| 4 |
Three-phase 400V |
| 7 |
Single-phase 200V |
| 7 |
Code |
Destination |
| |
G |
Global |
Three-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3S-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-2G |
2.2(3) |
1.5(2) |
| FRN0012E3S-2G |
3.0(4) |
2.2(3) |
| FRN0020E3S-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3S-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3S-2G |
11(15) |
7.5(10) |
| FRN0056E3S-2G |
15(20) |
11(15) |
| FRN0069E3S-2G |
18.5(25) |
15(20) |
| FRN0088E3S-2G |
22(30) |
18.5(25) |
| FRN0115E3S-2G |
30(40) |
22(30) |
-
Note
-
Three-phase 200 V series differs in specifications. For details, consult our sales representatives.
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3N-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-2G |
2.2(3) |
1.5(2) |
| FRN0012E3N-2G |
3.0(4) |
2.2(3) |
| FRN0020E3N-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3N-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3N-2G |
11(15) |
7.5(10) |
| FRN0056E3N-2G |
15(20) |
11(15) |
| FRN0069E3N-2G |
18.5(25) |
15(20) |
| FRN0088E3N-2G |
22(30) |
18.5(25) |
| FRN0115E3N-2G |
30(40) |
22(30) |
Three-phase 400V
ND Specification (Normal Duty)-mode inverters for general load : 120% for 1 minute
HD Specification (High Duty)-mode inverters for heavy load : 150% for 1 minute
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3S-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3S-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3S-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3S-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3S-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3S-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3S-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3S-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3S-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3S-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3S-4G |
37(50) |
30(40) |
30(40) |
22(30) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3E-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3E-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3E-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3E-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3E-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3E-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3E-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3E-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3E-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3E-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3E-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3N-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3N-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3N-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3N-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3N-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3N-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3N-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3N-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3N-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3N-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3N-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Single-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3S-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-7G |
2.2(3) |
1.5(2) |
| FRN0012E3S-7G |
3.0(4) |
2.2(3) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
| FRN0001E3E-7G |
0.1(1/8) |
| FRN0002E3E-7G |
0.2(1/4) |
| FRN0003E3E-7G |
0.4(1/2) |
| FRN0005E3E-7G |
0.75(1) |
| FRN0008E3E-7G |
1.5(2) |
| FRN0011E3E-7G |
1.5(2) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3N-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-7G |
2.2(3) |
1.5(2) |
| FRN0012E3N-7G |
3.0(4) |
2.2(3) |
How to Read the Inverter Model
| 1 |
Code |
Series Name |
| FRN |
FRENIC Series |
| 2 |
Code |
Applicable Motor Rating |
0001
｜
0072 |
0.1kW
|
37kW |
| 3 |
Code |
Applicable Range |
| E |
For Industrial / High Performance /
Multiple Functionality |
| 4 |
Code |
Order of Development |
| 3 |
3 Series |
| 5 |
Code |
Structure |
| S |
Standard (Basic Type) |
| E |
EMC filter Built-In Type |
| N |
Ethernet Built-In Type |
| 6 |
Code |
Input Power Source |
| 2 |
Three-phase 200V |
| 4 |
Three-phase 400V |
| 7 |
Single-phase 200V |
| 7 |
Code |
Destination |
| |
G |
Global |
Three-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3S-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-2G |
2.2(3) |
1.5(2) |
| FRN0012E3S-2G |
3.0(4) |
2.2(3) |
| FRN0020E3S-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3S-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3S-2G |
11(15) |
7.5(10) |
| FRN0056E3S-2G |
15(20) |
11(15) |
| FRN0069E3S-2G |
18.5(25) |
15(20) |
| FRN0088E3S-2G |
22(30) |
18.5(25) |
| FRN0115E3S-2G |
30(40) |
22(30) |
-
Note
-
Three-phase 200 V series differs in specifications. For details, consult our sales representatives.
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3N-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-2G |
2.2(3) |
1.5(2) |
| FRN0012E3N-2G |
3.0(4) |
2.2(3) |
| FRN0020E3N-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3N-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3N-2G |
11(15) |
7.5(10) |
| FRN0056E3N-2G |
15(20) |
11(15) |
| FRN0069E3N-2G |
18.5(25) |
15(20) |
| FRN0088E3N-2G |
22(30) |
18.5(25) |
| FRN0115E3N-2G |
30(40) |
22(30) |
Three-phase 400V
ND Specification (Normal Duty)-mode inverters for general load : 120% for 1 minute
HD Specification (High Duty)-mode inverters for heavy load : 150% for 1 minute
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3S-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3S-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3S-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3S-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3S-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3S-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3S-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3S-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3S-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3S-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3S-4G |
37(50) |
30(40) |
30(40) |
22(30) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3E-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3E-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3E-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3E-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3E-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3E-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3E-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3E-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3E-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3E-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3E-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3N-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3N-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3N-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3N-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3N-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3N-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3N-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3N-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3N-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3N-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3N-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Single-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3S-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-7G |
2.2(3) |
1.5(2) |
| FRN0012E3S-7G |
3.0(4) |
2.2(3) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
| FRN0001E3E-7G |
0.1(1/8) |
| FRN0002E3E-7G |
0.2(1/4) |
| FRN0003E3E-7G |
0.4(1/2) |
| FRN0005E3E-7G |
0.75(1) |
| FRN0008E3E-7G |
1.5(2) |
| FRN0011E3E-7G |
1.5(2) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3N-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-7G |
2.2(3) |
1.5(2) |
| FRN0012E3N-7G |
3.0(4) |
2.2(3) |
How to Read the Inverter Model
| 1 |
Code |
Series Name |
| FRN |
FRENIC Series |
| 2 |
Code |
Applicable Motor Rating |
0002
|
0072 |
0.4kW
|
37kW |
| 3 |
Code |
Applicable Range |
| E |
General Industrial / High Performance /
Multiple Functionality |
| 4 |
Code |
Order of Development |
| 3 |
3 Series |
| 5 |
Code |
Structure |
| S |
Standard (Basic Type) IP20（Note） |
| 6 |
Code |
Input Power Source |
| 4 |
Three-phase 400V |
| 7 |
Code |
Destination |
| |
C |
China |
-
Note
-
The relevant standard for dust- and water-resistance of electrical equipment specified in IEC 60529. By combining the two digits that follow “IP” (the first and second characteristic numerals), the enclosure’s degree of protection against the ingress of solids and water is indicated.
Three-phase 400V
ND Specification (Normal Duty)-mode inverters for general load : 120% for 1 minute
HD Specification (High Duty)-mode inverters for heavy load : 150% for 1 minute
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3S-4C |
0.75 |
0.75 |
0.75 |
0.4 |
| FRN0004E3S-4C |
1.5 |
1.1 |
1.1 |
0.75 |
| FRN0006E3S-4C |
2.2 |
2.2 |
2.2 |
1.5 |
| FRN0007E3S-4C |
3 |
3 |
3 |
2.2 |
| FRN0012E3S-4C |
5.5 |
5.5 |
5.5 |
3.7 |
| FRN0022E3S-4C |
11 |
7.5 |
7.5 |
5.5 |
| FRN0029E3S-4C |
15 |
11 |
11 |
7.5 |
| FRN0037E3S-4C |
18.5 |
15 |
15 |
11 |
| FRN0044E3S-4C |
22 |
18.5 |
18.5 |
15 |
| FRN0059E3S-4C |
30 |
22 |
22 |
18.5 |
| FRN0072E3S-4C |
37 |
30 |
30 |
22 |
How to Read the Inverter Model
| 1 |
Code |
Series Name |
| FRN |
FRENIC Series |
| 2 |
Code |
Applicable Motor Rating |
0.1
|
22 |
0.1,0.2kW
|
22,30kW |
| 3 |
Code |
Applicable Range |
| E |
High Performance Standard Type |
| 4 |
Code |
Order of Development |
| 3 |
3 Series |
| 5 |
Code |
Structure |
| S |
Standard (Basic Type) |
| E |
EMC filter Built-In Type |
| N |
Ethernet Built-In Type |
| 6 |
Code |
Input Power Source |
| 2 |
Three-phase 200V |
| 4 |
Three-phase 400V |
| 7 |
Single-phase 200V |
| 7 |
Code |
Destination |
| J |
Japan |
Three-phase 200V
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3S-2J |
0.1 |
0.2 |
| FRN0.2E3S-2J |
0.2 |
0.4 |
| FRN0.4E3S-2J |
0.4 |
0.75 |
| FRN0.75E3S-2J |
0.75 |
1.1 |
| FRN1.5E3S-2J |
1.5 |
2.2 |
| FRN2.2E3S-2J |
2.2 |
3.0 |
| FRN3.7E3S-2J |
3.7 |
5.5 |
| FRN5.5E3S-2J |
5.5 |
7.5 |
| FRN7.5E3S-2J |
7.5 |
11 |
| FRN11E3S-2J |
11 |
15 |
| FRN15E3S-2J |
15 |
18.5 |
| FRN18.5E3S-2J |
18.5 |
22 |
| FRN22E3S-2J |
22 |
30 |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3E-2J |
0.1 |
0.2 |
| FRN0.2E3E-2J |
0.2 |
0.4 |
| FRN0.4E3E-2J |
0.4 |
0.75 |
| FRN0.75E3E-2J |
0.75 |
1.1 |
| FRN1.5E3E-2J |
1.5 |
2.2 |
| FRN2.2E3E-2J |
2.2 |
3.0 |
| FRN3.7E3E-2J |
3.7 |
5.5 |
| FRN5.5E3E-2J |
5.5 |
7.5 |
| FRN7.5E3E-2J |
7.5 |
11 |
| FRN11E3E-2J |
11 |
15 |
| FRN15E3E-2J |
15 |
18.5 |
| FRN18.5E3E-2J |
18.5 |
22 |
| FRN22E3E-2J |
22 |
30 |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3N-2J |
0.1 |
0.2 |
| FRN0.2E3N-2J |
0.2 |
0.4 |
| FRN0.4E3N-2J |
0.4 |
0.75 |
| FRN0.75E3N-2J |
0.75 |
1.1 |
| FRN1.5E3N-2J |
1.5 |
2.2 |
| FRN2.2E3N-2J |
2.2 |
3.0 |
| FRN3.7E3N-2J |
3.7 |
5.5 |
| FRN5.5E3N-2J |
5.5 |
7.5 |
| FRN7.5E3N-2J |
7.5 |
11 |
| FRN11E3N-2J |
11 |
15 |
| FRN15E3N-2J |
15 |
18.5 |
| FRN18.5E3N-2J |
18.5 |
22 |
| FRN22E3N-2J |
22 |
30 |
Three-phase 400V
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.4E3S-4J |
0.4 |
0.75 |
| FRN0.75E3S-4J |
0.75 |
1.5 |
| FRN1.5E3S-4J |
1.5 |
2.2 |
| FRN2.2E3S-4J |
2.2 |
3.0 |
| FRN3.7E3S-4J |
3.7 |
5.5 |
| FRN5.5E3S-4J |
5.5 |
7.5 |
| FRN7.5E3S-4J |
7.5 |
11 |
| FRN11E3S-4J |
11 |
15 |
| FRN15E3S-4J |
15 |
18.5 |
| FRN18.5E3S-4J |
18.5 |
22 |
| FRN22E3S-4J |
22 |
30 |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.4E3E-4J |
0.4 |
0.75 |
| FRN0.75E3E-4J |
0.75 |
1.5 |
| FRN1.5E3E-4J |
1.5 |
2.2 |
| FRN2.2E3E-4J |
2.2 |
3.0 |
| FRN3.7E3E-4J |
3.7 |
5.5 |
| FRN5.5E3E-4J |
5.5 |
7.5 |
| FRN7.5E3E-4J |
7.5 |
11 |
| FRN11E3E-4J |
11 |
15 |
| FRN15E3E-4J |
15 |
18.5 |
| FRN18.5E3E-4J |
18.5 |
22 |
| FRN22E3E-4J |
22 |
30 |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.4E3N-4J |
0.4 |
0.75 |
| FRN0.75E3N-4J |
0.75 |
1.5 |
| FRN1.5E3N-4J |
1.5 |
2.2 |
| FRN2.2E3N-4J |
2.2 |
3.0 |
| FRN3.7E3N-4J |
3.7 |
5.5 |
| FRN5.5E3N-4J |
5.5 |
7.5 |
| FRN7.5E3N-4J |
7.5 |
11 |
| FRN11E3N-4J |
11 |
15 |
| FRN15E3N-4J |
15 |
18.5 |
| FRN18.5E3N-4J |
18.5 |
22 |
| FRN22E3N-4J |
22 |
30 |
Single-phase 200V
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3S-7J |
0.1 |
0.2 |
| FRN0.2E3S-7J |
0.2 |
0.4 |
| FRN0.4E3S-7J |
0.4 |
0.55 |
| FRN0.75E3S-7J |
0.75 |
1.1 |
| FRN1.5E3S-7J |
1.5 |
2.2 |
| FRN2.2E3S-7J |
2.2 |
3.0 |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
| FRN0.1E3E-7J |
0.1 |
| FRN0.2E3E-7J |
0.2 |
| FRN0.4E3E-7J |
0.4 |
| FRN0.75E3E-7J |
0.75 |
| FRN1.5E3E-7J |
1.5 |
| FRN2.2E3E-7J |
2.2 |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
HND |
| FRN0.1E3N-7J |
0.1 |
0.2 |
| FRN0.2E3N-7J |
0.2 |
0.4 |
| FRN0.4E3N-7J |
0.4 |
0.55 |
| FRN0.75E3N-7J |
0.75 |
1.1 |
| FRN1.5E3N-7J |
1.5 |
2.2 |
| FRN2.2E3N-7J |
2.2 |
3.0 |
How to Read the Inverter Model
| 1 |
Code |
Series Name |
| FRN |
FRENIC Series |
| 2 |
Code |
Applicable Motor Rating |
0001
｜
0072 |
0.1kW
|
37kW |
| 3 |
Code |
Applicable Range |
| E |
For Industrial / High Performance /
Multiple Functionality |
| 4 |
Code |
Order of Development |
| 3 |
3 Series |
| 5 |
Code |
Structure |
| S |
Standard (Basic Type) |
| E |
EMC filter Built-In Type |
| N |
Ethernet Built-In Type |
| 6 |
Code |
Input Power Source |
| 2 |
Three-phase 200V |
| 4 |
Three-phase 400V |
| 7 |
Single-phase 200V |
| 7 |
Code |
Destination |
| |
G |
Global |
Three-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3S-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-2G |
2.2(3) |
1.5(2) |
| FRN0012E3S-2G |
3.0(4) |
2.2(3) |
| FRN0020E3S-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3S-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3S-2G |
11(15) |
7.5(10) |
| FRN0056E3S-2G |
15(20) |
11(15) |
| FRN0069E3S-2G |
18.5(25) |
15(20) |
| FRN0088E3S-2G |
22(30) |
18.5(25) |
| FRN0115E3S-2G |
30(40) |
22(30) |
-
Note
-
Three-phase 200 V series differs in specifications. For details, consult our sales representatives.
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-2G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-2G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-2G |
0.75(1) |
0.4(1/2) |
| FRN0006E3N-2G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-2G |
2.2(3) |
1.5(2) |
| FRN0012E3N-2G |
3.0(4) |
2.2(3) |
| FRN0020E3N-2G |
5.5(7.5) |
3.7(5) |
| FRN0030E3N-2G |
7.5(10) |
5.5(7.5) |
| FRN0040E3N-2G |
11(15) |
7.5(10) |
| FRN0056E3N-2G |
15(20) |
11(15) |
| FRN0069E3N-2G |
18.5(25) |
15(20) |
| FRN0088E3N-2G |
22(30) |
18.5(25) |
| FRN0115E3N-2G |
30(40) |
22(30) |
Three-phase 400V
ND Specification (Normal Duty)-mode inverters for general load : 120% for 1 minute
HD Specification (High Duty)-mode inverters for heavy load : 150% for 1 minute
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3S-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3S-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3S-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3S-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3S-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3S-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3S-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3S-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3S-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3S-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3S-4G |
37(50) |
30(40) |
30(40) |
22(30) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3E-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3E-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3E-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3E-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3E-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3E-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3E-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3E-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3E-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3E-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3E-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| ND |
HD |
HND |
HHD |
| FRN0002E3N-4G |
0.75(1) |
0.75(1) |
0.75(1) |
0.4(1/2) |
| FRN0004E3N-4G |
1.5(2) |
1.1(1.5) |
1.1(1.5) |
0.75(1) |
| FRN0006E3N-4G |
2.2(3) |
2.2(3) |
2.2(3) |
1.5(2) |
| FRN0007E3N-4G |
3.0(4) |
3.0(4) |
3.0(4) |
2.2(3) |
| FRN0012E3N-4G |
5.5(7.5) |
5.5(7.5) |
5.5(7.5) |
3.7(5) |
| FRN0022E3N-4G |
11(15) |
7.5(10) |
7.5(10) |
5.5(7.5) |
| FRN0029E3N-4G |
15(20) |
11(15) |
11(15) |
7.5(10) |
| FRN0037E3N-4G |
18.5(25) |
15(20) |
15(20) |
11(15) |
| FRN0044E3N-4G |
22(30) |
18.5(25) |
18.5(25) |
15(20) |
| FRN0059E3N-4G |
30(40) |
22(30) |
22(30) |
18.5(25) |
| FRN0072E3N-4G |
37(50) |
30(40) |
30(40) |
22(30) |
Single-phase 200V
HND Specification (High carrier frequency Heavy Duty) : 120%-1min
HHD Specification (High carrier frequency Heavy Duty) : 200%-0.5s,150%-1min
Basic Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3S-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3S-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3S-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3S-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3S-7G |
2.2(3) |
1.5(2) |
| FRN0012E3S-7G |
3.0(4) |
2.2(3) |
EMC Filter Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HHD |
| FRN0001E3E-7G |
0.1(1/8) |
| FRN0002E3E-7G |
0.2(1/4) |
| FRN0003E3E-7G |
0.4(1/2) |
| FRN0005E3E-7G |
0.75(1) |
| FRN0008E3E-7G |
1.5(2) |
| FRN0011E3E-7G |
1.5(2) |
Ethernet Built-In Type
| Model |
Standard Applicable Motor［kW］ |
| HND |
HHD |
| FRN0001E3N-7G |
0.2(1/4) |
0.1(1/8) |
| FRN0002E3N-7G |
0.4(1/2) |
0.2(1/4) |
| FRN0004E3N-7G |
0.55(3/4) |
0.4(1/2) |
| FRN0006E3N-7G |
1.1(1.5) |
0.75(1) |
| FRN0010E3N-7G |
2.2(3) |
1.5(2) |
| FRN0012E3N-7G |
3.0(4) |
2.2(3) |
