FRENIC-Ace (E3)
External Dimensions

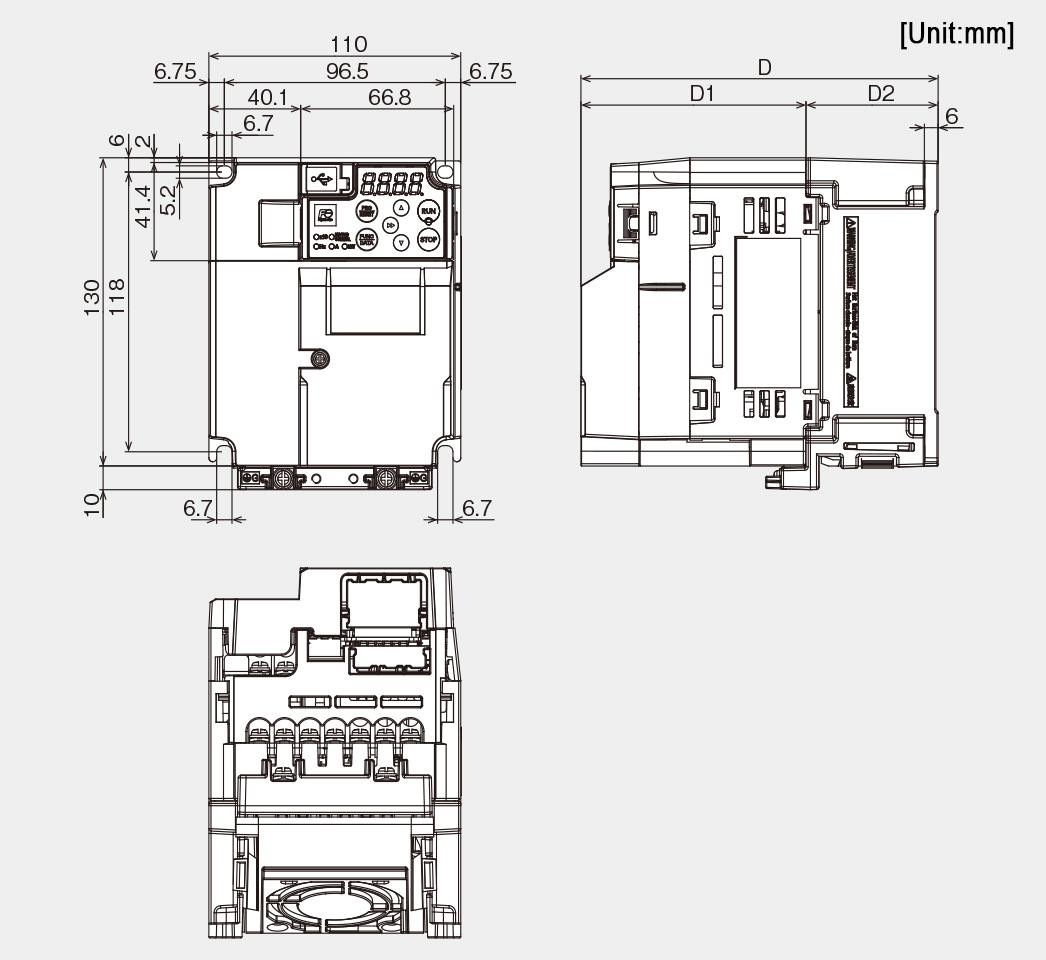

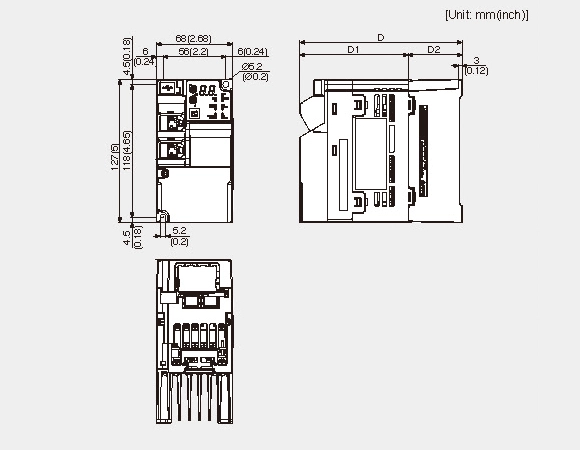

Basic type

Type：FRN0.1E3S-2J to FRN0.75E3S-2J
Type：FRN0.1E3S-7J to FRN0.75E3S-7J

Type：FRN0.1E3S-2J～FRN0.75E3S-2J Type：FRN0.1E3S-7J～FRN0.75E3S-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3S-2J～FRN0.2E3S-2J 98 90 8
FRN0.4E3S-2J 113 90 23
FRN0.75E3S-2J 145 97 48
Single-phase
200 V		 FRN0.1E3S-7J～FRN0.2E3S-7J 98 90 8
FRN0.4E3S-7J 120 97 23
FRN0.75E3S-7J 165 117 48

Type：FRN1.5E3S-2J, FRN2.2E3S-2J
Type：FRN0.4E3S-4J to FRN2.2E3S-4J, FRN1.5E3S-7J

Type：FRN1.5E3S-2J, FRN2.2E3S-2J Type：FRN0.4E3S-4J～FRN2.2E3S-4J, FRN1.5E3S-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN1.5E3S-2J～FRN2.2E3S-2J 156 98 58
Three-phase 400 V FRN0.4E3S-4J 132 98 34
FRN0.75E3S-4J～FRN2.2E3S-4J 156 98 58
Single-phase 200 V FRN1.5E3S-7J 166 108 58

Type：FRN3.7E3S-2J
Type：FRN3.7E3S-4J, FRN2.2E3S-7J

Type：FRN3.7E3S-2J Type：FRN3.7E3S-4J, FRN2.2E3S-7J

Type：FRN11E3S-2J, FRN15E3S-2J
Type：FRN11E3S-4J, FRN15E3S-4J

Type：FRN11E3S-2J, FRN15E3S-2J Type：FRN11E3S-4J, FRN15E3S-4J

Type：FRN5.5E3S-2J, FRN7.5E3S-2J
Type：FRN5.5E3S-4J, FRN7.5E3S-4J

Type：FRN5.5E3S-2J, FRN7.5E3S-2J Type：FRN5.5E3S-4J, FRN7.5E3S-4J

Type：FRN18.5E3S-2J, FRN22E3S-2J
Type：FRN18.5E3S-4J, FRN22E3S-4J

Type：FRN18.5E3S-2J, FRN22E3S-2J Type：FRN18.5E3S-4J, FRN22E3S-4J

Ethernet built-in type

Type：FRN0.1E3N-2J to FRN0.75E3N-2J
Type：FRN0.1E3N-7J to FRN0.75E3N-7J

Type：FRN0.1E3N-2J～FRN0.75E3N-2J Type：FRN0.1E3N-7J～FRN0.75E3N-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3N-2J～FRN0.2E3N-2J 98 90 8
FRN0.4E3N-2J 113 90 23
FRN0.75E3N-2J 145 97 48
Single-phase
200 V		 FRN0.1E3N-7J～FRN0.2E3N-7J 98 90 8
FRN0.4E3N-7J 120 97 23
FRN0.75E3N-7J 165 117 48

Type：FRN1.5E3N-2J, FRN2.2E3N-2J
Type：FRN0.4E3N-4J to FRN2.2E3N-4J, FRN1.5E3N-7J

Type：FRN1.5E3N-2J, FRN2.2E3N-2J Type：FRN0.4E3N-4J～FRN2.2E3N-4J, FRN1.5E3N-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN1.5E3N-2J～FRN2.2E3N-2J 156 98 58
Three-phase 400 V FRN0.4E3N-4J 132 98 34
FRN0.75E3N-4J～FRN2.2E3N-4J 156 98 58
Single-phase 200 V FRN1.5E3N-7J 166 108 58

Type：FRN3.7E3N-2J
Type：FRN3.7E3N-4J, FRN2.2E3N-7J

Type：FRN3.7E3N-2J Type：FRN3.7E3N-4J, FRN2.2E3N-7J

Type：FRN11E3N-2J, FRN15E3N-2J
Type：FRN11E3N-4J, FRN15E3N-4J

Type：FRN11E3N-2J, FRN15E3N-2J Type：FRN11E3N-4J, FRN15E3N-4J

Type：FRN5.5E3N-2J, FRN7.5E3N-2J
Type：FRN5.5E3N-4J, FRN7.5E3N-4J

Type：FRN5.5E3N-2J, FRN7.5E3N-2J Type：FRN5.5E3N-4J, FRN7.5E3N-4J

Type：FRN18.5E3N-2J, FRN22E3N-2J
Type：FRN18.5E3N-4J, FRN22E3N-4J

Type：FRN18.5E3N-2J, FRN22E3N-2J Type：FRN18.5E3N-4J, FRN22E3N-4J

Finless type

Type：FRN0.1E3T-2J to FRN0.75E3T-2J
Type：FRN0.1E3T-7J to FRN0.75E3T-7J

Type：FRN0.1E3T-2J～FRN0.75E3T-2J Type：FRN0.1E3T-7J～FRN0.75E3T-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3T-2J～FRN0.4E3T-2J 96 90.1 5.9
FRN0.75E3T-2J 103 97.1 5.9
Single-phase
200 V		 FRN0.1E3T-7J～FRN0.2E3T-7J 96 90.1 5.9
FRN0.4E3T-7J 103 97.1 5.9
FRN0.75E3T-7J 123 117.1 5.9

Type：FRN1.5E3T-2J, FRN2.2E3T-2J
Type：FRN0.4E3T-4J to FRN2.2E3T-4J, FRN1.5E3T-7J

Type：FRN1.5E3T-2J, FRN2.2E3T-2J Type：FRN0.4E3T-4J～FRN2.2E3T-4J, FRN1.5E3T-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN1.5E3T-2J～FRN2.2E3T-2J 111 98.3 12.7
Three-phase 400 V FRN0.4E3T-4J～FRN2.2E3T-4J 111 98.3 12.7
Single-phase 200 V FRN1.5E3T-7J 121 108.3 12.7

Type：FRN3.7E3T-2J
Type：FRN3.7E3T-4J, FRN2.2E3T-7J

Type：FRN3.7E3T-2J Type：FRN3.7E3T-4J, FRN2.2E3T-7J

EMC Filter built-in type

Type：FRN0.1E3E-2J to FRN0.75E3E-2J
Type：FRN0.1E3E-7J to FRN0.4E3E-7J

Type：FRN0.1E3E-2J～FRN0.75E3E-2J Type：FRN0.1E3E-7J～FRN0.4E3E-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3E-2J, FRN0.2E3E-2J 125 117 8
FRN0.4E3E-2J 140 117 23
FRN0.75E3E-2J 165 117 48
Single-phase
200 V		 FRN0.1E3E-7J～FRN0.2E3E-7J 125 117 8
FRN0.4E3E-7J 140 117 23

Type：FRN0.4E3E-4J
Type：FRN0.75E3E-4J

Type：FRN0.4E3E-4J Type：FRN0.75E3E-4J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 400 V FRN0.4E3E-4J 175 141 34
FRN0.75E3E-4J 199 141 58


Type：FRN0.75E3E-7J

​​​​​​​Type：FRN0.75E3E-7J

Type：FRN5.5E3E-2J, FRN7.5E3E-2J
Type：FRN5.5E3E-4J, FRN7.5E3E-4J

Type：FRN5.5E3E-2J, FRN7.5E3E-2J Type：FRN5.5E3E-4J, FRN7.5E3E-4J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN5.5E3E-2J, FRN7.5E3E-2J 226 55 -
Three-phase 400 V FRN5.5E3E-4J, FRN7.5E3E-4J 221 50 -

Type：FRN1.5E3E-2J to FRN3.7E3E-2J, FRN1.5E3E-4J to FRN3.7E3E-4J,
Type：FRN1.5E3E-7J～FRN2.2E3E-7J

Type：FRN1.5E3E-2J～FRN3.7E3E-2J, FRN1.5E3E-4J～FRN3.7E3E-4J, Type：FRN1.5E3E-7J～FRN2.2E3E-7J

Type：FRN11E3E-2J
Type：FRN15E3E-2J

Type：FRN11E3E-2J Type：FRN15E3E-2J

Type：FRN11E3E-4J
Type：FRN15E3E-4J

Type：FRN11E3E-4J Type：FRN15E3E-4J

Type：FRN18.5E3E-2, FRN22E3E-2J
Type：FRN18.5E3E-4J, FRN22E3E-4J

Type：FRN18.5E3E-2, FRN22E3E-2J Type：FRN18.5E3E-4J, FRN22E3E-4J

Keypad

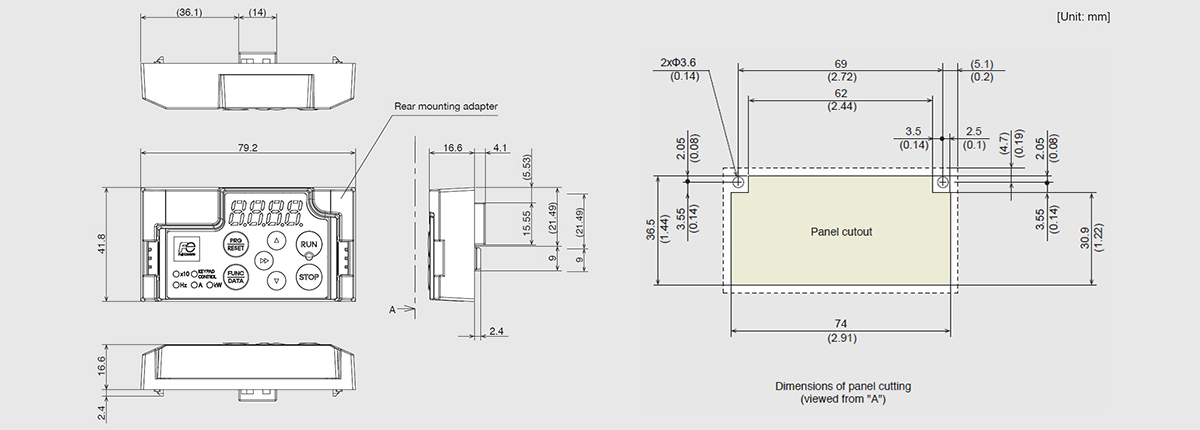

Standard (without USB) Type：TP-M3

Standard (without USB) Type：TP-M3

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
TP-M3 is a standard accessory. Please note that this accessory cannot be purchased as an optional item.

Option

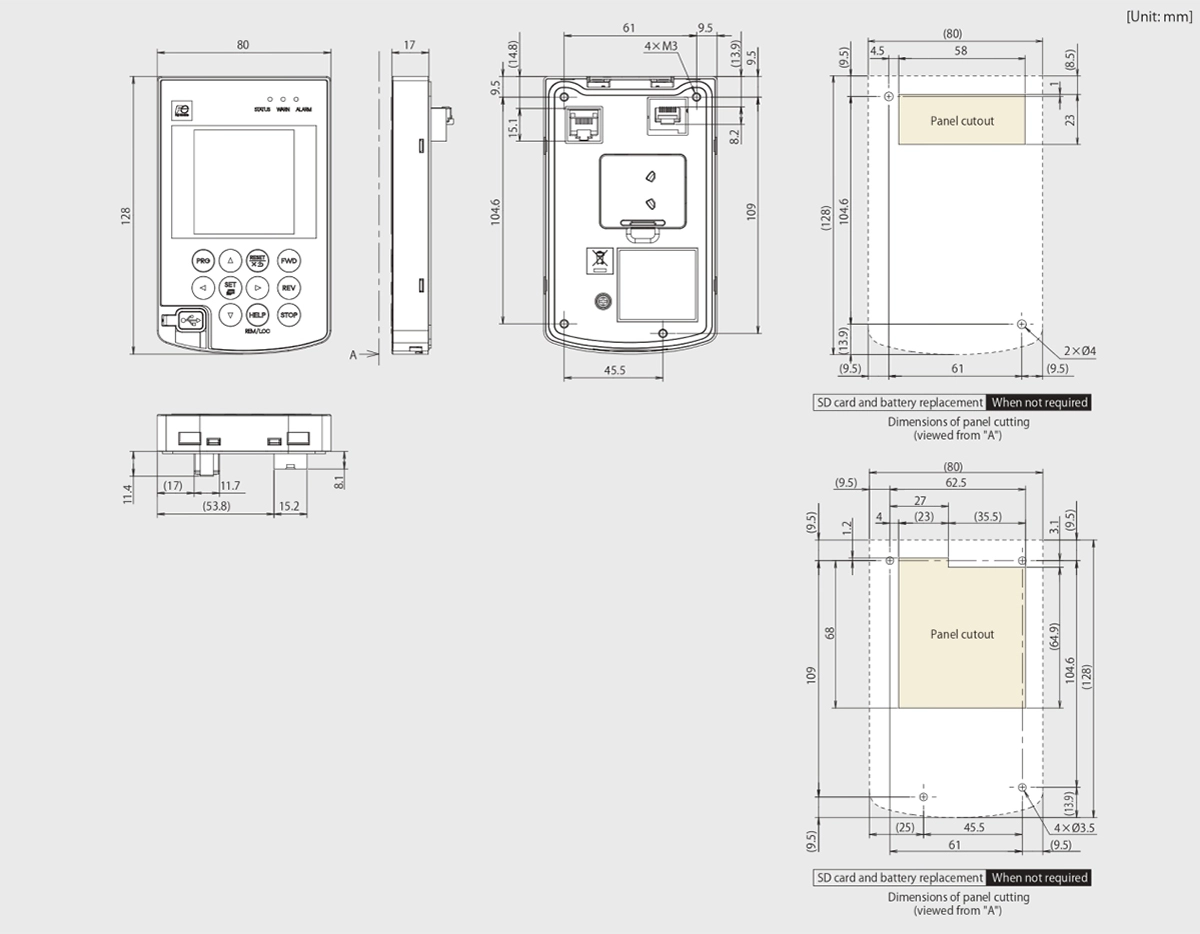

Remote keypad (with USB) Type: TP-E2

Multi-function keypad (with USB) Type: TP-E2

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
When remotely connecting the keypad to FRENIC-Ace (E3), the keypad relay adapter (CBAD-CP) is required.

Option
Multi-function keypad (with USB) Type： TP-A2SW

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
When remotely connecting the keypad to FRENIC-Ace (E3), the keypad relay adapter (CBAD-CP) is required.

Basic type

Type：FRN0.1E3S-2J to FRN0.75E3S-2J
Type：FRN0.1E3S-7J to FRN0.75E3S-7J

Type：FRN0.1E3S-2J～FRN0.75E3S-2J Type：FRN0.1E3S-7J～FRN0.75E3S-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3S-2J～FRN0.2E3S-2J 98 90 8
FRN0.4E3S-2J 113 90 23
FRN0.75E3S-2J 145 97 48
Single-phase
200 V		 FRN0.1E3S-7J～FRN0.2E3S-7J 98 90 8
FRN0.4E3S-7J 120 97 23
FRN0.75E3S-7J 165 117 48

Type：FRN1.5E3S-2J, FRN2.2E3S-2J
Type：FRN0.4E3S-4J to FRN2.2E3S-4J, FRN1.5E3S-7J

Type：FRN1.5E3S-2J, FRN2.2E3S-2J Type：FRN0.4E3S-4J～FRN2.2E3S-4J, FRN1.5E3S-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN1.5E3S-2J～FRN2.2E3S-2J 156 98 58
Three-phase 400 V FRN0.4E3S-4J 132 98 34
FRN0.75E3S-4J～FRN2.2E3S-4J 156 98 58
Single-phase 200 V FRN1.5E3S-7J 166 108 58

Type：FRN3.7E3S-2J
Type：FRN3.7E3S-4J, FRN2.2E3S-7J

Type：FRN3.7E3S-2J Type：FRN3.7E3S-4J, FRN2.2E3S-7J

Type：FRN11E3S-2J, FRN15E3S-2J
Type：FRN11E3S-4J, FRN15E3S-4J

Type：FRN11E3S-2J, FRN15E3S-2J Type：FRN11E3S-4J, FRN15E3S-4J

Type：FRN5.5E3S-2J, FRN7.5E3S-2J
Type：FRN5.5E3S-4J, FRN7.5E3S-4J

Type：FRN5.5E3S-2J, FRN7.5E3S-2J Type：FRN5.5E3S-4J, FRN7.5E3S-4J

Type：FRN18.5E3S-2J, FRN22E3S-2J
Type：FRN18.5E3S-4J, FRN22E3S-4J

Type：FRN18.5E3S-2J, FRN22E3S-2J Type：FRN18.5E3S-4J, FRN22E3S-4J

Ethernet built-in type

Type：FRN0.1E3N-2J to FRN0.75E3N-2J
Type：FRN0.1E3N-7J to FRN0.75E3N-7J

Type：FRN0.1E3N-2J～FRN0.75E3N-2J Type：FRN0.1E3N-7J～FRN0.75E3N-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3N-2J～FRN0.2E3N-2J 98 90 8
FRN0.4E3N-2J 113 90 23
FRN0.75E3N-2J 145 97 48
Single-phase
200 V		 FRN0.1E3N-7J～FRN0.2E3N-7J 98 90 8
FRN0.4E3N-7J 120 97 23
FRN0.75E3N-7J 165 117 48

Type：FRN1.5E3N-2J, FRN2.2E3N-2J
Type：FRN0.4E3N-4J to FRN2.2E3N-4J, FRN1.5E3N-7J

Type：FRN1.5E3N-2J, FRN2.2E3N-2J Type：FRN0.4E3N-4J～FRN2.2E3N-4J, FRN1.5E3N-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN1.5E3N-2J～FRN2.2E3N-2J 156 98 58
Three-phase 400 V FRN0.4E3N-4J 132 98 34
FRN0.75E3N-4J～FRN2.2E3N-4J 156 98 58
Single-phase 200 V FRN1.5E3N-7J 166 108 58

Type：FRN3.7E3N-2J
Type：FRN3.7E3N-4J, FRN2.2E3N-7J

Type：FRN3.7E3N-2J Type：FRN3.7E3N-4J, FRN2.2E3N-7J

Type：FRN11E3N-2J, FRN15E3N-2J
Type：FRN11E3N-4J, FRN15E3N-4J

Type：FRN11E3N-2J, FRN15E3N-2J Type：FRN11E3N-4J, FRN15E3N-4J

Type：FRN5.5E3N-2J, FRN7.5E3N-2J
Type：FRN5.5E3N-4J, FRN7.5E3N-4J

Type：FRN5.5E3N-2J, FRN7.5E3N-2J Type：FRN5.5E3N-4J, FRN7.5E3N-4J

Type：FRN18.5E3N-2J, FRN22E3N-2J
Type：FRN18.5E3N-4J, FRN22E3N-4J

Type：FRN18.5E3N-2J, FRN22E3N-2J Type：FRN18.5E3N-4J, FRN22E3N-4J

Finless type

Type：FRN0.1E3T-2J to FRN0.75E3T-2J
Type：FRN0.1E3T-7J to FRN0.75E3T-7J

Type：FRN0.1E3T-2J～FRN0.75E3T-2J Type：FRN0.1E3T-7J～FRN0.75E3T-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3T-2J～FRN0.4E3T-2J 96 90.1 5.9
FRN0.75E3T-2J 103 97.1 5.9
Single-phase
200 V		 FRN0.1E3T-7J～FRN0.2E3T-7J 96 90.1 5.9
FRN0.4E3T-7J 103 97.1 5.9
FRN0.75E3T-7J 123 117.1 5.9

Type：FRN1.5E3T-2J, FRN2.2E3T-2J
Type：FRN0.4E3T-4J to FRN2.2E3T-4J, FRN1.5E3T-7J

Type：FRN1.5E3T-2J, FRN2.2E3T-2J Type：FRN0.4E3T-4J～FRN2.2E3T-4J, FRN1.5E3T-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN1.5E3T-2J～FRN2.2E3T-2J 111 98.3 12.7
Three-phase 400 V FRN0.4E3T-4J～FRN2.2E3T-4J 111 98.3 12.7
Single-phase 200 V FRN1.5E3T-7J 121 108.3 12.7

Type：FRN3.7E3T-2J
Type：FRN3.7E3T-4J, FRN2.2E3T-7J

Type：FRN3.7E3T-2J Type：FRN3.7E3T-4J, FRN2.2E3T-7J

EMC Filter built-in type

Type：FRN0.1E3E-2J to FRN0.75E3E-2J
Type：FRN0.1E3E-7J to FRN0.4E3E-7J

Type：FRN0.1E3E-2J～FRN0.75E3E-2J Type：FRN0.1E3E-7J～FRN0.4E3E-7J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0.1E3E-2J, FRN0.2E3E-2J 125 117 8
FRN0.4E3E-2J 140 117 23
FRN0.75E3E-2J 165 117 48
Single-phase
200 V		 FRN0.1E3E-7J～FRN0.2E3E-7J 125 117 8
FRN0.4E3E-7J 140 117 23

Type：FRN0.4E3E-4J
Type：FRN0.75E3E-4J

Type：FRN0.4E3E-4J Type：FRN0.75E3E-4J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 400 V FRN0.4E3E-4J 175 141 34
FRN0.75E3E-4J 199 141 58


Type：FRN0.75E3E-7J

Type：FRN0.75E3E-7J

Type：FRN5.5E3E-2J, FRN7.5E3E-2J
Type：FRN5.5E3E-4J, FRN7.5E3E-4J

Type：FRN5.5E3E-2J, FRN7.5E3E-2J Type：FRN5.5E3E-4J, FRN7.5E3E-4J
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN5.5E3E-2J, FRN7.5E3E-2J 226 55 -
Three-phase 400 V FRN5.5E3E-4J, FRN7.5E3E-4J 221 50 -

Type：FRN1.5E3E-2J to FRN3.7E3E-2J, FRN1.5E3E-4J to FRN3.7E3E-4J,
Type：FRN1.5E3E-7J to FRN2.2E3E-7J

Type：FRN1.5E3E-2J～FRN3.7E3E-2J, FRN1.5E3E-4J～FRN3.7E3E-4J, Type：FRN1.5E3E-7J～FRN2.2E3E-7J

Type：FRN11E3E-2J
Type：FRN15E3E-2J

Type：FRN11E3E-2J Type：FRN15E3E-2J

Type：FRN11E3E-4J
Type：FRN15E3E-4J

Type：FRN11E3E-4J Type：FRN15E3E-4J

Type：FRN18.5E3E-2, FRN22E3E-2J
Type：FRN18.5E3E-4J, FRN22E3E-4J

Type：FRN18.5E3E-2, FRN22E3E-2J Type：FRN18.5E3E-4J, FRN22E3E-4J

Keypad

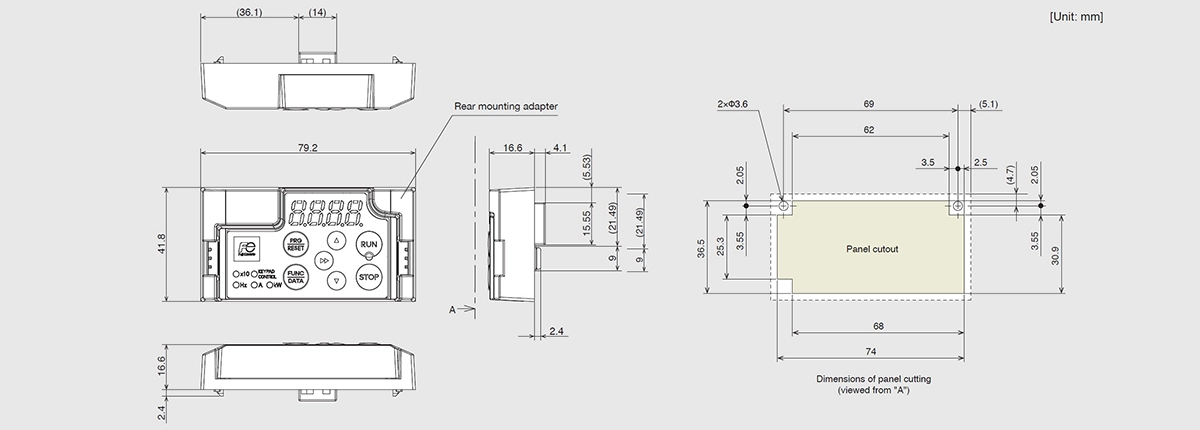

Standard (without USB) Type：TP-M3

Standard (without USB) Type：TP-M3

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
TP-M3 is a standard accessory. Please note that this accessory cannot be purchased as an optional item.

Option
Remote keypad (with USB) Type: TP-E2

Remote keypad (with USB) Type: TP-E2

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
When remotely connecting the keypad to FRENIC-Ace (E3), the keypad relay adapter (CBAD-CP) is required.

Option
Multi-function keypad (with USB) Type： TP-A2SW

Multi-function keypad (with USB) Type： TP-A2SW

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
When remotely connecting the keypad to FRENIC-Ace (E3), the keypad relay adapter (CBAD-CP) is required.

Basic type

Type：FRN0001E3S-2G to FRN0006E3S-2G
Type：FRN0001E3S-7G to FRN0006E3S-7G

Type：FRN0001E3S-2G to FRN0006E3S-2G Type：FRN0001E3S-7G to FRN0006E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3S-2G, FRN0012E3S-2G
Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G

Type：FRN0010E3S-2G, FRN0012E3S-2G Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3S-2G
Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0020E3S-2G Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0056E3S-2G, FRN0069E3S-2G
Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0056E3S-2G, FRN0069E3S-2G Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G
Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G
Type：FRN0059E3S-4G, FRN0072E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G Type：FRN0059E3S-4G, FRN0072E3S-4G

Ethernet built-in type

Type：FRN0001E3N-2G to FRN0006E3N-2G
Type：FRN0001E3N-7G to FRN0006E3N-7G

Type：FRN0001E3N-2G to FRN0006E3N-2G Type：FRN0001E3N-7G to FRN0006E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3N-2G, FRN0012E3N-2G
Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G

Type：FRN0010E3N-2G, FRN0012E3N-2G Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3N-2G
Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0020E3N-2G Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0056E3N-2G, FRN0069E3N-2G
Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0056E3N-2G, FRN0069E3N-2G Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G
Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G
Type：FRN0059E3N-4G, FRN0072E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G Type：FRN0059E3N-4G, FRN0072E3N-4G

EMC Filter built-in type

Type：FRN0001E3E-7G to FRN0005E3E-7G

Type FRN0001E3E-7G to FRN0005E3E-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Single-phase
200 V		 FRN0001E3E-7G, FRN0002E3E-7G 125(4.92) 117(4.61) 8(0.31)
FRN0003E3E-7G 140(5.51) 117(4.61) 23(0.9)

Type FRN0002E3E-4G, FRN0004E3E-4G

Type FRN0002E3E-4G, FRN0004E3E-4G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 400 V FRN0002E3E-4G 175(6.89) 141(5.56) 34(1.33)
FRN0004E3E-4G 199(7.83) 141(5.56) 58(2.29)


Type：FRN0005E3E-7G

Type FRN0005E3E-7G

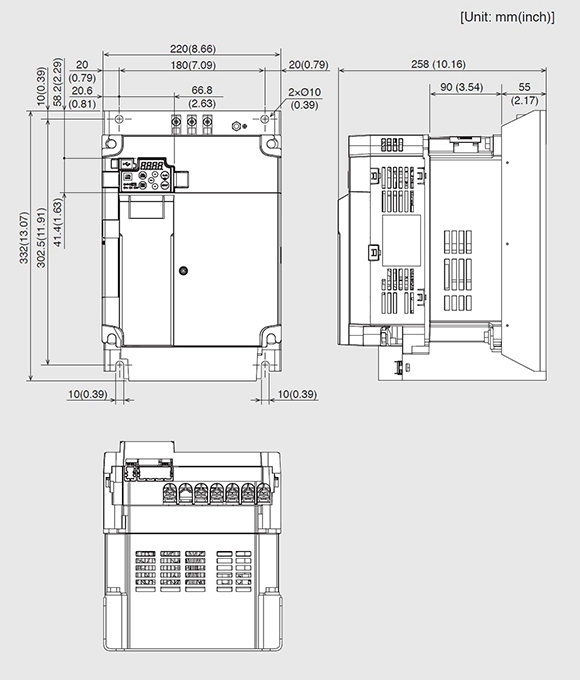

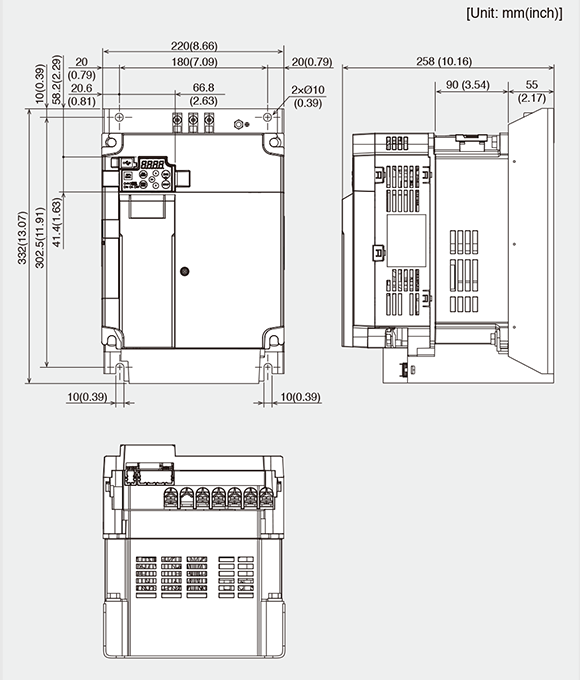

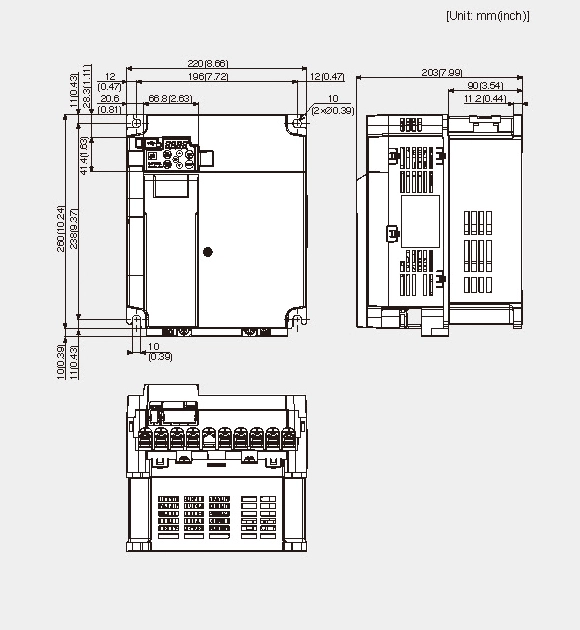

Type：FRN0037E3E-4G, FRN0044E3E-4G

Type FRN0037E3E-4G, FRN0044E3E-4G

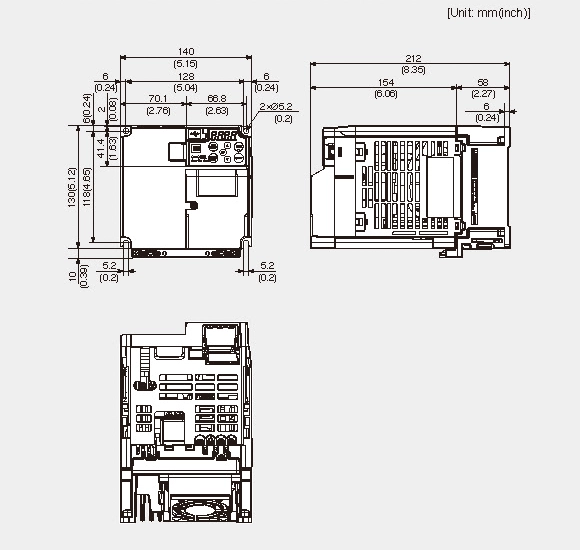

Type：FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G,
Type：FRN0008E3E-7G, FRN0011E3E-7G

FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G, Type FRN0008E3E-7G, FRN0011E3E-7G

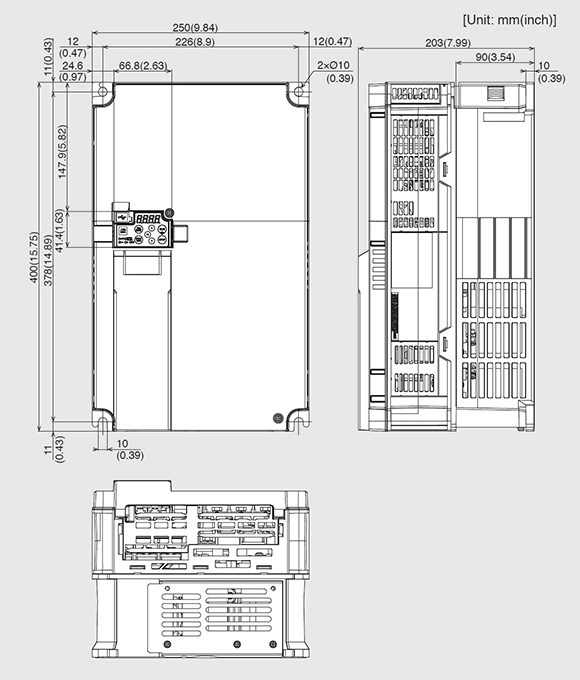

Type：FRN0059E3E-4G, FRN0072E3E-4G

Type FRN0059E3E-4G, FRN0072E3E-4G

Keypad

Standard (without USB) Type: TP-M3

Standard (without USB) Type: TP-M3

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
TP-M3 is a standard accessory. Please note that this accessory cannot be purchased as an optional item.

Option
For remote keypad Type: TP-E2

For remote keypad Type: TP-E2

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure
when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Option
Multi-function keypad (with USB) Type: TP-A2SW

Multi-function keypad (with USB) Type: TP-A2SW

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Basic type

Type：FRN0001E3S-2G to FRN0006E3S-2G
Type：FRN0001E3S-7G to FRN0006E3S-7G

Type：FRN0001E3S-2G to FRN0006E3S-2G Type：FRN0001E3S-7G to FRN0006E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3S-2G, FRN0012E3S-2G
Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G

Type：FRN0010E3S-2G, FRN0012E3S-2G Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3S-2G
Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0020E3S-2G Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0056E3S-2G, FRN0069E3S-2G
Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0056E3S-2G, FRN0069E3S-2G Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G
Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G
Type：FRN0059E3S-4G, FRN0072E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G Type：FRN0059E3S-4G, FRN0072E3S-4G

Ethernet built-in type

Type：FRN0001E3N-2G to FRN0006E3N-2G
Type：FRN0001E3N-7G to FRN0006E3N-7G

Type：FRN0001E3N-2G to FRN0006E3N-2G Type：FRN0001E3N-7G to FRN0006E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3N-2G, FRN0012E3N-2G
Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G

Type：FRN0010E3N-2G, FRN0012E3N-2G Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3N-2G
Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0020E3N-2G Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0056E3N-2G, FRN0069E3N-2G
Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0056E3N-2G, FRN0069E3N-2G Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G
Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G
Type：FRN0059E3N-4G, FRN0072E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G Type：FRN0059E3N-4G, FRN0072E3N-4G

EMC Filter built-in type

Type：FRN0001E3E-7G to FRN0005E3E-7G

Type：FRN0001E3E-7G to FRN0005E3E-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Single-phase
200 V		 FRN0001E3E-7G, FRN0002E3E-7G 125(4.92) 117(4.61) 8(0.31)
FRN0003E3E-7G 140(5.51) 117(4.61) 23(0.9)

Type FRN0002E3E-4G, FRN0004E3E-4G

Type FRN0002E3E-4G, FRN0004E3E-4G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 400 V FRN0002E3E-4G 175(6.89) 141(5.56) 34(1.33)
FRN0004E3E-4G 199(7.83) 141(5.56) 58(2.29)


Type：FRN0005E3E-7G

Type：FRN0005E3E-7G

Type：FRN0037E3E-4G, FRN0044E3E-4G

Type：FRN0037E3E-4G, FRN0044E3E-4G

Type：FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G,
Type：FRN0008E3E-7G, FRN0011E3E-7G

Type：FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G, Type：FRN0008E3E-7G, FRN0011E3E-7G

Type：FRN0059E3E-4G, FRN0072E3E-4G

Type：FRN0059E3E-4G, FRN0072E3E-4G

Keypad

Standard (without USB) Type: TP-M3

Standard (without USB) Type: TP-M3

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
TP-M3 is a standard accessory. Please note that this accessory cannot be purchased as an optional item.

Option
For remote keypad Type: TP-E2

For remote keypad Type: TP-E2

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure
when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Option
Multi-function keypad (with USB) Type: TP-A2SW

Multi-function keypad (with USB) Type: TP-A2SW

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Basic type

Type：FRN0002E3S-4C to FRN0007E3S-4C

Type：FRN0002E3S-4C to FRN0007E3S-4C
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 400 V FRN0002E3S-4C 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4C to FRN0007E3S-4C 156(6.14) 98(3.85) 58(2.27)

Type：FRN0012E3S-4C

Type：FRN0012E3S-4C

Type：FRN0022E3S-4C, FRN0029E3S-4C

Type：FRN0022E3S-4C,FRN0029E3S-4C

Type：FRN0059E3S-4C, FRN0072E3S-4C

Type：FRN0059E3S-4C, FRN0072E3S-4C

Type：FRN0037E3S-4C, FRN0044E3S-4C

Type：FRN0037E3S-4C, FRN0044E3S-4C

Keypad

Standard (without USB) Type：TP-M3

Standard (without USB) Type：TP-M3

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
TP-M3 is a standard accessory. Please note that this accessory cannot be purchased as an optional item.

Option
Multi-function keypad (with USB) Type: TP-A2SW

Option Multi-function keypad (with USB) Type: TP-A2SW

Basic type

Type：FRN0001E3S-2G to FRN0006E3S-2G
Type：FRN0001E3S-7G to FRN0006E3S-7G

Type：FRN0001E3S-2G to FRN0006E3S-2G Type：FRN0001E3S-7G to FRN0006E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3S-2G, FRN0012E3S-2G
Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G

Type：FRN0010E3S-2G, FRN0012E3S-2G Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3S-2G
Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0020E3S-2G Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0056E3S-2G, FRN0069E3S-2G
Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0056E3S-2G, FRN0069E3S-2G Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G
Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G
Type：FRN0059E3S-4G, FRN0072E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G Type：FRN0059E3S-4G, FRN0072E3S-4G

Ethernet built-in type

Type：FRN0001E3N-2G to FRN0006E3N-2G
Type：FRN0001E3N-7G to FRN0006E3N-7G

Type：FRN0001E3N-2G to FRN0006E3N-2G Type：FRN0001E3N-7G to FRN0006E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3N-2G, FRN0012E3N-2G
Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G

Type：FRN0010E3N-2G, FRN0012E3N-2G Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3N-2G
Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0020E3N-2G Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0056E3N-2G, FRN0069E3N-2G
Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0056E3N-2G, FRN0069E3N-2G Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G
Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G
Type：FRN0059E3N-4G, FRN0072E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G Type：FRN0059E3N-4G, FRN0072E3N-4G

EMC Filter built-in type

Type：FRN0001E3E-7G to FRN0005E3E-7G

Type：FRN0001E3E-7G to FRN0005E3E-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Single-phase
200 V		 FRN0001E3E-7G, FRN0002E3E-7G 125(4.92) 117(4.61) 8(0.31)
FRN0003E3E-7G 140(5.51) 117(4.61) 23(0.9)

Type FRN0002E3E-4G, FRN0004E3E-4G

Type FRN0002E3E-4G, FRN0004E3E-4G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 400 V FRN0002E3E-4G 175(6.89) 141(5.56) 34(1.33)
FRN0004E3E-4G 199(7.83) 141(5.56) 58(2.29)


Type：FRN0005E3E-7G

Type：FRN0005E3E-7G

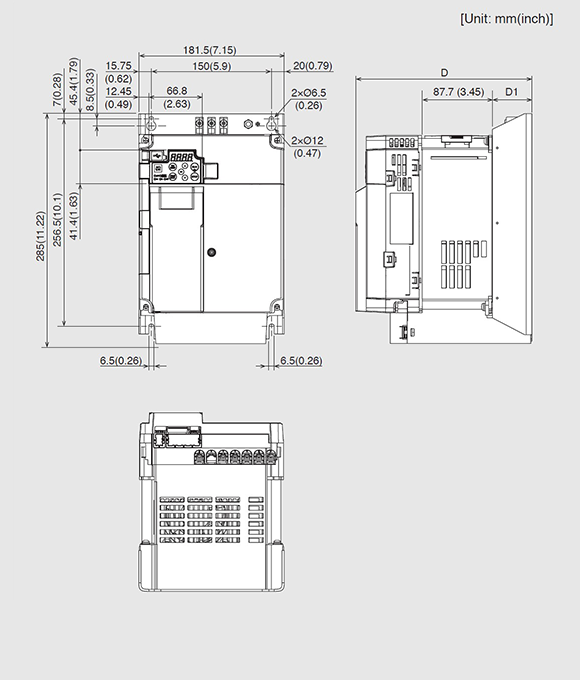

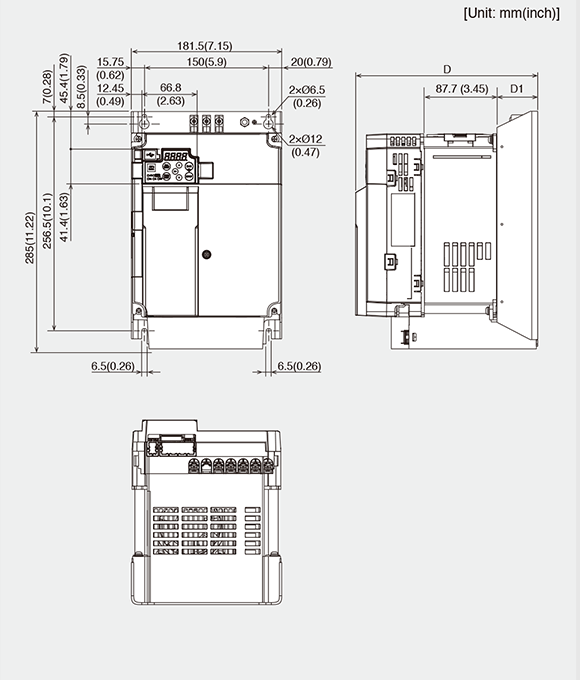

Type：FRN0037E3E-4G, FRN0044E3E-4G

Type：FRN0037E3E-4G, FRN0044E3E-4G

Type：FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G,
Type：FRN0008E3E-7G, FRN0011E3E-7G

Type：FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G, Type：FRN0008E3E-7G, FRN0011E3E-7G

Type：FRN0059E3E-4G, FRN0072E3E-4G

Type：FRN0059E3E-4G, FRN0072E3E-4G

Keypad

Standard (without USB) Type: TP-M3

Standard (without USB) Type: TP-M3

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
TP-M3 is a standard accessory. Please note that this accessory cannot be purchased as an optional item.

Option
For remote keypad Type: TP-E2

Option For remote keypad Type: TP-E2

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure
when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Option
Multi-function keypad (with USB) Type: TP-A2SW

Option Multi-function keypad (with USB) Type: TP-A2SW

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Basic type

Type：FRN0001E3S-2G to FRN0006E3S-2G
Type：FRN0001E3S-7G to FRN0006E3S-7G

Type：FRN0001E3S-2G to FRN0006E3S-2G Type：FRN0001E3S-7G to FRN0006E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3S-2G, FRN0012E3S-2G
Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G

Type：FRN0010E3S-2G, FRN0012E3S-2G Type：FRN0002E3S-4G to FRN0007E3S-4G, FRN0010E3S-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3S-2G
Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0020E3S-2G Type：FRN0012E3S-4G, FRN0012E3S-7G

Type：FRN0056E3S-2G, FRN0069E3S-2G
Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0056E3S-2G, FRN0069E3S-2G Type：FRN0037E3S-4G, FRN0044E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G
Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0030E3S-2G, FRN0040E3S-2G Type：FRN0022E3S-4G, FRN0029E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G
Type：FRN0059E3S-4G, FRN0072E3S-4G

Type：FRN0088E3S-2G, FRN0115E3S-2G Type：FRN0059E3S-4G, FRN0072E3S-4G

Ethernet built-in type

Type：FRN0001E3N-2G to FRN0006E3N-2G
Type：FRN0001E3N-7G to FRN0006E3N-7G

Type：FRN0001E3N-2G to FRN0006E3N-2G Type：FRN0001E3N-7G to FRN0006E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase
200 V		 FRN0001E3S-2G, FRN0002E3S-2G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-2G 113(4.45) 90(3.54) 23(0.9)
FRN0006E3S-2G 145(5.71) 97(3.82) 48(1.89)
Single-phase
200 V		 FRN0001E3S-7G, FRN0002E3S-7G 98(3.85) 90(3.54) 8(0.31)
FRN0004E3S-7G 120(4.72) 97(3.82) 23(0.9)
FRN0006E3S-7G 165(6.5) 117(4.61) 48(1.89)

Type：FRN0010E3N-2G, FRN0012E3N-2G
Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G

Type：FRN0010E3N-2G, FRN0012E3N-2G Type：FRN0002E3N-4G to FRN0007E3N-4G, FRN0010E3N-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 200 V FRN0010E3S-2G, FRN0012E3S-2G 156(6.14) 98(3.85) 58(2.27)
Three-phase 400 V FRN0002E3S-4G 132(5.2) 98(3.85) 34(1.33)
FRN0004E3S-4G to FRN0007E3S-4G 156(6.14) 98(3.85) 58(2.27)
Single-phase 200 V FRN0010E3S-7G 166(6.54) 108(4.25) 58(2.27)

Type：FRN0020E3N-2G
Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0020E3N-2G Type：FRN0012E3N-4G, FRN0012E3N-7G

Type：FRN0056E3N-2G, FRN0069E3N-2G
Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0056E3N-2G, FRN0069E3N-2G Type：FRN0037E3N-4G, FRN0044E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G
Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0030E3N-2G, FRN0040E3N-2G Type：FRN0022E3N-4G, FRN0029E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G
Type：FRN0059E3N-4G, FRN0072E3N-4G

Type：FRN0088E3N-2G, FRN0115E3N-2G Type：FRN0059E3N-4G, FRN0072E3N-4G

EMC Filter built-in type

Type：FRN0001E3E-7G to FRN0005E3E-7G

Type：FRN0001E3E-7G to FRN0005E3E-7G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Single-phase
200 V		 FRN0001E3E-7G, FRN0002E3E-7G 125(4.92) 117(4.61) 8(0.31)
FRN0003E3E-7G 140(5.51) 117(4.61) 23(0.9)

Type FRN0002E3E-4G, FRN0004E3E-4G

Type FRN0002E3E-4G, FRN0004E3E-4G
Power system Inverter type (HHD) Dimensions [mm (inch)]
D D1 D2
Three-phase 400 V FRN0002E3E-4G 175(6.89) 141(5.56) 34(1.33)
FRN0004E3E-4G 199(7.83) 141(5.56) 58(2.29)


Type：FRN0005E3E-7G

Type：FRN0005E3E-7G

Type：FRN0037E3E-4G, FRN0044E3E-4G

Type：FRN0037E3E-4G, FRN0044E3E-4G

Type：FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G,
Type：FRN0008E3E-7G, FRN0011E3E-7G

Type：FRN0006E3E-4G, FRN0007E3E-4G, FRN00012E3E-4G, Type：FRN0008E3E-7G, FRN0011E3E-7G

Type：FRN0059E3E-4G, FRN0072E3E-4G

Type：FRN0059E3E-4G, FRN0072E3E-4G

Keypad

Standard (without USB) Type: TP-M3

Standard (without USB) Type: TP-M3

Note)

The figure shows the optional rear mounting adapter(CBAD-CP). Please check when remotely operating or installing the panel.
TP-M3 is a standard accessory. Please note that this accessory cannot be purchased as an optional item.

Option
For remote keypad Type: TP-E2

Option For remote keypad Type: TP-E2

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure
when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Option
Multi-function keypad (with USB) Type: TP-A2SW

Option Multi-function keypad (with USB) Type: TP-A2SW

Note)

This figure shows the installation of the optional rear mounting adapter (CBAD-CP). Please check the figure when performing remote control or during panel installation.
The CBAD-CP keypad relay adapter is required to remotely connect the keypad to the FRENIC-Ace (E3).

Related information

FRENIC-VG
FRENIC-VG
FRENIC-MEGA (G2)
FRENIC-MEGA (G2)
FRENIC-Ace (E3)
FRENIC-Ace (E3)
FRENIC-Ace (E2)
FRENIC-Ace (E2)
FRENIC-Mini (C2)
FRENIC-Mini (C2)
FVR-Micro
FVR-Micro
FRENIC-Lift (LM3)
FRENIC-Lift (LM3)
FRENIC-Lift (LM1S)
FRENIC-Lift (LM1S)
FRENIC-HVAC
FRENIC-HVAC
FRENIC-AQUA
FRENIC-AQUA
FRENIC-VP (F3)
FRENIC-VP (F3)
FRENIC-eHVAC
FRENIC-eHVAC
FRENIC-eRHR
FRENIC-eRHR
FRENIC-eRHC
FRENIC-eRHC
Contact Us
