External Dimensions

External Dimensions

Europe

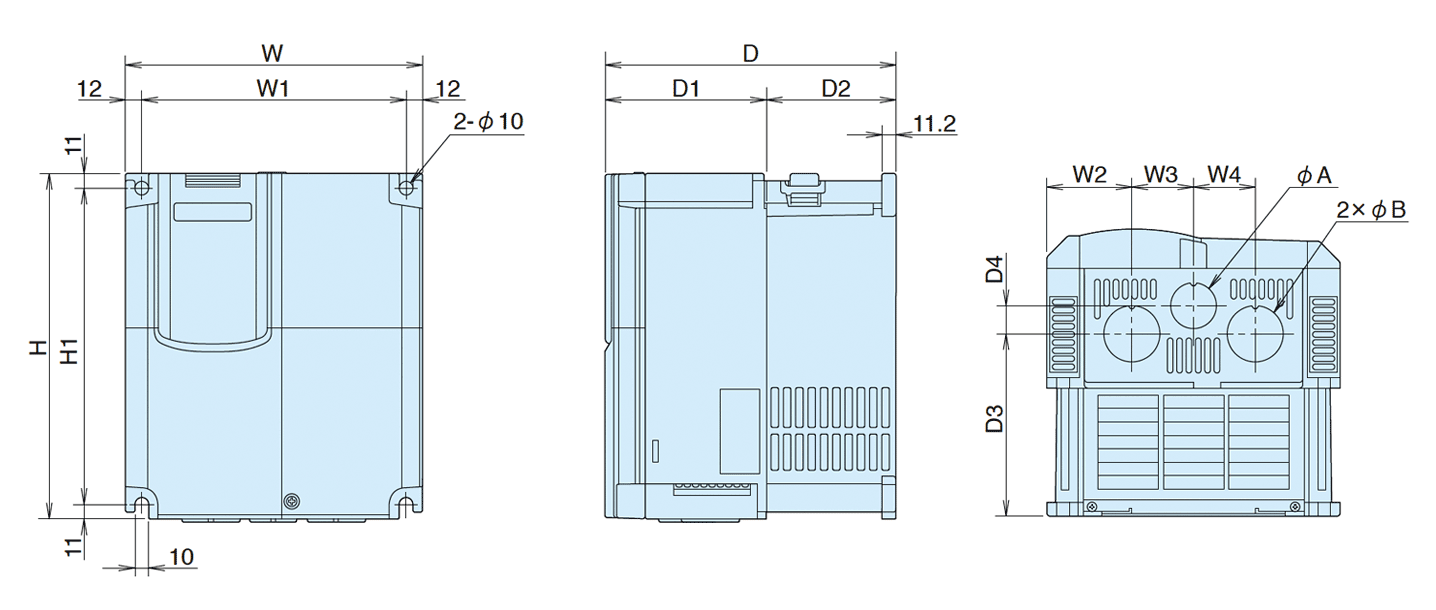

FRN5.5LM1S-4E■ to FRN22LM1S-4E■, FRN5.5LM1S-2E■ to FRN22LM1S-2E■

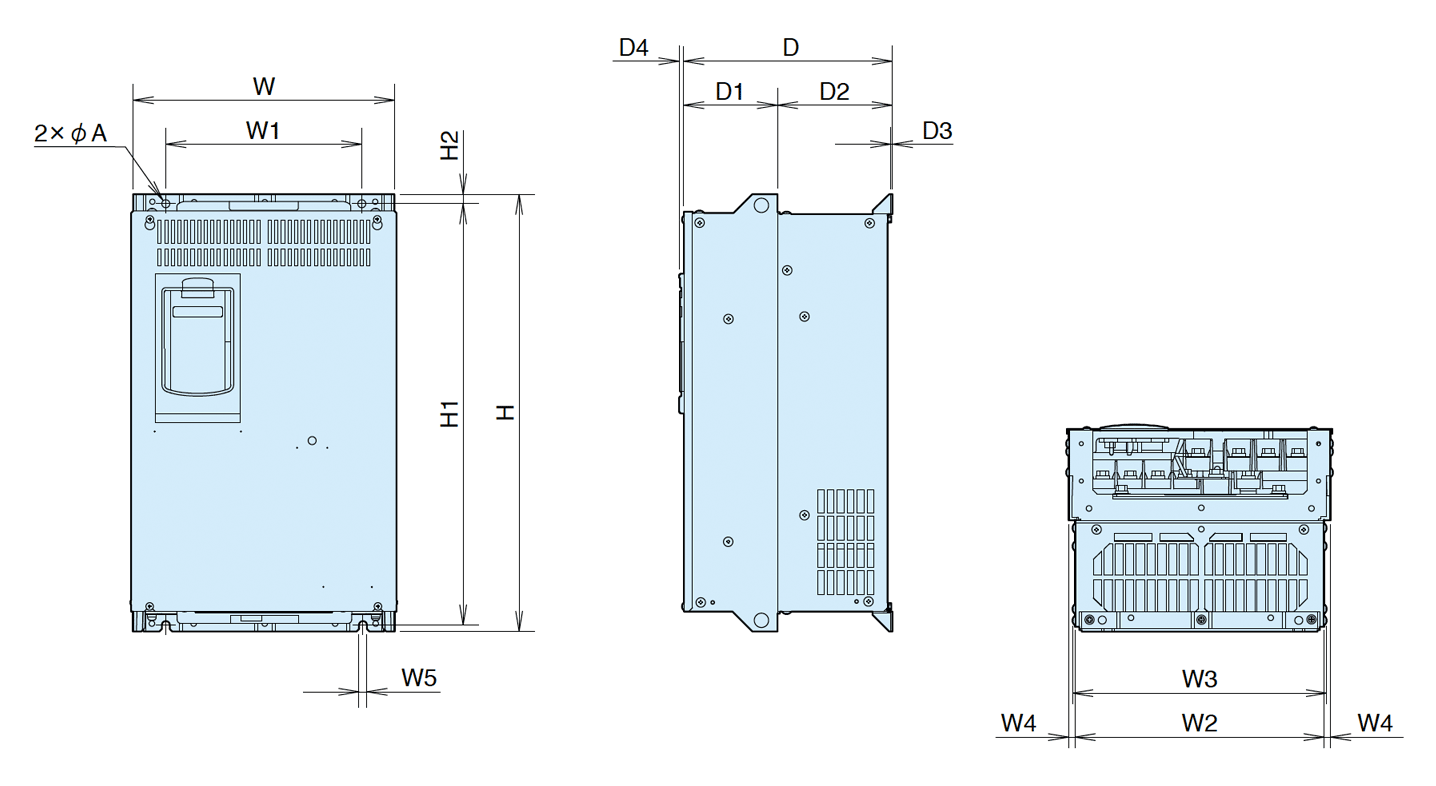

FRN30LM1S-4E■ to FRN45LM1S-4E■

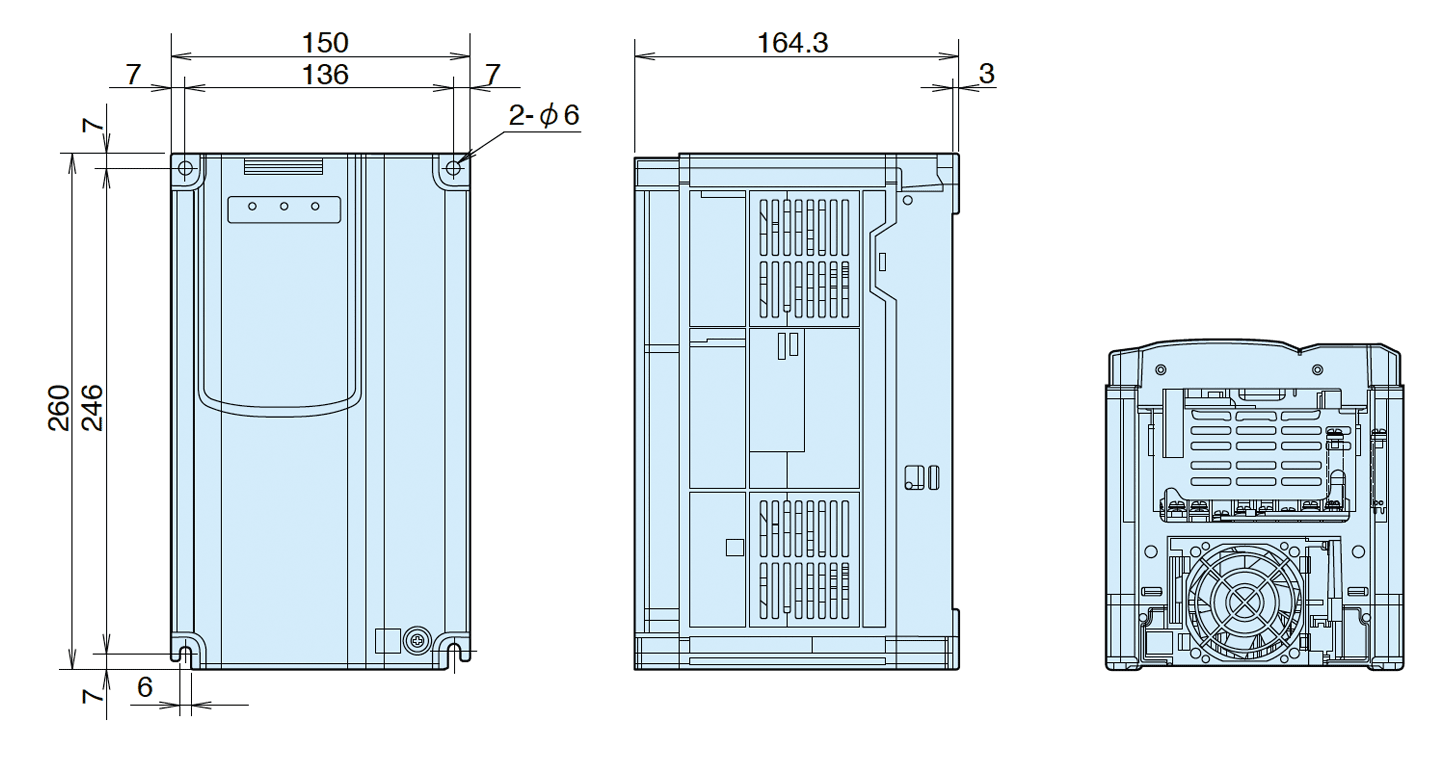

FRN4.0LM1S-4E■/FRN2.2LM1S-7E■

Power supply voltage	Type	Dimensions (mm)
		W	W1	W2	W3	W4	W5	H	H1	H2	D	D1	D2	D3	D4	φA	φB
Three-phase 200V	FRN5.5LM1S-2E■	220	196	63.5	46.5	46.5	–	260	238	–	215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-2E■
	FRN11LM1S-2E■
	FRN15LM1S-2E■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-2E■
	FRN22LM1S-2E■
Three-phase 400V	FRN4.0LM1S-4E■	150	136	–	–	–		260	246		165	133	32	–	–	–	–
	FRN5.5LM1S-4E■	220	196	63.5	46.5	46.5		260	238		215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-4E■
	FRN11LM1S-4E■
	FRN15LM1S-4E■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-4E■
	FRN22LM1S-4E■
	FRN30LM1S-4E■	320	240	304	310.2	8	10	550 615	530 595	12	255 270	115	140 155	4	6	10	–
	FRN37LM1S-4E■	355	275	339	345.2
	FRN45LM1S-4E■
Single-phase 200V	FRN2.2LM1S-7E■	150	136	–	–	–	–	260	246	–	165	133	32	–	–	–	–

China

FRN5.5LM1S-4C to FRN22LM1S-4C

FRN30LM1S-4C to FRN45LM1S-4C

FRN4.0LM1S-4C

Power supply voltage	Type	Dimensions (mm)
		W	W1	W2	W3	W4	W5	H	H1	H2	D	D1	D2	D3	D4	φA	φB
Three-phase 400V	FRN4.0LM1S-4C	150	136	–	–	–	–	260	246	–	165	133	32	–	–	–	–
	FRN5.5LM1S-4C	220	196	63.5	46.5	46.5		260	238		215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-4C
	FRN11LM1S-4C
	FRN15LM1S-4C	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-4C
	FRN22LM1S-4C
	FRN30LM1S-4C	320	240	304	310.2	8	10	550 615	530 595	12	255 270	115	140 155	4	6	10	–
	FRN37LM1S-4C	355	275	339	345.2
	FRN45LM1S-4C

Asia

FRN5.5LM1S-4A■ to FRN22LM1S-4A■, FRN5.5LM1S-2A■ to FRN22LM1S-2A■

FRN30LM1S-4A■ to FRN45LM1S-4A■

FRN4.0LM1S-4A■/FRN2.2LM1S-7A■

Power supply voltage	Type	Dimensions (mm)
		W	W1	W2	W3	W4	W5	H	H1	H2	D	D1	D2	D3	D4	φA	φB
Three-phase 200V	FRN5.5LM1S-2A■	220	196	63.5	46.5	46.5	–	260	238	–	215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-2A■
	FRN11LM1S-2A■
	FRN15LM1S-2A■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-2A■
	FRN22LM1S-2A■
Three-phase 400V	FRN4.0LM1S-4A■	150	136	–	–	–		260	246		165	133	32	–	–	–	–
	FRN5.5LM1S-4A■	220	196	63.5	46.5	46.5		260	238		215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-4A■
	FRN11LM1S-4A■
	FRN15LM1S-4A■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-4A■
	FRN22LM1S-4A■
	FRN30LM1S-4A■	320	240	304	310.2	8	10	550 615	530 595	12	255 270	115	140 155	4	6	10	–
	FRN37LM1S-4A■	355	275	339	345.2
	FRN45LM1S-4A■
Single-phase 200V	FRN2.2LM1S-7A■	150	136	–	–	–	–	260	246	–	165	133	32	–	–	–	–

Taiwan

FRN5.5LM1S-4A■ to FRN22LM1S-4A■, FRN5.5LM1S-2A■ to FRN22LM1S-2A■

FRN30LM1S-4A■ to FRN45LM1S-4A■

FRN4.0LM1S-4A■/FRN2.2LM1S-7A■

Power supply voltage	Type	Dimensions (mm)
		W	W1	W2	W3	W4	W5	H	H1	H2	D	D1	D2	D3	D4	φA	φB
Three-phase 200V	FRN5.5LM1S-2A■	220	196	63.5	46.5	46.5	–	260	238	–	215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-2A■
	FRN11LM1S-2A■
	FRN15LM1S-2A■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-2A■
	FRN22LM1S-2A■
Three-phase 400V	FRN4.0LM1S-4A■	150	136	–	–	–		260	246		165	133	32	–	–	–	–
	FRN5.5LM1S-4A■	220	196	63.5	46.5	46.5		260	238		215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-4A■
	FRN11LM1S-4A■
	FRN15LM1S-4A■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-4A■
	FRN22LM1S-4A■
	FRN30LM1S-4A■	320	240	304	310.2	8	10	550 615	530 595	12	255 270	115	140 155	4	6	10	–
	FRN37LM1S-4A■	355	275	339	345.2
	FRN45LM1S-4A■
Single-phase 200V	FRN2.2LM1S-7A■	150	136	–	–	–	–	260	246	–	165	133	32	–	–	–	–

Korea

FRN5.5LM1S-4K■ to FRN22LM1S-4K■, FRN5.5LM1S-2K■ to FRN22LM1S-2K■

FRN30LM1S-4K■ to FRN45LM1S-4K■

FRN4.0LM1S-4K■/FRN2.2LM1S-7K■

Power supply voltage	Type	Dimensions (mm)
		W	W1	W2	W3	W4	W5	H	H1	H2	D	D1	D2	D3	D4	φA	φB
Three-phase 200V	FRN5.5LM1S-2K■	220	196	63.5	46.5	46.5	–	260	238	–	215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-2K■
	FRN11LM1S-2K■
	FRN15LM1S-2K■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-2K■
	FRN22LM1S-2K■
Three-phase 400V	FRN4.0LM1S-4K■	150	136	–	–	–		260	246		165	133	32	–	–	–	–
	FRN5.5LM1S-4K■	220	196	63.5	46.5	46.5		260	238		215	118.5	96.5	136.7	21	34	42
	FRN7.5LM1S-4K■
	FRN11LM1S-4K■
	FRN15LM1S-4K■	250	226	67	58	58		400	378			85	130	166.2	2
	FRN18.5LM1S-4K■
	FRN22LM1S-4K■
	FRN30LM1S-4K■	320	240	304	310.2	8	10	550 615	530 595	12	255 270	115	140 155	4	6	10	–
	FRN37LM1S-4K■	355	275	339	345.2
	FRN45LM1S-4K■
Single-phase 200V	FRN2.2LM1S-7K■	150	136	–	–	–	–	260	246	–	165	133	32	–	–	–	–
