Specifications

Hermetically Sealed Fully with Mineral oil type

1. Specifications (Technical Data are subjected to change without notice.)

1-1. 22kV - 400/230V & 24kV - 416/240V

Item Capacity No load Load loss (75oC) Impedance Dimensions(mm) Total weight Oil
kVA Watt Watt % Height Length Width kg Liter
1 50 160 950 4 1,100 1,000 700 500 135
2 100 250 1,550 4 1,250 1,050 750 750 200
3 160 360 2,100 4 1,300 1,150 750 990 250
4 250 500 2,950 4 1,350 1,200 750 1300 300
5 315 800 3,900 4 1,400 1,400 800 1300 350
6 400 960 4,600 4 1,400 1,500 850 1550 380
7 500 1,150 5,500 4 1,500 1,550 900 1750 430
8 630 1,350 6,500 4 1,550 1,600 850 2,150 450
9 800 1,600 11,000 6 1,600 1,800 1,100 2,500 650
10 1,000 1,950 13,500 6 1,750 1,900 1,100 3,200 700
11 1,250 2,300 16,400 6 1,850 2,000 1,150 4,000 850
12 1,500 2,800 19,800 6 1,950 2,100 1,250 4,150 1,150
13 2,000 3,250 24,000 6 2,050 2,250 1,350 5,650 1,450
14 2,500 3,500 28,500 6 2,150 2,450 1,450 6,450 1,750

1-2. 33kV - 400/230V

Item Capacity No load Load loss (75oC) Impedance Dimensions(mm) Total weight Oil
kVA Watt Watt % Height Length Width kg Liter
1 50 170 950 4 1,300 1,000 700 550 165
2 100 260 1,550 4 1,400 1,050 750 800 230
3 160 370 2,100 4 1,450 1,150 750 990 280
4 250 520 2,950 4 1,500 1,200 750 1450 350
5 315 850 3,900 4 1,550 1,350 800 1450 400
6 400 1000 4,600 4 1,550 1,450 850 1700 450
7 500 1,200 5,500 4 1,650 1,500 900 1900 500
8 630 1,400 6,500 4 1,700 1,650 850 2,300 550
9 800 1,700 11,000 6 1,750 1,850 1,100 2,650 700
10 1,000 2,000 13,500 6 1,900 1,950 1,100 3,350 750
11 1,250 2,350 16,400 6 2,000 2,000 1,150 4,150 900
12 1,500 2,850 19,800 6 2,100 2,100 1,250 4,300 1,200
13 2,000 3,300 24,000 6 2,200 2,250 1,350 5,800 1,450
14 2,500 3,800 28,500 6 2,350 2,450 1,450 6,600 1,750

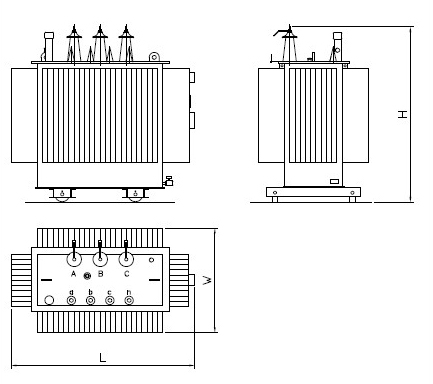

Distribution Transformer Outline

Distribution Transformer

2. Accessories (Standard & Option)

Item kVA 50 100 160 250 315 400 500 630 800 1000 1250 1500 2000 2500
1 Bushings ● ● ● ● ● ● ● ● ● ● ● ● ● ●
2 Arcing horn ● ● ● ● ● ● ● ● ● ● ● ● ● ●
3 Off load tap changer ● ● ● ● ● ● ● ● ● ● ● ● ● ●
4 Earth terminal ● ● ● ● ● ● ● ● ● ● ● ● ● ●
5 Lifting lug ● ● ● ● ● ● ● ● ● ● ● ● ● ●
6 Lifting eye ● ● ● ● ● ● ● ● ● ● ● ● ● ●
7 Wheel ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ● ● ●
8 Nameplate ● ● ● ● ● ● ● ● ● ● ● ● ● ●
9 Oil drain ● ● ● ● ● ● ● ● ● ● ● ● ● ●
10 Thermometer pocket ● ● ● ● ● ● ● ● ● ● ● ● ● ●
11 Marshaling box ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ● ● ●
12 Cable box ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
13 P'ry terminal connector Pad type ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Clamp type ● ● ● ● ● ● ● ● ● ● ● ● ● ●
14 S'ry terminal connector Pad type ● ● ● ● ● ● ○ ○ ○ ○ ○ ○ ○ ○
Clamp type ○ ○ ○ ○ ○ ○ ● ● ● ● ● ● ● ●
15 Oil level gauge W/O contact ● ● ● ● ● ● ● ● ● ● ● ● ● ●
16 Thermometer W/O contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
2 contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ● ● ●
17 WDG Temp.indicator 2 contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
18 Pressure relief device W/O contact ● ● ● ● ● ● ● ● ● ● ● ● ● ●
1 contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Accessaries List
● Standard Accessaries
○ Option Accessaries

3. Remarks

  • Fuji Tusco reserve the right to any changes of these information, herein.

  • Distribution transformers are designed for general application uses at ambient temperature maximum 40℃ at temperature raised 60℃ (top oil) / 65℃ (winding), which will be manufactured and tested in accordance with the latest IEC standard.

Open Type with Conservator Tank (Mineral Oil)

1. Specifications (Technical Data are subjected to change without notice.)

1-1. Open Type with Conservator Tank 22kV – 400/230V & 24kV - 416/240V

Item Capacity No load Load loss (75oC) Impedance Dimensions(mm) Total weight Oil
kVA Watt Watt % Height Length Width kg Liter
1 50 160 950 4 1,250 1,300 850 650 150
2 100 250 1,550 4 1,350 1,300 850 750 200
3 160 360 2,100 4 1,450 1,400 850 950 250
4 250 500 2,950 4 1,550 1,500 850 1200 320
5 315 800 3,900 4 1,600 1,550 850 1250 350
6 400 960 4,600 4 1,650 1,600 900 1550 380
7 500 1,150 5,500 4 1,700 1,700 950 1800 450
8 630 1,350 6,500 4 1,750 1,800 950 2,100 600
9 800 1,600 11,000 6 1,850 1,900 1,050 2,650 650
10 1,000 1,950 13,500 6 2,050 2,050 1,150 3,200 700
11 1,250 2,300 16,400 6 2,100 2,250 1,200 4,000 900
12 1,500 2,800 19,800 6 2,250 2,250 1,350 4,200 1,100
13 2,000 3,250 24,000 6 2,350 2,300 1,400 5,500 1,200
14 2,500 3,500 28,500 6 2,500 2,500 1,550 6,500 1,800

1-2. Open Type with Conservator Tank 33kV – 400/230V

Item Capacity No load Load loss (75oC) Impedance Dimensions(mm) Total weight Oil
kVA Watt Watt % Height Length Width kg Liter
1 50 170 950 4 1,450 1,400 900 700 200
2 100 260 1,550 4 1,550 1,400 900 800 250
3 160 370 2,100 4 1,650 1,500 900 1,000 300
4 250 520 2,950 4 1,750 1,600 900 1250 350
5 315 850 3,900 4 1,750 1,650 900 1350 400
6 400 1000 4,600 4 1,800 1,700 950 1650 450
7 500 1,200 5,500 4 1,850 1,800 1000 1900 500
8 630 1,400 6,500 4 1,900 1,900 1,000 2,200 650
9 800 1,700 11,000 6 2,000 2,000 1,100 2,750 700
10 1,000 2,000 13,500 6 2,200 2,150 1,200 3,500 750
11 1,250 2,350 16,400 6 2,250 2,350 1,250 4,500 950
12 1,500 2,850 19,800 6 2,400 2,350 1,400 4,800 1,150
13 2,000 3,300 24,000 6 2,500 2,400 1,450 6,200 1,250
14 2,500 3,800 28,500 6 2,650 2,600 1,600 7,200 1,850

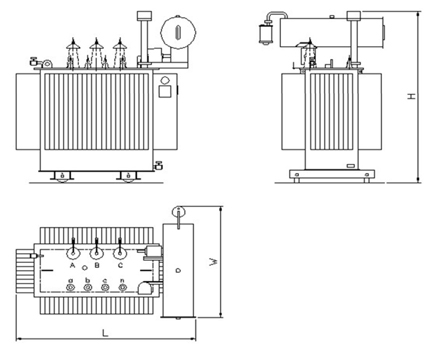

Distribution Transformer Outline

Distribution Transformer

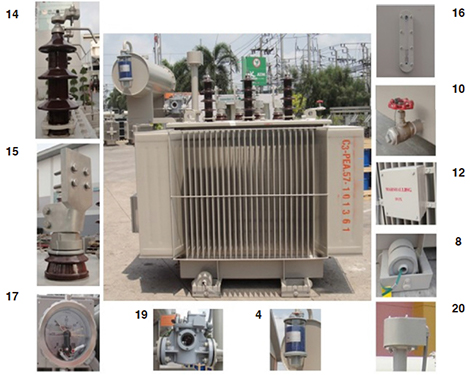

2. Accessories (Standard & Option)

Item kVA 50 100 160 250 315 400 500 630 800 1000 1250 1500 2000 2500
1 Bushings ● ● ● ● ● ● ● ● ● ● ● ● ● ●
2 Arcing horn ● ● ● ● ● ● ● ● ● ● ● ● ● ●
3 Off load tap changer ● ● ● ● ● ● ● ● ● ● ● ● ● ●
4 Dehydrating breather filled with
silica gel		 ● ● ● ● ● ● ● ● ● ● ● ● ● ●
5 Earth terminal ● ● ● ● ● ● ● ● ● ● ● ● ● ●
6 Lifting lug ● ● ● ● ● ● ● ● ● ● ● ● ● ●
7 Lifting eye ● ● ● ● ● ● ● ● ● ● ● ● ● ●
8 Wheel ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ● ● ●
9 Nameplate ● ● ● ● ● ● ● ● ● ● ● ● ● ●
10 Oil drain ● ● ● ● ● ● ● ● ● ● ● ● ● ●
11 Thermometer pocket ● ● ● ● ● ● ● ● ● ● ● ● ● ●
12 Marshaling box ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ● ● ●
13 Cable box ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
14 P'ry terminal connector Pad type ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Clamp type ● ● ● ● ● ● ● ● ● ● ● ● ● ●
15 S'ry terminal connector Pad type ● ● ● ● ● ● ○ ○ ○ ○ ○ ○ ○ ○
Clamp type ○ ○ ○ ○ ○ ○ ● ● ● ● ● ● ● ●
16 Oil level gauge W/O contact ● ● ● ● ● ● ● ● ● ● ● ● ● ●
17 Thermometer W/O contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
2 contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ● ● ●
18 WDG Temp.indicator 2 contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
19 Buchholz relay 2 contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ● ● ●
19 Pressure relief device W/O contact ● ● ● ● ● ● ● ● ● ● ● ● ● ●
1 contact ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Accessaries List
● Standard Accessaries
○ Option Accessaries

3. Remarks

  • Fuji Tusco reserve the right to any changes of these information, herein.

  • Distribution transformers are designed for general application uses at ambient temperature maximum 40℃ at temperature raised 60℃ (top oil) / 65℃ (winding), which will be manufactured and tested in accordance with the latest IEC standard.
