Small Distribution Transformers

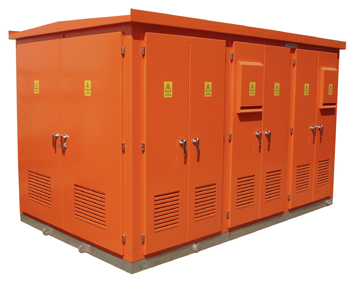

Unit substation
Small distribution transformers, installed on utility poles or on concrete pads, act as the last transformers providing the final utilization voltage (100V~600V) at the consumer's facilities. So, there is the variety of requirements, installation type, electrical ratings, tank design, accessories, and so on. Fuji Tusco has many experiences of delivering these transformers for domestic customers in Thailand and also for various other countries. Small distribution transformers of Fuji Tusco are available up to 1,000kVA capacity and up to 36kV primary voltage. Each type of pole-mounted/pad-mounted installation, hermetically-sealed/conservator-type design, and plain/corrugated-wall/radiator-fins tank construction, is standardized and able to be supplied.
630kVA Transformer

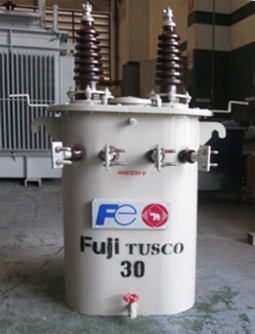

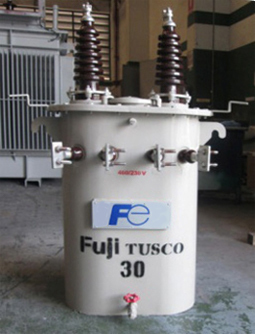

Pole transformer
| Installation | Pole or Ground Mounted |
|---|---|
| Rating | 30kVA up to 1.000kVA |
| Primary voltage | 36 kV and below |
| Secondary voltage | 600V and below |
| Model | Hermetically Sealed Type Sealed Type Conservator Type |
| Tank Design | Plain Tank (up to 50 kVA) Corrugated Wall (up to 3 MVA) Radiator Fins |
Standard Features for Hermetically Sealed Type
- High and Low voltage bushings
- Off-circuit tap changer in 5 positions
- Lifting lugs
- Earthing terminals
- Pressure relief device
- Thermometer pocket
- Filling lug
- Skid base
- Drain valve
- Rating plate
Options and accessories
- Plug-in bushings on HV
- Dual voltage transformer
- Galvanized tank
- Surge arrestor, CSP-type version
- Max. thermometer
- Dial type thermometer with two contacts
- Oil level indicator
- Arcing horns, Bird guard
- Integrated pole brackets on tank
- Bi-directional rollers
- Skid base
- Cable boxes
