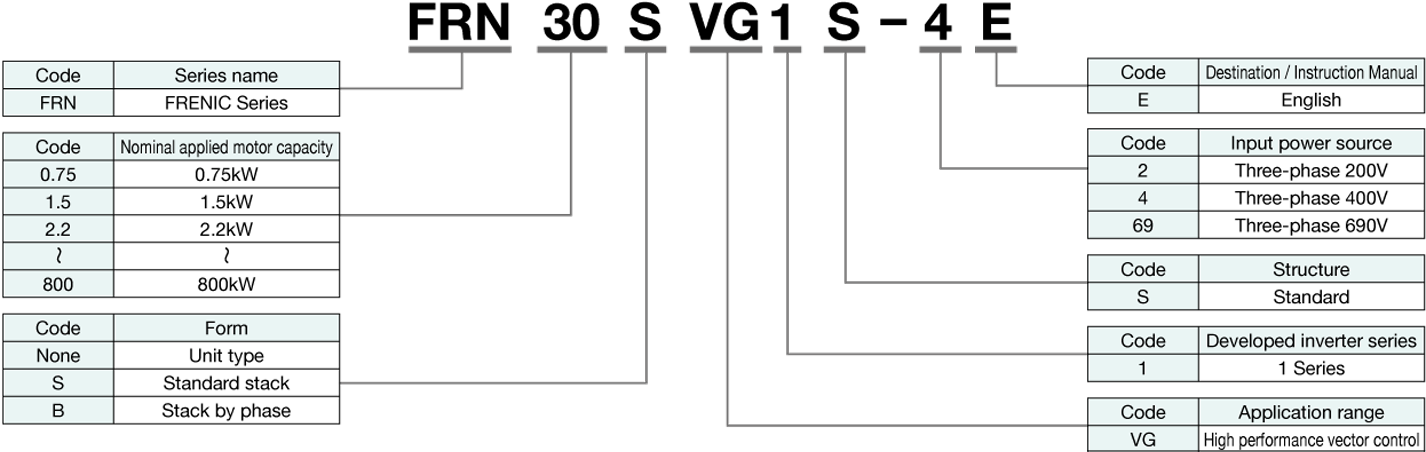

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0.75
|
800		 0.75kW
|
800kW
3 Code Form
None Unit Type
S Standard Stack
B Stack by Phase
4 Code Application Range
VG High Performance Vector Control
5 Code Order of Development
1 1 Series
6 Code Structure
S Standard
7 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
69 Three-phase 690V
8 Code Destination
J Japan

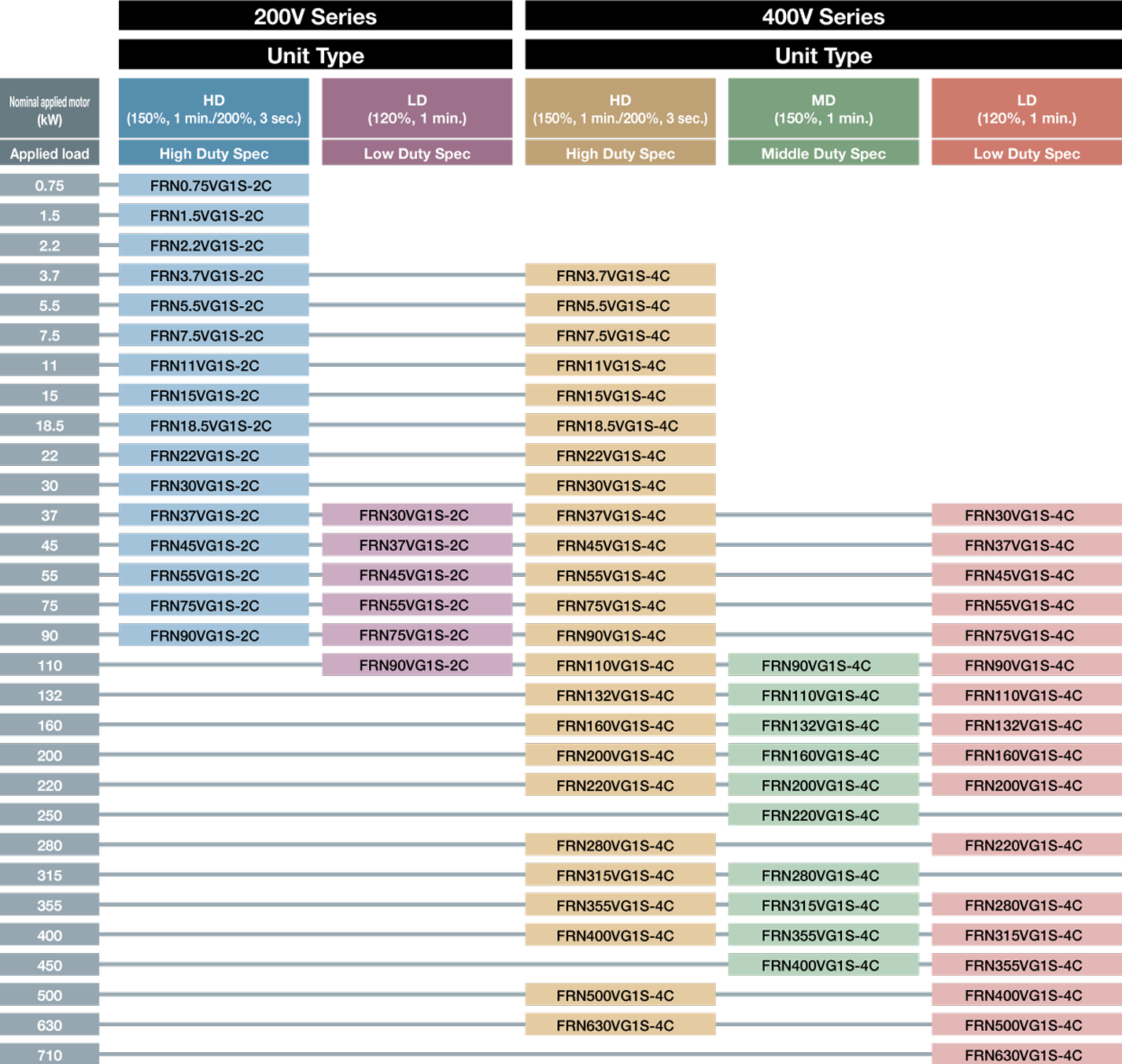

Three-phase 200V

Unit Type

HD Specification (Heavy Duty) 150%, 1 min./200%, 3 s
LD Specification (Low Duty) 120%, 1 min.

Model Standard Applicable Motor［kW］
HD LD
FRN0.75VG1S-2J 0.75 -
FRN1.5VG1S-2J 1.5 -
FRN2.2VG1S-2J 2.2 -
FRN3.7VG1S-2J 3.7 -
FRN5.5VG1S-2J 5.5 -
FRN7.5VG1S-2J 7.5 -
FRN11VG1S-2J 11 -
FRN15VG1S-2J 15 -
FRN18.5VG1S-2J 18.5 -
FRN22VG1S-2J 22 -
FRN30VG1S-2J 30 37
FRN37VG1S-2J 37 45
FRN45VG1S-2J 45 55
FRN55VG1S-2J 55 75
FRN75VG1S-2J 75 90
FRN90VG1S-2J 90 110

Three-phase 400V

Unit Type

HD Specification (Heavy Duty) 150%, 1 min./200%, 3 s
MD Specification (Middle Duty) 150%, 1 min.
LD Specification (Low Duty) 120%, 1 min.

Model Standard Applicable Motor［kW］
HD MD LD
FRN3.7VG1S-4J 3.7 - -
FRN5.5VG1S-4J 5.5 - -
FRN7.5VG1S-4J 7.5 - -
FRN11VG1S-4J 11 - -
FRN15VG1S-4J 15 - -
FRN18.5VG1S-4J 18.5 - -
FRN22VG1S-4J 22 - -
FRN30VG1S-4J 30 - 37
FRN37VG1S-4J 37 - 45
FRN45VG1S-4J 45 - 55
FRN55VG1S-4J 55 - 75
FRN75VG1S-4J 75 - 90
FRN90VG1S-4J 90 110 110
FRN110VG1S-4J 110 132 132
FRN132VG1S-4J 132 160 160
FRN160VG1S-4J 160 200 200
FRN200VG1S-4J 200 220 220
FRN220VG1S-4J 220 250 280
FRN280VG1S-4J 280 315 355
FRN315VG1S-4J 315 355 400
FRN355VG1S-4J 355 400 450
FRN400VG1S-4J 400 450 500
FRN500VG1S-4J 500 - 630
FRN630VG1S-4J 630 - 710

Stack Type

MD Specification (Middle Duty) 150%, 1 min.
LD Specification (Low Duty) 110%, 1 min.

Model Standard Applicable Motor［kW］
MD LD
FRN30SVG1S-4J 30 37
FRN37SVG1S-4J 37 45
FRN45SVG1S-4J 45 55
FRN55SVG1S-4J 55 75
FRN75SVG1S-4J 75 90
FRN90SVG1S-4J 90 110
FRN110SVG1S-4J 110 132
FRN132SVG1S-4J 132 160
FRN160SVG1S-4J 160 200
FRN200SVG1S-4J 200 220
FRN220SVG1S-4J 220 250
FRN250SVG1S-4J 250 280
FRN280SVG1S-4J 280 315
FRN315SVG1S-4J 315 630
FRN630BVG1S-4J 630 710
FRN710BVG1S-4J 710 800
FRN800BVG1S-4J 800 1000

Three-phase 690V

Stack Type

MD Specification (Middle Duty) 150%, 1 min.
LD Specification (Low Duty) 110%, 1 min.

Model Standard Applicable Motor［kW］
MD LD
FRN90SVG1S-69J 90 110
FRN110SVG1S-69J 110 132
FRN132SVG1S-69J 132 160
FRN160SVG1S-69J 160 200
FRN200SVG1S-69J 200 220
FRN250SVG1S-69J 250 280
FRN280SVG1S-69J 280 315
FRN315SVG1S-69J 315 355
FRN355SVG1S-69J 355 400
FRN400SVG1S-69J 400 450
FRN450SVG1S-69J 450 -

Note

With the FRN55VG1S-2J/4J or higher (applicable motor of 75kW or higher), if driving motors of one frame or more from the inverter, the DC reactor provided as standard will differ
between the HD, MD, and LD specifications. (Motor capacity becomes 1 frame larger.)
