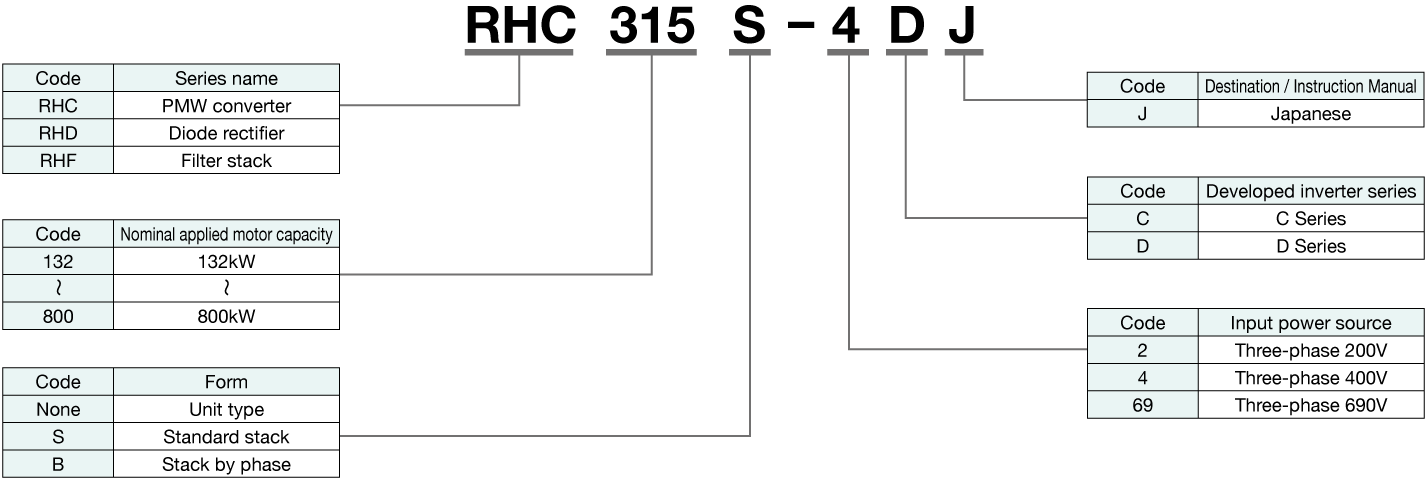

How to Read the Converter Model Number

How to Read the Inverter Model
1 Code Series Name
RHC PWM Converter
RHD Diode Rectifier
RHF Filter Stack
2 Code Applicable Motor Rating
30
|
800		 30kW
|
800kW
3 Code Form
None Unit Type
C Compact Unit Type
S Standard Stack
B Stack by Phase
4 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
69 Three-phase 690V
5 Code Order of Development
D D Series
E E Series
6 Code Destination
J Japan

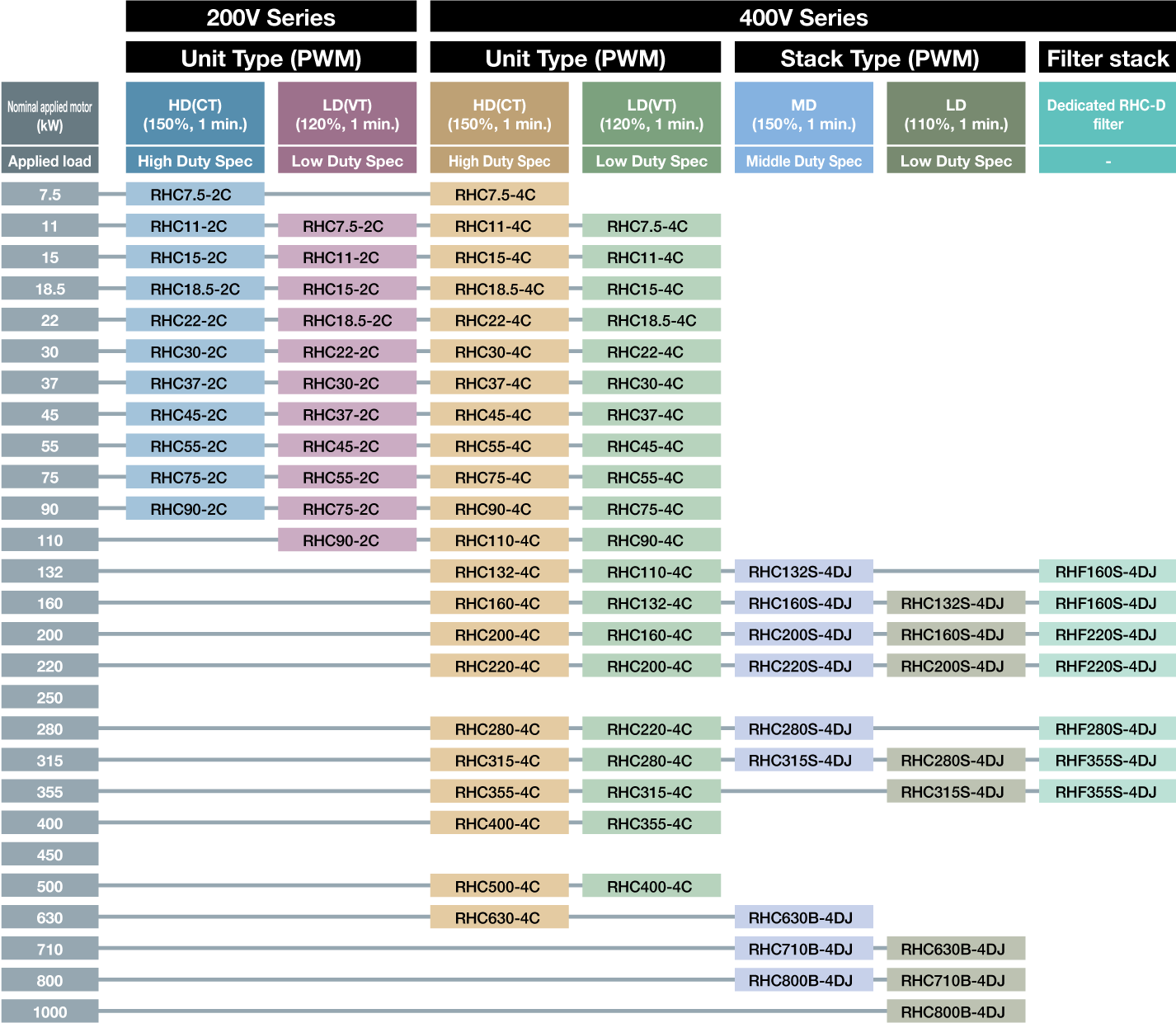

Three-phase 200V

Unit Type (PWM)

MD (CT) Specification (Middle Duty) 150%, 1 min.
LD (VT) Specification (Low Duty) 120%, 1 min.

Model Standard Applicable Motor［kW］
MD (CT) LD (VT)
RHC30-2EJ 30 37
RHC37-2EJ 37 45
RHC45-2EJ 45 55
RHC55-2EJ 55 75
RHC75-2EJ 75 90
RHC90-2EJ 90 110

Three-phase 400V

Unit Type (PWM)

MD (CT) Specification (Middle Duty) 150%, 1 min.
LD (VT) Specification (Low Duty) 120%, 1 min.

Model Standard Applicable Motor［kW］
MD (CT) LD (VT)
RHC45-4EJ 45 55
RHC55-4EJ 55 75
RHC75-4EJ 75 90
RHC90-4EJ 90 110
RHC110-4EJ 110 132
RHC132-4EJ 132 160
RHC160-4EJ 160 200
RHC200-4EJ 200 220
RHC220-4EJ 220 280
RHC280-4EJ 280 315
RHC315-4EJ 315 355
RHC355-4EJ 355 400
RHC400-4EJ 400 500
RHC500-4EJ 500 -
RHC630-4EJ 630 -

Stack Type (PWM)

MD Specification (Middle Duty) 150%, 1 min.
LD Specification (Low Duty) 110%, 1 min.

Model Standard Applicable Motor［kW］
MD LD
RHC132S-4EJ 132 160
RHC160S-4EJ 160 200
RHC200S-4EJ 200 220
RHC220S-4EJ 220 -
RHC280S-4EJ 280 315
RHC315S-4EJ 315 355
RHC630B-4EJ 630 710
RHC710B-4EJ 710 800
RHC800B-4EJ 800 1000

Filter Stack

MD (CT) Specification (Middle Duty) 150%, 1 min.
LD (VT) Specification (Low Duty) 120%, 1 min.

Model Standard Applicable Motor［kW］
Dedicated RHC-D
MD LD
RHF160S-4DJ - 132
RHF160S-4DJ 160 -
RHF220S-4DJ - 200
RHF220S-4DJ 220 -
RHF280S-4DJ 280 -
RHF355S-4DJ - 315
RHF355S-4DJ 355 -

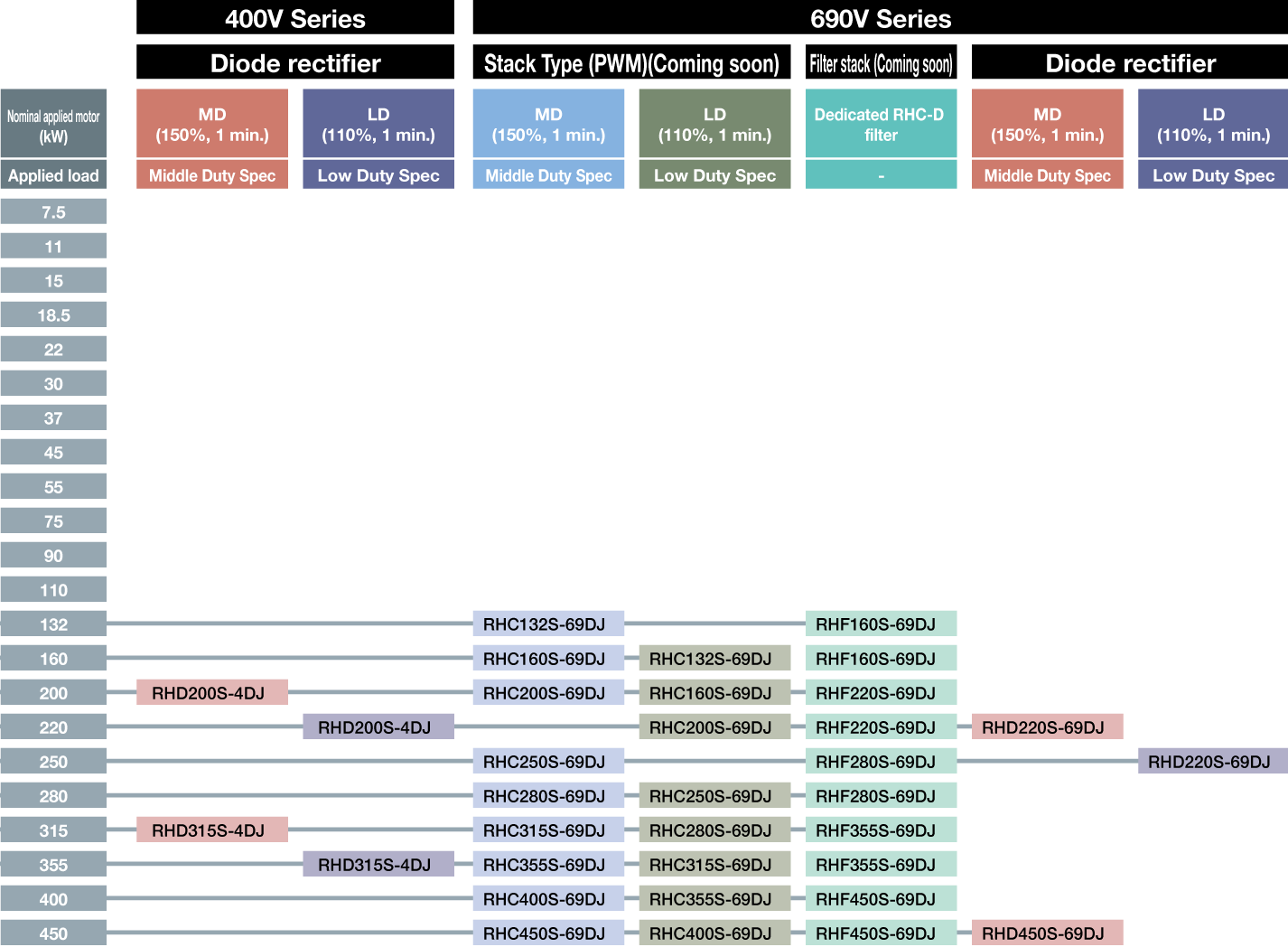

Diode Rectifier

MD Specification (Middle Duty) 150%, 1 min.
LD Specification (Low Duty) 110%, 1 min.

Model Standard Applicable Motor［kW］
MD LD
RHD200S-4DJ 200 220
RHD315S-4DJ 315 355

Three-phase 690V

Stack Type (PWM)

MD Specification (Middle Duty) 150%, 1 min.
LD Specification (Low Duty) 110%, 1 min.

Model Standard Applicable Motor［kW］
MD LD
RHC132S-69EJ 132 160
RHC160S-69EJ 160 200
RHC200S-69EJ 200 220
RHC250S-69EJ 250 280
RHC280S-69EJ 280 315
RHC315S-69EJ 315 355
RHC355S-69EJ 355 400
RHC400S-69EJ 400 450
RHC450S-69EJ 450 -

Filter Stack

MD (CT) Specification (Middle Duty) 150%, 1 min.
LD (VT) Specification (Low Duty) 120%, 1 min.

Model Standard Applicable Motor［kW］
Dedicated RHC-D
MD LD
RHF160S-69DJ - 132
RHF160S-69DJ 160 -
RHF220S-69DJ - 200
RHF220S-69DJ 220 -
RHF280S-69DJ - 250
RHF280S-69DJ 280 -
RHF355S-69DJ - 315
RHF355S-69DJ 355 -
RHF450S-69DJ - 400
RHF450S-69DJ 450 -

Diode Rectifier

MD Specification (Middle Duty) 150%, 1 min.
LD Specification (Low Duty) 110%, 1 min.

Model Standard Applicable Motor［kW］
MD LD
RHD220S-69DJ 220 250
RHD450S-69DJ 450 -

Note

PWM converters of 200 V 22 kW or less and 400 V 37 kW or less correspond to the eRHC Series.
Please contact us for consultation if you are replacing an RHC-C Series product.
