How to Read the Inverter Model

Model Variations

FRENIC-Mini (C2) TOP
FRENIC-Mini (C2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

How to Read the Inverter Model

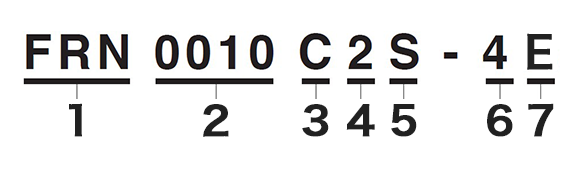

1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0001
|
0060		 0.4kW
|
15kW
3 Code Applicable Range
C Compact
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
E EMC filter Built-In Type
6 Code Input Power Source
4 Three-phase 400V
7 Single-phase 200V
7 Code Destination
E Europe

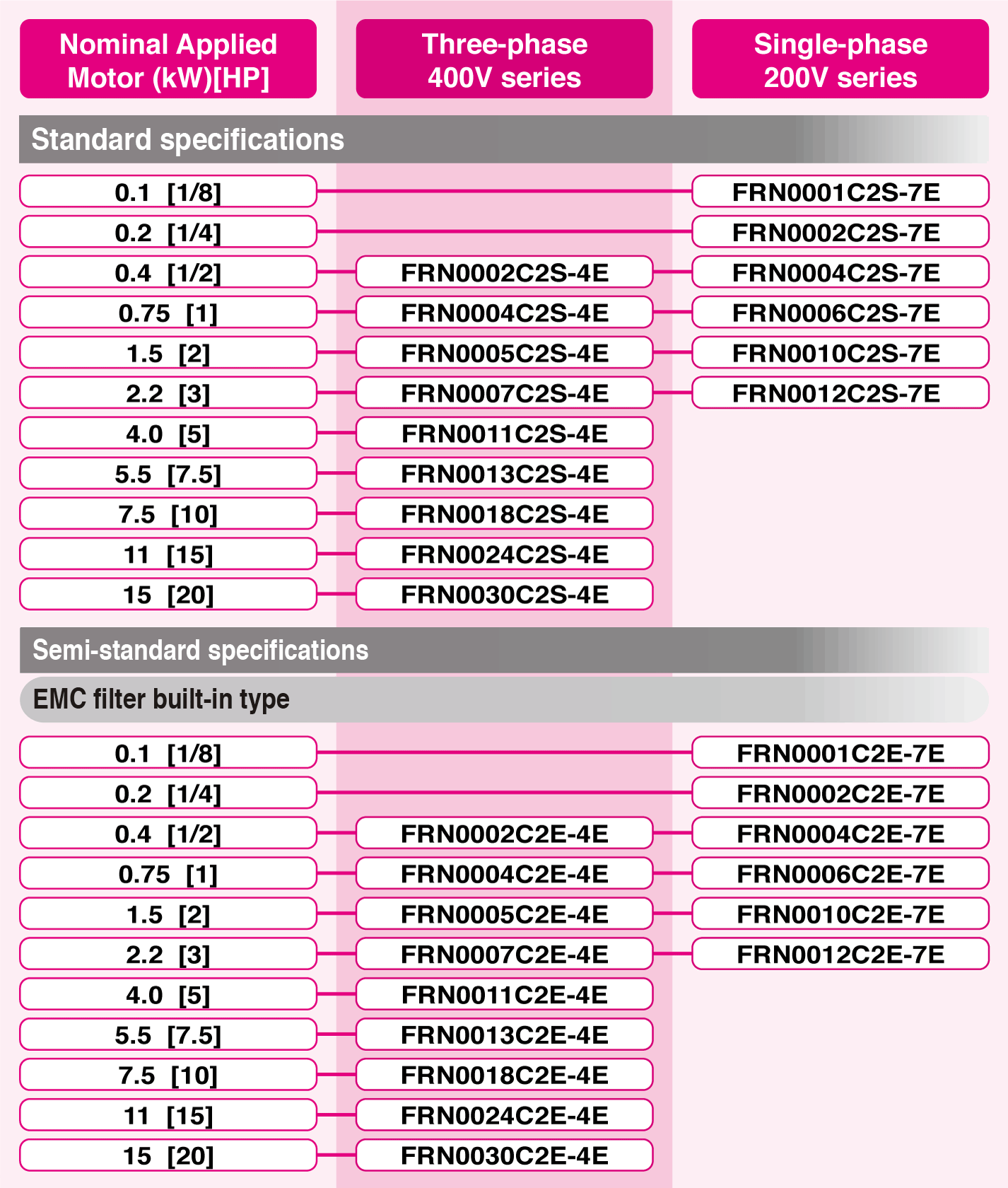

Three-phase 400V

Basic Type

Model Standard Applicable Motor［kW］
FRN0002C2S-4E 0.4(1/2)
FRN0004C2S-4E 0.75(19)
FRN0005C2S-4E 1.5(2)
FRN0007C2S-4E 2.2(3)
FRN0011C2S-4E 3.7(5)
FRN0013C2S-4E 5.5(7.5)
FRN0018C2S-4E 7.5(10)
FRN0024C2S-4E 11(15)
FRN0030C2S-4E 15(20)

EMC Filter Built-In Type

Model Standard Applicable Motor［kW］
FRN0002C2E-4E 0.4(1/2)
FRN0004EC2E-4E 0.75(1)
FRN0005C2E-4E 1.5(2)
FRN0007C2E-4E 2.2(3)
FRN0011C2E-4E 3.7(5)
FRN0013C2E-4E 5.5(7.5)
FRN0018C2E-4E 7.5(10)
FRN0024EC2E-4E 11(15)
FRN0030C2E-4E 15(20)

Single-phase 200V

Basic Type

Model Standard Applicable Motor［kW］
FRN0001C2S-7E 0.1(1/8)
FRN0002C2S-7E 0.2(1/4)
FRN0004C2S-7E 0.4(1/2)
FRN0006C2S-7E 0.75(1)
FRN0010C2S-7E 1.5(2)
FRN0012C2S-7E 2.2(3)

EMC Filter Built-In Type

Model Standard Applicable Motor［kW］
FRN0001C2E-7E 0.1(1/8)
FRN0002C2E-7E 0.2(1/4)
FRN0004C2E-7E 0.4(1/2)
FRN0006C2E-7E 0.75(1)
FRN0010C2E-7E 1.5(2)
FRN0012C2E-7E 2.2(3)
FRENIC-Mini (C2) TOP
FRENIC-Mini (C2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

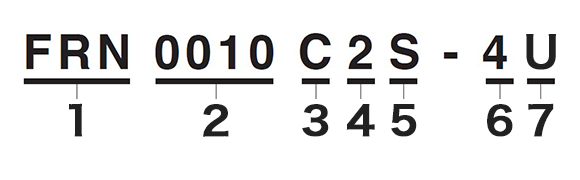

How to Read the Inverter Model

How to Read the Inverter Model
1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0001
|
0060		 0.1kW
|
15kW
3 Code Applicable Range
C Compact
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
6 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
6 Single-phase 100V
7 Single-phase 200V
7 Code Destination
U USA

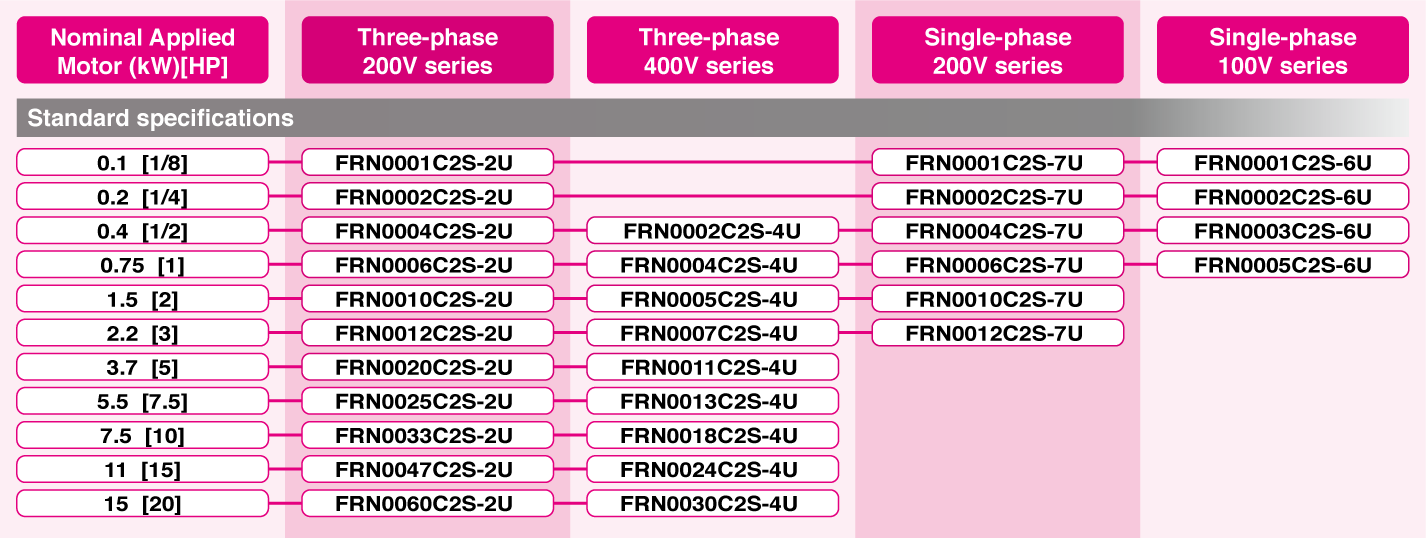

Three-phase 200V

Basic Type

Model Standard Applicable Motor［kW］
FRN0001C2S-2U 0.1(1/8)
FRN0002C2S-2U 0.2(1/4)
FRN0004C2S-2U 0.4(1/2)
FRN0006C2S-2U 0.75(1)
FRN0010C2S-2U 1.5(2)
FRN0012C2S-2U 2.2(3)
FRN0020C2S-2U 3.7(5)
FRN0025C2S-2U 5.5(7.5)
FRN0033C2S-2U 7.5(10)
FRN0047C2S-2U 11(15)
FRN0060C2S-2U 15(20)

Three-phase 400V

Basic Type

Model Standard Applicable Motor［kW］
FRN0002C2S-4U 0.4(1/2)
FRN0004C2S-4U 0.75(1)
FRN0005C2S-4U 1.5(2)
FRN0007C2S-4U 2.2(3)
FRN0011C2S-4U 3.7(5)
FRN0013C2S-4U 5.5(7.5)
FRN0018C2S-4U 7.5(10)
FRN0024C2S-4U 11(15)
FRN0030C2S-4U 15(20)

Single-phase 100V

Basic Type

Model Standard Applicable Motor［kW］
FRN0001C2S-6U 0.1(1/8)
FRN0002C2S-6U 0.2(1/4)
FRN0003C2S-6U 0.4(1/2)
FRN0005C2S-6U 0.75(1)

Single-phase 200V

Basic Type

Model Standard Applicable Motor［kW］
FRN0001C2S-7U 0.1(1/8)
FRN0002C2S-7U 0.2(1/4)
FRN0004C2S-7U 0.4(1/2)
FRN0006C2S-7U 0.75(1)
FRN0010C2S-7U 1.5(2)
FRN0012C2S-7U 2.2(3)
FRENIC-Mini (C2) TOP
FRENIC-Mini (C2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

How to Read the Inverter Model

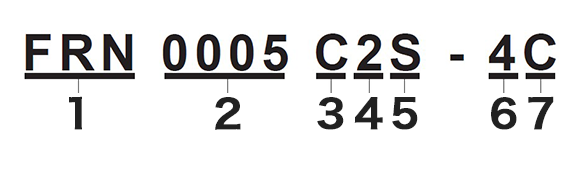

1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0001
|
0030		 0.1kW
|
15kW
3 Code Applicable Range
C Compact
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
6 Code Input Power Source
4 Three-phase 400V
7 Single-phase 200V
7 Code Destination
C China

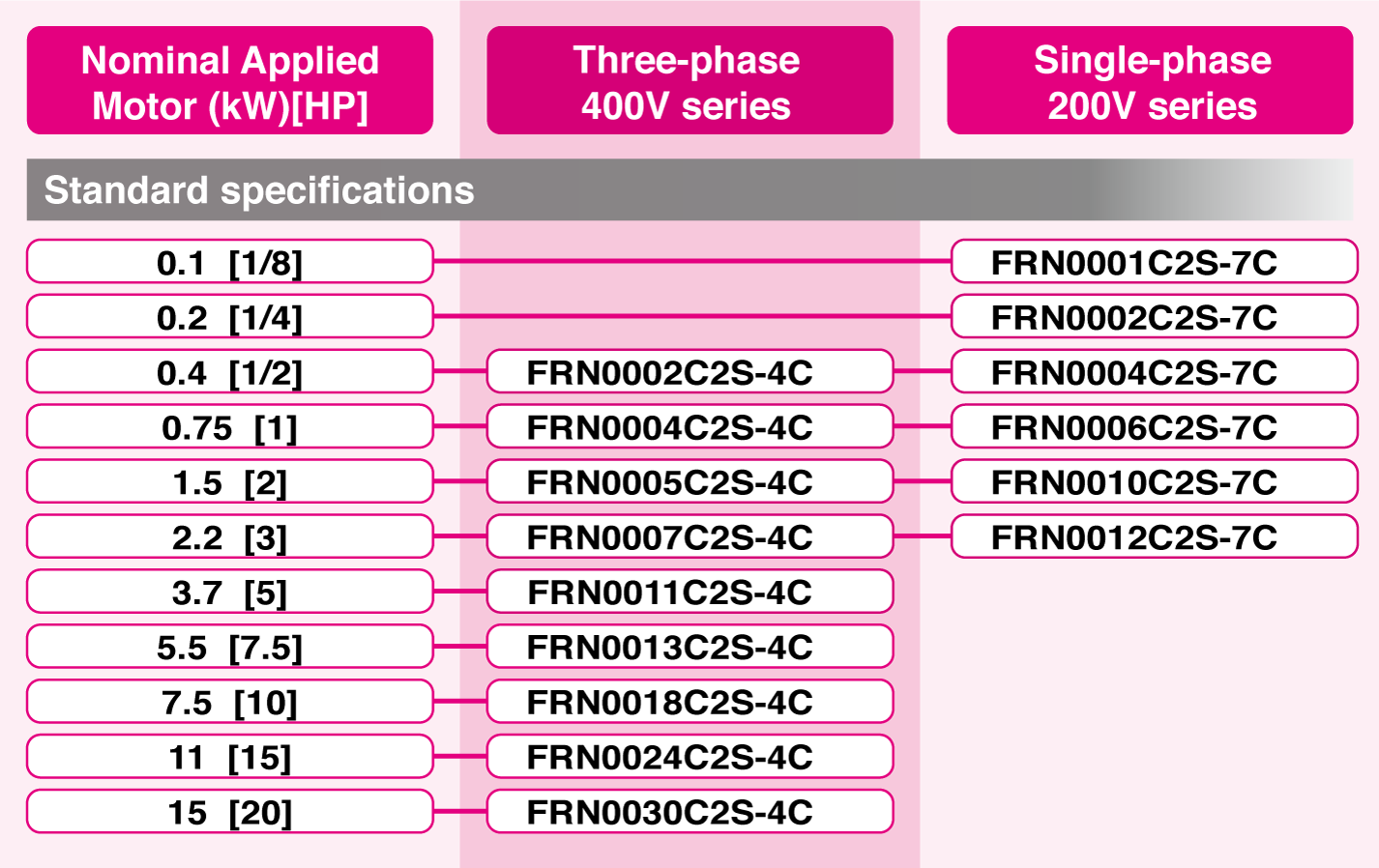

Three-phase 400V

Basic Type

Model Standard Applicable Motor［kW］
FRN0002C2S-4C 0.4
FRN0004C2S-4C 0.75
FRN0005C2S-4C 1.5
FRN0007C2S-4C 2.2
FRN0011C2S-4C 3.7
FRN0013C2S-4C 5.5
FRN0018C2S-4C 7.5
FRN0024C2S-4C 11
FRN0030C2S-4C 15

Single-phase 200V

Basic Type

Model Standard Applicable Motor［kW］
FRN0001C2S-7C 0.1
FRN0002C2S-7C 0.2
FRN0004C2S-7C 0.4
FRN0006C2S-7C 0.75
FRN0010C2S-7C 1.5
FRN0012C2S-7C 2.2
FRENIC-Mini (C2) TOP
FRENIC-Mini (C2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

How to Read the Inverter Model

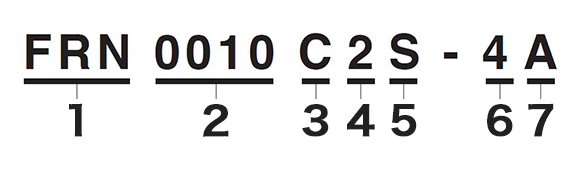

1 Code Series Name
FRN FRENIC Series
2 Code Applicable Motor Rating
0001
|
0060		 0.4kW
|
15kW
3 Code Applicable Range
C Compact
4 Code Order of Development
2 2 Series
5 Code Structure
S Standard (Basic Type)
6 Code Input Power Source
2 Three-phase 200V
4 Three-phase 400V
7 Single-phase 200V
7 Code Destination
A Asia

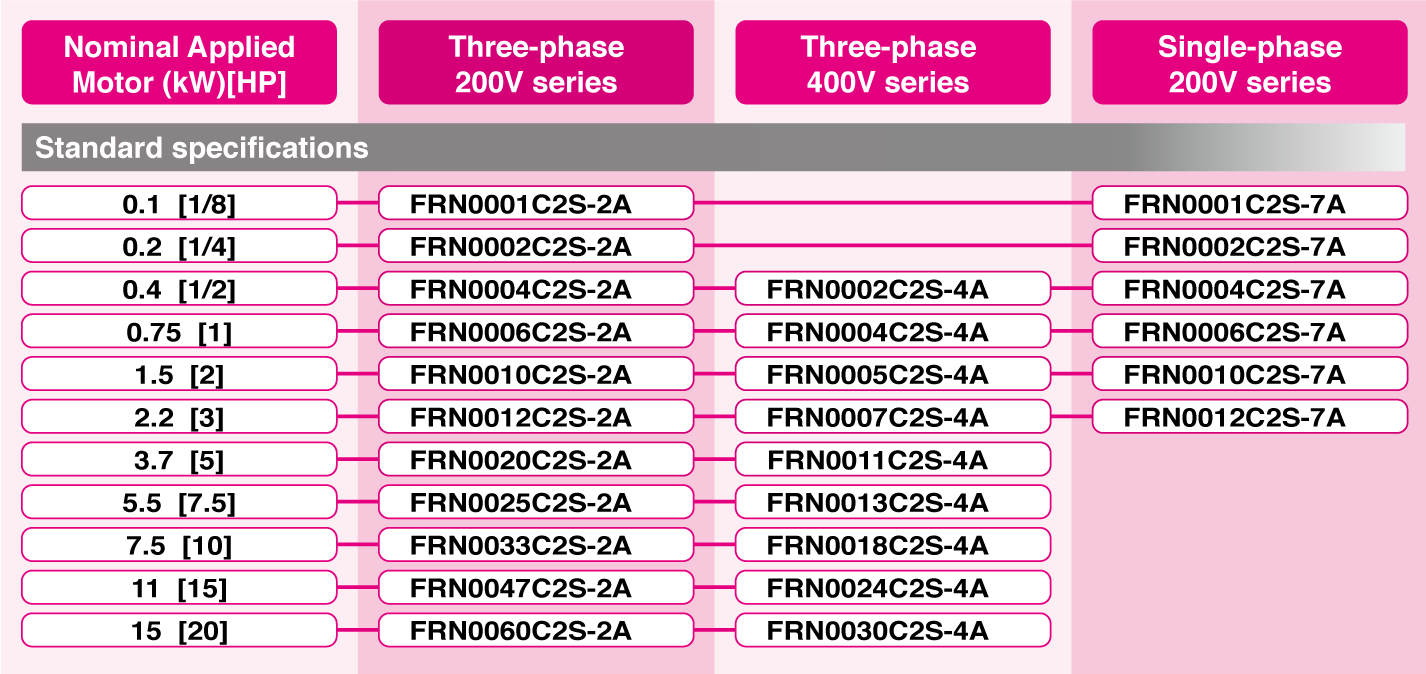

Three-phase 200V

Basic Type

Model Standard Applicable Motor［kW］
FRN0001C2S-2A 0.1(1/8)
FRN0002C2S-2A 0.2(1/4)
FRN0004C2S-2A 0.4(1/2)
FRN0006C2S-2A 0.75(1)
FRN0010C2S-2A 1.5(2)
FRN0012C2S-2A 2.2(3)
FRN0020C2S-2A 3.7(5)
FRN0025C2S-2A 5.5(7.5)
FRN0033C2S-2A 7.5(10)
FRN0047C2S-2A 11(15)
FRN0060C2S-2A 15(20)

Three-phase 400V

Basic Type

Model Standard Applicable Motor［kW］
FRN0002C2S-4A 0.4(1/2)
FRN0004C2S-4A 0.75(1)
FRN0005C2S-4A 1.5(2)
FRN0007C2S-4A 2.2(3)
FRN0011C2S-4A 3.7(5)
FRN0013C2S-4A 5.5(7.5)
FRN0018C2S-4A 7.5(10)
FRN0024C2S-4A 11(15)
FRN0030C2S-4A 15(20)

Single-phase 200V

Basic Type

Model Standard Applicable Motor［kW］
FRN0001C2S-7A 0.1(1/8)
FRN0002C2S-7A 0.2(1/4)
FRN0004C2S-7A 0.4(1/2)
FRN0006C2S-7A 0.75(1)
FRN0010C2S-7A 1.5(2)
FRN0012C2S-7A 2.2(3)
FRENIC-Mini (C2) TOP
FRENIC-Mini (C2) TOP
Product Information
Product Information
Variations
Variations
Specifications
Specifications
External Dimensions
External Dimensions
Download documents
Download documents

How to Read the Inverter Model

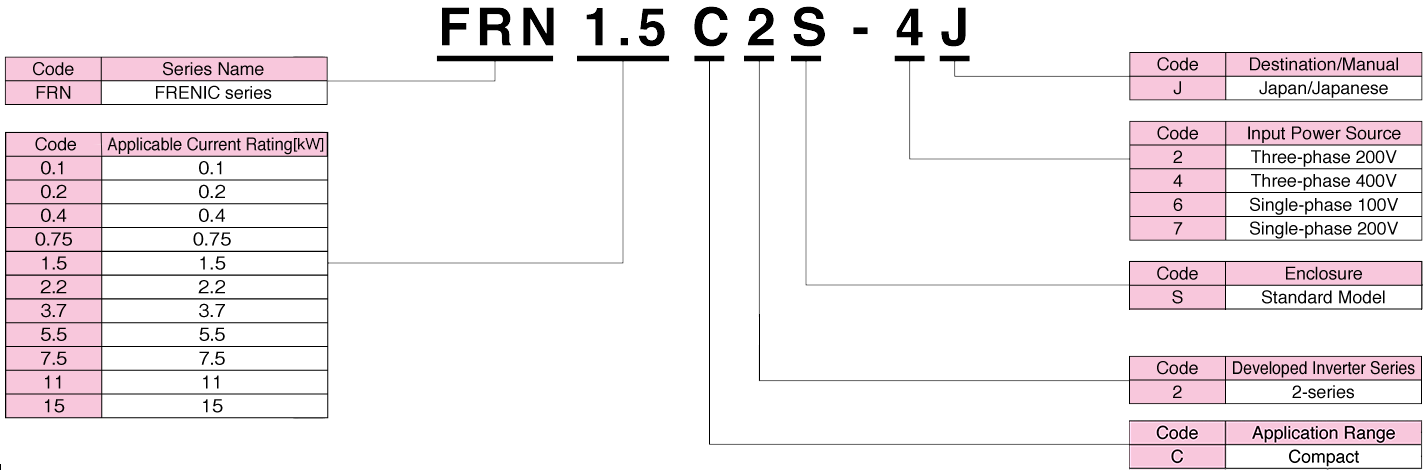

How to read the model number

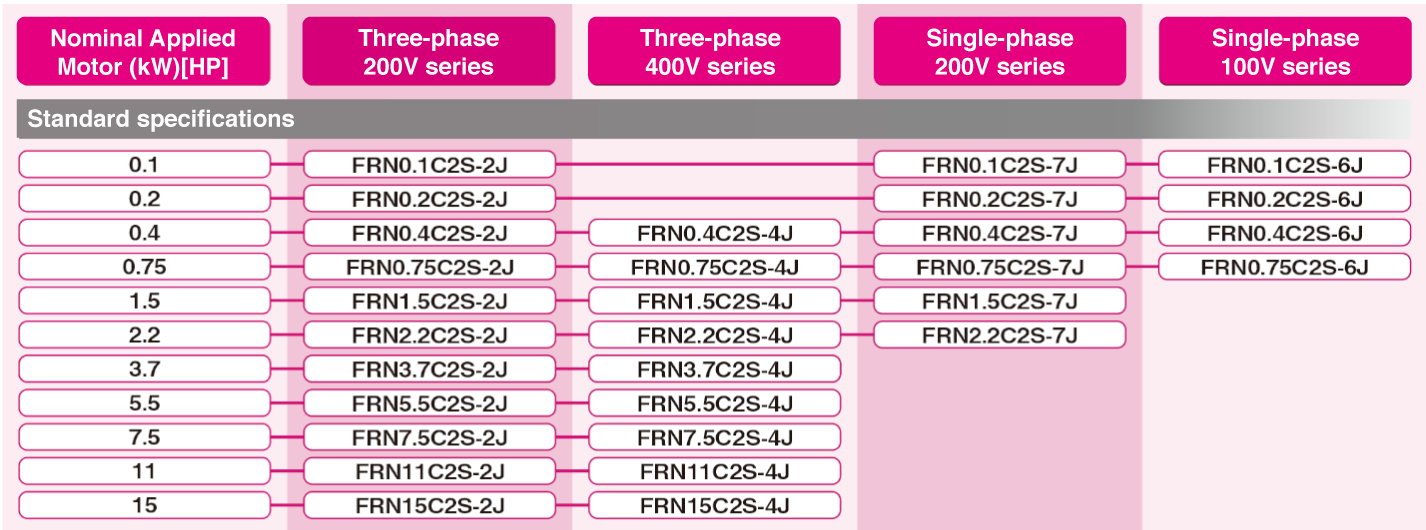

Model Variations
