FRENIC-eRHC
External Dimensions
-
-
-
-
-
-
-
Basic Type

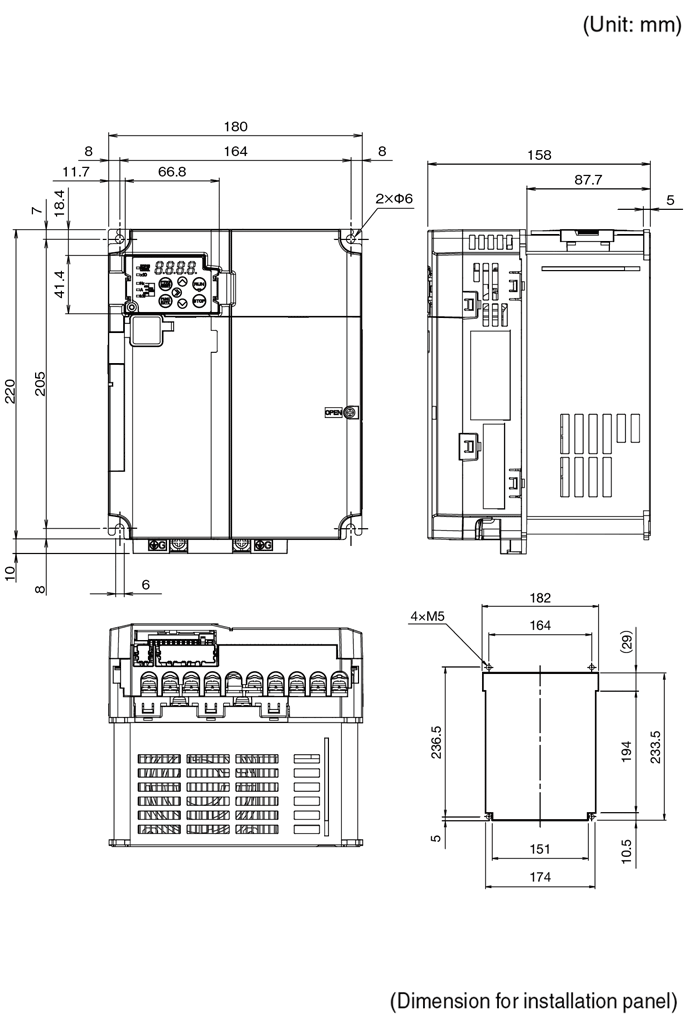

Figure A
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC5.5C-2EJ |
| RHC7.5C-2EJ |
| Three-phase 400V |
RHC5.5C-4EJ |
| RHC7.5C-4EJ |

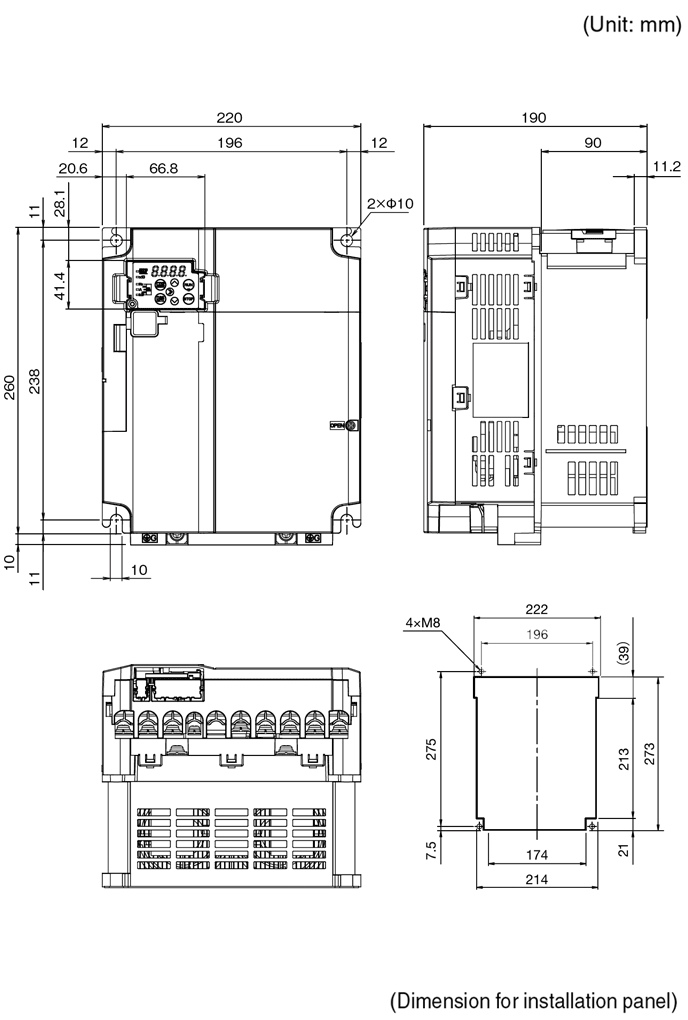

Figure B
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC11C-2EJ |
| RHC15C-2EJ |
| Three-phase 400V |
RHC11C-4EJ |
| RHC15C-4EJ |

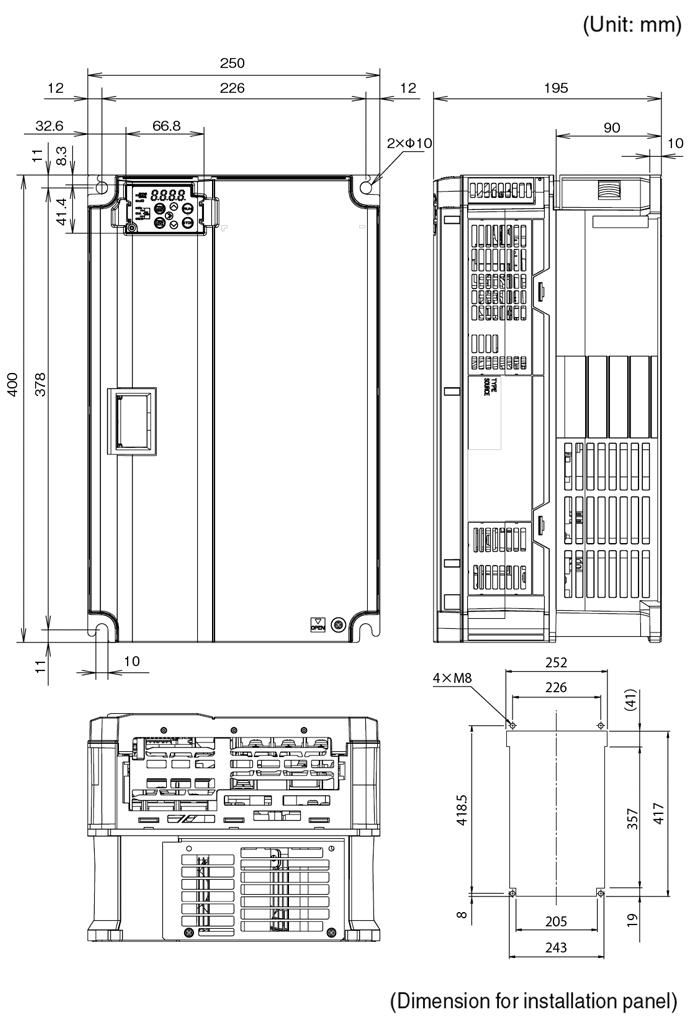

Figure C
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC18.5C-2EJ |
| RHC22C-2EJ |
| Three-phase 400V |
RHC18.5C-4EJ |
| RHC22C-4EJ |

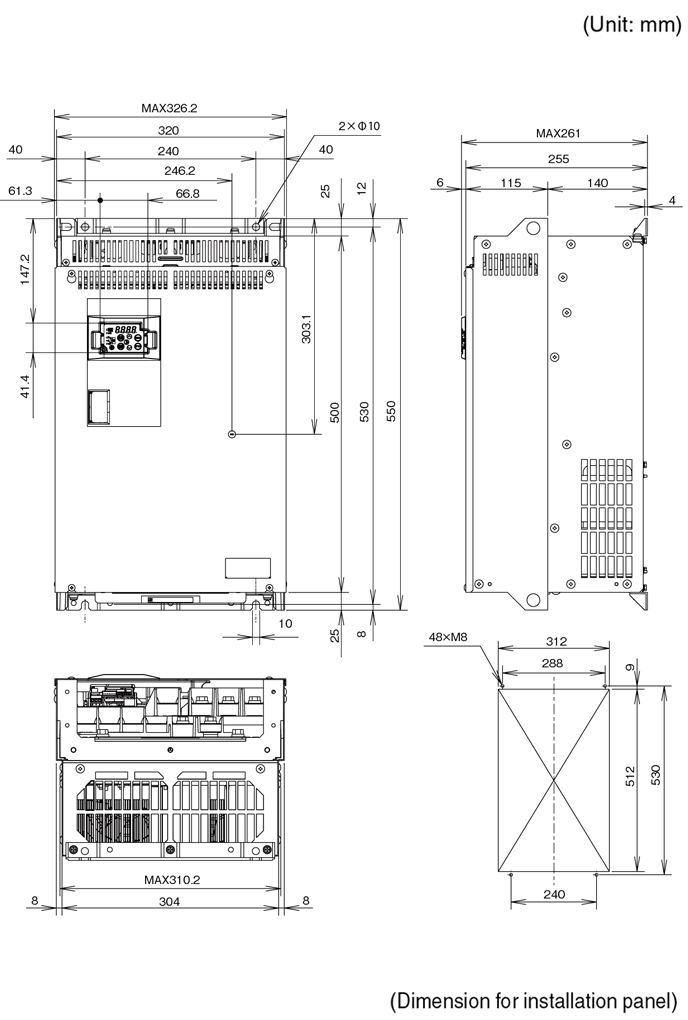

Figure D
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC30C-4EJ |
| RHC37C-4EJ |

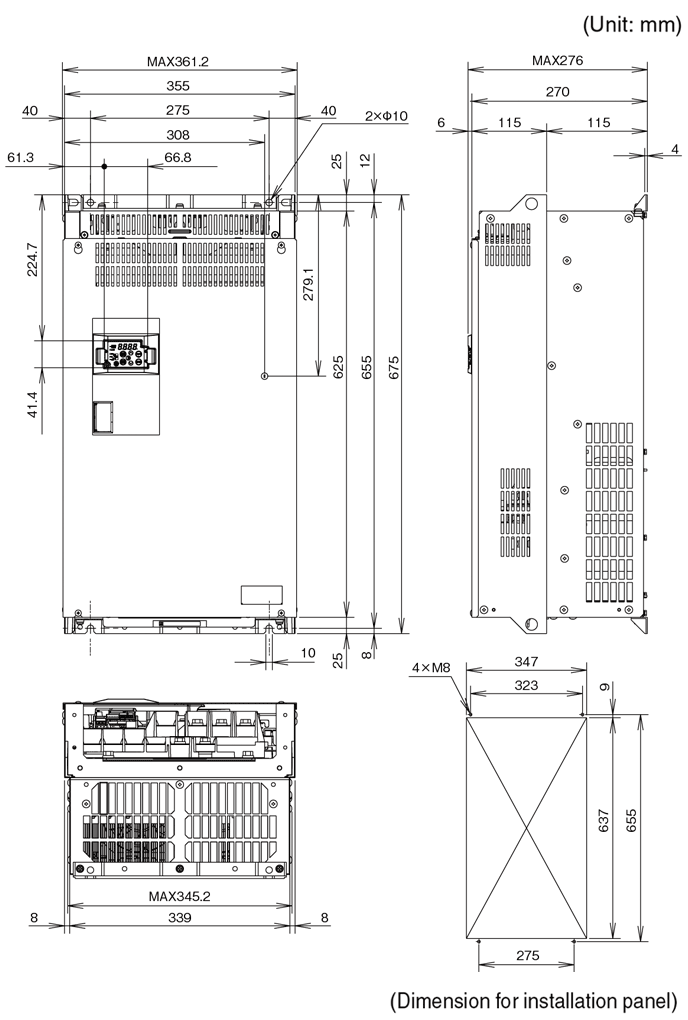

Figure E
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC45C-4EJ |
| RHC55C-4EJ |

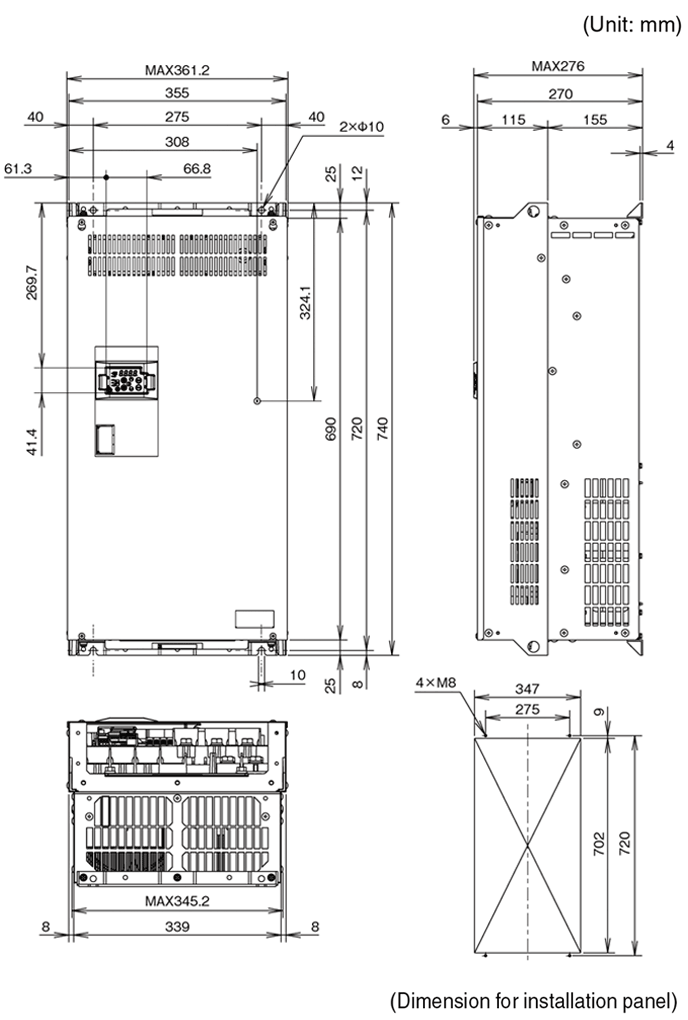

Figure F
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC75C-4EJ |
Basic Type
Figure A
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC5.5C-2EE |
| RHC7.5C-2EE |
| Three-phase 400V |
RHC5.5C-4EE |
| RHC7.5C-4EE |
Figure B
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC11C-2EE |
| RHC15C-2EE |
| Three-phase 400V |
RHC11C-4EE |
| RHC15C-4EE |
Figure C
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC18.5C-2EE |
| RHC22C-2EE |
| Three-phase 400V |
RHC18.5C-4EE |
| RHC22C-4EE |
Figure D
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC30C-4EE |
| RHC37C-4EE |
Figure E
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC45C-4EE |
| RHC55C-4EE |
Figure F
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC75C-4EE |
Basic Type
Figure A
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC5.5C-2EE |
| RHC7.5C-2EE |
| Three-phase 400V |
RHC5.5C-4EE |
| RHC7.5C-4EE |
Figure B
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC11C-2EE |
| RHC15C-2EE |
| Three-phase 400V |
RHC11C-4EE |
| RHC15C-4EE |
Figure C
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC18.5C-2EE |
| RHC22C-2EE |
| Three-phase 400V |
RHC18.5C-4EE |
| RHC22C-4EE |
Figure D
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC30C-4EE |
| RHC37C-4EE |
Figure E
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC45C-4EE |
| RHC55C-4EE |
Figure F
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC75C-4EE |
Basic Type
Figure A
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC5.5C-2EC |
| RHC7.5C-2EC |
| Three-phase 400V |
RHC5.5C-4EC |
| RHC7.5C-4EC |
Figure B
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC11C-2EC |
| RHC15C-2EC |
| Three-phase 400V |
RHC11C-4EC |
| RHC15C-4EC |
Figure C
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC18.5C-2EC |
| RHC22C-2EC |
| Three-phase 400V |
RHC18.5C-4EC |
| RHC22C-4EC |
Figure D
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC30C-4EC |
| RHC37C-4EC |
Figure E
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC45C-4EC |
| RHC55C-4EC |
Figure F
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC75C-4EC |
Basic Type
Figure A
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC5.5C-2EE |
| RHC7.5C-2EE |
| Three-phase 400V |
RHC5.5C-4EE |
| RHC7.5C-4EE |
Figure B
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC11C-2EE |
| RHC15C-2EE |
| Three-phase 400V |
RHC11C-4EE |
| RHC15C-4EE |
Figure C
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC18.5C-2EE |
| RHC22C-2EE |
| Three-phase 400V |
RHC18.5C-4EE |
| RHC22C-4EE |
Figure D
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC30C-4EE |
| RHC37C-4EE |
Figure E
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC45C-4EE |
| RHC55C-4EE |
Figure F
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC75C-4EE |
Basic Type
Figure A
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC5.5C-2EJ |
| RHC7.5C-2EJ |
| Three-phase 400V |
RHC5.5C-4EJ |
| RHC7.5C-4EJ |
Figure B
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC11C-2EJ |
| RHC15C-2EJ |
| Three-phase 400V |
RHC11C-4EJ |
| RHC15C-4EJ |
Figure C
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC18.5C-2EJ |
| RHC22C-2EJ |
| Three-phase 400V |
RHC18.5C-4EJ |
| RHC22C-4EJ |
Figure D
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC30C-4EJ |
| RHC37C-4EJ |
Figure E
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC45C-4EJ |
| RHC55C-4EJ |
Figure F
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC75C-4EJ |
Basic Type
Figure A
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC5.5C-2EJ |
| RHC7.5C-2EJ |
| Three-phase 400V |
RHC5.5C-4EJ |
| RHC7.5C-4EJ |
Figure B
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC11C-2EJ |
| RHC15C-2EJ |
| Three-phase 400V |
RHC11C-4EJ |
| RHC15C-4EJ |
Figure C
| Power supply voltage |
Converter type |
| Three-phase 200V |
RHC18.5C-2EJ |
| RHC22C-2EJ |
| Three-phase 400V |
RHC18.5C-4EJ |
| RHC22C-4EJ |
Figure D
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC30C-4EJ |
| RHC37C-4EJ |
Figure E
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC45C-4EJ |
| RHC55C-4EJ |
Figure F
| Power supply voltage |
Converter type |
| Three-phase 400V |
RHC75C-4EJ |
