2-Pack X系列 650V、1200V、1700V级

Package		Ic	650V	1200V	1700V
			X series	X series	X series
M263		75A			2MBI75XAA170-50
		100A		2MBI100XAA120-50	2MBI100XAA170-50
		150A	2MBI150XAA065-50	2MBI150XAA120-50	2MBI150XAA170-50
		200A	2MBI200XAA065-50	2MBI200XAA120-50
M274		200A		2MBI200XBE120-50
		300A	2MBI300XBE065-50	2MBI300XBE120-50
		400A	2MBI400XBE065-50
M275		400A	2MBI400XDE065-50	2MBI400XDE120-50
		600A	2MBI600XDE065-50	2MBI600XDE120-50
M276		150A			2MBI150XHA170-50
		200A			2MBI200XHA170-50
		300A		2MBI300XHA120-50	2MBI300XHA170-50
		400A			2MBI400XHA170-50
		450A		2MBI450XHA120-50
		600A		2MBI600XHA120-50
M277		300A			2MBI300XEE170-50
		400A			2MBI400XEE170-50
		450A		2MBI450XEE120-50
		600A	2MBI600XEE065-50	2MBI600XEE120-50

2-Pack Dual XT X系列 1200V、1700V级

Package		Ic	1200V	1700V
			X series	X series
M254	Solder pins	225A	2MBI225XNA120-50	2MBI225XNA170-50
		300A	2MBI300XNA120-50	2MBI300XNA170-50
		450A	2MBI450XNA120-50	2MBI450XNA170-50
		600A	2MBI600XNG120-50	2MBI600XNG170-50
M285*1	Solder pins	600A	2MBI600XNE120-50	2MBI600XNE170-50
		800A	2MBI800XNE120-50	2MBI800XRNE170-50
		1000A	2MBI1000XRNE120-50
M282	Press fit pins	225A	2MBI225XNB120-50	2MBI225XNB170-50
		300A	2MBI300XNB120-50	2MBI300XNB170-50
		450A	2MBI450XNB120-50	2MBI450XNB170-50
		600A	2MBI600XNH120-50	2MBI600XNH170-50
M286*1	Press fit pins	600A	2MBI600XNF120-50	2MBI600XNF170-50
		800A	2MBI800XNF120-50	2MBI800XRNF170-50
		1000A	2MBI1000XRNF120-50

^*1 ： 高散热和抗漏电痕迹的封装

PrimePACK™ X系列1200V, 1700V级

Package	Ic	1200V	1700V
		X series	X series
		Soft turn off	Low switching loss
M271	650A		2MBI650XXA170-50
	900A	2MBI900XXA120P-50
	1200A	2MBI1200XXE120P-50	2MBI1200XXE170-50
M272	1000A		2MBI1000XXB170-50
	1400A	2MBI1400XXB120P-50	2MBI1400XXB170-50
	1800A	2MBI1800XXF120P-50	2MBI1800XXF170-50
M291	1800A	2MBI1800XXG120P-50 UD	2MBI1800XXG170-50
	2400A	2MBI2400XRXG120-50 UD	2MBI2400XRXG170-50 UD

注： PrimePACK™为Infineon Technologies公司的注册商标。

大功率模块 HPnC X系列 1700V, 3300V级

Package	Ic	1700V	2300V	3300V
		X series	X series	X series

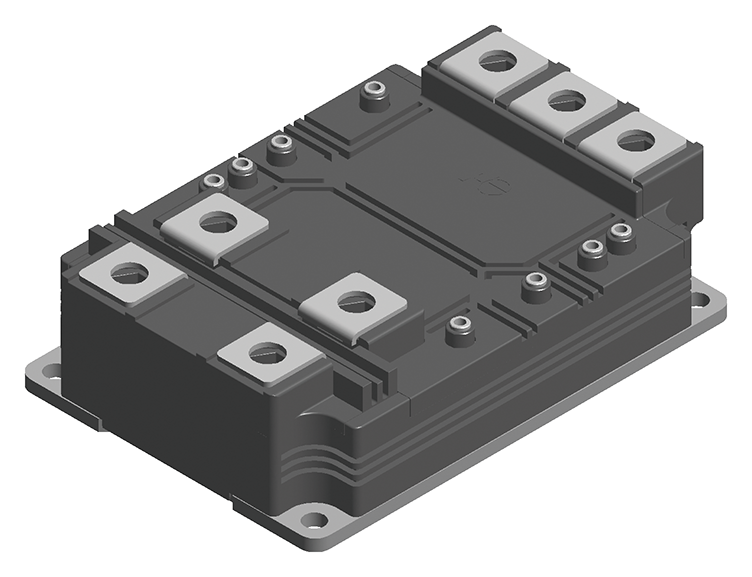

M297	450A			2MBI450XYF330-50 UD
	1000A	2MBI1000XYF170-50 UD
	1200A	2MBI1200XYF170-50 UD
	1500A	2MBI1500XYF170-50 UD
M298	1200A	2MBI1200XZF170-50 UD	2MBI1200XZF230-50 UD
	1500A	2MBI1500XZF170-50 UD
	1800A	2MBI1800XZF170-50 UD

注：M297: MgSiC-baseplate, M298: Cu-baseplate

2-Pack V系列 600V、1200V、1700V级

Package	Ic	600V	1200V	1700V
		V series	V series	V series
M263	75A		2MBI75VA-120-50	2MBI75VA-170-50
	100A	2MBI100VA-060-50	2MBI100VA-120-50	2MBI100VA-170-50
	150A	2MBI150VA-060-50	2MBI150VA-120-50
	200A	2MBI200VA-060-50
M274	150A		2MBI150VB-120-50
	200A		2MBI200VB-120-50
	300A	2MBI300VB-060-50
	400A	2MBI400VB-060-50
M275	300A		2MBI300VD-120-50
	400A	2MBI400VD-060-50	2MBI400VD-120-50
	600A	2MBI600VD-060-50
M276	150A			2MBI150VH-170-50 2MBI150VH-170-80
	200A		2MBI200VH-120-50 2MBI200VH-120-80	2MBI200VH-170-50 2MBI200VH-170-80
	300A		2MBI300VH-120-50 2MBI300VH-120-80	2MBI300VH-170-50 2MBI300VH-170-80
	450A		2MBI450VH-120-50 2MBI450VH-120-80 2MBI450VH-120F-50 2MBI450VH-120F-80
M277	300A		2MBI300VE-120-50 2MBI300VE-120-80	2MBI300VE-170-50 2MBI300VE-170-80
	400A			2MBI400VE-170-50 2MBI400VE-170-80
	450A		2MBI450VE-120-50 2MBI450VE-120-80
	600A	2MBI600VE-060-50 2MBI600VE-060-80	2MBI600VE-120-50 2MBI600VE-120-80

注： “ -80” ： 将作为高导热体的TIM（Thermal-Interface-Material，热界面材料）涂布至模块底面。

2-Pack Dual XT V系列 1200V、1700V级

Package	Ic	1200V		1700V
		V series	V series With SIN-substrate*1	V series	V series With SIN-substrate*1
M254	225A	2MBI225VN-120-50 2MBI225VN-120-80	2MBI225VN-120S-50
	300A	2MBI300VN-120-50 2MBI300VN-120-80	2MBI300VN-120S-50 2MBI300VN-120S-80	2MBI300VN-170-50 2MBI300VN-170-80
	450A	2MBI450VN-120-50 2MBI450VN-120-80	2MBI450VN-120S-50 2MBI450VN-120S-80	2MBI450VN-170-50 2MBI450VN-170-80
	550A				2MBI550VN-170-50 2MBI550VN-170-80
	600A		2MBI600VN-120-50 2MBI600VN-120-80
M282	225A	2MBI225VX-120-50 2MBI225VX-120-80		2MBI225VX-170-50 2MBI225VX-170-80
	300A	2MBI300VX-120-50 2MBI300VX-120-80		2MBI300VX-170-50 2MBI300VX-170-80
	450A	2MBI450VX-120-50 2MBI450VX-120-80		2MBI450VX-170-50 2MBI450VX-170-80
	550A				2MBI550VX-170-50 2MBI550VX-170-80
	600A		2MBI600VX-120-50 2MBI600VX-120-80

^*1： 高散热绝缘基板
注1： “ -80” ： 将作为高导热体的TIM（Thermal-Interface-Material）涂布至模块底面。

PrimePACK™ V系列　1200V, 1700V级

Package	Ic	1200V		1700V
		V series		V series
		Low switching loss	Soft turn off	Low switching loss	Soft turn off
M271	600A	2MBI600VXA-120E-50 2MBI600VXA-120E-80 2MBI600VXA-120E-54
	650A			2MBI650VXA-170E-50 2MBI650VXA-170E-80 2MBI650VXA-170E-54
				2MBI650VXA-170EA-50 2MBI650VXA-170EA-80 2MBI650VXA-170EA-54
	900A	2MBI900VXA-120E-50 2MBI900VXA-120E-80 2MBI900VXA-120E-54	2MBI900VXA-120P-50 2MBI900VXA-120P-80 2MBI900VXA-120P-54
M272	1000A			2MBI1000VXB-170E-50 2MBI1000VXB-170E-80 2MBI1000VXB-170E-54
				2MBI1000VXB-170EA-50 2MBI1000VXB-170EA-80 2MBI1000VXB-170EA-54
	1400A	2MBI1400VXB-120E-50 2MBI1400VXB-120E-80 2MBI1400VXB-120E-54	2MBI1400VXB-120P-50 2MBI1400VXB-120P-80 2MBI1400VXB-120P-54	2MBI1400VXB-170E-50 2MBI1400VXB-170E-80 2MBI1400VXB-170E-54	2MBI1400VXB-170P-50 2MBI1400VXB-170P-80 2MBI1400VXB-170P-54
