TIME DELTA-C advanced type <FSVL>

Flow transmitter: FSVL Detector: FSS

Flow transmitter: FSVL
Detector: FSS

Flow transmitter: FSVL
Detector: FSS

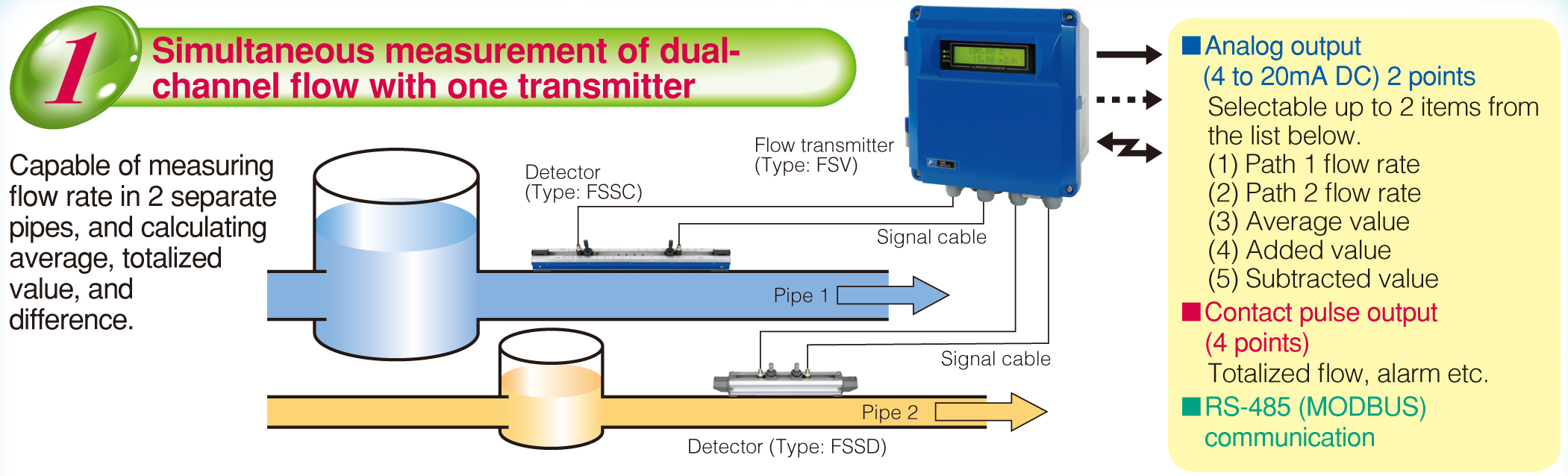

Simultaneous flow measurement of 2 pipes with one transmitter

Principle

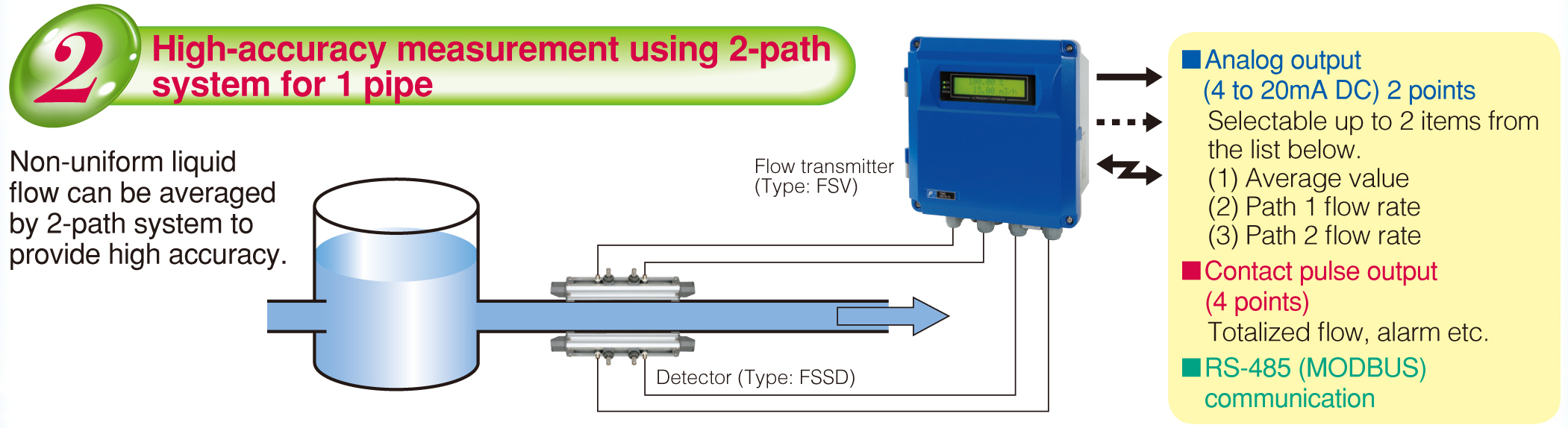

High accuracy measurement by 2-path system for 1 pipe

High accuracy measurement by 2-path system for 1 pipe

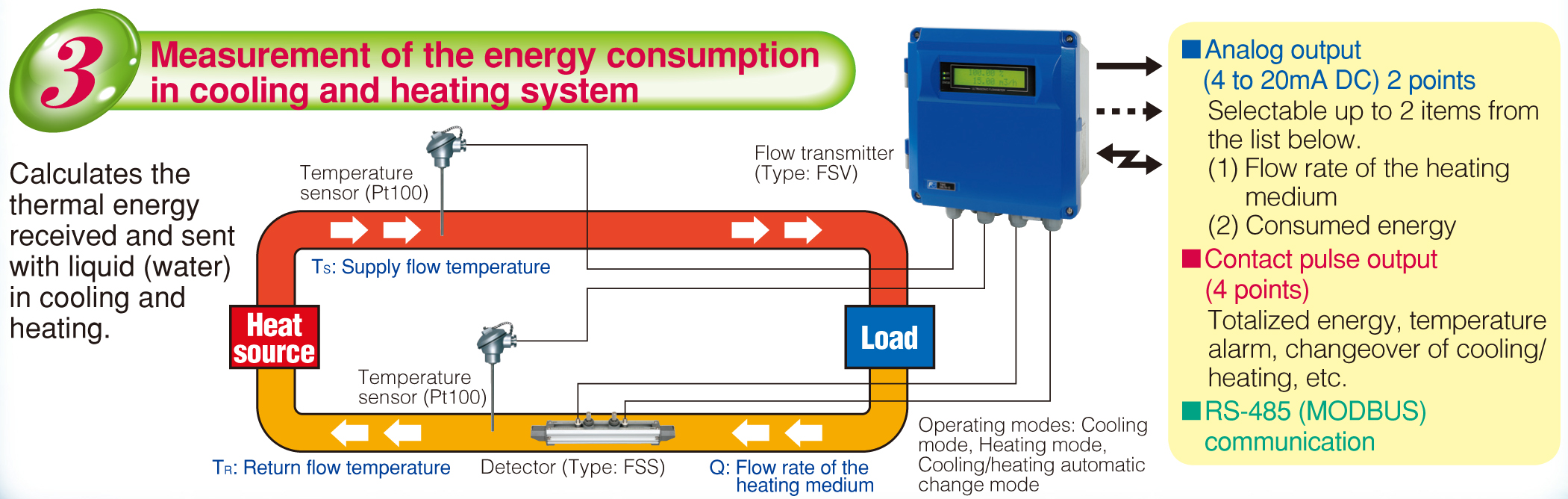

Measurement of energy consumption in cooling and heating system

Measurement of energy consumption in cooling and heating system

Detector type

Detector Inner diameter (mm) Fluid temperature (°C)
FSSA 25 to 225 -20 to 100
FSSC 50 to 1200 -40 to 120
FSSD 13 to 100 -40 to 100
FSSE 200 to 6000 -40 to 80
FSSH 50 to 400 -40 to 200
Parameter loader software
  • Supported OS: Windows 2000/XP/7/8

Ultrasonic Flowmeters

Spool piece ultrasonic flowmeter <FST>

Spool piece ultrasonic flowmeter <FST>

Three pairs of sensors for accuracy of ±0.2% of rate
Ex-proof version available

Portable Ultrasonic Flowmeter <FSC>

Portable Ultrasonic Flowmeter <FSC>

Highly accurate and non-contact measurement<br> Ideal for multi-point measurement in the field

TIME DELTA-C <FSV>

TIME DELTA-C <FSV>

Highly accurate and non-contact measurement<br> For pipes ⌀13–⌀6000 mm

TIME DELTA-C advanced type <FSVL>

TIME DELTA-C advanced type <FSVL>

Highly accurate and non-contact measurement<br> Offers consumed energy calculation, 2 pipe measurement, 2-path measurement for 1 pipe

M-Flow PW <FLR>

M-Flow PW <FLR>

Non-contact measurement Compact transmitter
For pipe diameter from 25 mm to 1200 mm

Ultrasonic Flowmeter for Air <FWD>

Ultrasonic Flowmeter for Air <FWD>

Non-contact measurement For pipes ⌀25–⌀200 mm
