Cross Stack Laser Gas Analyzer <ZSS>

Cross Stack Laser Gas Analyzer ZSS

Continuous monitoring of HCl, NH3, CO, CO2, CH4, and O2

  • Low maintenance
  • Low operating-cost: with no gas-sampling device and few parts to be replaced
  • Superior long-term stability
  • Fast response within 2 seconds
  • Tolerant to high temperature and high dust
  • Environment friendly: 80 VA, low power consumption
  • Analog output for transmittance is available
  • Compliant with RoHS directive (2011/65/EU)
  • Double-beam version for CO and O2 measurement available

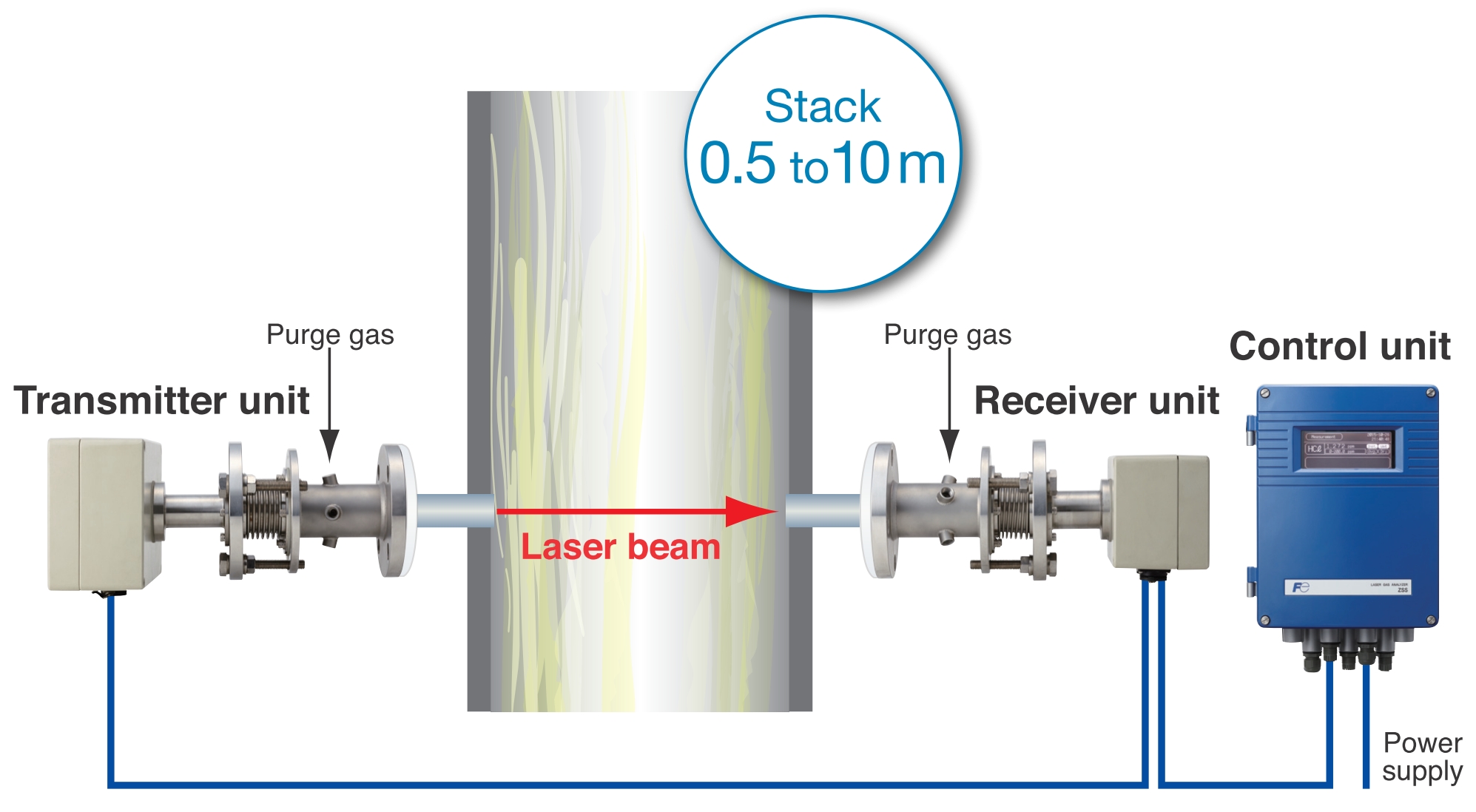

Installation example

Installation example

Fast response

Fast response

Specifications

Target gas HCl, NH3, CO, CO2, CH4, O2,
CO + CO2, CO + O2, HCl + H2O, NH3 + H2O
Principle Non-dispersion infrared (NDIR)
Installation Cross-stack
Laser class Class 1 (high temperature version O2 analyzer and instrument air purge version O2 analyzer fall under CLASS 3B)
Measurement range See Table 1 below.
Optical path length 0.5–10 m (CO + O2 analyzer: 0.5–5 m)
Repeatability ±1% FS (depending on component and range)
Zero drift ±2% FS per 6 months (depending on component and range)
Span drift ±3% FS per 6 months (depending on component and range)
Response speed (90% response) ≤ 4 s (≤ 2 s version available)
Analog output 4–20 mA DC or 1–5 V DC, 2 or 4 points
Measured value, O2-corrected value, transmittance
Analog input 4–20 mA DC, 2 points
Digital input (option) 3 points (Average value reset, switchover between instantaneous value and moving average value, remote hold)
Digital output 6 points (low light transmission, device failure, during hold / during calibration, H/L limit, environmental error, power interruption)
Power supply voltage 100–240 V AC, approx. 75 VA
Operating environment Receiver unit and transmitter unit: -20°C to 55°C
Control unit: -5°C to 45°C
RH 90% or less
Gas temperature See Table 1 below.
Dimensions (in mm) Receiver unit: 400 × 180 × 155
Transmitter unit: 400 × 240 × 160
Control unit: 137 × 255 × 440
Weight Receiver unit and transmitter unit: approx. 10 kg each
Control unit: approx. 8 kg
Mounting Receiver unit and transmitter unit: flange mount
Control unit: wall mount or pipe mount
Structure Outdoor use, dustproof and rainproof (IP65)

Table 1: Measurable components and ranges

Table 1: Measurable components and ranges
