Appearance

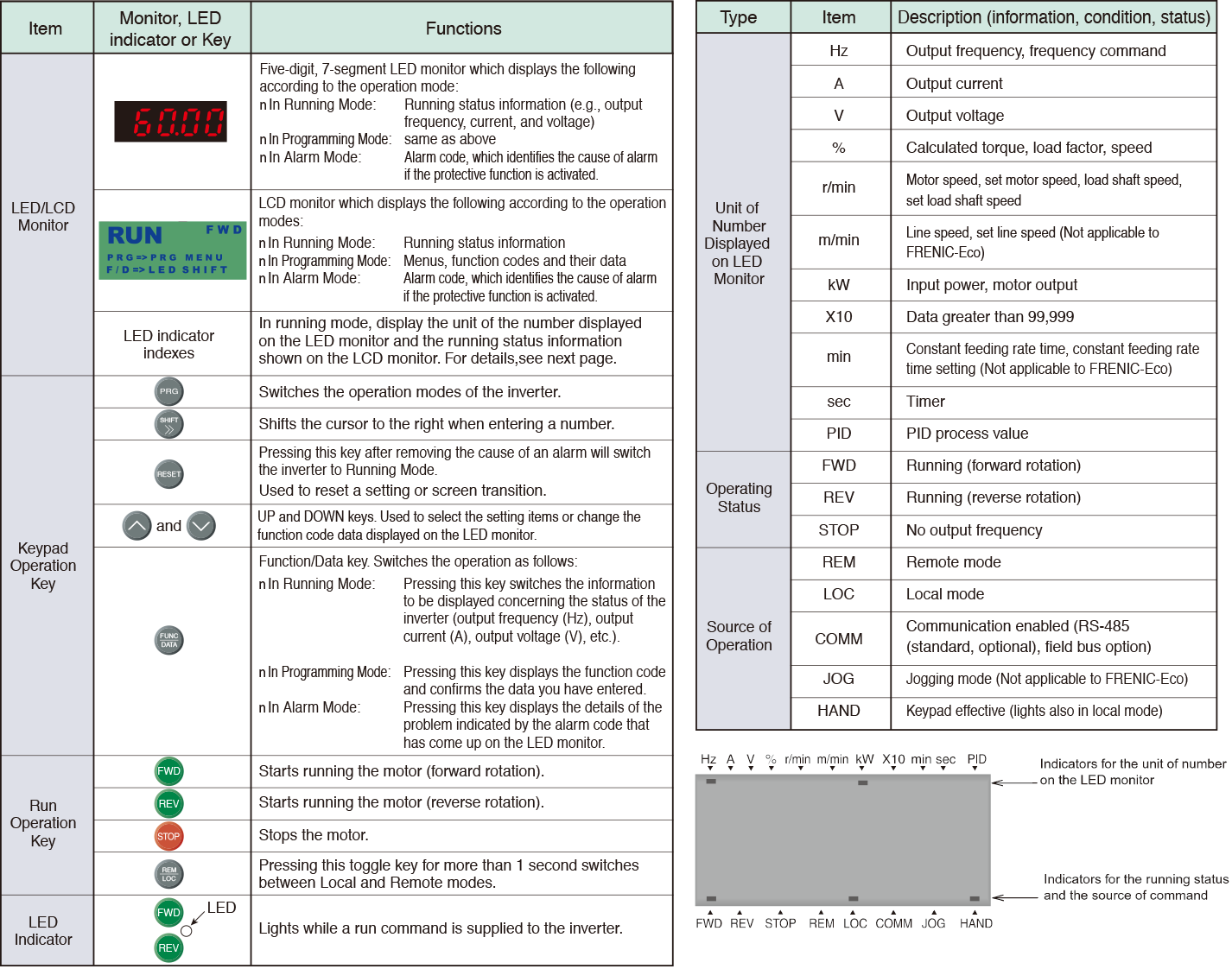

Monitor display & key operation

Monitor, keys/Operation mode Programming mode Running mode Alarm mode
STOP RUN STOP RUN
Monitor Function Displays the function code or data. Displays the output frequency, set frequency, loaded motor speed, required power, output current, and output voltage. Displays the alarm description and alarm history.
Display ON Blinking ON Blinking/ON
Function The program mode is indicated. Displays the unit of frequency, output current,
required power, speed, and line speed.
None
Display OFF
KEYPAD CONTROL Function Operation selection (keypad operation/terminal operation) is displayed.
Display Lit in keypad operation mode
RUN Function Absence of operation command is displayed. Presence of operation command is displayed. Absence of operation command is displayed. Presence of operation command is displayed. Stoppage due to trip is displayed.
Display RUN unlit RUN lit RUN unlit RUN lit If an alarm occurs during operation, unlit during keypad operation or lit during terminal block operation.
Keys Function Switches to running mode Switches to programming mode Releases the trip and switches to stop mode
or running mode.
Digit shift (cursor movement) in data setting
Function Determines the function code, stores and updates data. Switches the LED monitor display. Displays the operation information.
Function Increases/decreases the function code and data. Increases/decreases the frequency,
motor speed and other settings.
Displays the alarm history.
Function Invalid Starts running (switches to running mode (RUN)). Invalid Invalid
Function Invalid Deceleration stop (Switches to programming mode STOP). Invalid Deceleration stop (Switches to programming mode STOP). Invalid
