Overseas High Efficiency Regulations Compliant Motors (for Europe)

Three-phase Induction Motors

Motor Trends

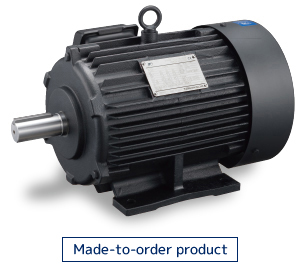

Three-phase Induction Motors

The Commission Regulation (EC) No.640/2009 has upgraded and enforced the motor efficiency class to IE3* (IEC60034-30-1:2014) in a step-by-step manner since January 1, 2015.
To comply with the New Legislative Framework (NLF),
the EU Directive was revised and the new Low Voltage Directive (2014/35/EU) has become mandatory since April 20, 2016.

IE3: Efficiency class (IE code) based on the international standard IEC 60034-30-1:2014

Overview of Regulations

Legal name Commission Regulation (EC) No.640/2009
(Europe) Commission Regulation
Compliance standard IEC60034-30-1:2014
Efficiency class IE3 or IE2+variable speed drive
Regulation effective date From January 1, 2015 From January 1, 2017
Applicable motors Housing structure Applies to all structure types.
Mounting method Unspecified
Output
* Indicated for the 4P specification.
7.5 to 375 kW 0.75 to 375 kW
Number of poles 2, 4, 6P
Voltage and frequency 1000 V or below, 50 Hz, 50/60 Hz
Rating S1 (continuous), S3 80% ED (repetitive)
Load factor 100%
Speed Single speed
Characteristics Unspecified
Certification system  Acquisition obligations No
Labeling obligations Yes * Indication of the efficiency class, efficiency value and CE marking on the motor specification nameplate
Penal provisions No
Regulation exempt (example)
  • Submersible motors
  • Motors that are integrated into equipment (pumps, fans, compressors, gear boxes, etc.), thus cannot be separated and individually tested.
  • Special environment motors (in an environment where the altitude exceeds 4000 m above the sea level, an environment where the ambient temperature exceeds 60℃, an environment where the maximum operation temperature exceeds 400℃, an environment where the ambient temperature is lower than -30°C; with the water-cooled motors, in an environment where the temperature is lower than 0℃ or in an environment such as explosive atmosphere)
  • Brake Motors

Efficiency Reference Values

Efficiency Reference Values

Output [kW] 50 Hz 60 Hz
2P 4P 6P 2P 4P 6P
0.75 80.7 82.5 78.9 77.0 83.5 82.5
1.1 82.7 84.1 81.0 84.0 86.5 87.5
1.5 84.2 85.3 82.5 85.5 86.5 88.5
2.2 85.9 86.7 84.3 86.5 89.5 89.5
3 87.1 87.7 85.6
3.7 88.5 89.5 89.5
4 88.1 88.6 86.8
5.5 89.2 89.6 88.0 89.5 91.7 91.0
7.5 90.1 90.4 89.1 90.2 91.7 91.0
11 91.2 91.4 90.3 91.0 92.4 91.7
15 91.9 92.1 91.2 91.0 93.0 91.7
18.5 92.4 92.6 91.7 91.7 93.6 93.0
22 92.7 93.0 92.2 91.7 93.6 93.0
30 93.3 93.6 92.9 92.4 94.1 94.1
37 93.7 93.9 93.3 93.0 94.5 94.1
45 94.0 94.2 93.7 93.6 95.0 94.5
55 94.3 94.6 94.1 93.6 95.4 94.5
75 94.7 95.0 94.6 94.1 95.4 95.0
90 95.0 95.2 94.9 95.0 95.4 95.0
110 95.2 95.4 95.1 95.0 95.8 95.8
132 95.4 95.6 95.4
150 95.4 96.2 95.8
160 95.6 95.8 95.6
185 to 1,000 95.8 96.2 95.8
200 to 1,000 95.8 96.0 95.8
(Note 1)
Intermediate output other than those output values mentioned above is also applicable.

Standard Specification

Housing structure Totally-enclosed fan-cooled type
Output 0.75 to 375 kW
Frame size 80M to 355K
Number of poles 2, 4, 6P
Rated voltage 400 V
Rated frequency 50 Hz
Time rating S1 (continuous)
Protection rating IP44
Starting method 3.7 kW or smaller: Direct-on-line starting 5.5 kW or larger: -△ starting 75 kW or larger: Direct-on-line starting
Thermal class 155 (F)
Direction of rotation CW (clockwise as seen from load side)
Cooling system IC411
Mounting method Leg mounting type
Ambient conditions Temperature -30℃ to +40°C
Humidity 100%RH max. (no condensation)
Altitude 1,000 m max.
Other No corrosive or explosive gas or vapor
Color of coating Munsell N1.2 (black)
Standard Applicable ICE60034-1:2010
Efficiency IEC60034-30-1:2014
(Note 1)
We can also manufacture products with a voltage of 200 V (at 50 Hz) or with other specifications.
(Note 2)
We can also manufacture products with a CCW (counterclockwise as seen from load side) direction of rotation.
(Note 3)
We can also manufacture products of outdoor type (IP55) or flange mounting type. Please inquire separately.

Specification Nameplates

Specification nameplate sample (Typical)

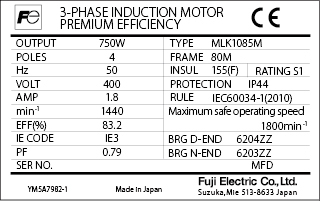

0.75 kW-4P products

Specification nameplate

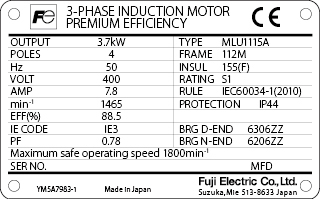

3.7kW-4P products

Specification nameplate
