FRENIC-Ace (E2)
Specifications | Common Specifications
-

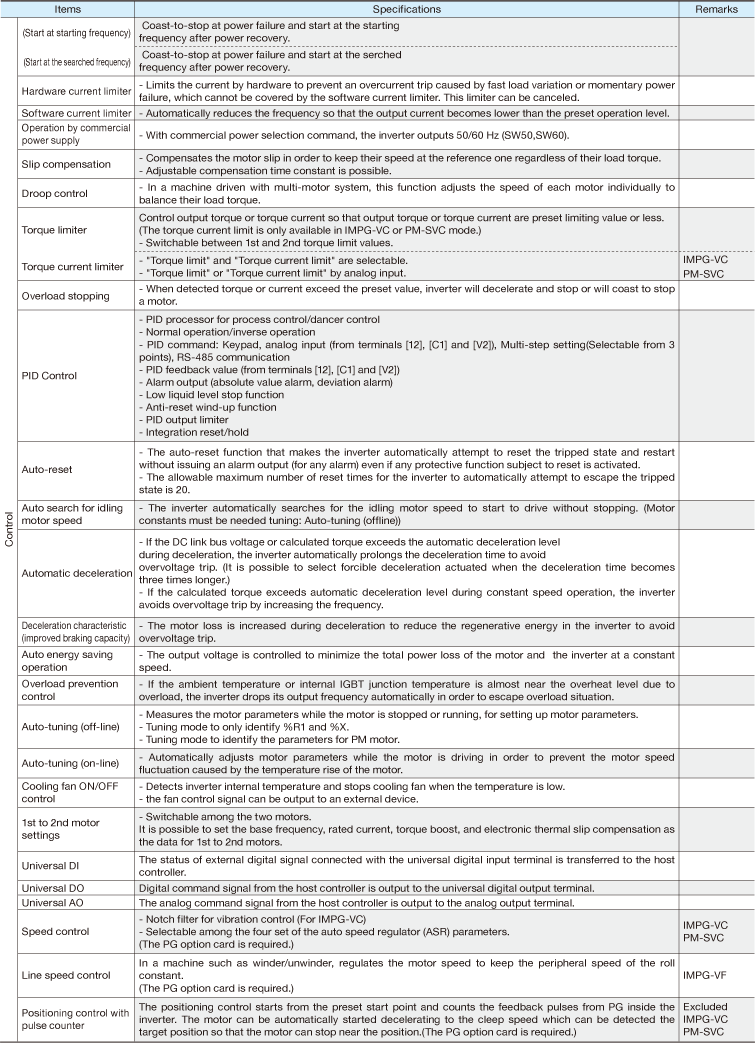

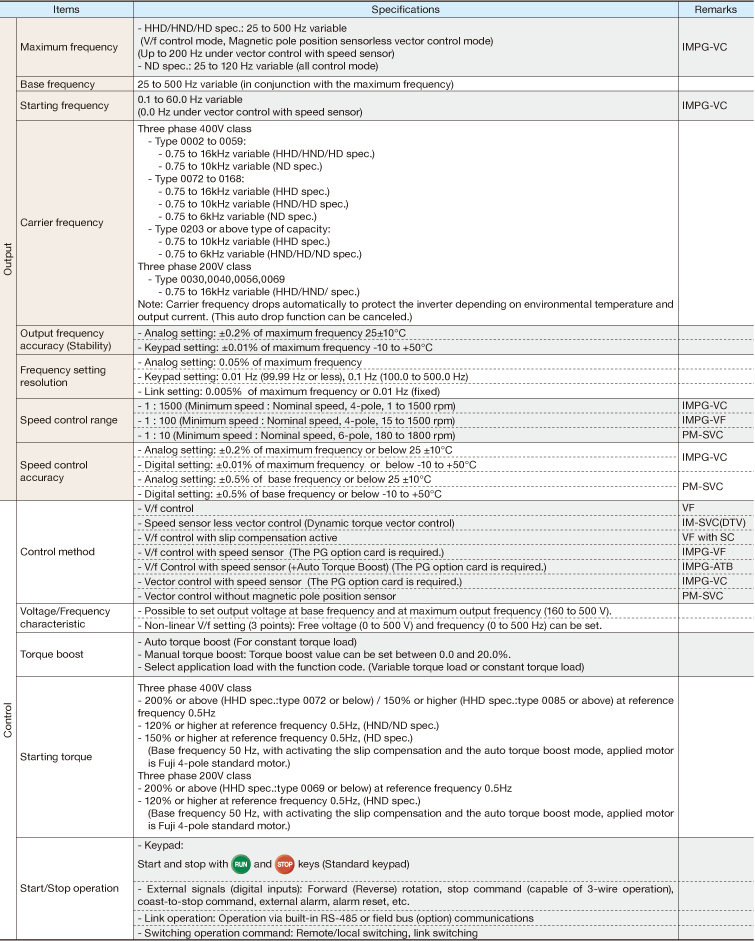

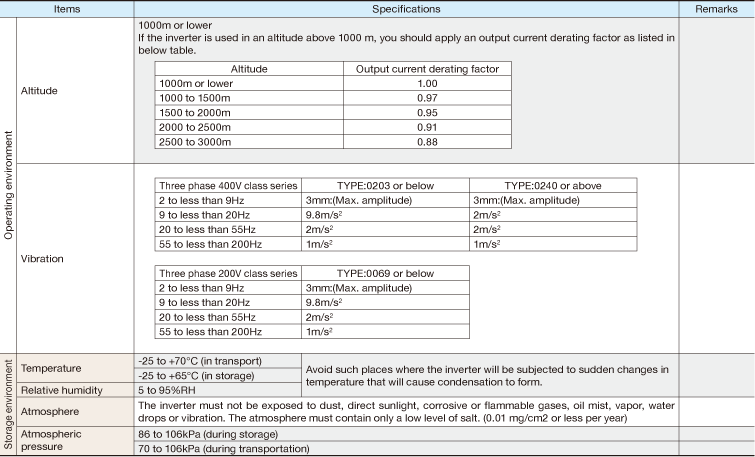

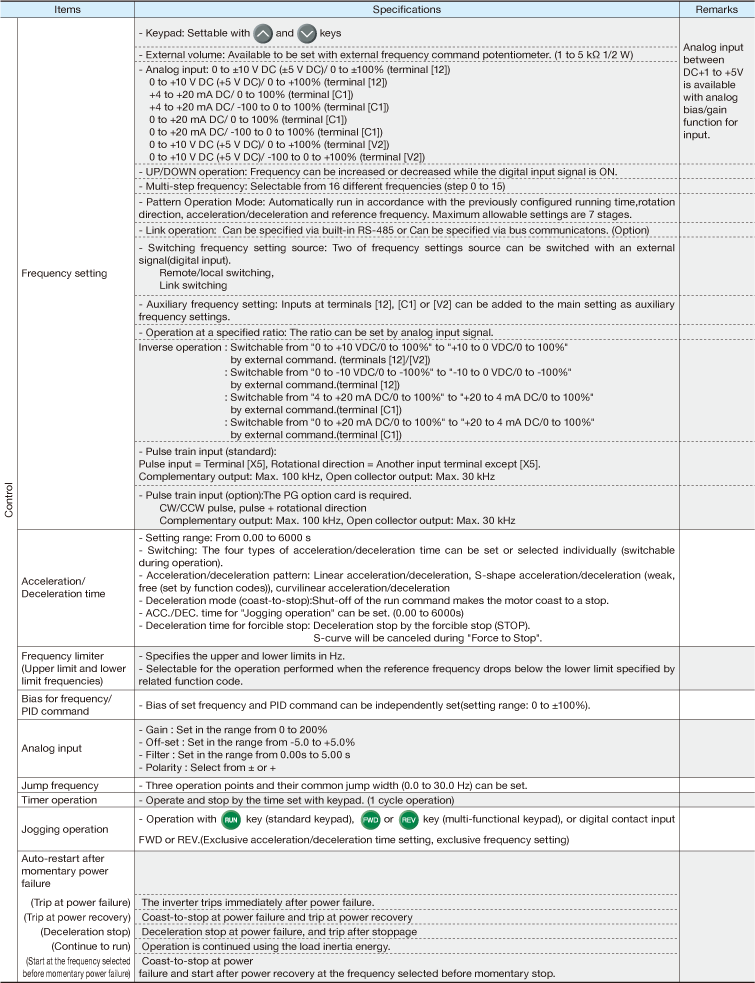

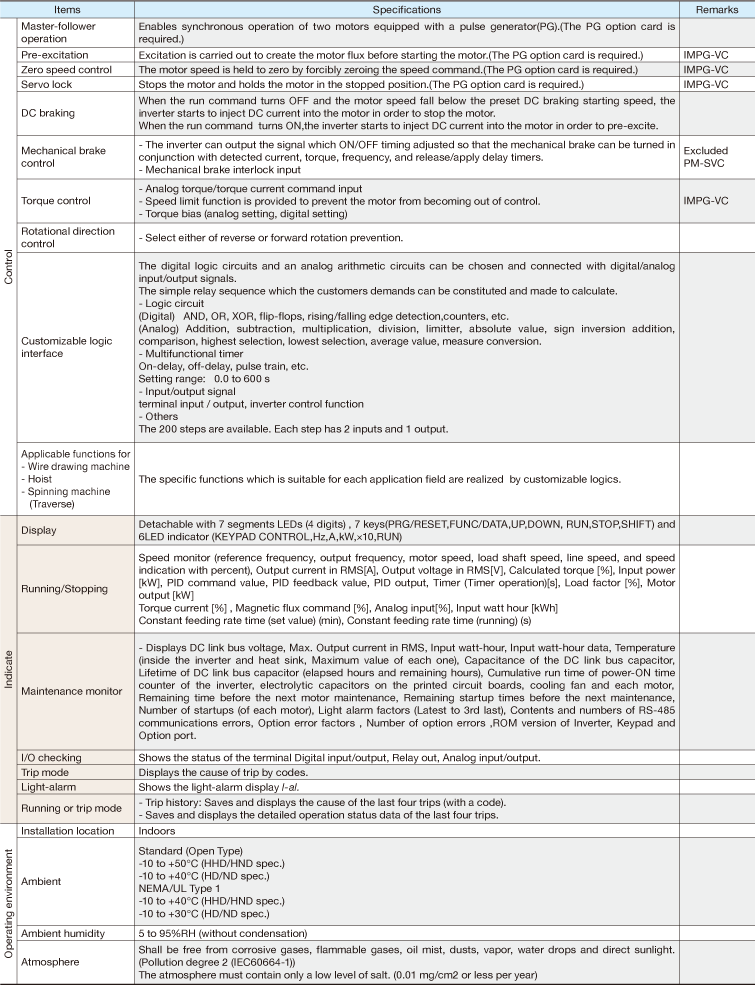

Common Specifications
Note : The meaning of the described abbreviations are shown as follows.
VF V/f control
IM-SVC(DTV) Speed sensorless vector control (Dynamic torque vector control)
VF with SC V/f control with slip compensation
IMPG-VF V/f control with speed sensor (The PG option card is required.)
IMPG-ATB V/f control with speed sensor (+Auto Torque Boost)(The PG option card is required.)
IMPG-VC Vector control with speed sensor (The PG option card is required.)
PM-SVC Magnetic pole position sensorless vector control
-
Common Specifications
Note : The meaning of the described abbreviations are shown as follows.
VF V/f control
IM-SVC(DTV) Speed sensorless vector control (Dynamic torque vector control)
VF with SC V/f control with slip compensation
IMPG-VF V/f control with speed sensor (The PG option card is required.)
IMPG-ATB V/f control with speed sensor (+Auto Torque Boost)(The PG option card is required.)
IMPG-VC Vector control with speed sensor (The PG option card is required.)
PM-SVC Magnetic pole position sensorless vector control
-
Common Specifications
Note : The meaning of the described abbreviations are shown as follows.
VF V/f control
IM-SVC(DTV) Speed sensorless vector control (Dynamic torque vector control)
VF with SC V/f control with slip compensation
IMPG-VF V/f control with speed sensor (The PG option card is required.)
IMPG-ATB V/f control with speed sensor (+Auto Torque Boost)(The PG option card is required.)
IMPG-VC Vector control with speed sensor (The PG option card is required.)
PM-SVC Magnetic pole position sensorless vector control
-
Common Specifications
Note : The meaning of the described abbreviations are shown as follows.
VF V/f control
IM-SVC(DTV) Speed sensorless vector control (Dynamic torque vector control)
VF with SC V/f control with slip compensation
IMPG-VF V/f control with speed sensor (The PG option card is required.)
IMPG-ATB V/f control with speed sensor (+Auto Torque Boost)(The PG option card is required.)
IMPG-VC Vector control with speed sensor (The PG option card is required.)
PM-SVC Magnetic pole position sensorless vector control
-
Common Specifications
Note : The meaning of the described abbreviations are shown as follows.
VF V/f control
IM-SVC(DTV) Speed sensorless vector control (Dynamic torque vector control)
VF with SC V/f control with slip compensation
IMPG-VF V/f control with speed sensor (The PG option card is required.)
IMPG-ATB V/f control with speed sensor (+Auto Torque Boost)(The PG option card is required.)
IMPG-VC Vector control with speed sensor (The PG option card is required.)
PM-SVC Magnetic pole position sensorless vector control
-
Common Specifications
Note : The meaning of the described abbreviations are shown as follows.
VF V/f control
IM-SVC(DTV) Speed sensorless vector control (Dynamic torque vector control)
VF with SC V/f control with slip compensation
IMPG-VF V/f control with speed sensor (The PG option card is required.)
IMPG-ATB V/f control with speed sensor (+Auto Torque Boost)(The PG option card is required.)
IMPG-VC Vector control with speed sensor (The PG option card is required.)
PM-SVC Magnetic pole position sensorless vector control
-
Common Specifications
Note : The meaning of the described abbreviations are shown as follows.
VF V/f control
IM-SVC(DTV) Speed sensorless vector control (Dynamic torque vector control)
VF with SC V/f control with slip compensation
IMPG-VF V/f control with speed sensor (The PG option card is required.)
IMPG-ATB V/f control with speed sensor (+Auto Torque Boost)(The PG option card is required.)
IMPG-VC Vector control with speed sensor (The PG option card is required.)
PM-SVC Magnetic pole position sensorless vector control
